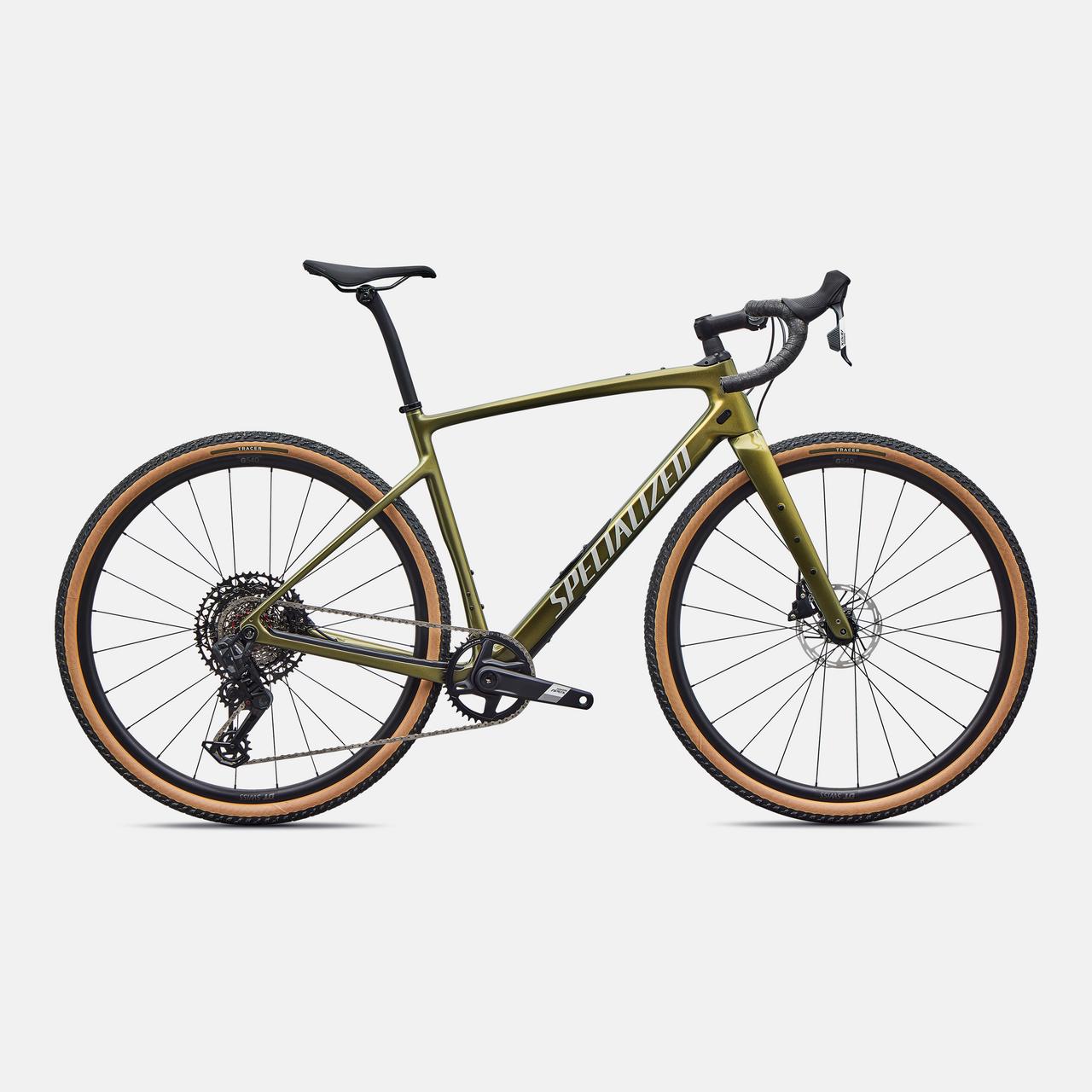

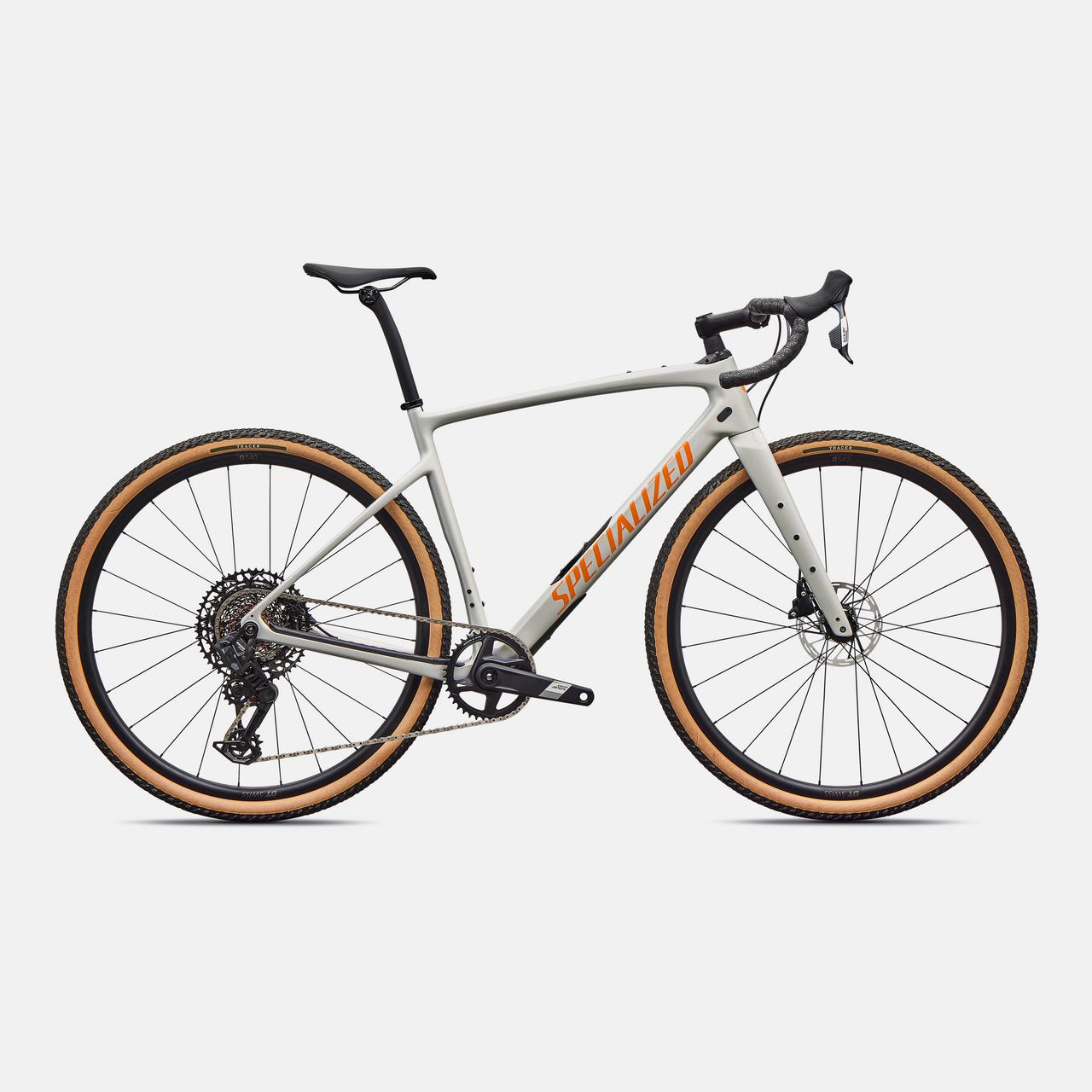

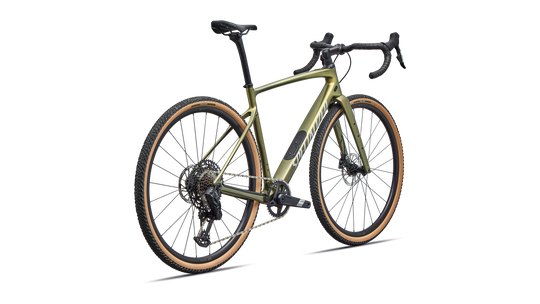

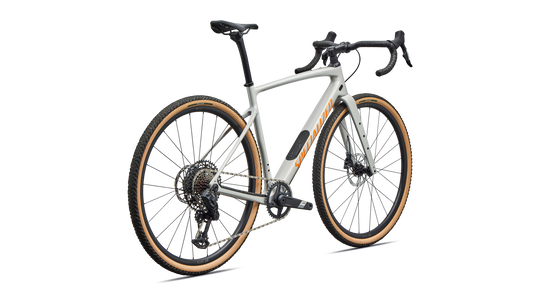

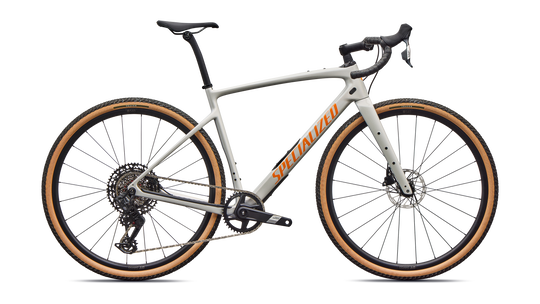

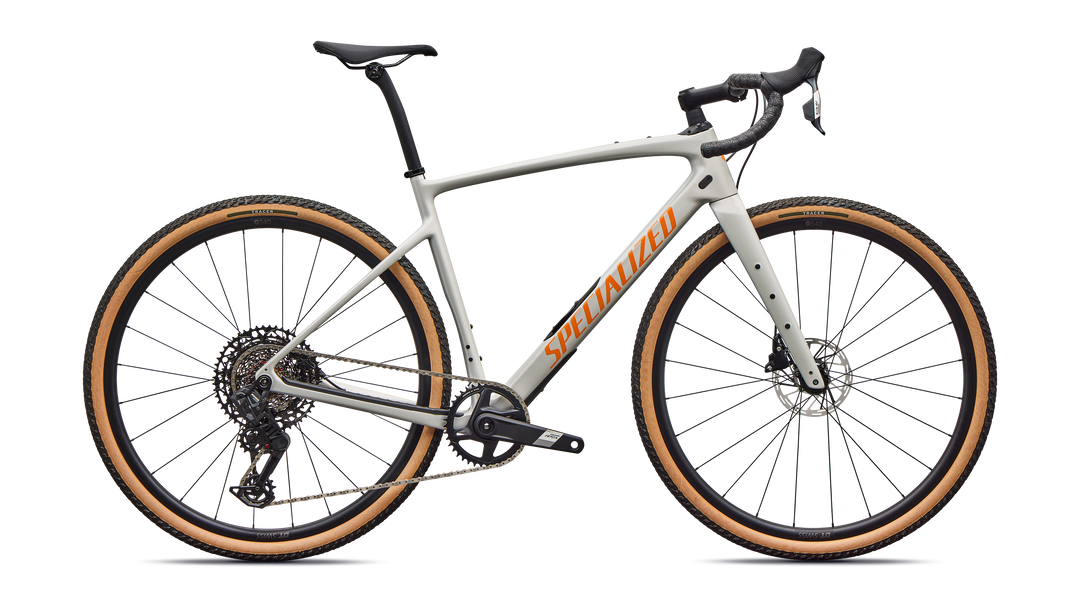

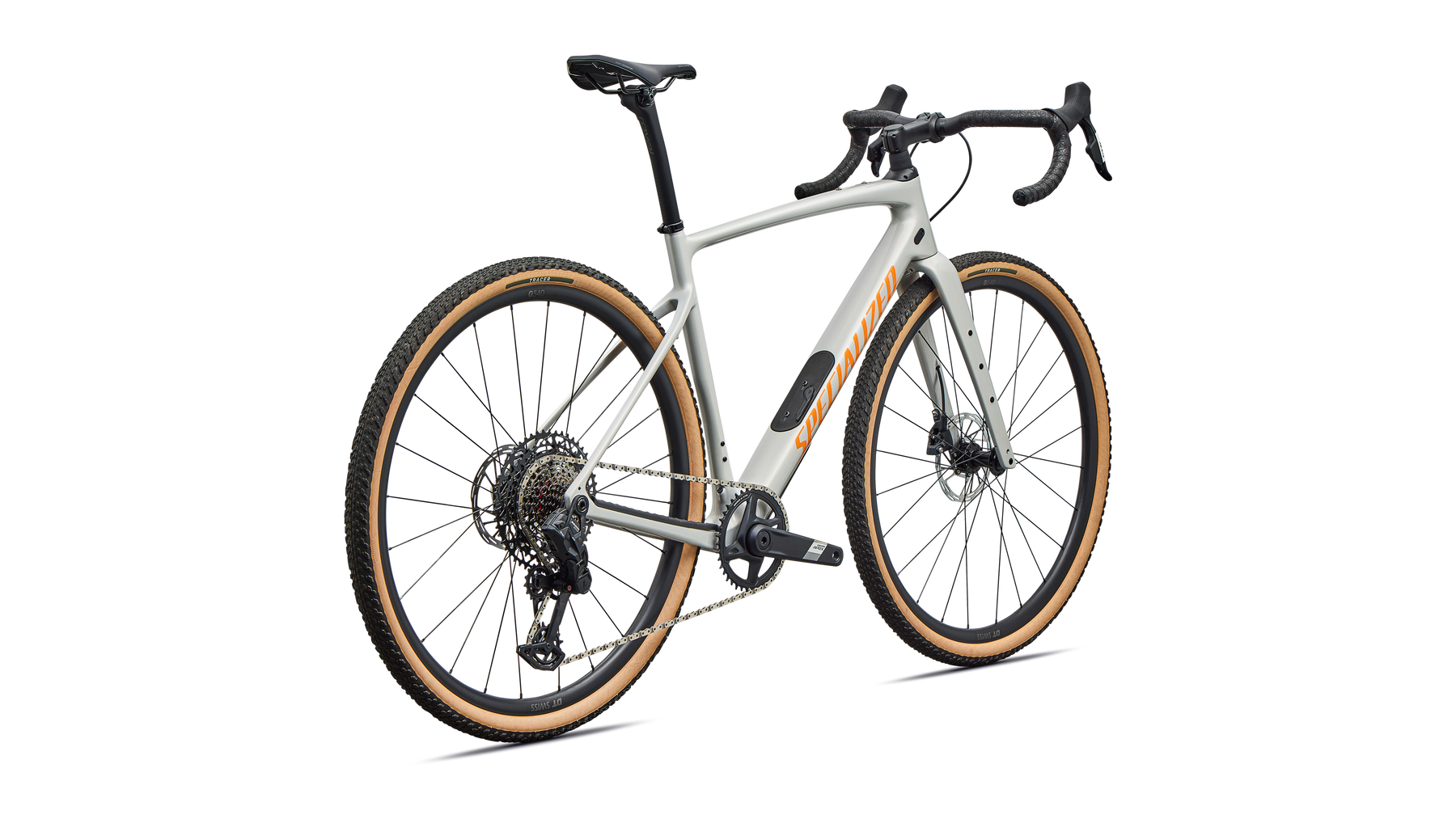

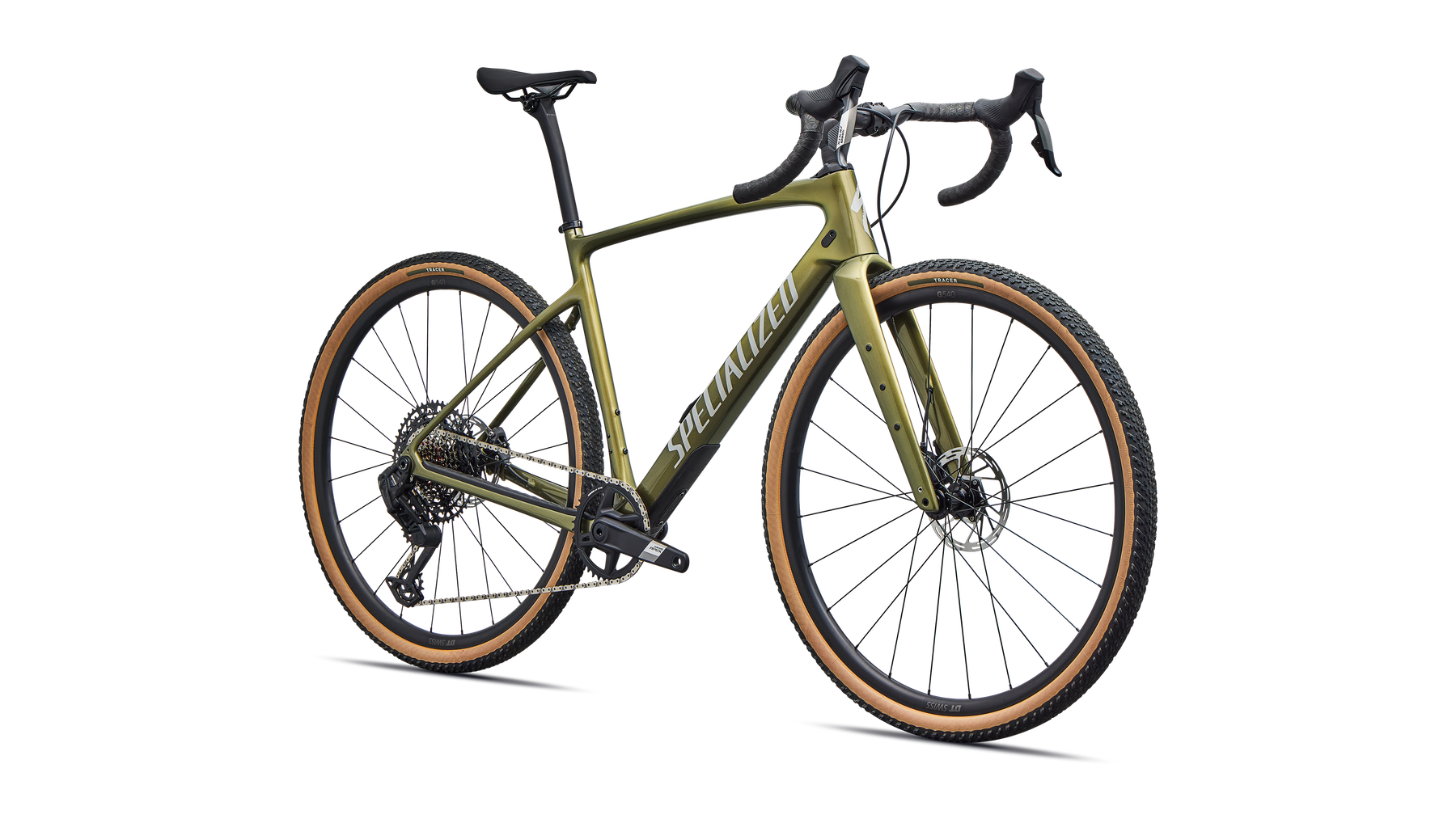

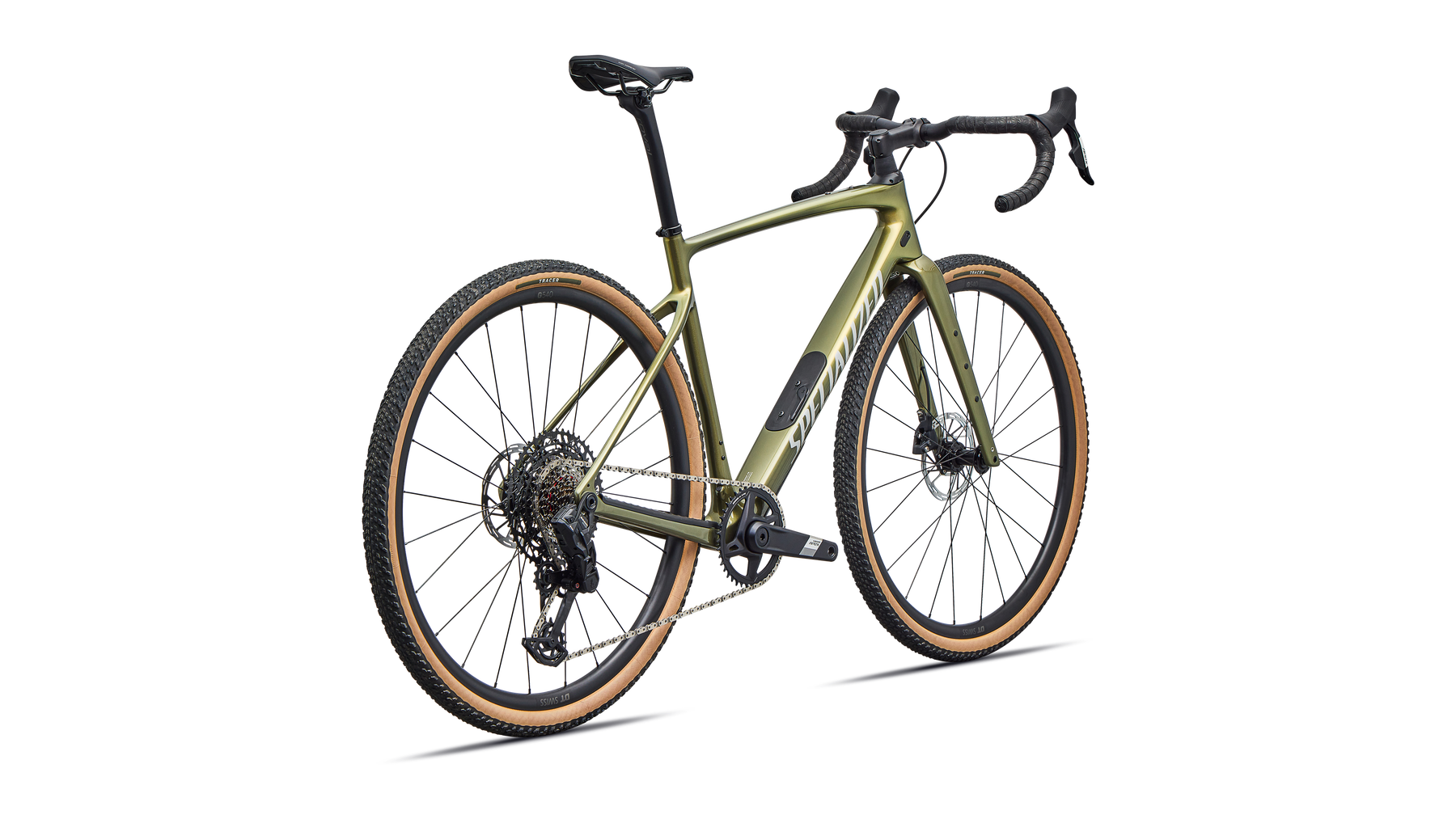

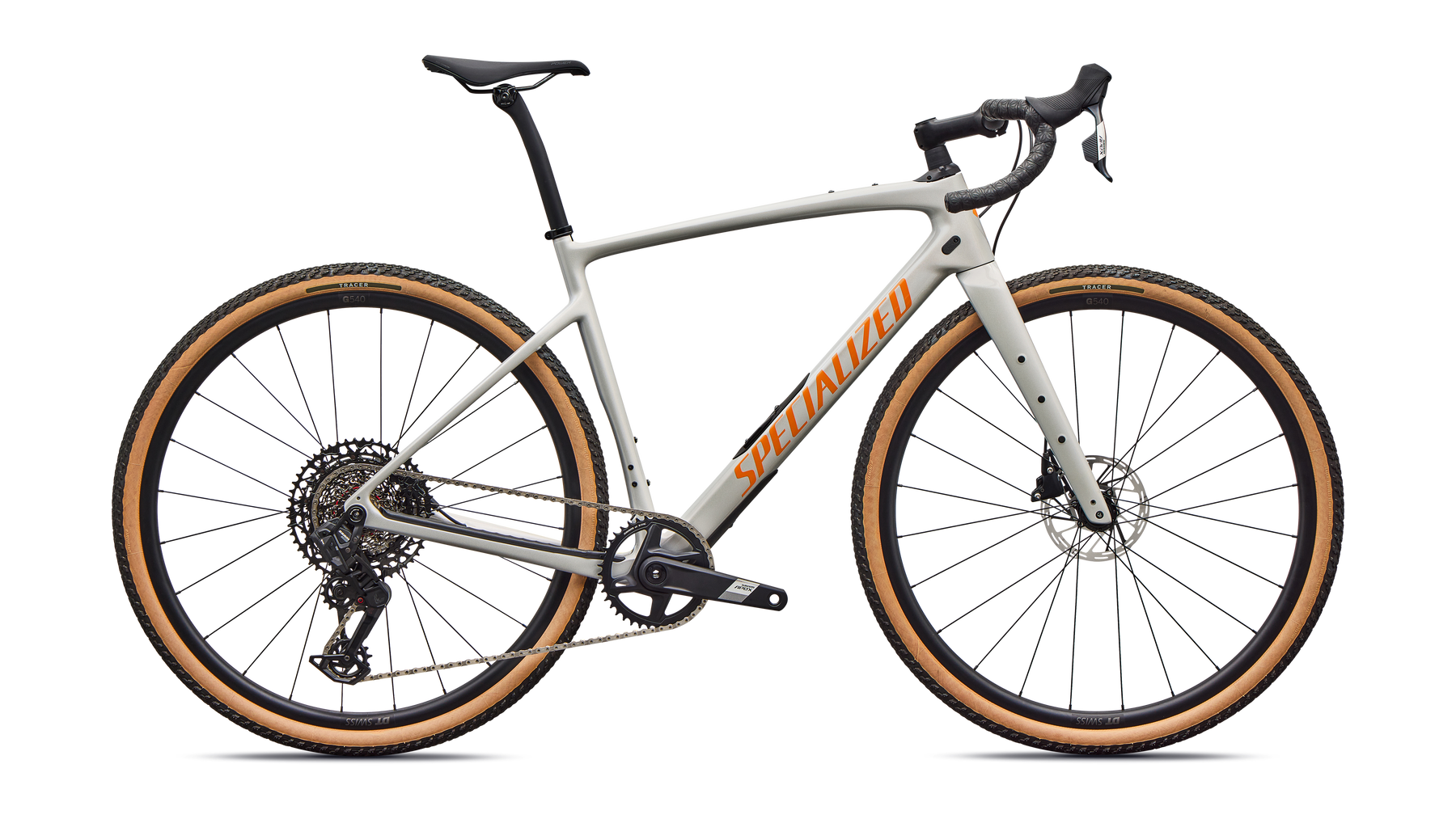

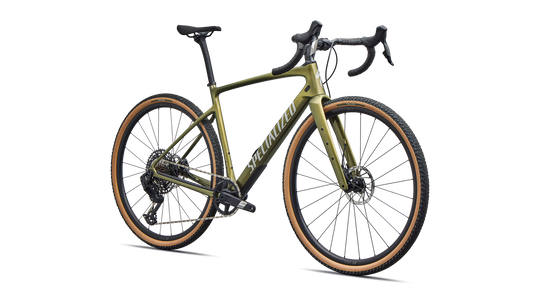

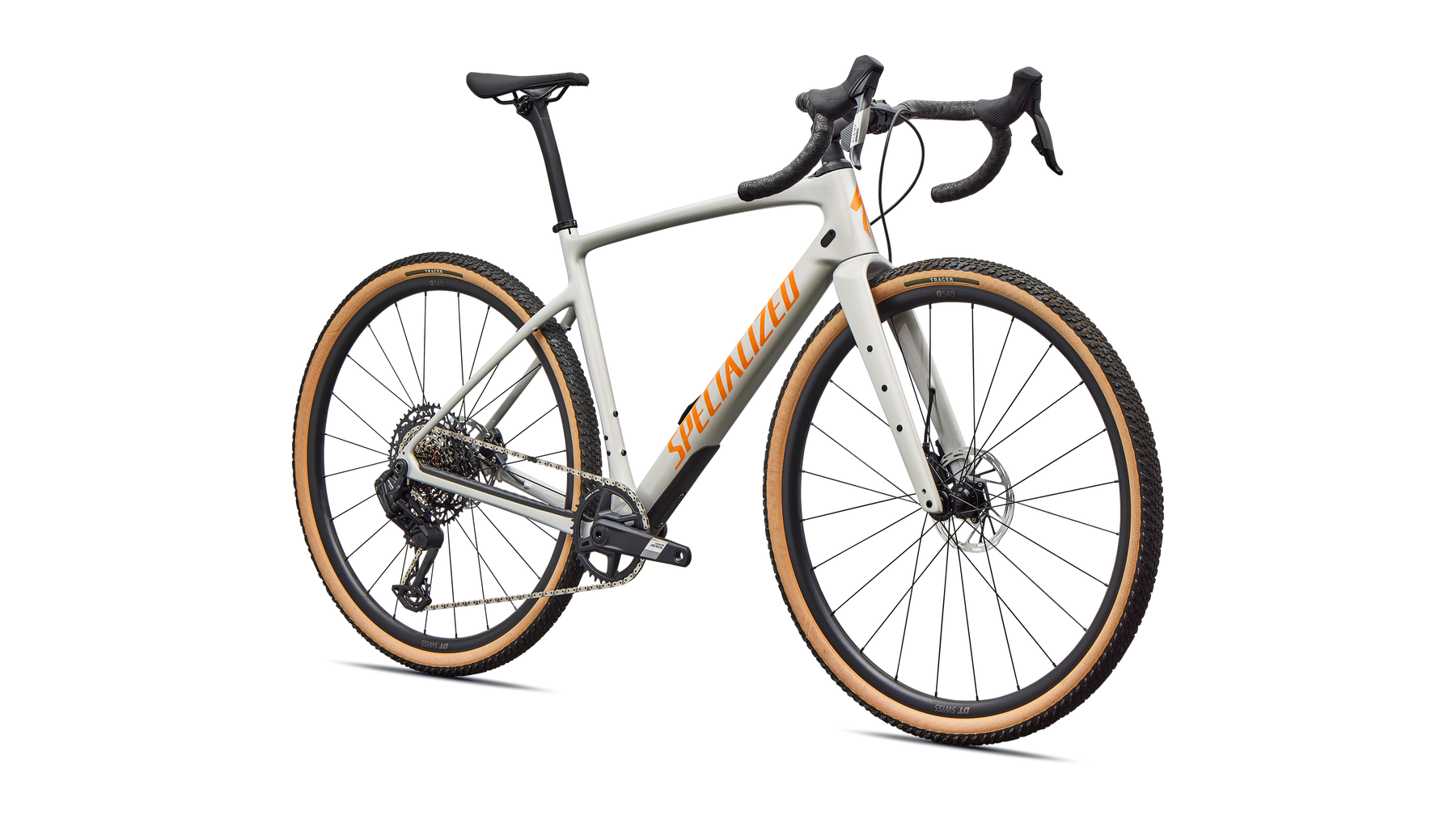

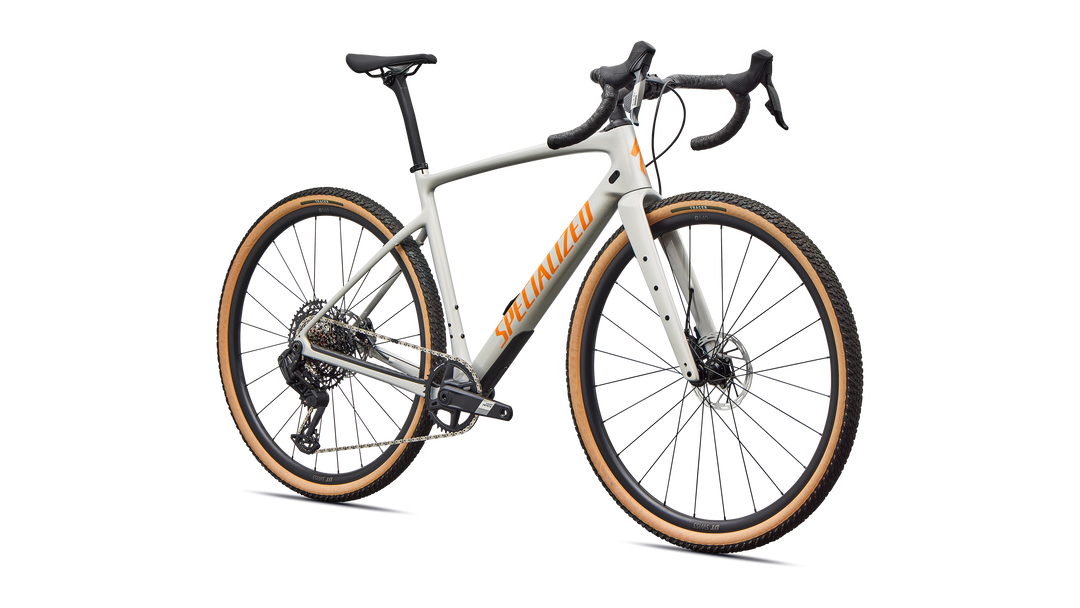

Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.
- Use - Gravel Adventure/Race
- Frameset - FACT 9r Carbon
- Suspension - Future Shock 3.2
- Drivetrain/Wheels - SRAM Apex AXS - S1000 / DT G540 Wheels
- Storage - SWAT 4.0
- 9.70kg
Frameset
- Frame
- Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
- Fork
- Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
- Front Brake
- SRAM Apex, hydraulic disc
- Rear Brake
- SRAM Apex, hydraulic disc
Drivetrain
- Cassette
- SRAM 1270 Transmission Cassette, 12 Spd,10-52t
- Shift Levers
- SRAM Apex AXS
- Crankset
- SRAM Apex DUB Wide, 40t
- Chain
- SRAM GX T-Type 12 speed
- Bottom Bracket
- SRAM DUB BSA 68 Wide
- Rear Derailleur
- SRAM S-1000 Eagle AXS Transmission
Wheels & tires
- Front Wheel
- DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
- Rear Wheel
- DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
- Front Tire
- Tracer 700x45, Tan Sidewall, Tubeless Ready
- Rear Tire
- Tracer 700x45, Tan Sidewall, Tubeless Ready
- Inner Tubes
- Presta, 700x32-50mm

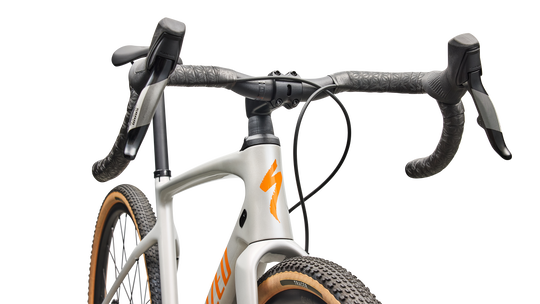

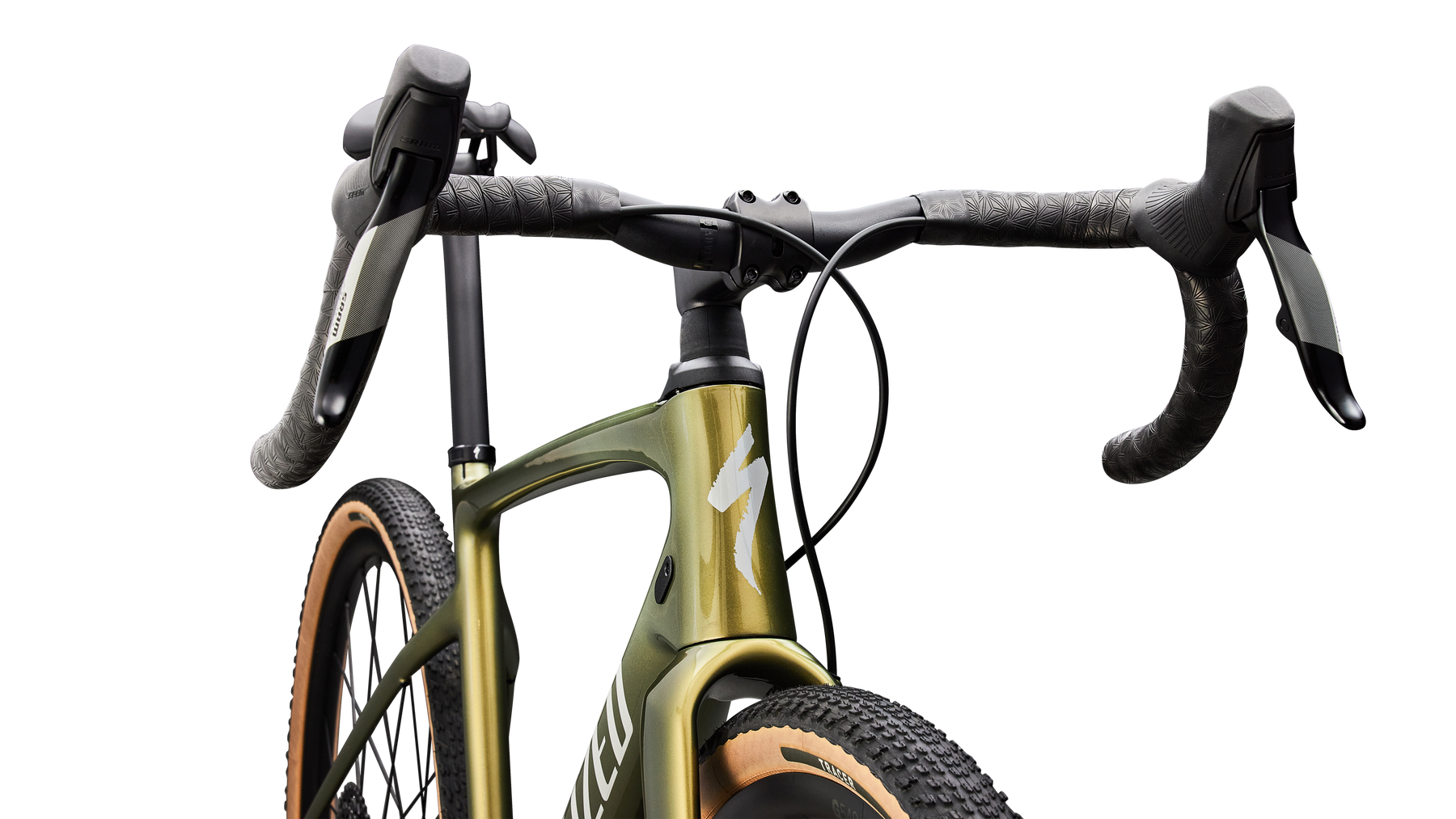

Cockpit
- Saddle
- Body Geometry Power Sport, steel rails
- Stem
- Future Stem, Comp
- SeatPost
- Roval Terra Carbon Seat Post, 20mm Offset

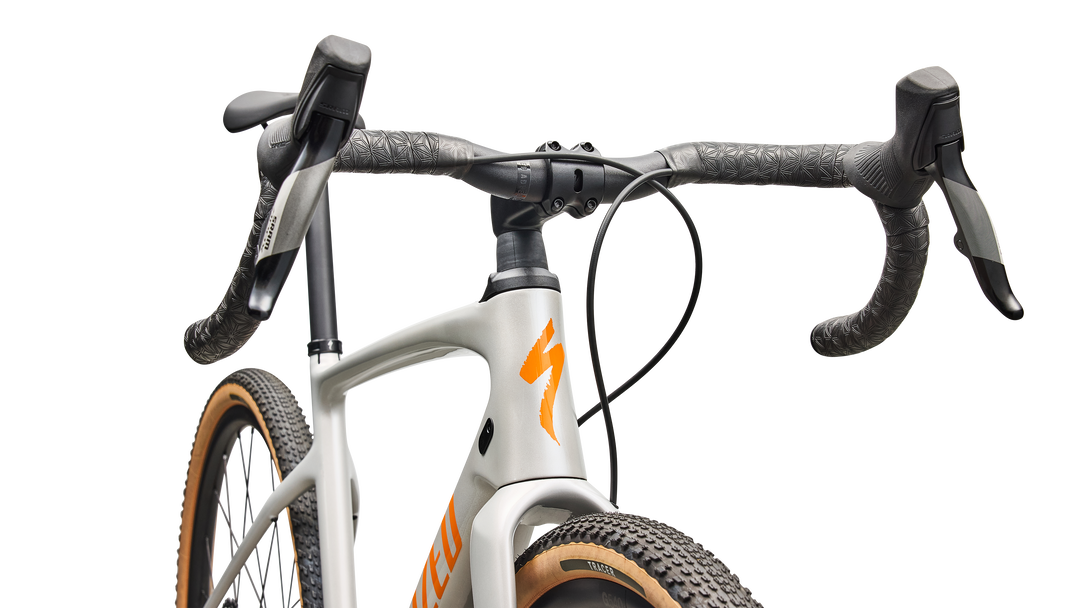

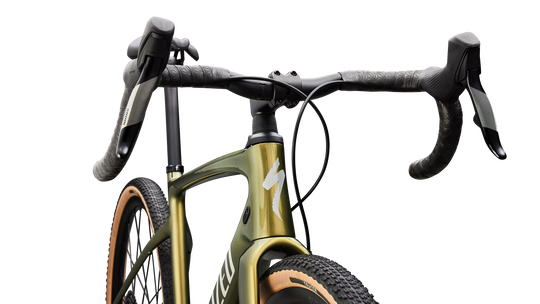

- Handlebars
- Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
- Seat Binder
- Specialized Alloy, 30.8mm
- Tape
- Supacaz Super Sticky Kush
Accessories
- SWAT
- SWAT 4.0 internal downtube storage
Product details
- Product ID
- 223513
Weight
- Weight Size
- 56
- Weight
- 9.7 kg (21 lb, 6.2 oz)
| 49 | 52 | 54 | 56 | 58 | 61 | |
| Crank Length | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 60 | 70 | 80 | 90 | 100 | 100 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 330 | 330 | 380 | 380 | 380 | 380 |
| Stack | 563 | 578 | 592 | 610 | 634 | 659 |
| Reach | 365 | 374 | 387 | 400 | 412 | 425 |
| Head Tube Length | 90 | 104 | 116 | 135 | 161 | 187 |
| Head Tube Angle | 70 | 70.5 | 71 | 71 | 71 | 71 |
| BB Drop | 85 | 85 | 85 | 85 | 85 | 85 |
| Trail | 72 | 68 | 65 | 65 | 65 | 65 |
| Fork Length, Full | 391 | 391 | 391 | 391 | 391 | 391 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Center | 604 | 613 | 626 | 645 | 665 | 686 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| Top Tube Length, Horizontal | 521 | 537 | 556 | 575 | 593 | 613 |
| Bike Standover Height | 700 | 725 | 754 | 779 | 805 | 832 |
| Seat Tube Length | 400 | 430 | 470 | 500 | 530 | 560 |
| Seat Tube Angle | 74.5 | 74 | 74 | 74 | 74 | 74 |
