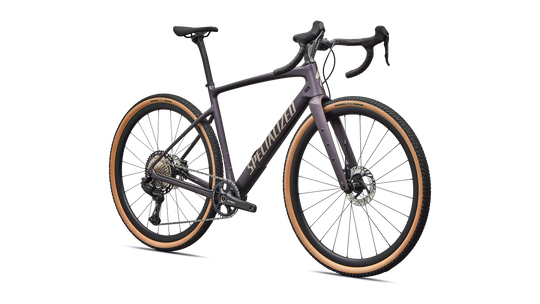

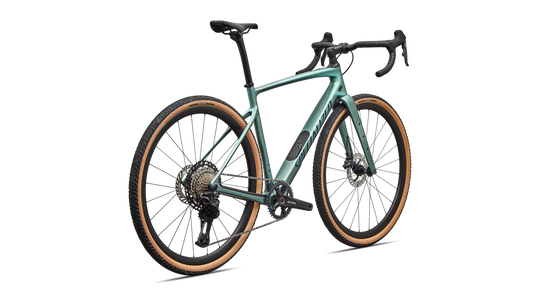

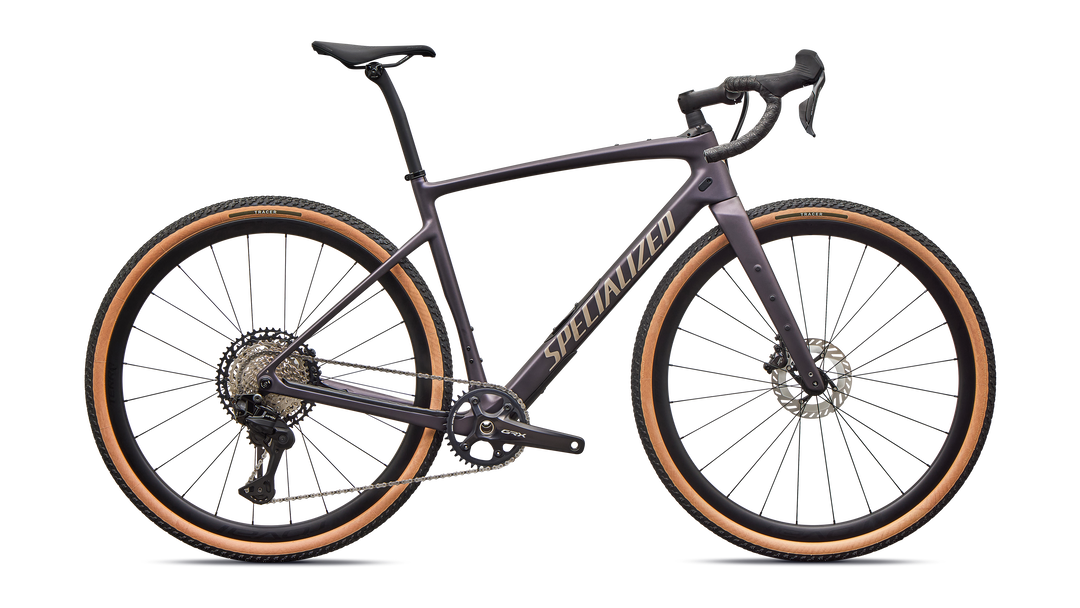

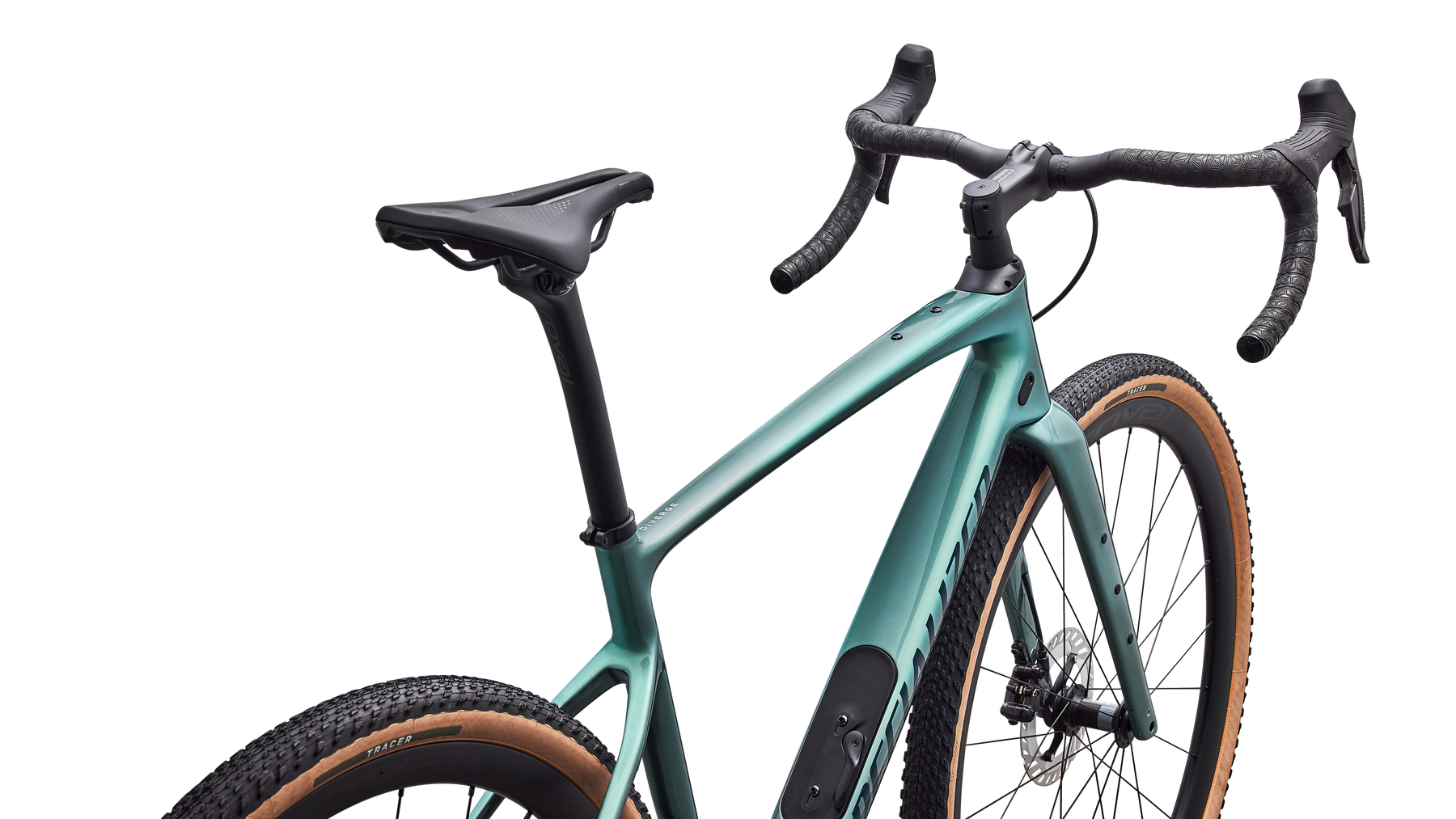

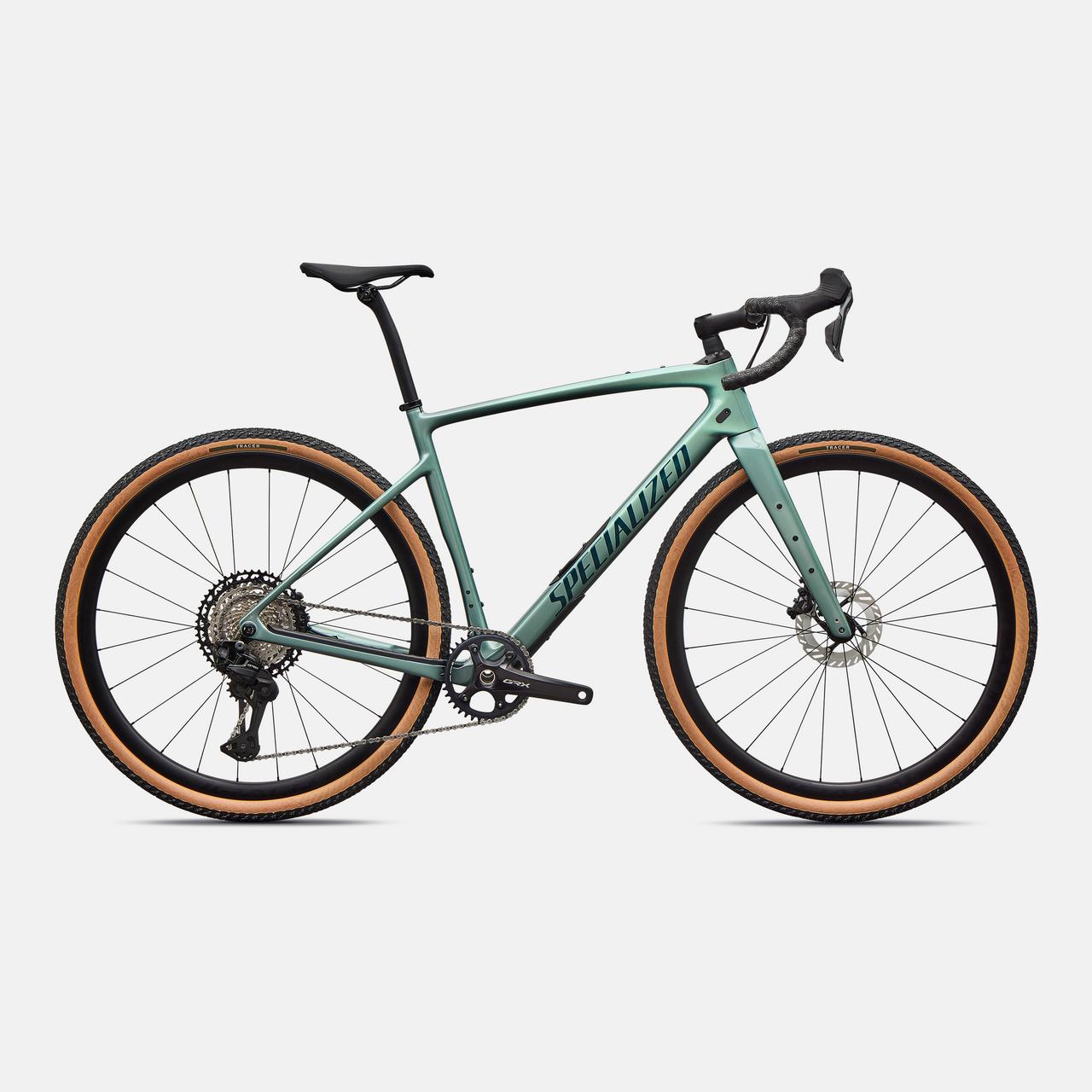

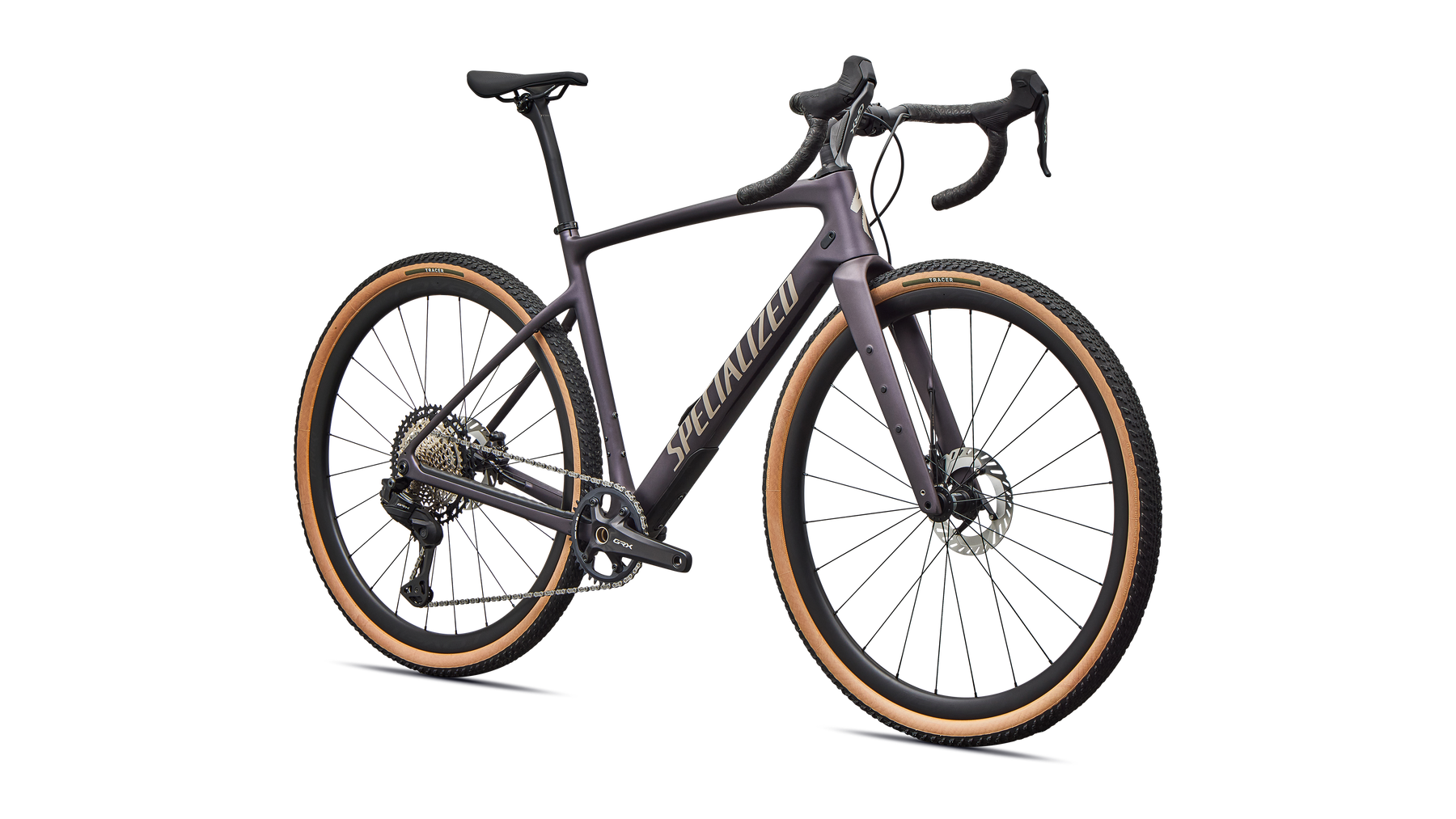

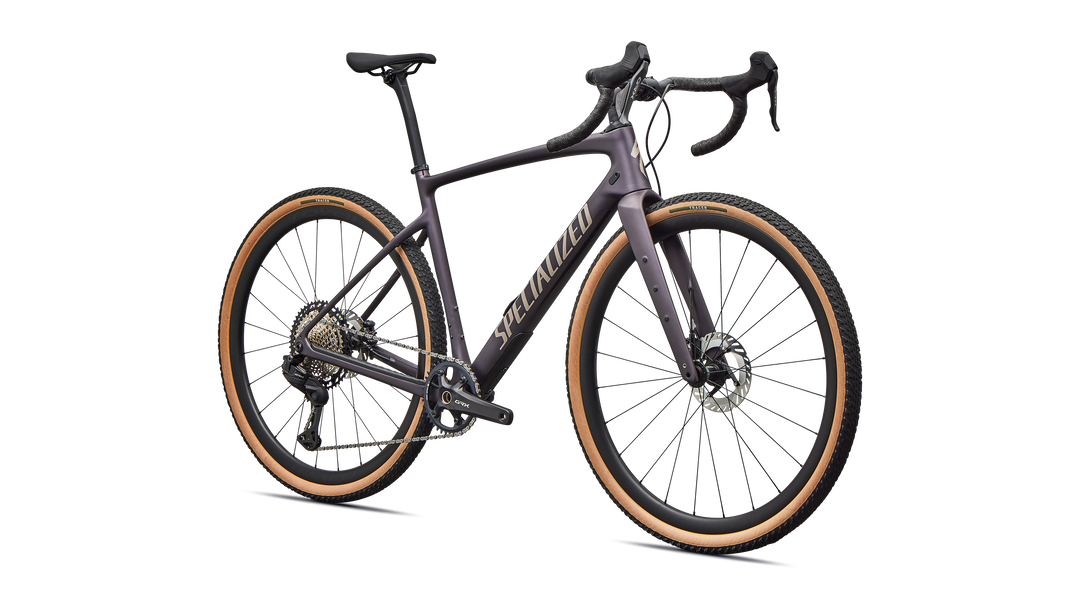

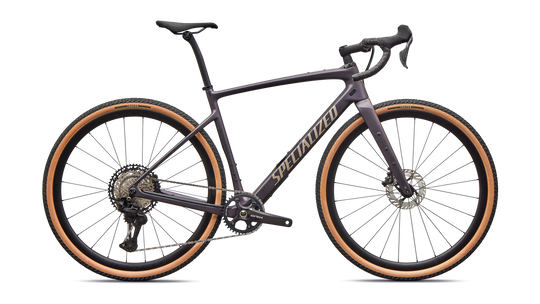

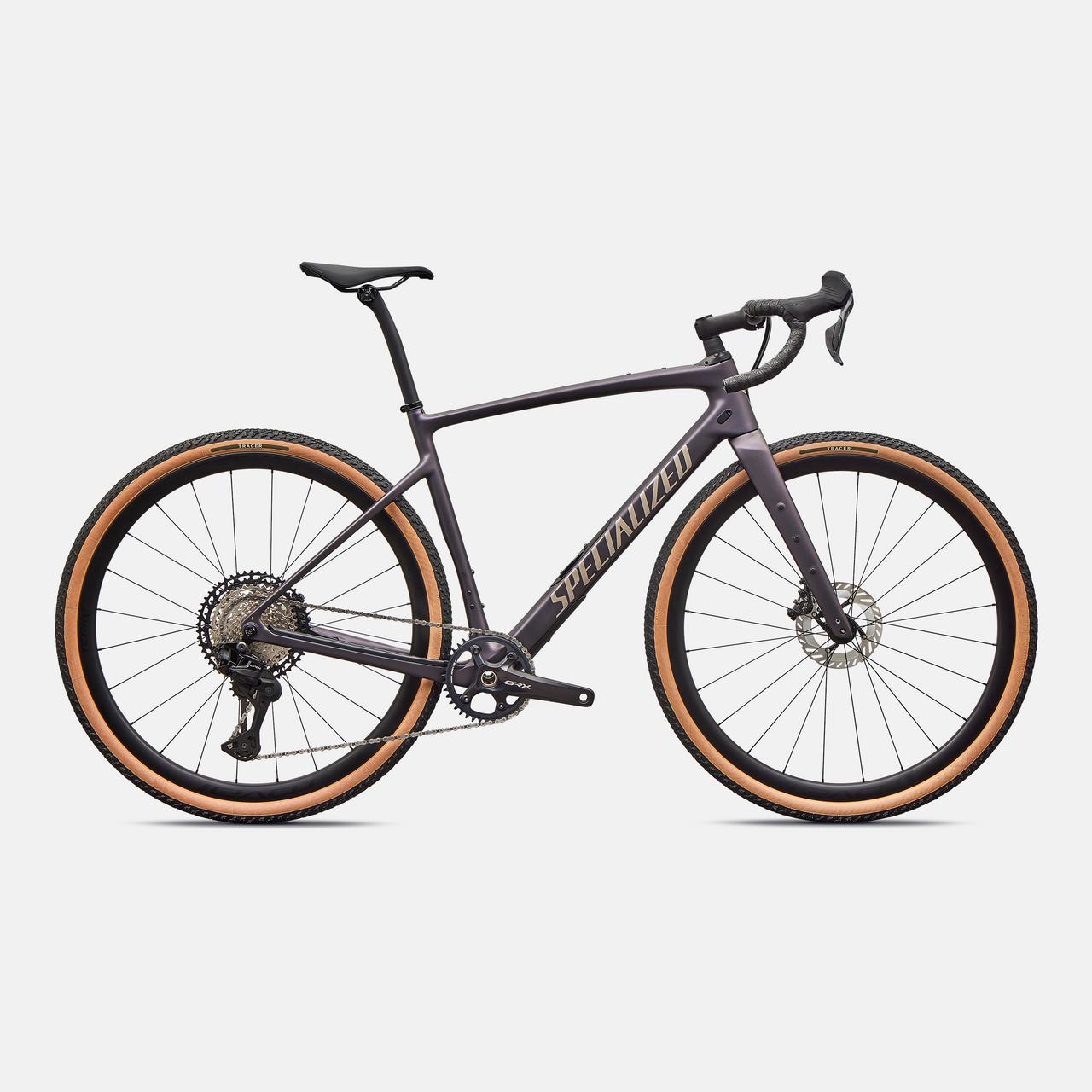

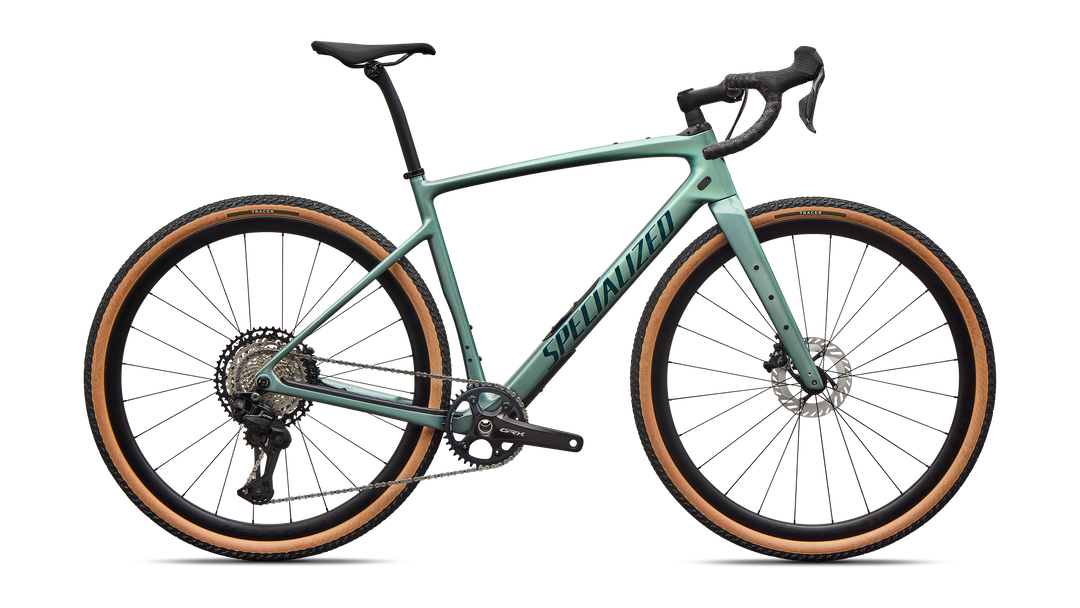

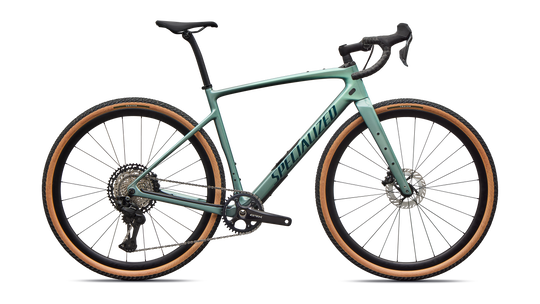

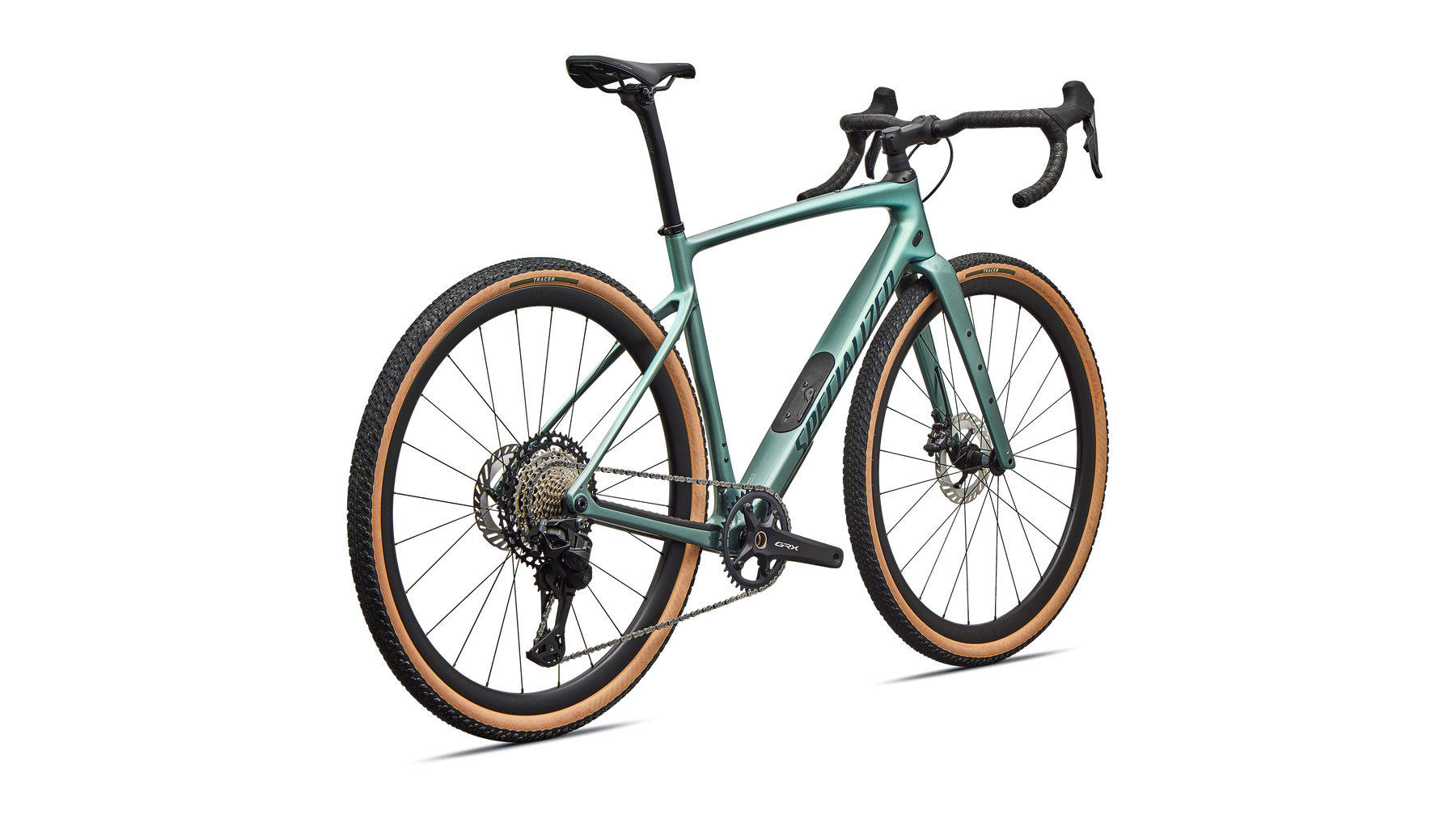

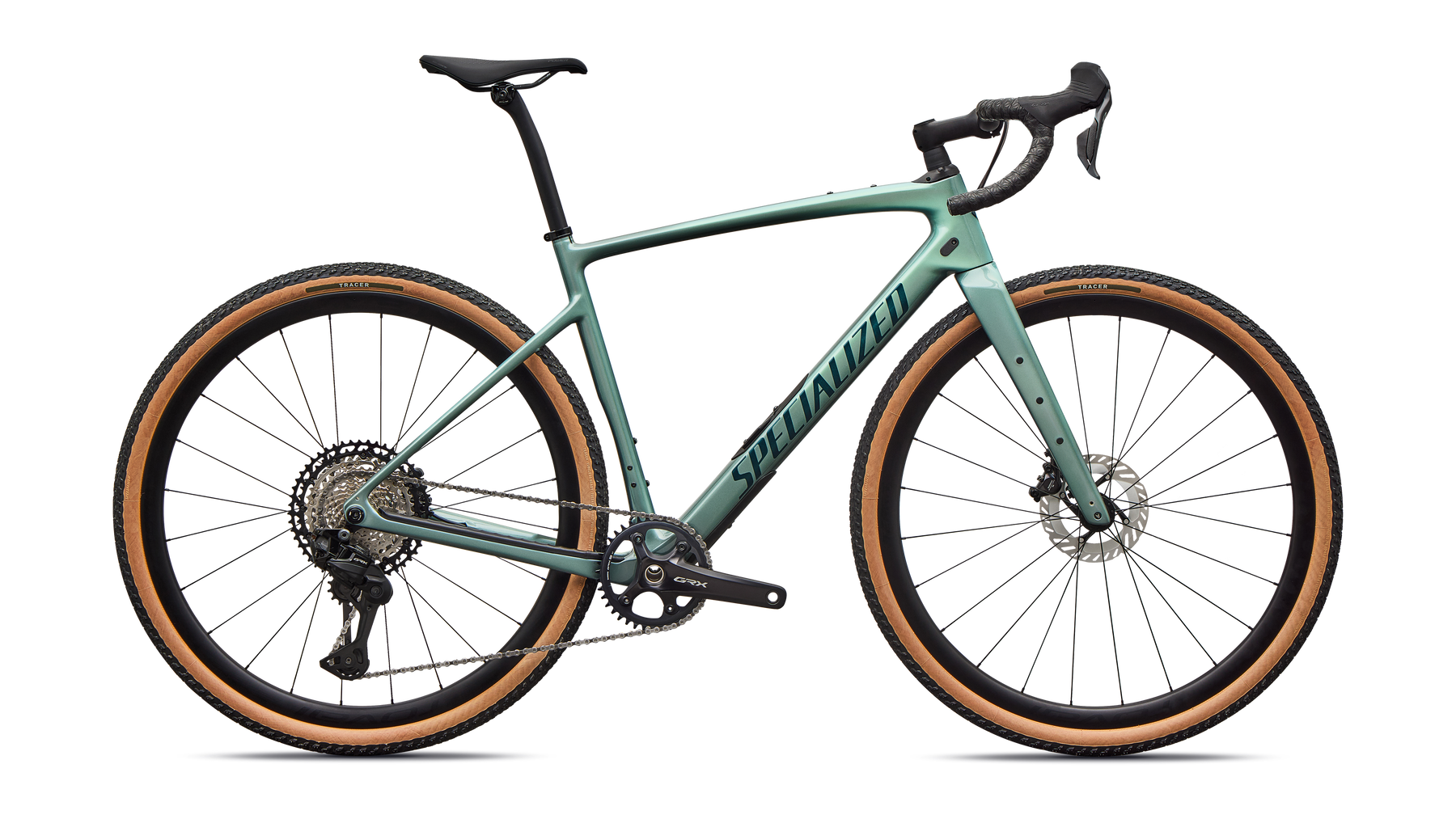

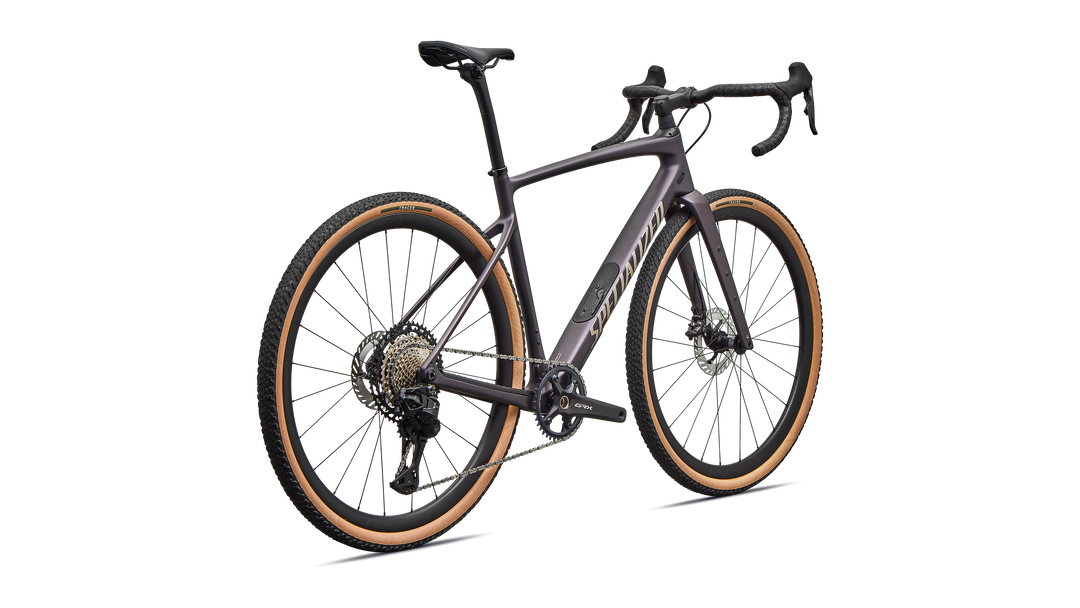

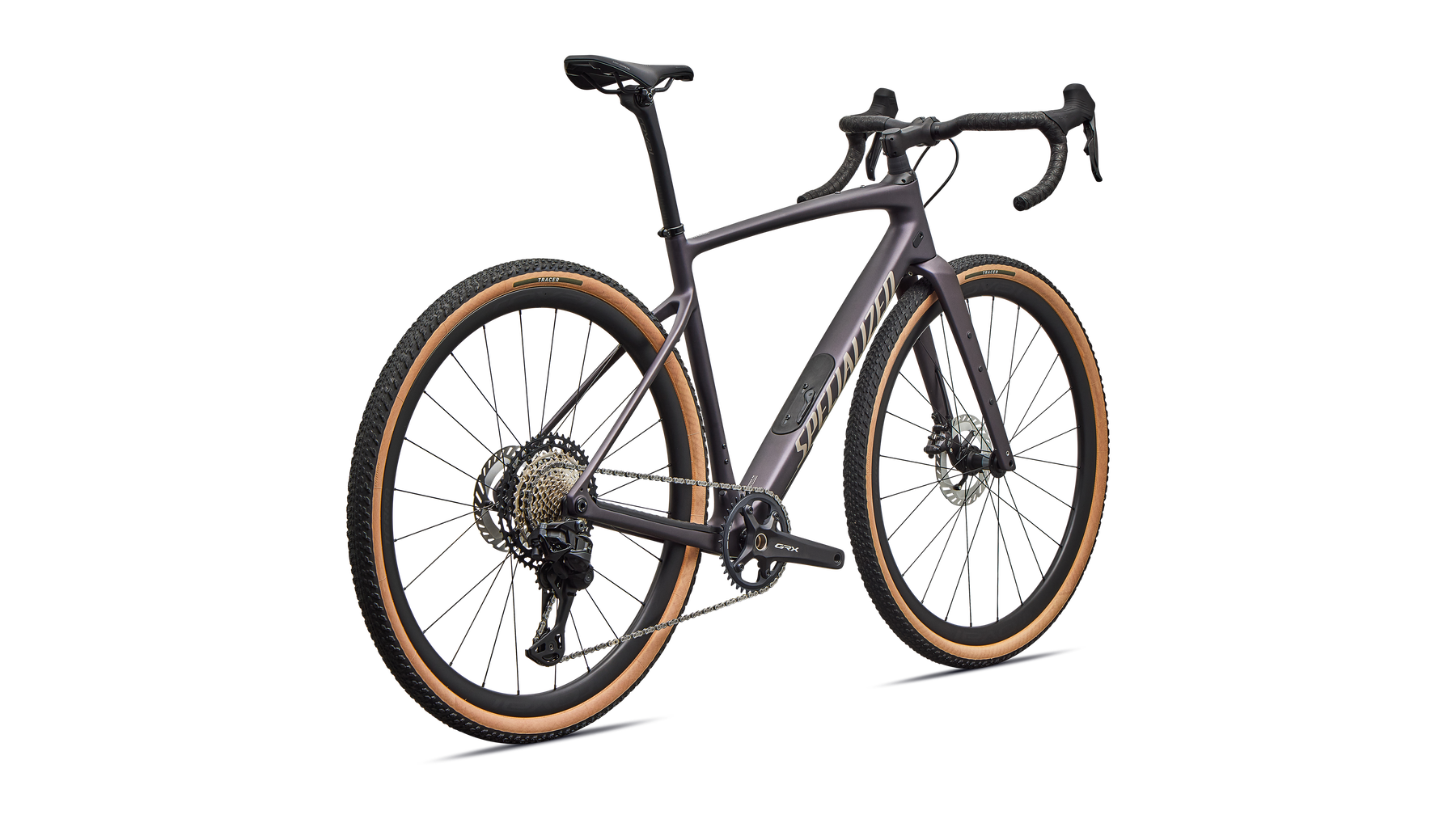

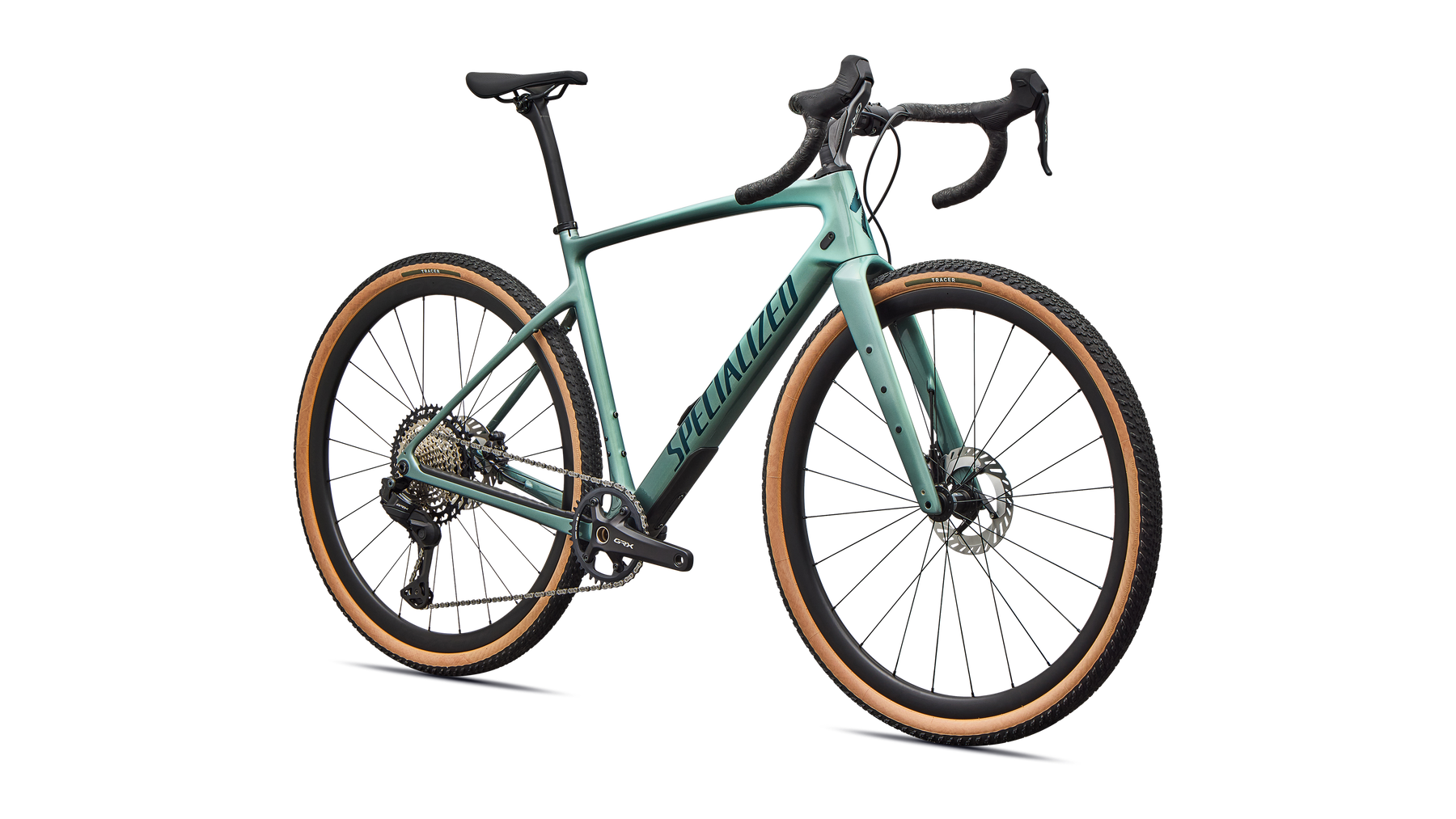

Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.
- Use - Gravel Adventure/Race
- Frameset - FACT 9r Carbon
- Suspension - Future Shock 3.2
- Drivetrain/Wheels - New Shimano GRX800 Di2 / Roval Terra C
- Storage - SWAT 4.0
- 8.90kg
Frameset
- Frame

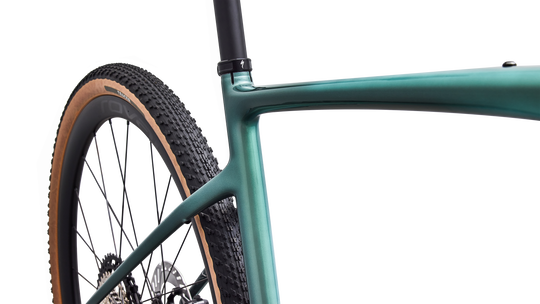

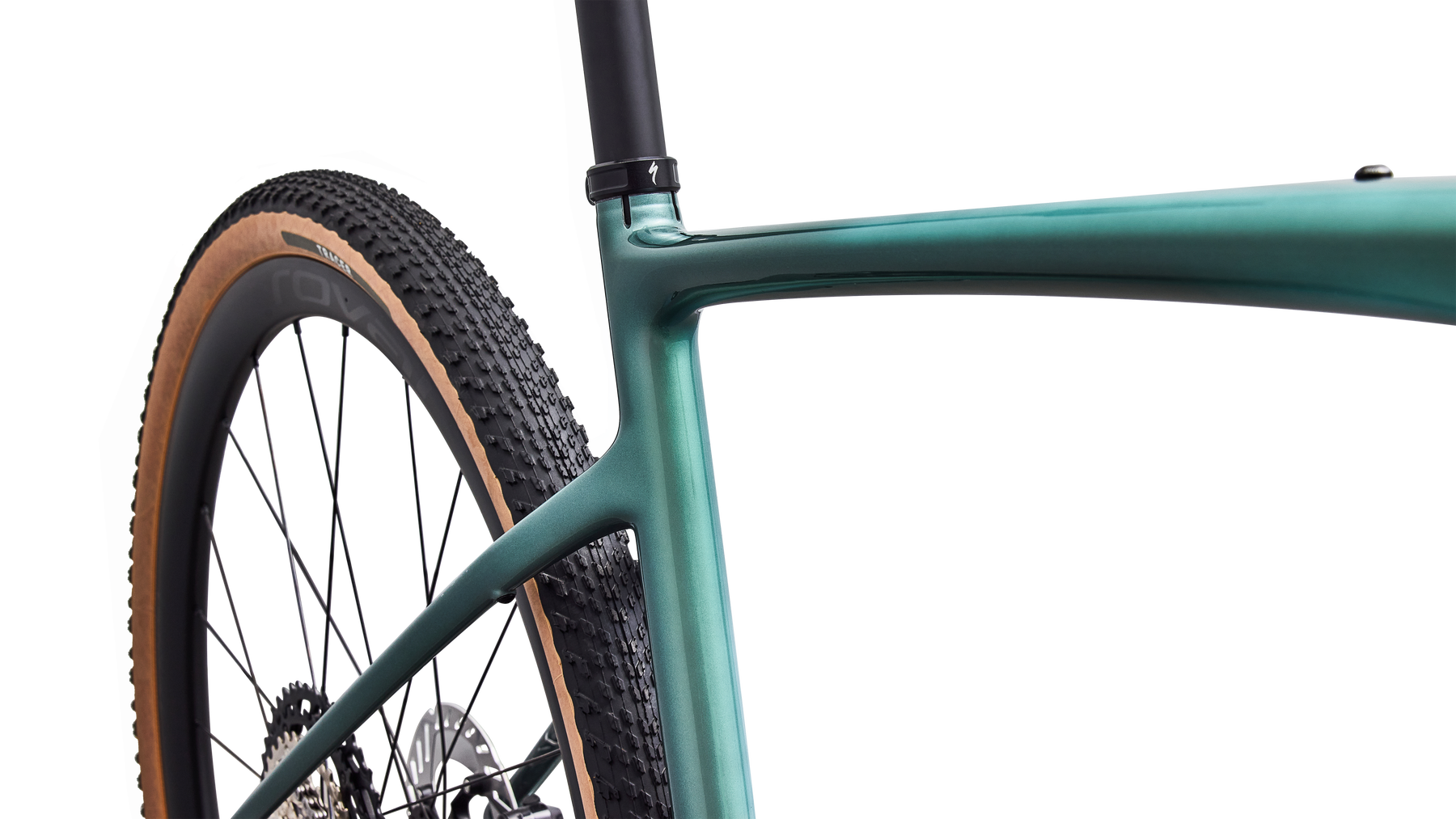

- Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
- Fork
- Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
- Front Brake
- NEW Shimano GRX Hydraulic Brake
- Rear Brake
- NEW Shimano GRX Hydraulic Brake
Drivetrain
- Rear Derailleur
- NEW Shimano GRX Di2 1x12sp RX827
- Shift Levers
- NEW Shimano GRX Di2 RX825, 1x12sp
- Cassette
- Shimano Deore XT, 10-51t
- Crankset
- NEW Shimano GRX RX820, 40t
- Bottom Bracket
- Shimano Threaded BSA BB
- Chain
- Shimano XT M8100, 12-speed w/ quick link
Wheels & tires
- Front Tire

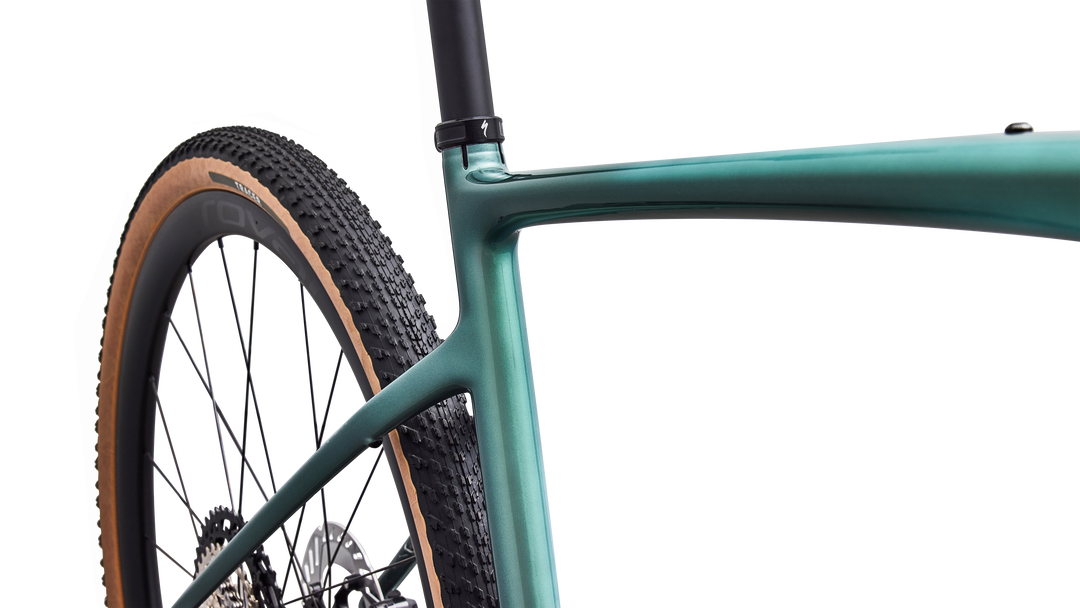

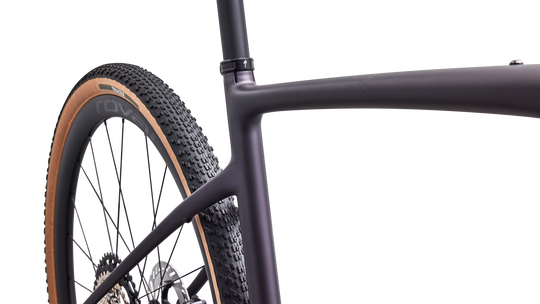

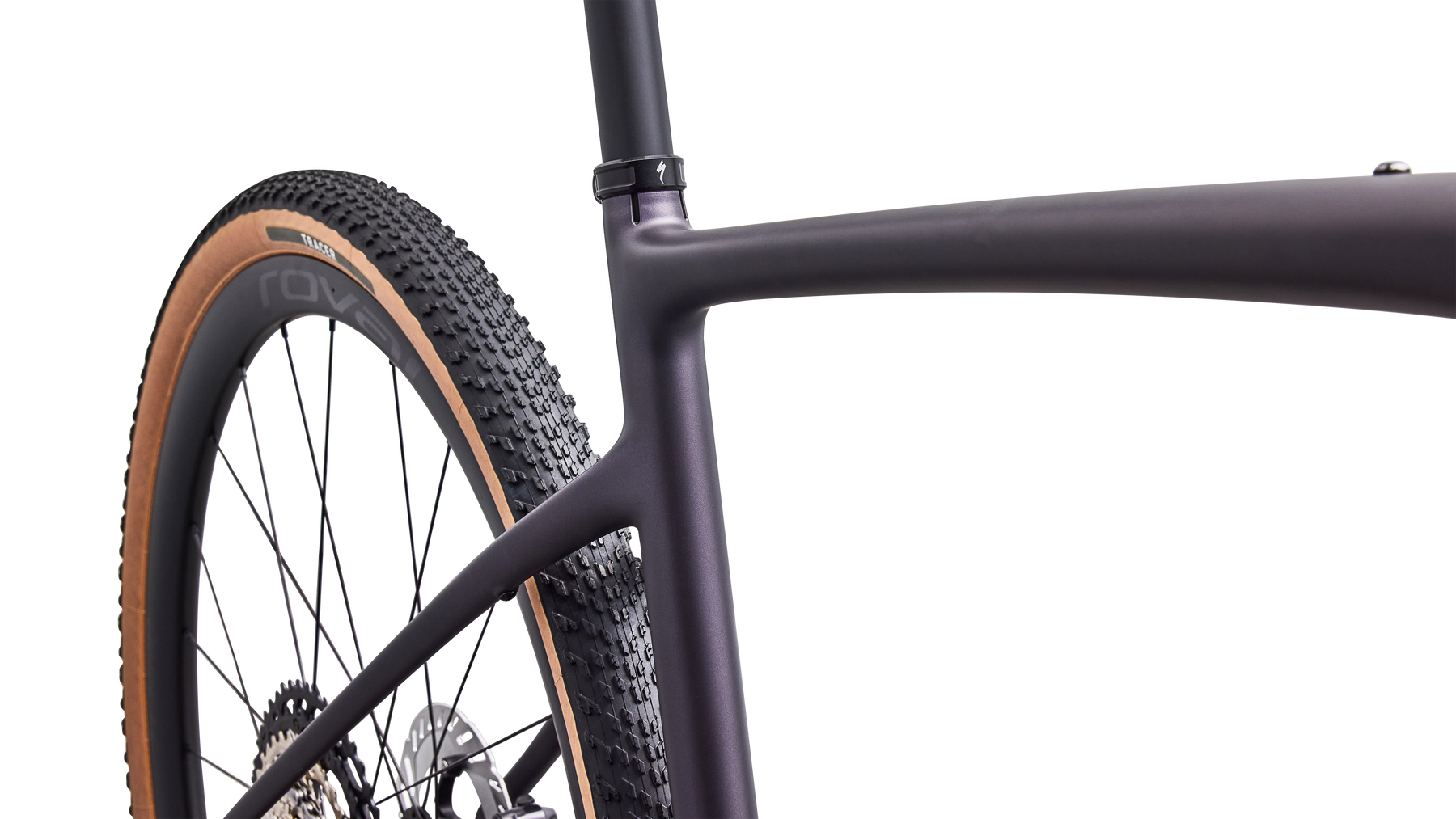

- Tracer 700x45, Tan Sidewall, Tubeless Ready
- Rear Tire
- Tracer 700x45, Tan Sidewall, Tubeless Ready
- Front Wheel
- Roval Terra C Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 370 hub, Centerlock disc, DT Swiss Competition Race spokes
- Rear Wheel
- Roval Terra C Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 370 hub, Centerlock disc, DT Swiss Competition Race spokes
- Inner Tubes
- Presta, 700x32-50mm

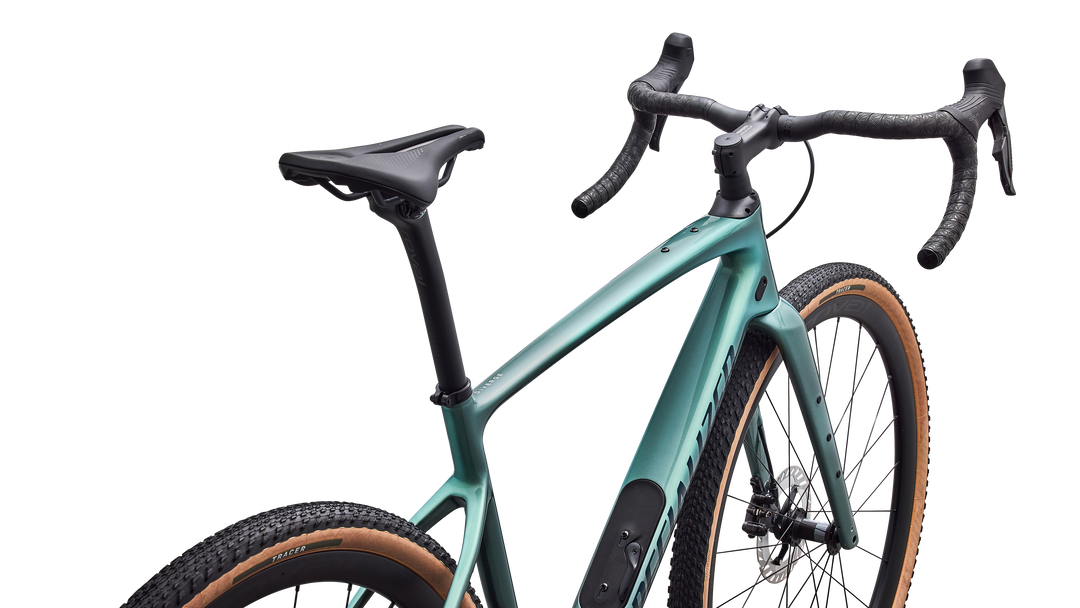

Cockpit
- Saddle
- Body Geometry Power Expert
- Stem
- Future Stem, Pro
- SeatPost
- Roval Terra Carbon Seat Post, 20mm Offset
- Handlebars
- Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
- Seat Binder
- Specialized Alloy, 30.8mm
- Tape
- Supacaz Super Sticky Kush
Accessories
- SWAT
- SWAT 4.0 internal downtube storage
Product details
- Product ID
- 279306
Weight
- Weight Size
- 56
- Weight
- 8.9 kg (19 lb, 9.9 oz)
| 49 | 52 | 54 | 56 | 58 | 61 | |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 60 | 70 | 80 | 90 | 100 | 100 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 330 | 330 | 380 | 380 | 380 | 380 |
| Stack | 563 | 578 | 592 | 610 | 634 | 659 |
| Reach | 365 | 374 | 387 | 400 | 412 | 425 |
| Head Tube Length | 90 | 104 | 116 | 135 | 161 | 187 |
| Head Tube Angle | 70 | 70.5 | 71 | 71 | 71 | 71 |
| BB Drop | 85 | 85 | 85 | 85 | 85 | 85 |
| Trail | 72 | 68 | 65 | 65 | 65 | 65 |
| Fork Length, Full | 391 | 391 | 391 | 391 | 391 | 391 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Center | 604 | 613 | 626 | 645 | 665 | 686 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| Top Tube Length, Horizontal | 521 | 537 | 556 | 575 | 593 | 613 |
| Bike Standover Height | 700 | 725 | 754 | 779 | 805 | 832 |
| Seat Tube Length | 400 | 430 | 470 | 500 | 530 | 560 |
| Seat Tube Angle | 74.5 | 74 | 74 | 74 | 74 | 74 |
