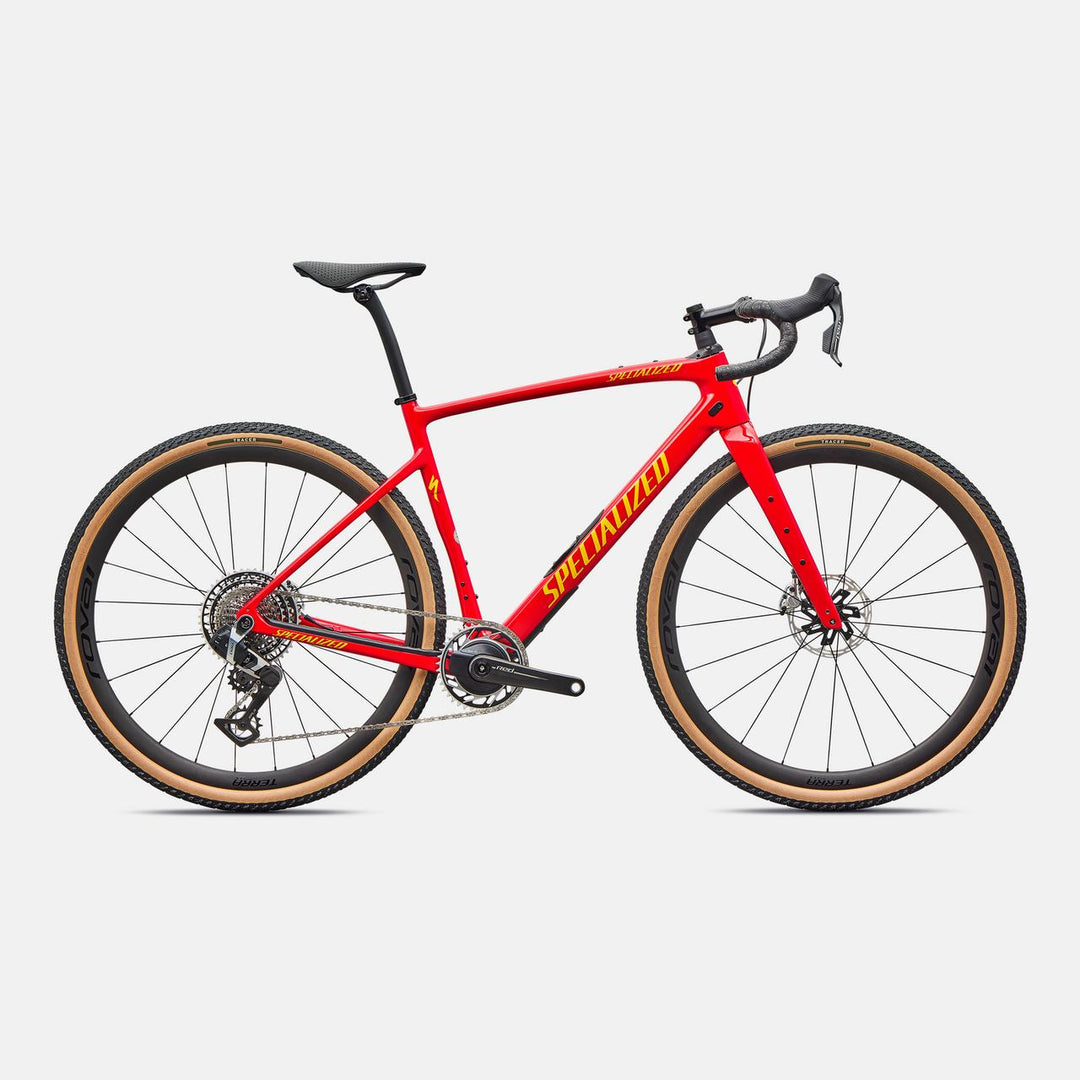

Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.
Frameset
- Frame
- Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
- Fork
- Future Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
- Front Brake
- SRAM RED AXS, hydraulic disc
- Rear Brake
- SRAM RED E1, hydraulic disc
Drivetrain
- Chain
- SRAM RED E1 Chain
- Bottom Bracket
- SRAM DUB BSA 68 Wide
- Shift Levers
- SRAM RED AXS E1
- Rear Derailleur
- SRAM RED XPLR, 13sp
- Cassette
- SRAM RED XPLR, 13sp, 10-46t
- Crankset
- SRAM RED AXS, Quarq Power Meter, 40t Chainring
Wheels & tires
- Inner Tubes
- Presta, 700x32-50mm
- Front Wheel
- Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 21h, Roval LF13 hub with ceramic SINC bearings, Centerlock disc, DT Swiss Aerolite spokes
- Rear Wheel
- Roval Terra CLX II, 25mm internal width, Tubeless Ready, 32mm depth, 24h, Roval LF14R2, Centerlock, DT Swiss EXP internals, SRAM XDR, DT Swiss Aerolite spokes
- Front Tire
- Tracer 700x45, Tan Sidewall, Tubeless Ready
- Rear Tire
- Tracer 700x45, Tan Sidewall, Tubeless Ready
Cockpit
- SeatPost
- Roval Terra Carbon Seat Post, 20mm Offset
- Handlebars
- Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
- Saddle
- S-Works Power with Mirror
- Stem
- Roval Alpinist, 7075 alloy, titanium bolts, 6-degree rise
- Seat Binder
- Specialized Alloy, 30.8mm
- Tape
- Supacaz Super Sticky Kush
Accessories
- SWAT
- SWAT 4.0 internal downtube storage
Product details
- Product ID
- 294387
Weight
- Weight Size
- 56
- Weight
- 8.01 kg (17 lb, 10.5 oz)
| 49 | 52 | 54 | 56 | 58 | 61 | |
| Crank Length | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 60 | 70 | 80 | 90 | 100 | 100 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 330 | 330 | 380 | 380 | 380 | 380 |
| Stack | 563 | 578 | 592 | 610 | 634 | 659 |
| Reach | 365 | 374 | 387 | 400 | 412 | 425 |
| Head Tube Length | 90 | 104 | 116 | 135 | 161 | 187 |
| Head Tube Angle | 70 | 70.5 | 71 | 71 | 71 | 71 |
| BB Drop | 85 | 85 | 85 | 85 | 85 | 85 |
| Trail | 72 | 68 | 65 | 65 | 65 | 65 |
| Fork Length, Full | 391 | 391 | 391 | 391 | 391 | 391 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Center | 604 | 613 | 626 | 645 | 665 | 686 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| Top Tube Length, Horizontal | 521 | 537 | 556 | 575 | 593 | 613 |
| Bike Standover Height | 700 | 725 | 754 | 779 | 805 | 832 |
| Seat Tube Length | 400 | 430 | 470 | 500 | 530 | 560 |
| Seat Tube Angle | 74.5 | 74 | 74 | 74 | 74 | 74 |
