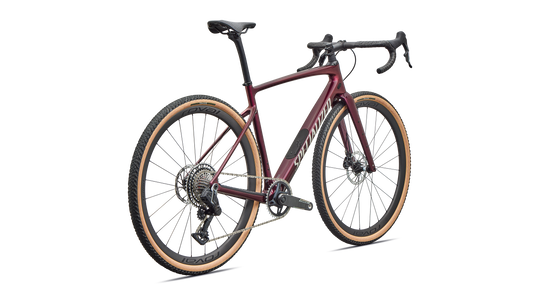

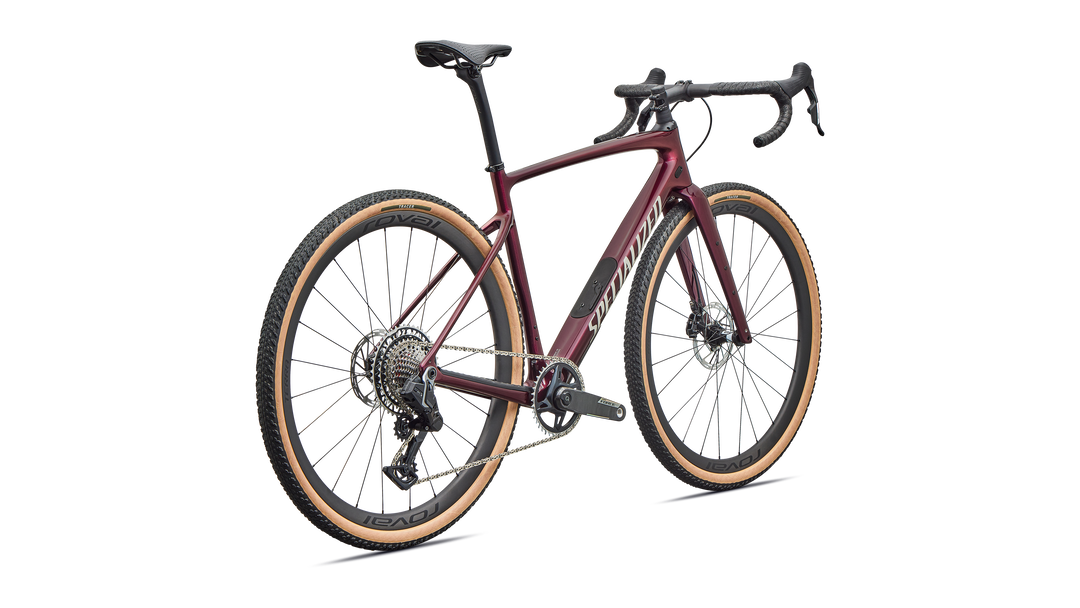

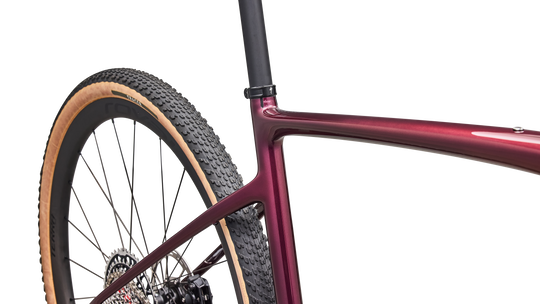

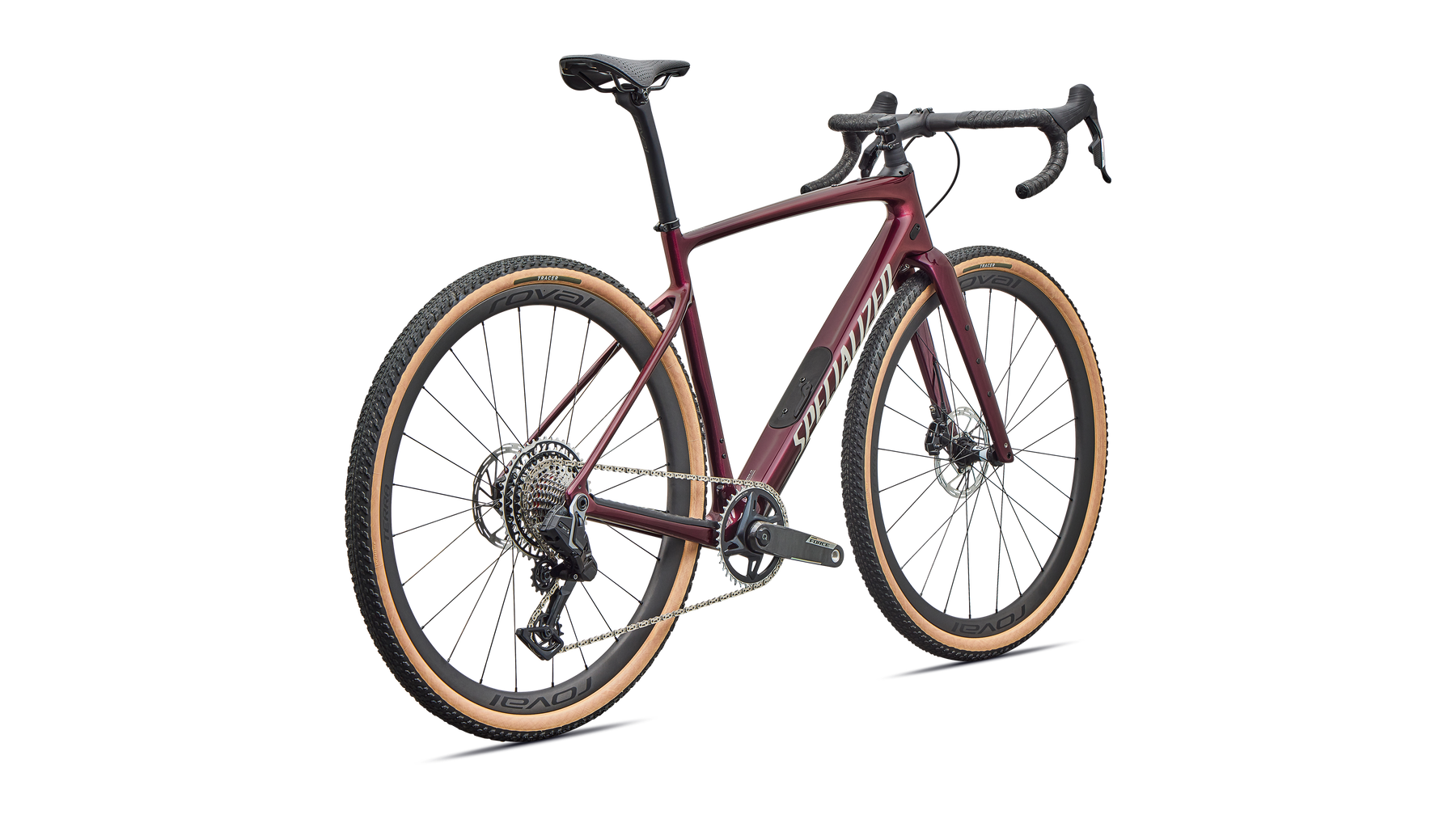

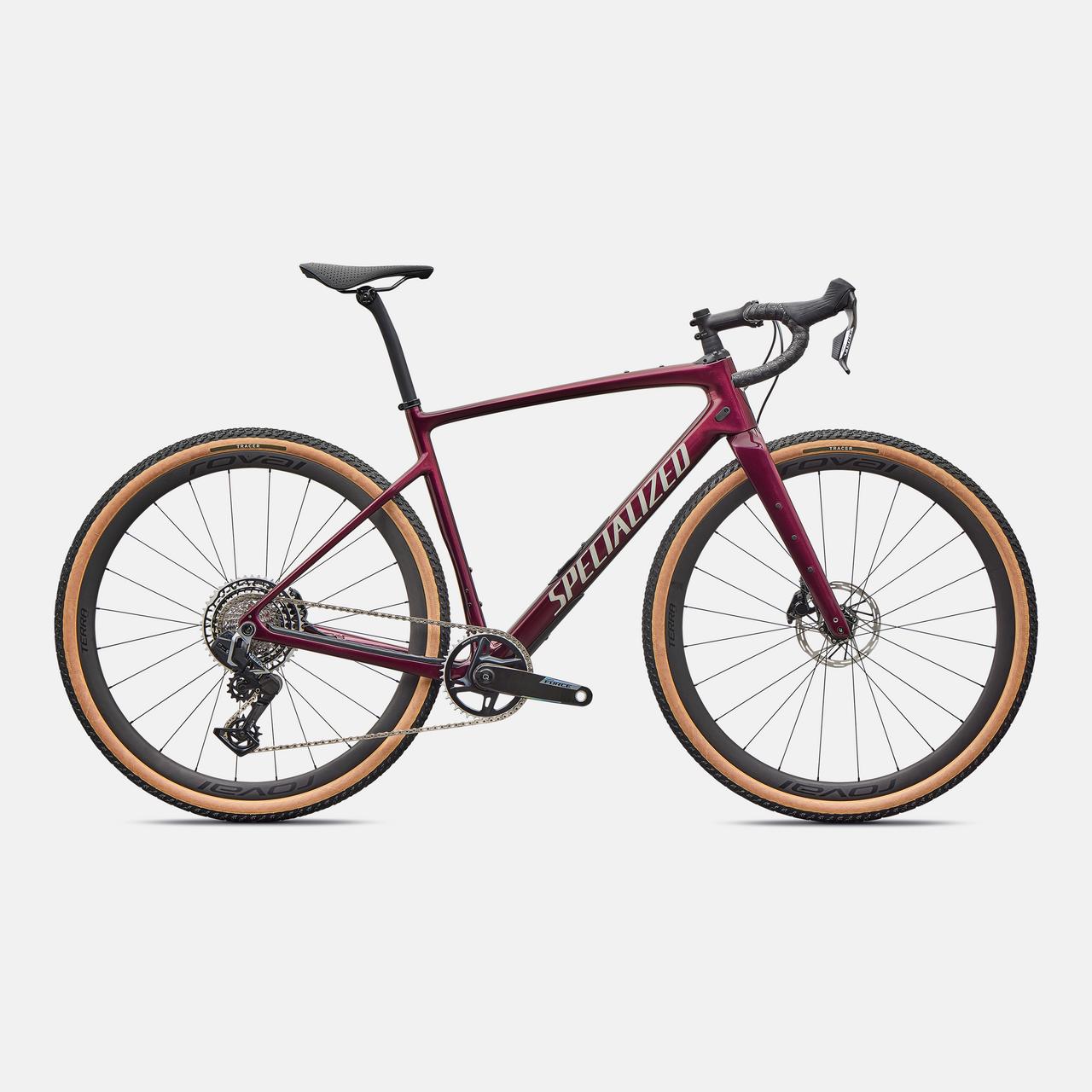

Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.
Frameset
- Frame
- Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
- Fork
- Future Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
- Front Brake
- New SRAM Force E1, hydraulic disc
- Rear Brake
- New SRAM Force E1, hydraulic disc
Drivetrain
- Shift Levers
- New SRAM Force AXS E1
- Bottom Bracket
- SRAM DUB BSA 68 Wide
- Rear Derailleur
- New SRAM Force AXS E1 XPLR
- Cassette
- New SRAM Force E1 XPLR 10-46t, 13sp
- Crankset
- New SRAM Force E1 XPLR, DUB WIDE, 40t, Quarq Power Meter
- Chain
- New SRAM Force XPLR, 13sp
Wheels & tires
- Inner Tubes
- Presta, 700x32-50mm
- Front Wheel
- Roval Terra CL Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes
- Rear Wheel
- Roval Terra CL Rim, 25mm internal width, 32mm depth, 24h, Tubeless ready, DT for Roval 350 hub, Centerlock disc, DT Swiss Competition Race spokes
- Front Tire
- Tracer 700x45, Tan Sidewall, Tubeless Ready
- Rear Tire
- Tracer 700x45, Tan Sidewall, Tubeless Ready
Cockpit
- Saddle
- Power Pro Mirror, Hollow Ti rails
- SeatPost
- Roval Terra Carbon Seat Post, 20mm Offset
- Handlebars
- Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
- Seat Binder
- Specialized Alloy, 30.8mm
- Stem
- Specialized Pro SL, alloy, 4-bolt
- Tape
- Supacaz Super Sticky Kush
Accessories
- SWAT
- SWAT 4.0 internal downtube storage
Product details
- Product ID
- 293747
Weight
- Weight Size
- 56
- Weight
- 8.39 kg (18 lb, 7.9 oz)
| 49 | 52 | 54 | 56 | 58 | 61 | |
| Crank Length | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 60 | 70 | 80 | 90 | 100 | 100 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 330 | 330 | 380 | 380 | 380 | 380 |
| Stack | 563 | 578 | 592 | 610 | 634 | 659 |
| Reach | 365 | 374 | 387 | 400 | 412 | 425 |
| Head Tube Length | 90 | 104 | 116 | 135 | 161 | 187 |
| Head Tube Angle | 70 | 70.5 | 71 | 71 | 71 | 71 |
| BB Drop | 85 | 85 | 85 | 85 | 85 | 85 |
| Trail | 72 | 68 | 65 | 65 | 65 | 65 |
| Fork Length, Full | 391 | 391 | 391 | 391 | 391 | 391 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Center | 604 | 613 | 626 | 645 | 665 | 686 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| Top Tube Length, Horizontal | 521 | 537 | 556 | 575 | 593 | 613 |
| Bike Standover Height | 700 | 725 | 754 | 779 | 805 | 832 |
| Seat Tube Length | 400 | 430 | 470 | 500 | 530 | 560 |
| Seat Tube Angle | 74.5 | 74 | 74 | 74 | 74 | 74 |
