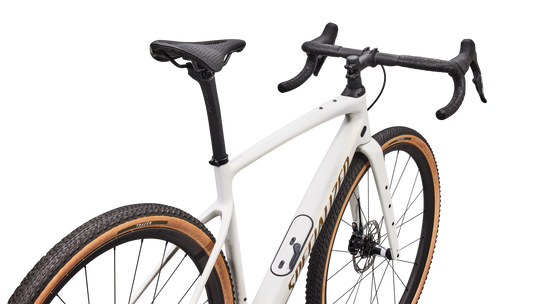

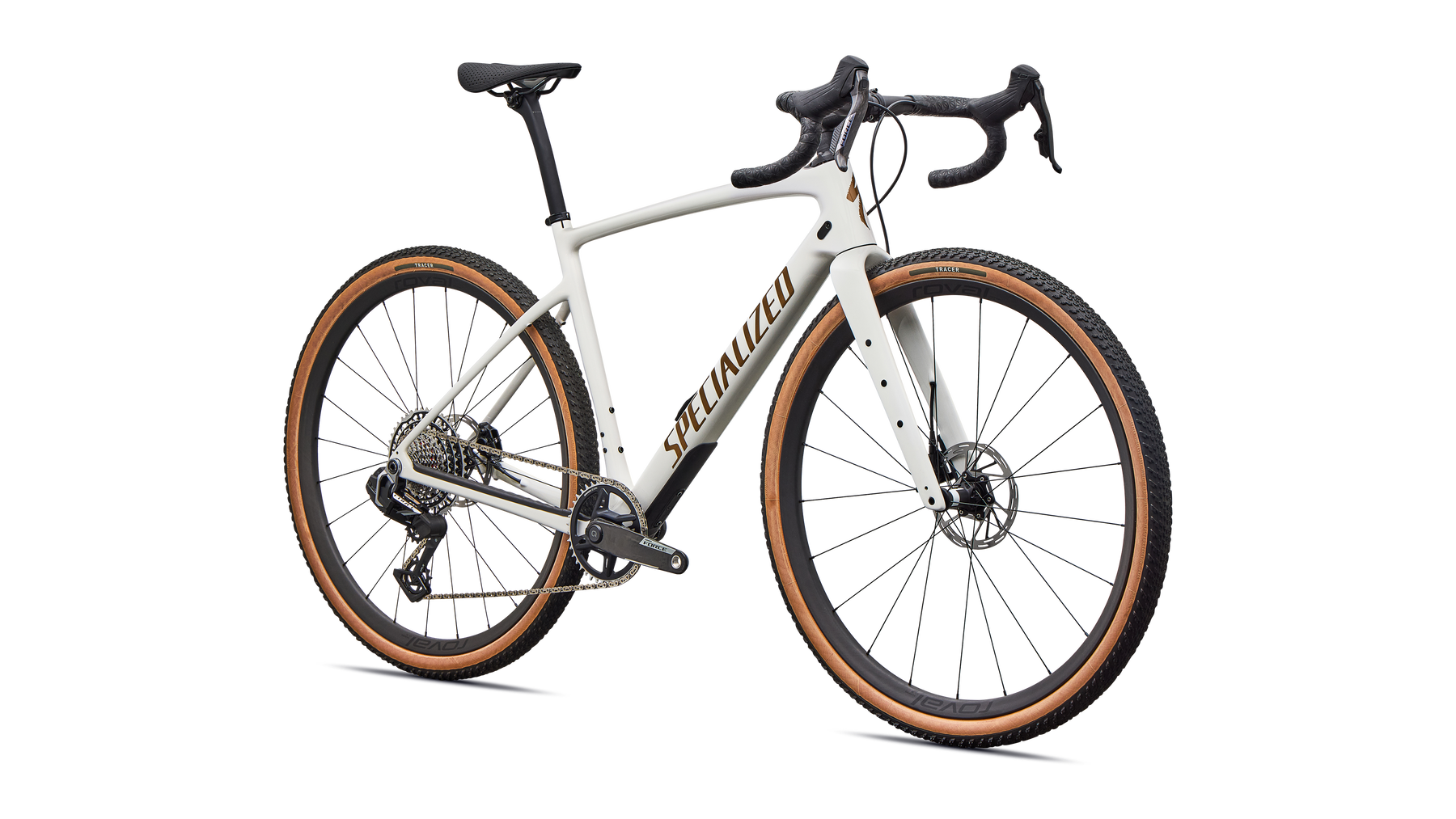

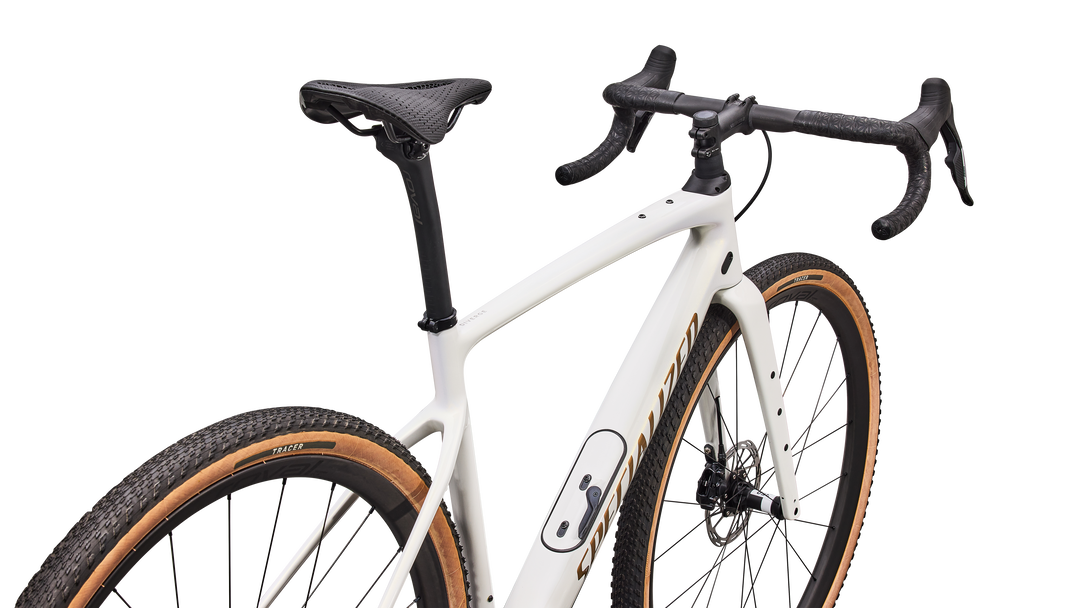

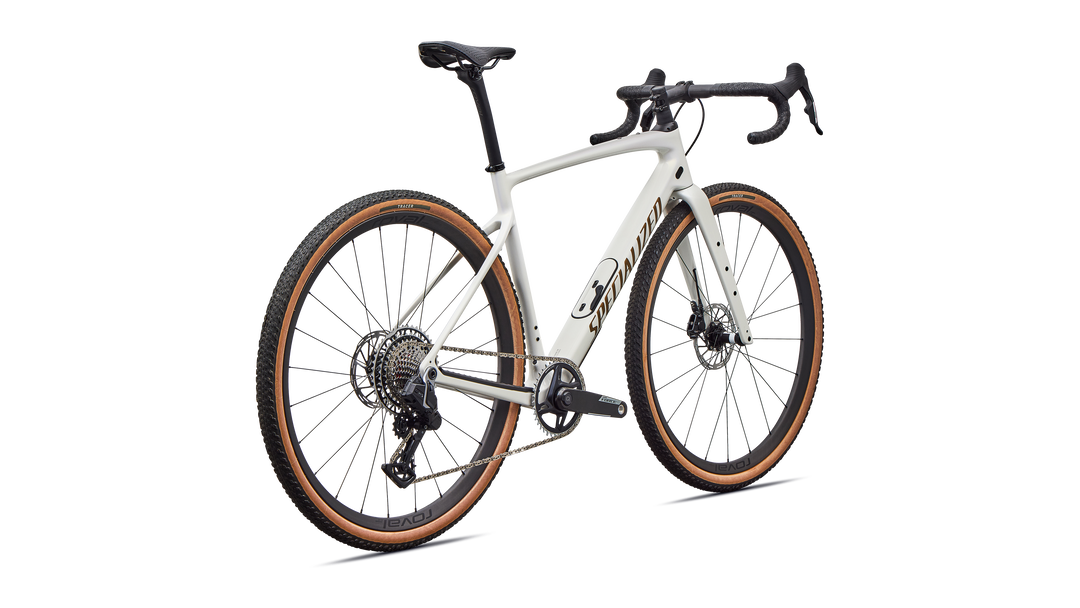

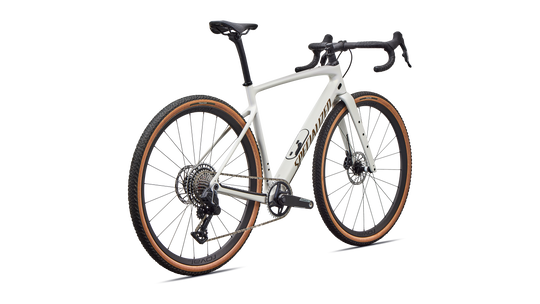

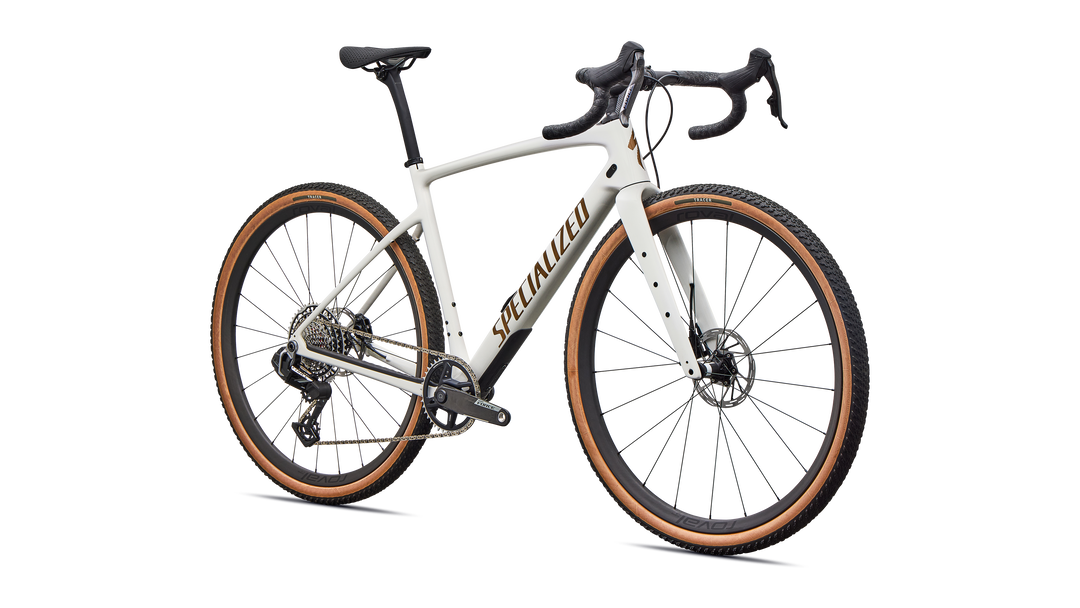

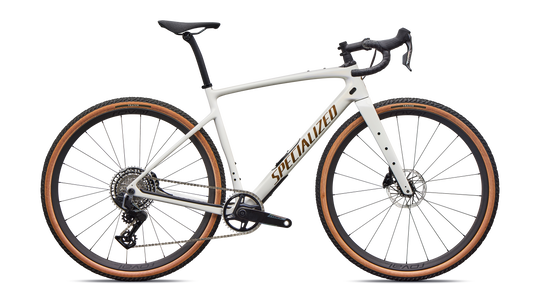

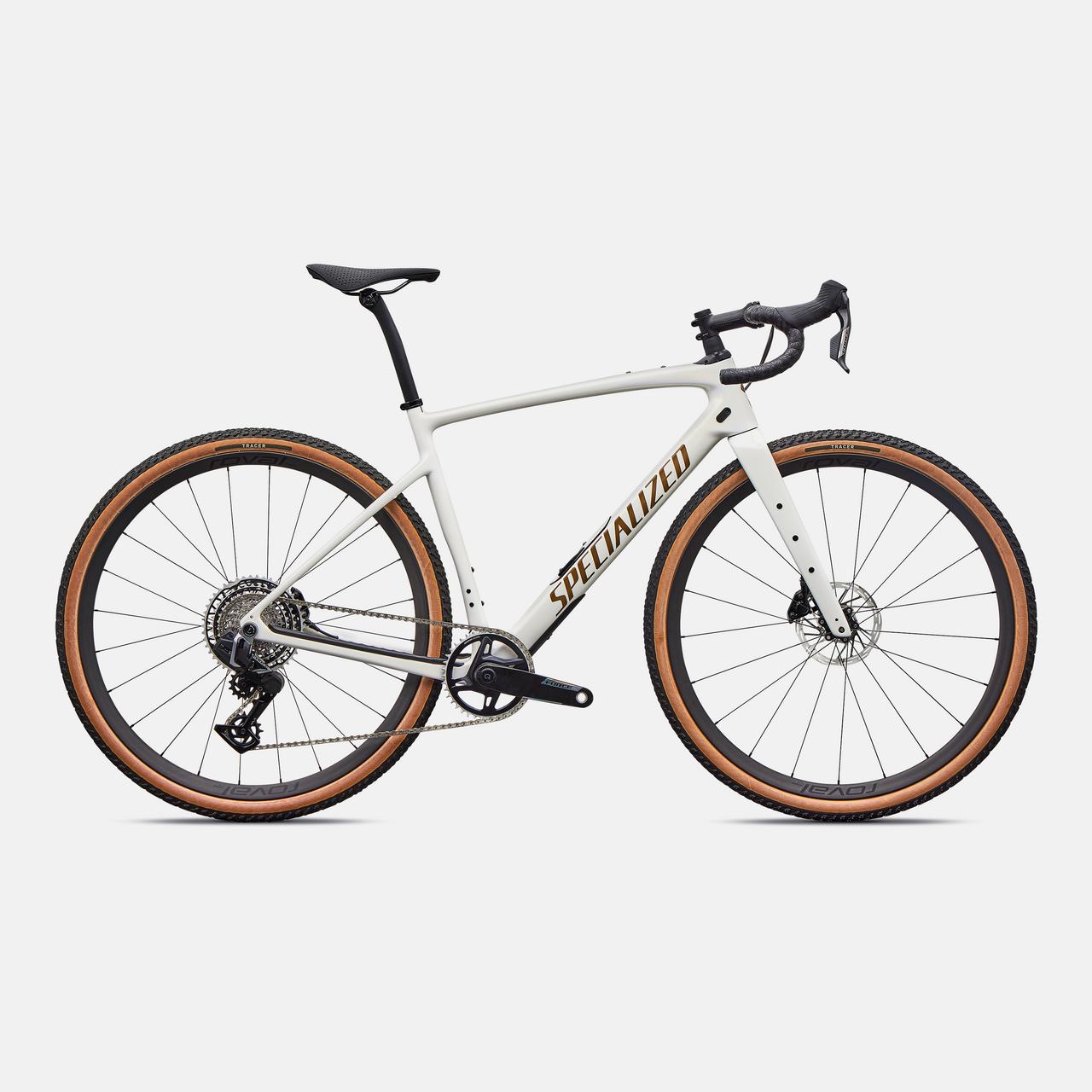

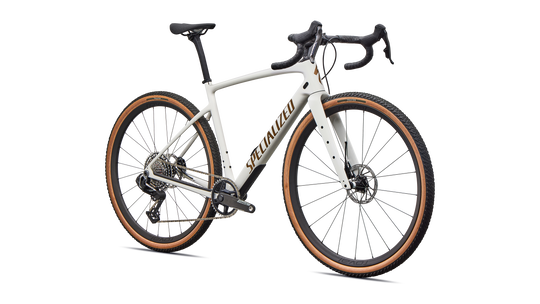

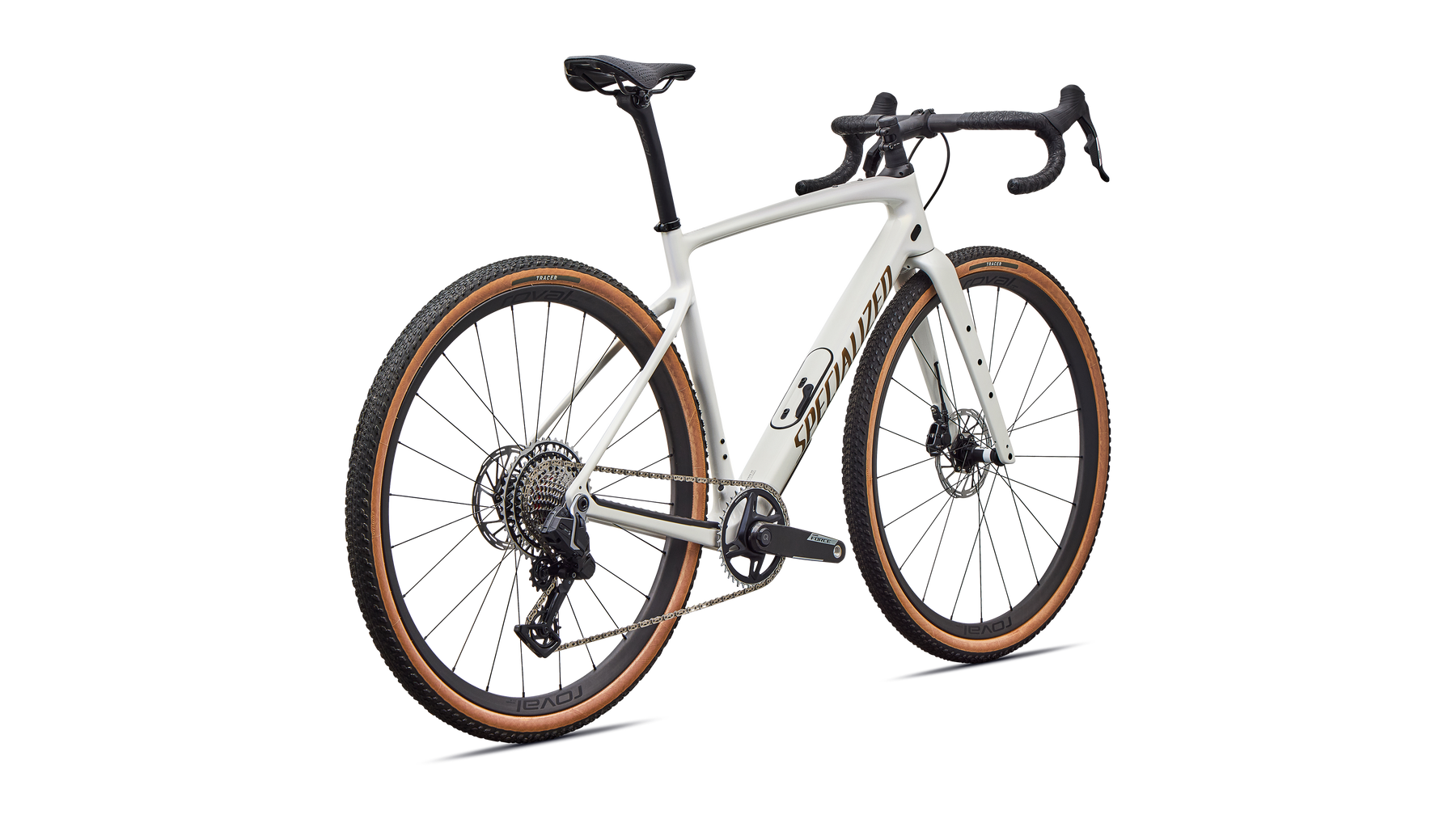

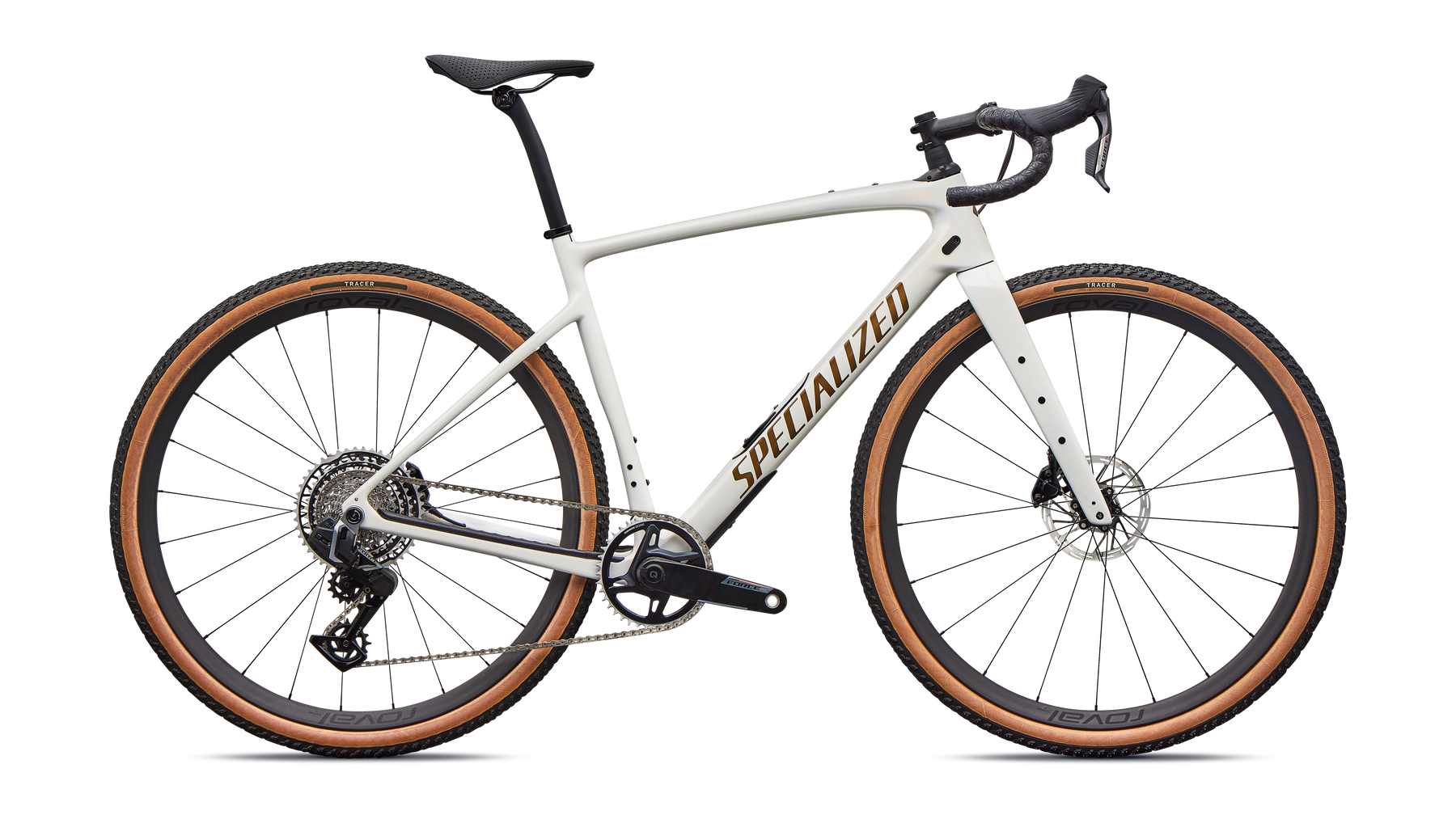

Diverge 4
The Ultimate Getaway Vehicle
Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.
Frameset

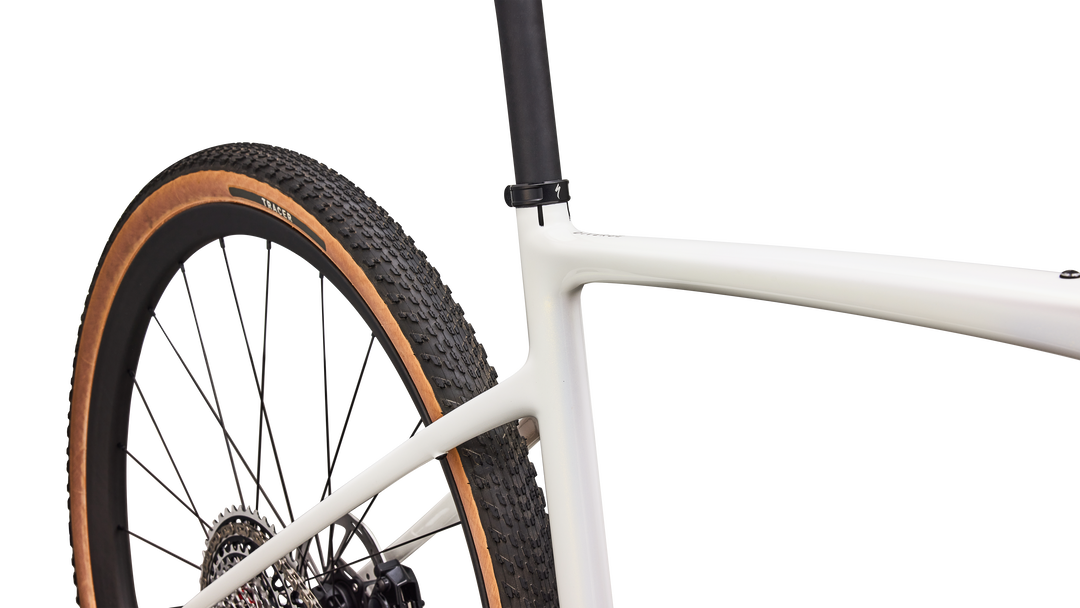

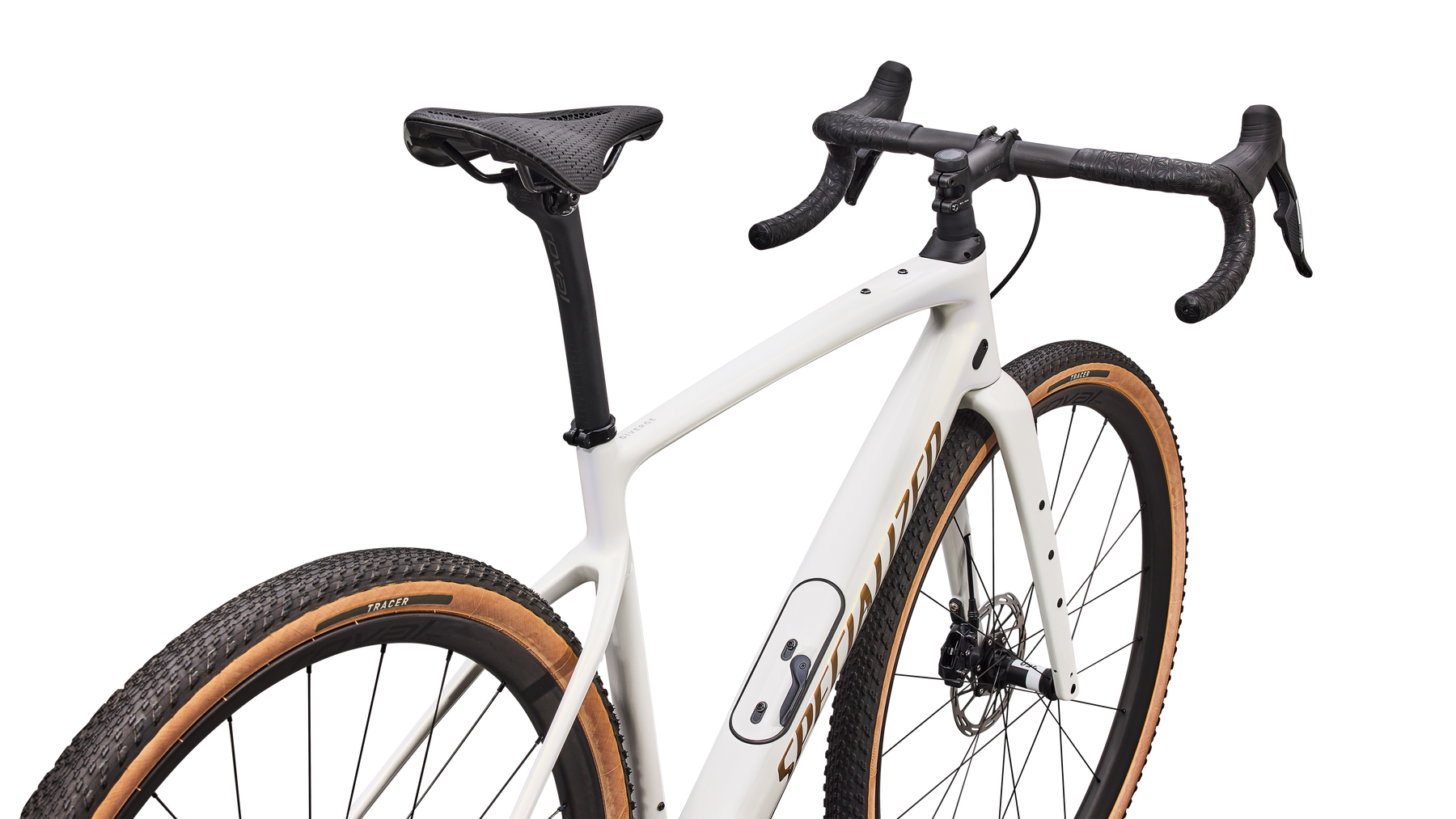

- Frame

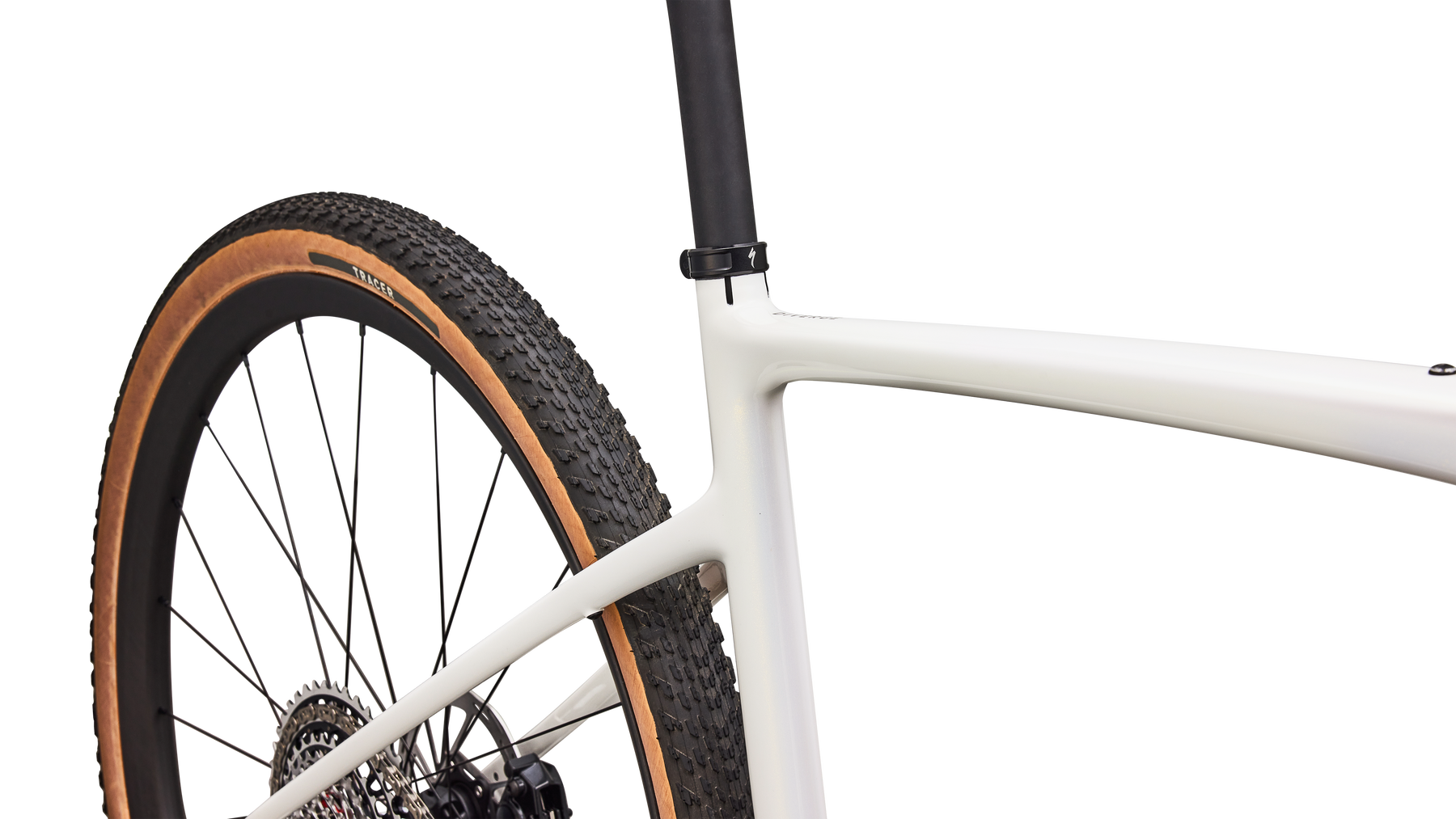

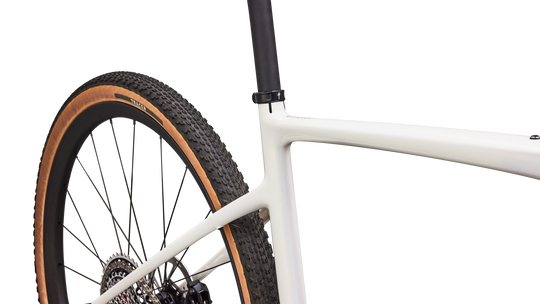

- Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
- Fork
- Future Shock 3.3 w/ Smooth Boot, FACT 9r Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
- Front Brake
- SRAM Force E1, hydraulic disc
- Rear Brake
- SRAM Force E1, hydraulic disc
Drivetrain
- Bottom Bracket
- SRAM DUB BSA 68 Wide
- Rear Derailleur
- SRAM Force AXS E1 XPLR, 13-speed
- Shift Levers
- SRAM Force AXS E1, hydraulic disc
- Chain
- SRAM Force E1
- Cassette
- SRAM Force E1 XPLR, 13-speed, 10-46t
- Crankset
- SRAM Force E1 XPLR, DUB Wide, 40t, Quarq Power Meter
- Chainrings
- 32T
Wheels & tires
- Inner Tubes
- 700x32-50mm, 40mm Presta valve
- Front Tire
- Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
- Rear Tire
- Tracer TLR All Terrain Gravel Tire 700x45, Tan Sidewall, Tubeless Ready
- Front Wheel
- Roval Terra CL III, 27mm internal width, tubeless ready, 25.5mm depth, 21h, DT 350 hub, Centerlock disc, DT Swiss Revolution spokes
- Rear Wheel
- Roval Terra CL III, 27mm internal width, tubeless ready, 25.5mm depth, 24h, DT 350 hub, Centerlock disc, DT Swiss Revolution spokes

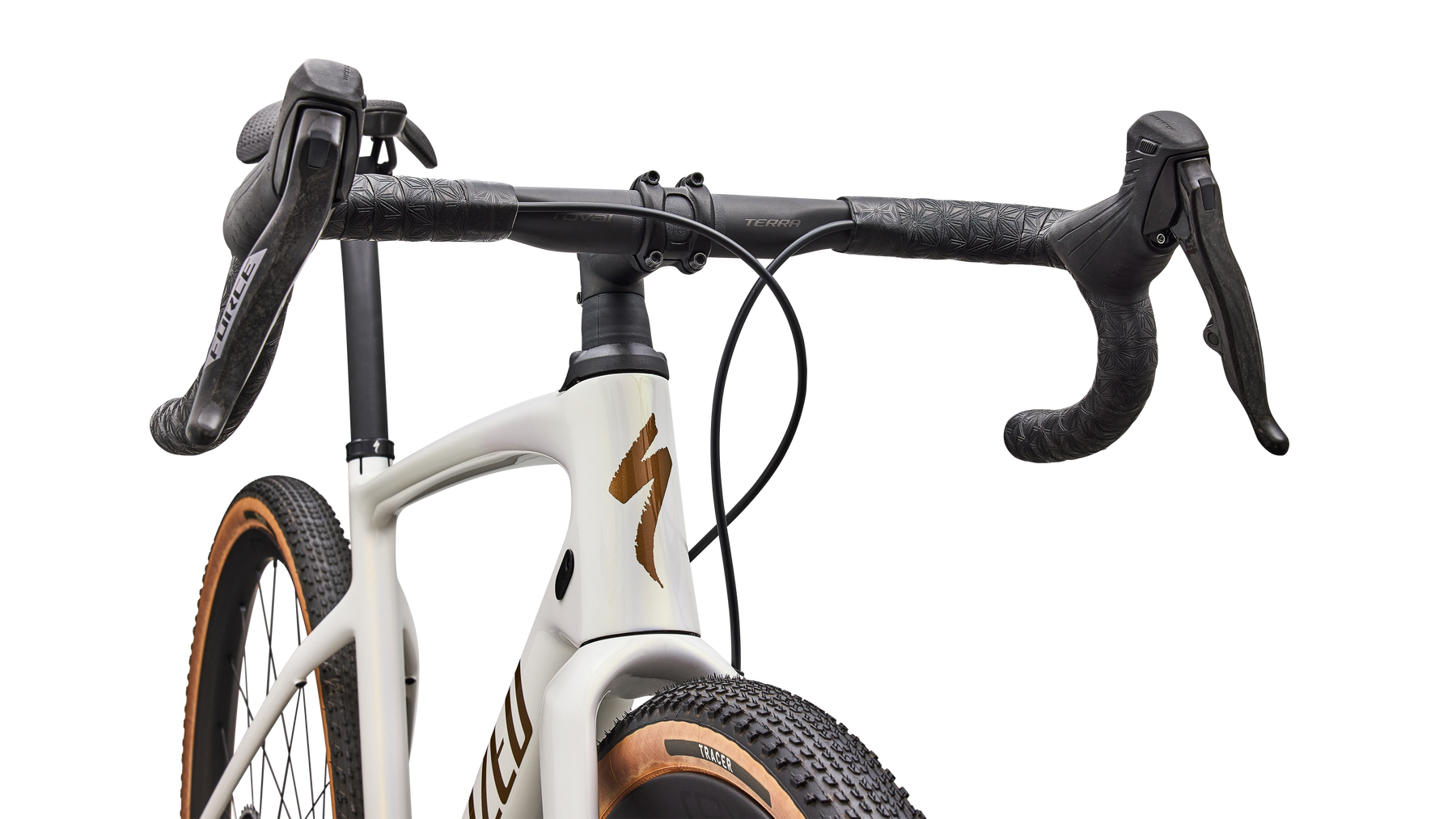

Cockpit
- Saddle
- Power Pro Mirror, hollow Ti rails
- SeatPost
- Roval Terra Carbon Seat Post, 20mm Offset
- Handlebars

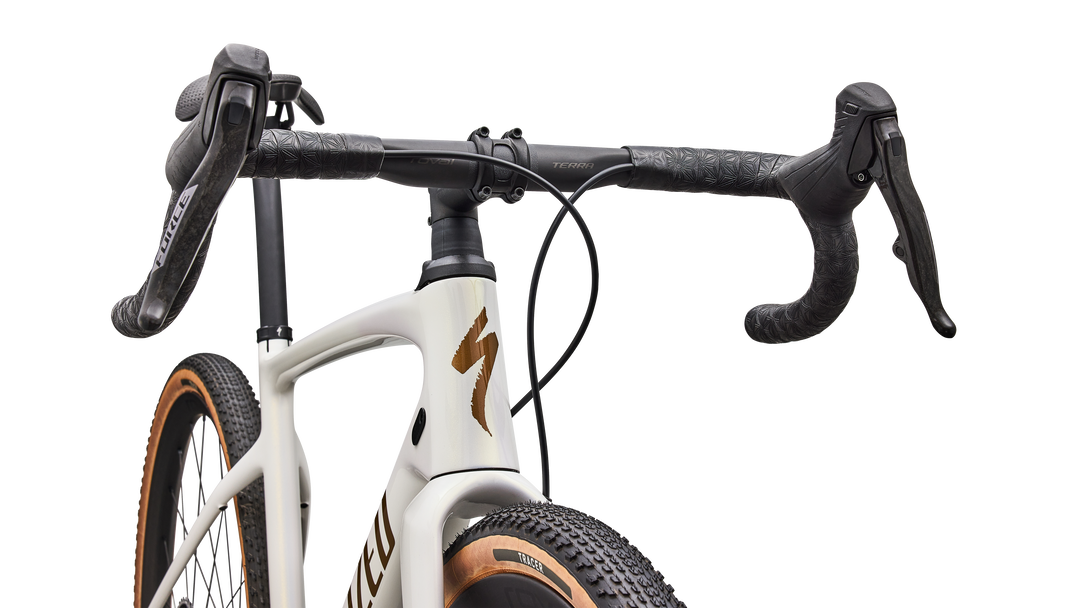

- Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
- Seat Binder
- Specialized Alloy, 30.8mm
- Stem
- Specialized Pro SL, alloy, 4-bolt
- Tape
- Supacaz Super Sticky Kush
Accessories
- SWAT
- SWAT 4.0 internal downtube storage
Product details
- Product ID
- 296445
Weight
- Weight Size
- 56
- Weight
- 8.72 kg (19 lb, 3.6 oz)
| 49 | 52 | 54 | 56 | 58 | 61 | |
| Crank Length | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 60 | 70 | 80 | 90 | 90 | 90 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 330 | 330 | 380 | 380 | 380 | 380 |
| Stack | 563 | 578 | 592 | 610 | 634 | 659 |
| Reach | 365 | 374 | 387 | 400 | 412 | 425 |
| Head Tube Length | 90 | 104 | 116 | 135 | 161 | 187 |
| Head Tube Angle | 70 | 70.5 | 71 | 71 | 71 | 71 |
| BB Drop | 85 | 85 | 85 | 85 | 85 | 85 |
| Trail | 72 | 68 | 65 | 65 | 65 | 65 |
| Fork Length, Full | 391 | 391 | 391 | 391 | 391 | 391 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Center | 604 | 613 | 626 | 645 | 665 | 686 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| Top Tube Length, Horizontal | 521 | 537 | 556 | 575 | 593 | 613 |
| Bike Standover Height | 700 | 725 | 754 | 779 | 805 | 832 |
| Seat Tube Length | 400 | 430 | 470 | 500 | 530 | 560 |
| Seat Tube Angle | 74.5 | 74 | 74 | 74 | 74 | 74 |
