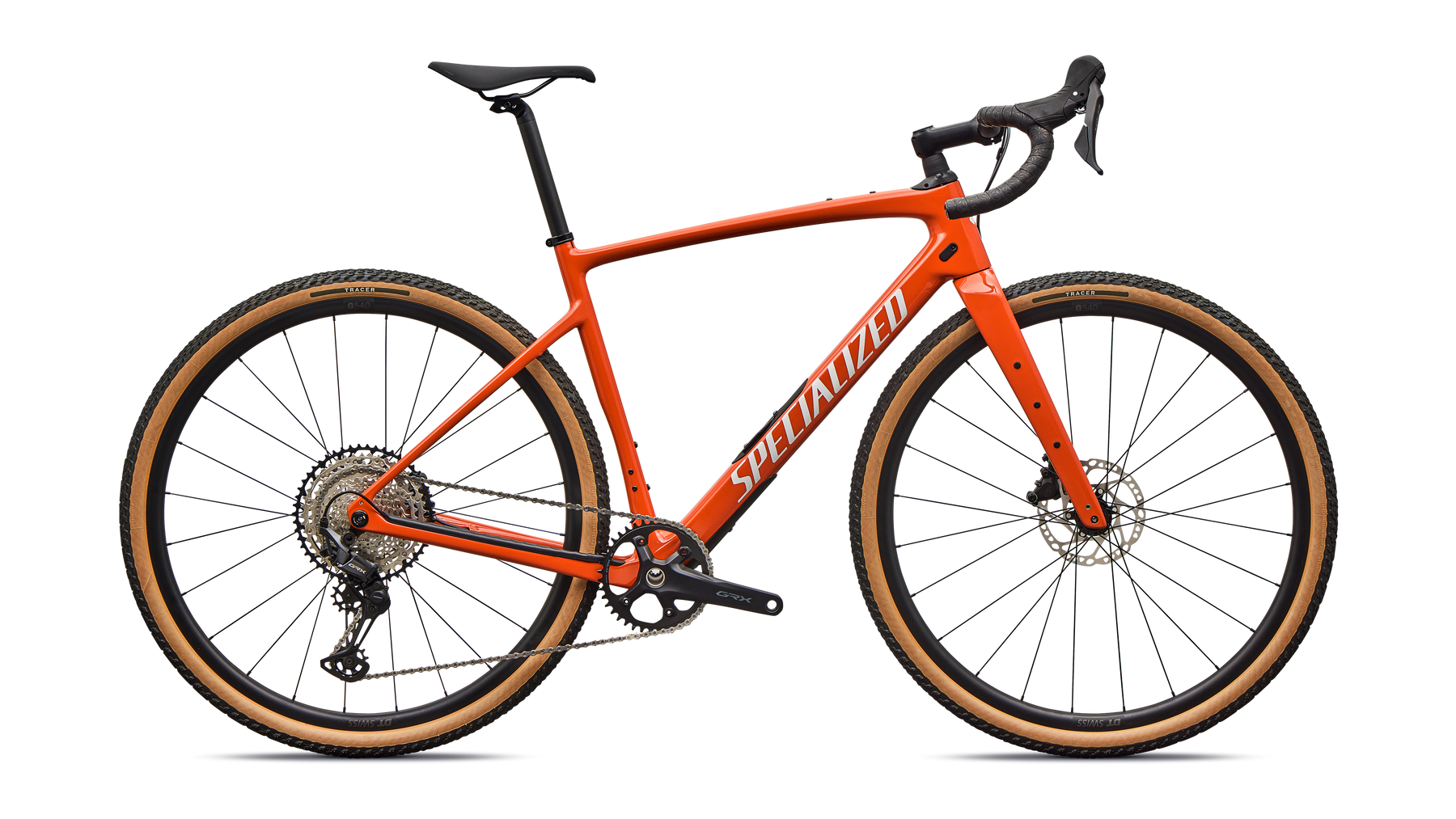

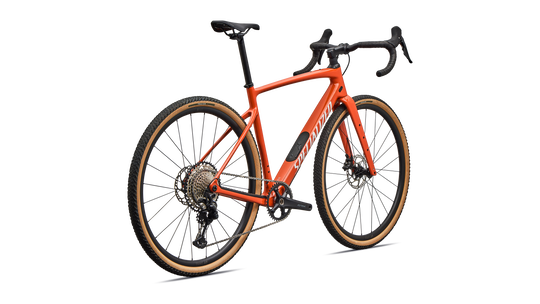

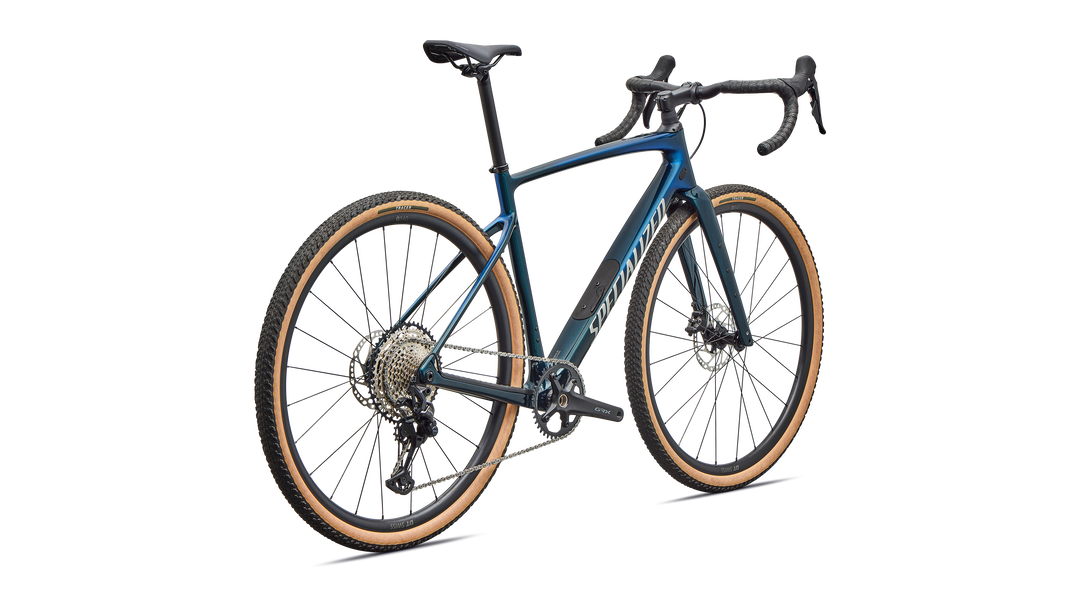

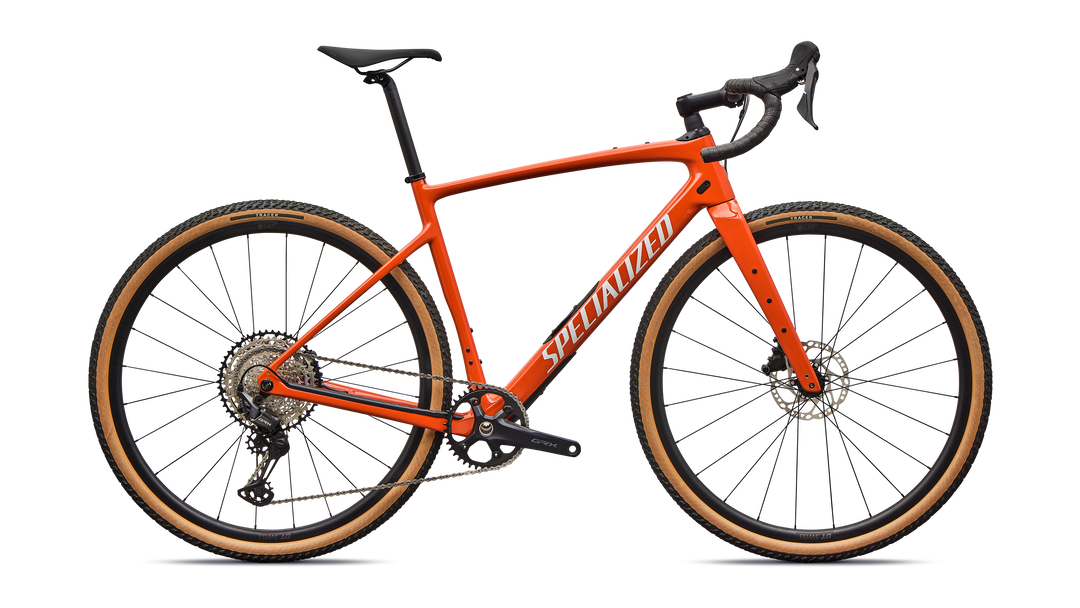

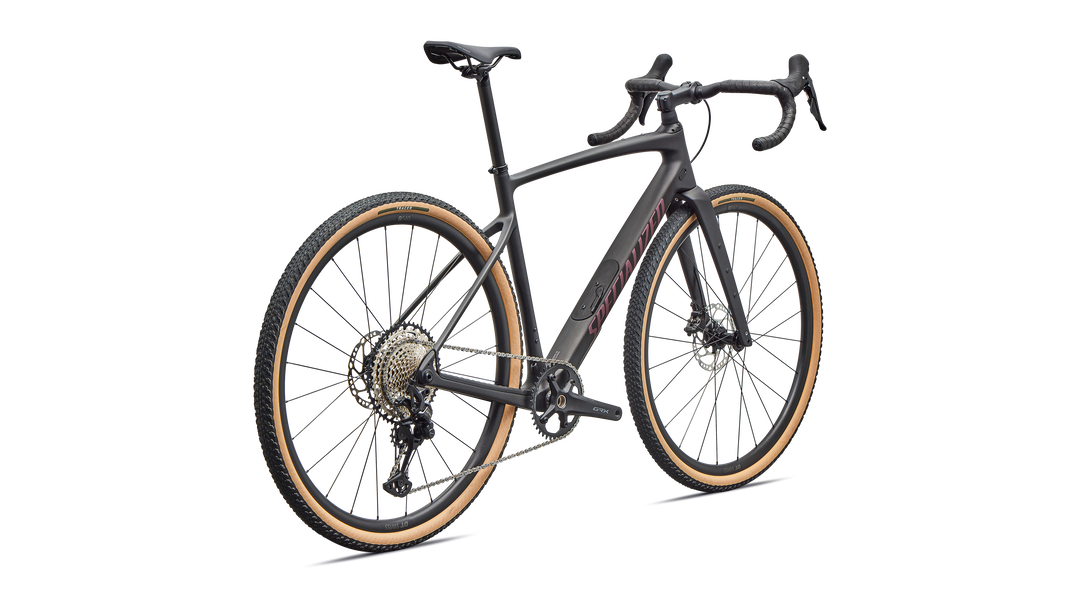

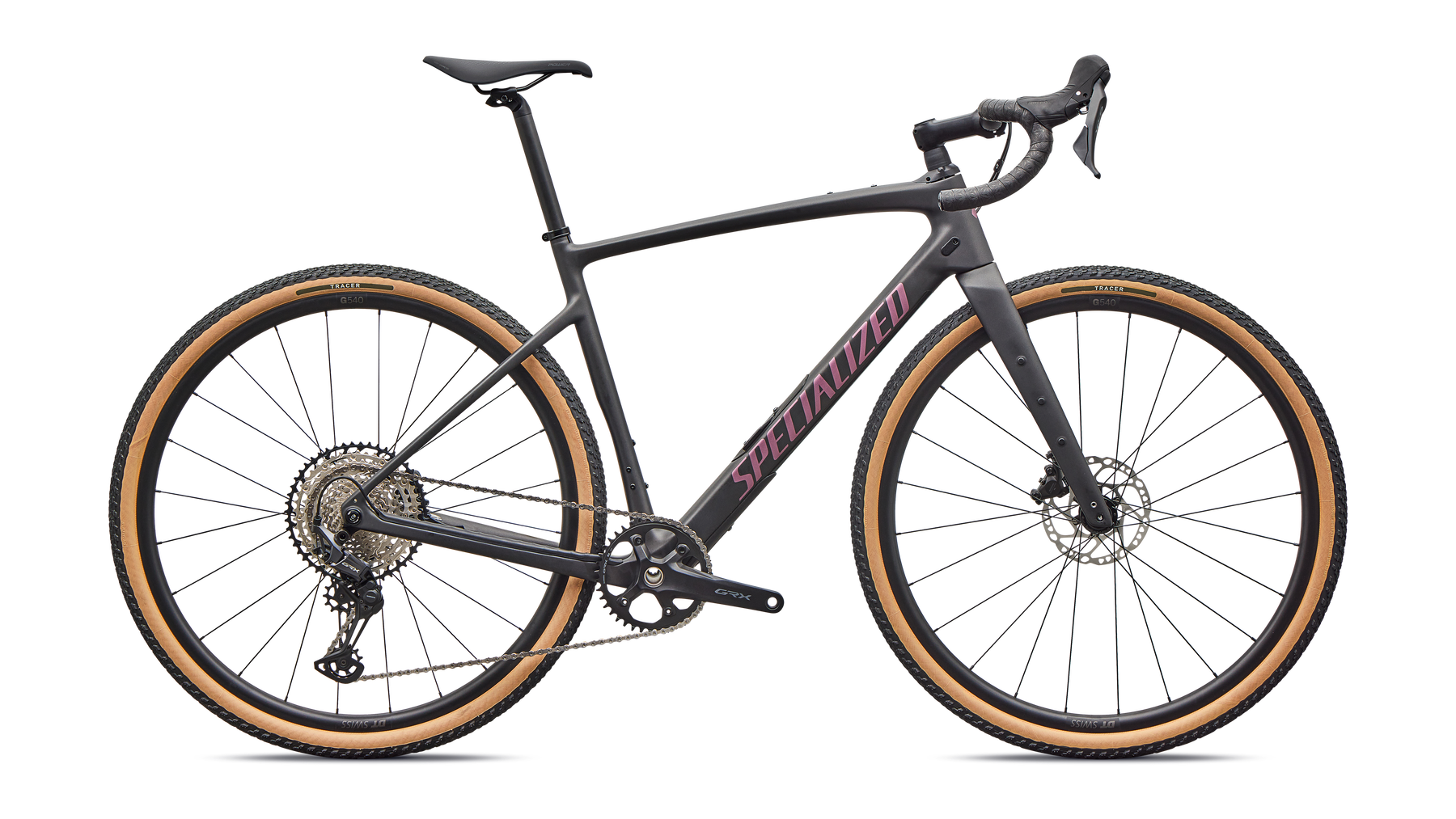

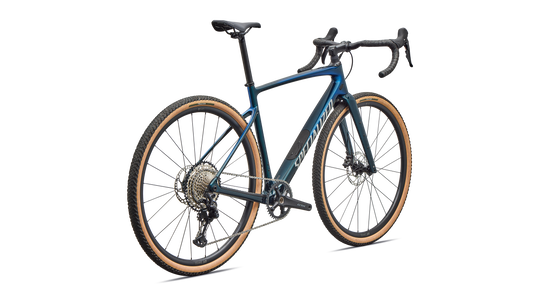

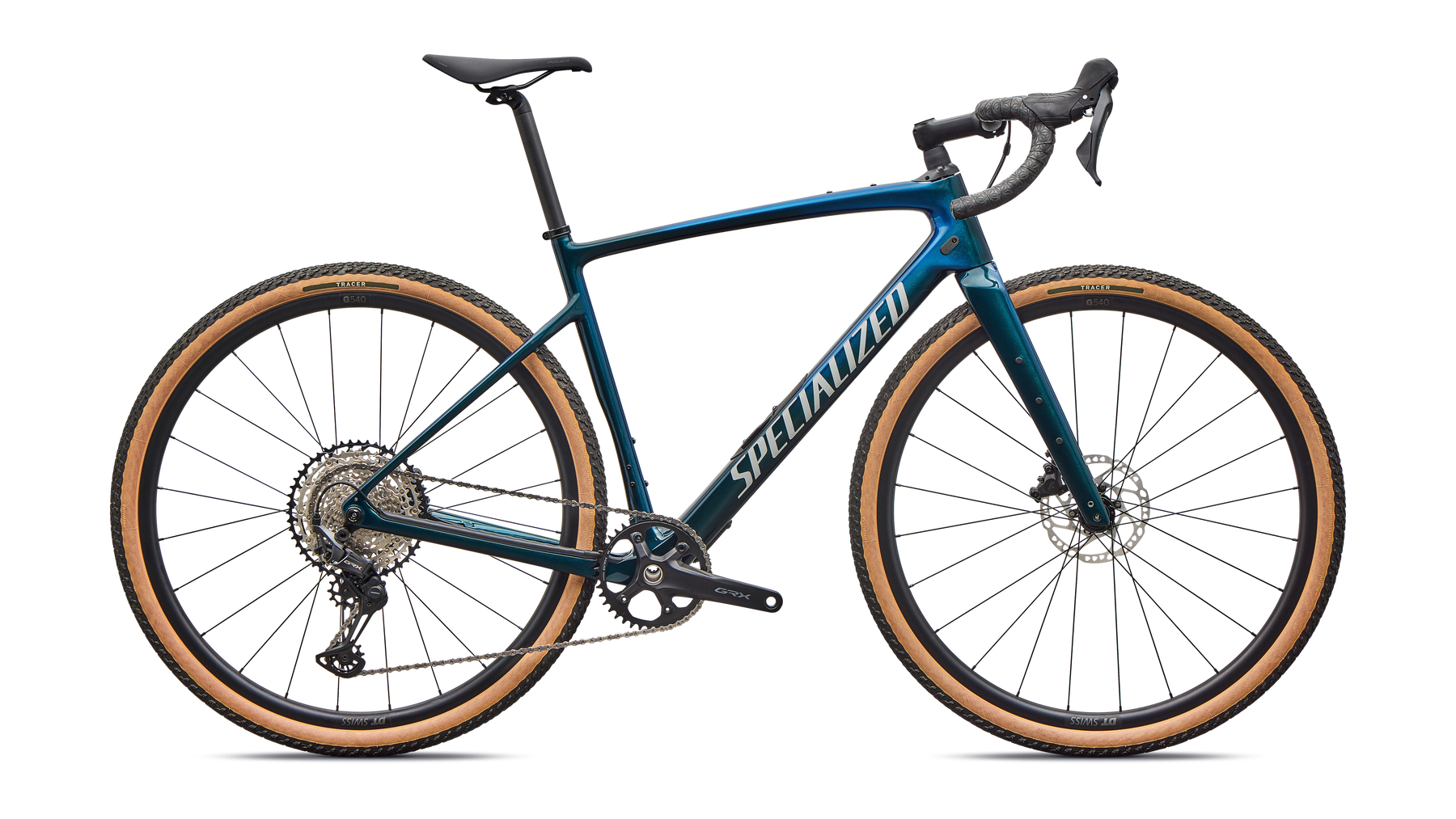

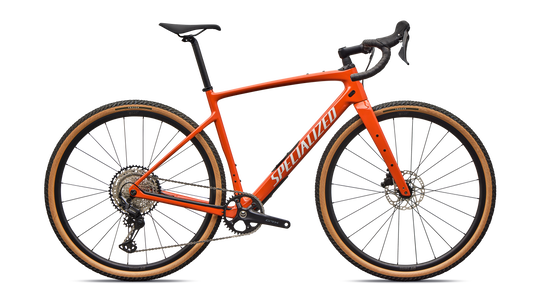

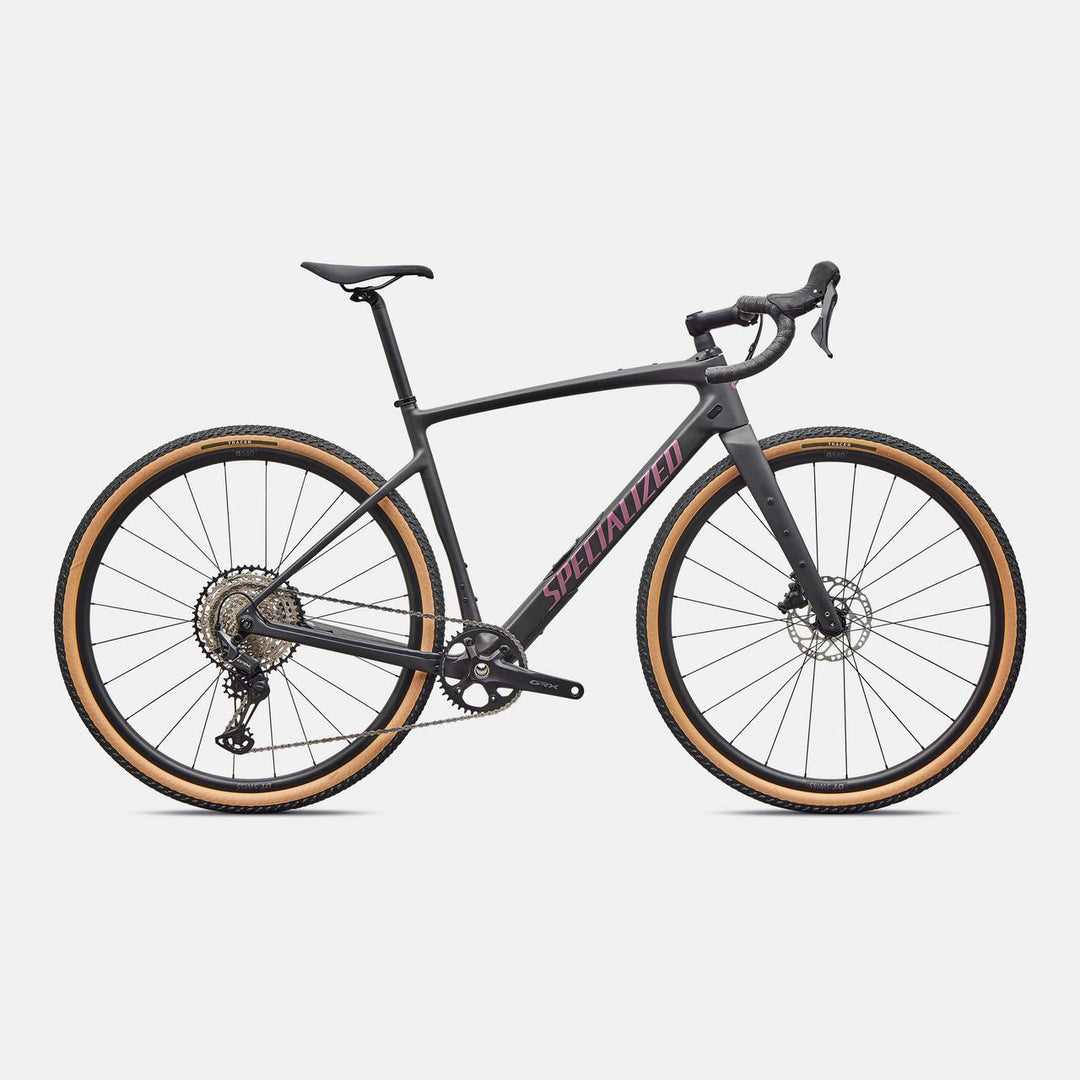

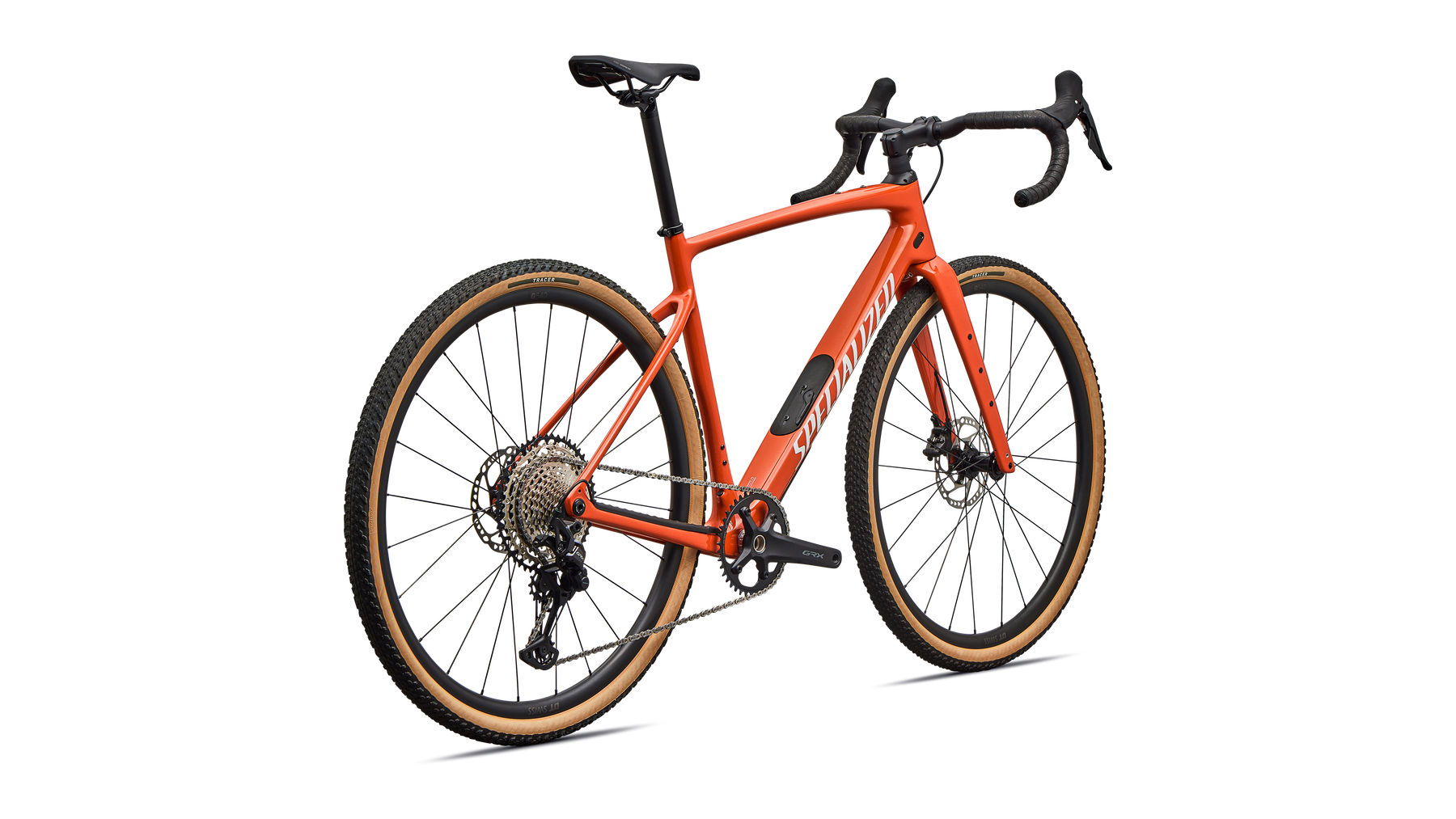

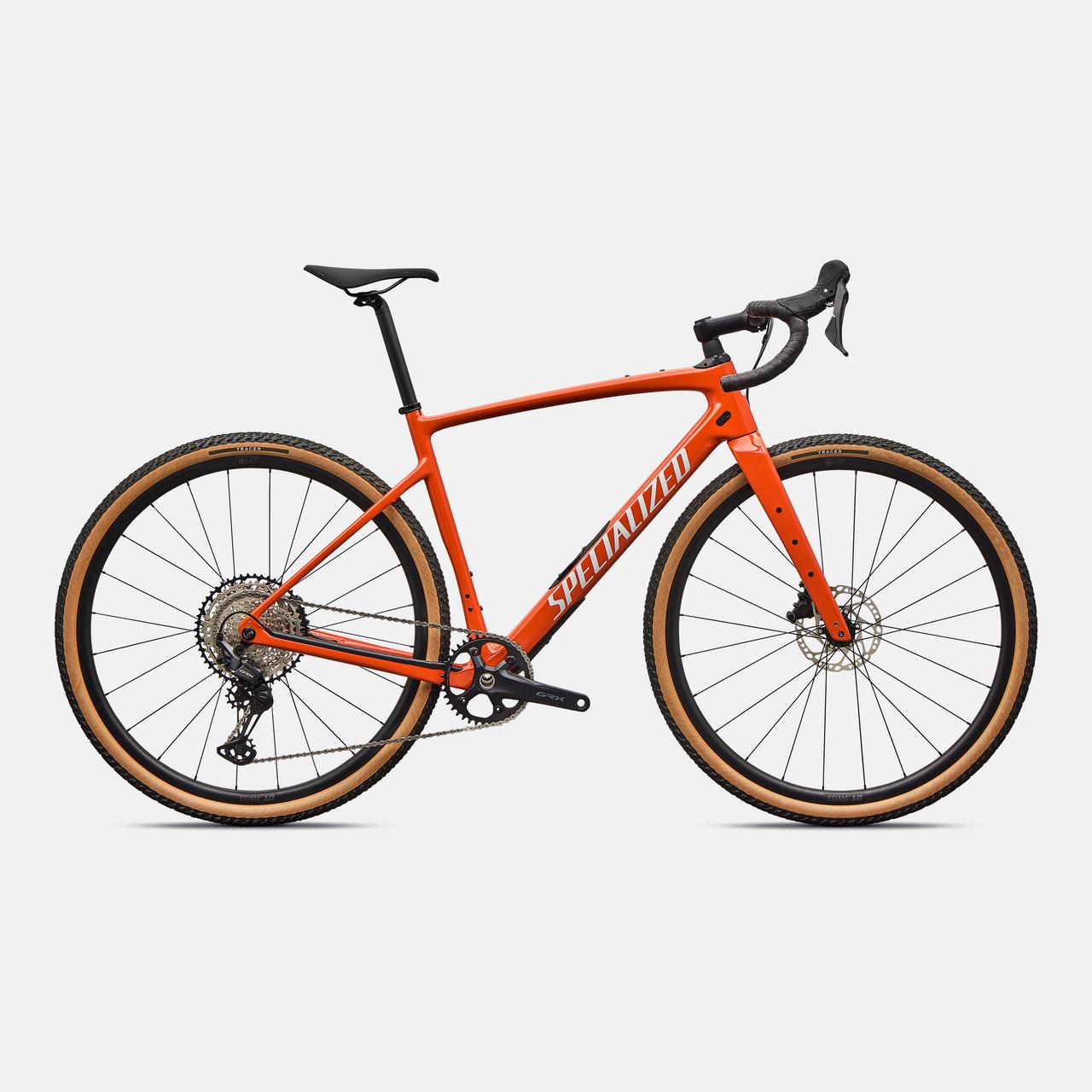

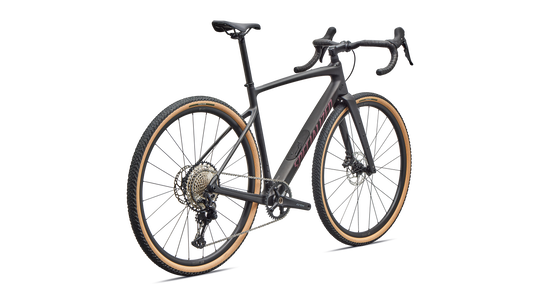

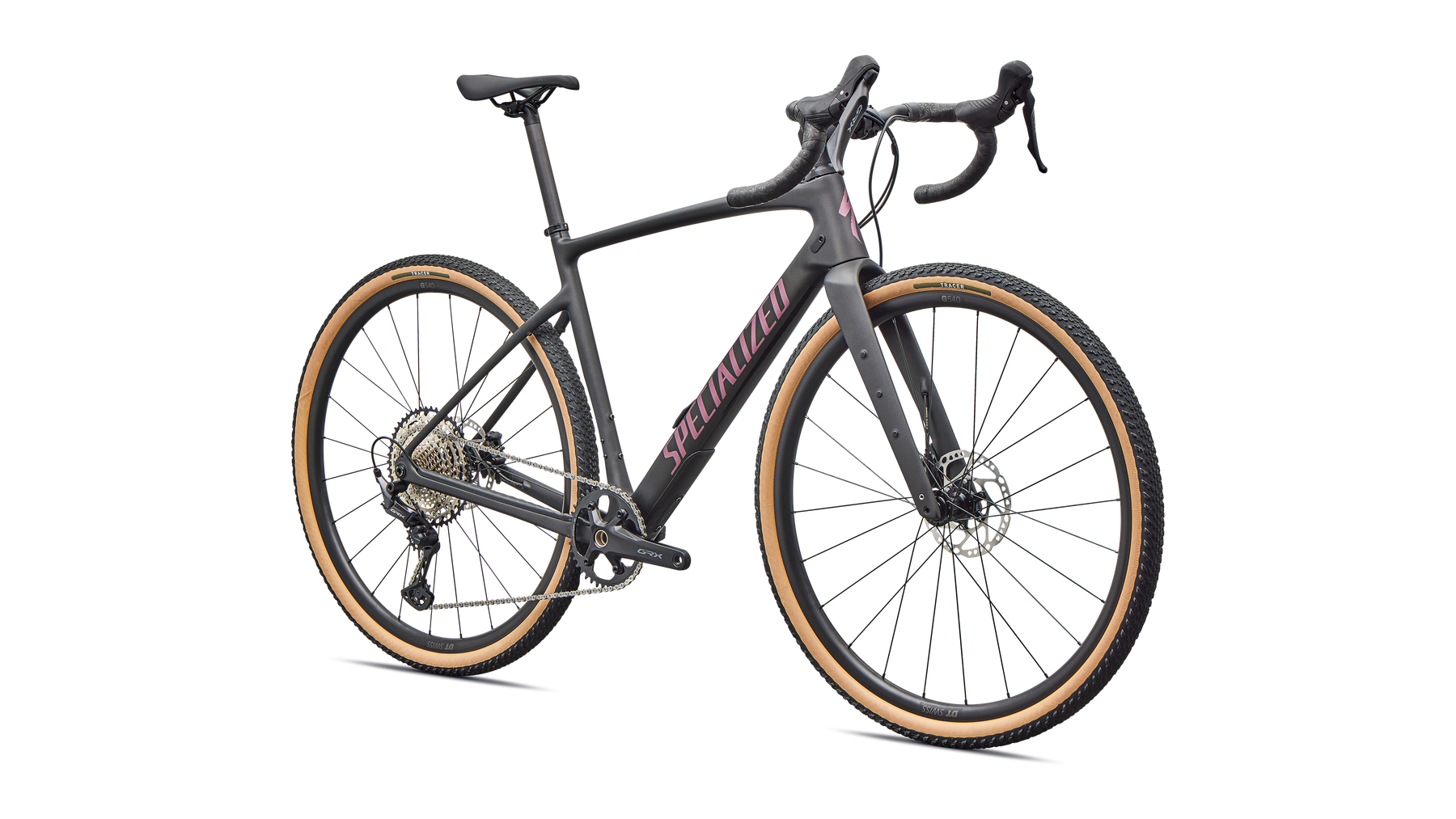

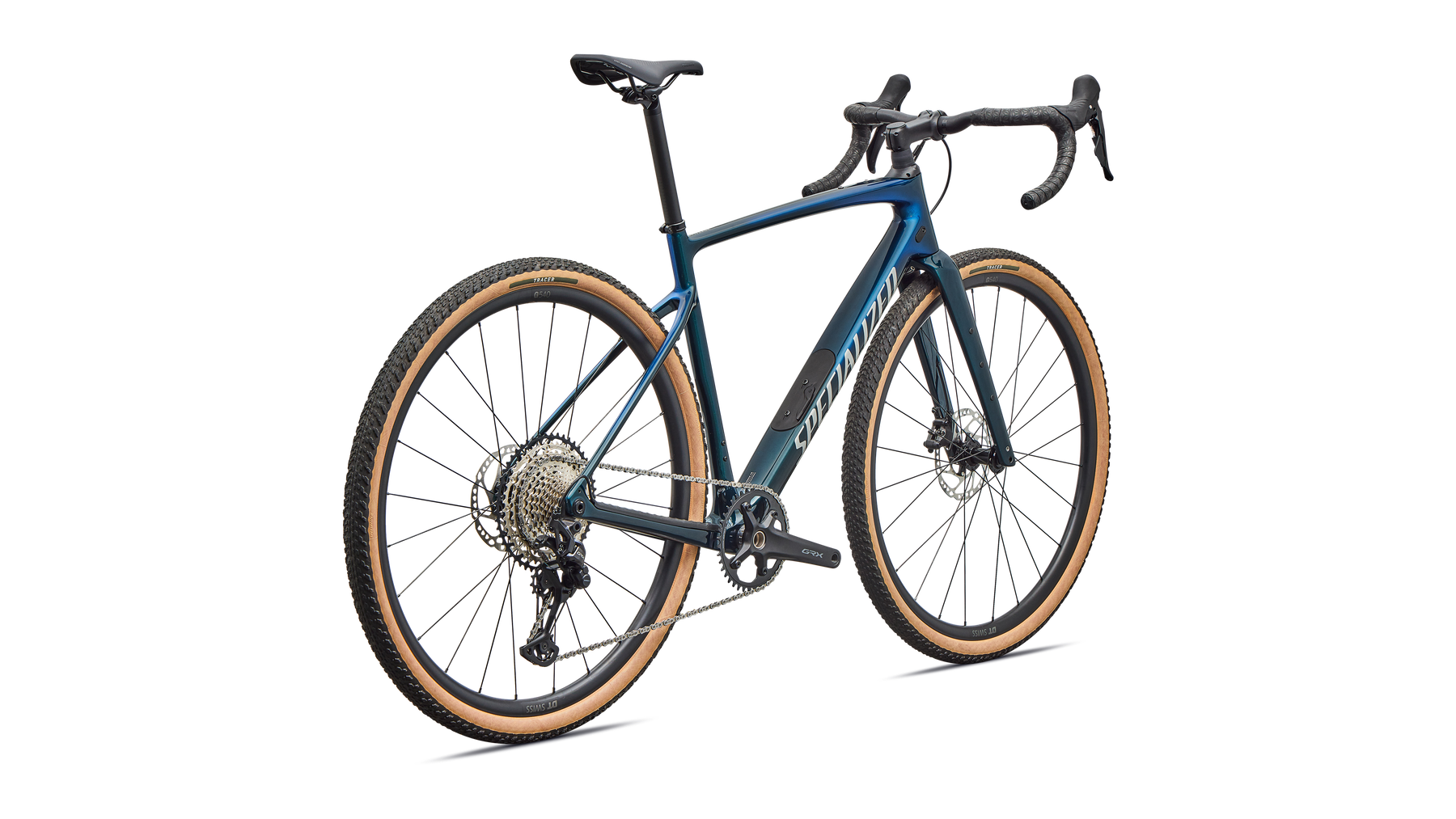

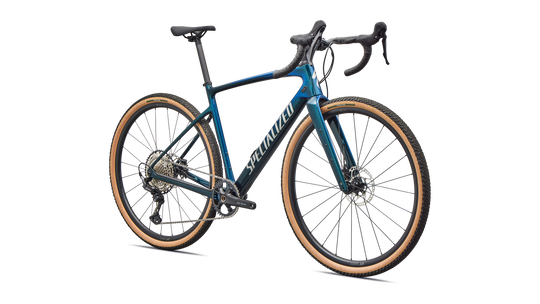

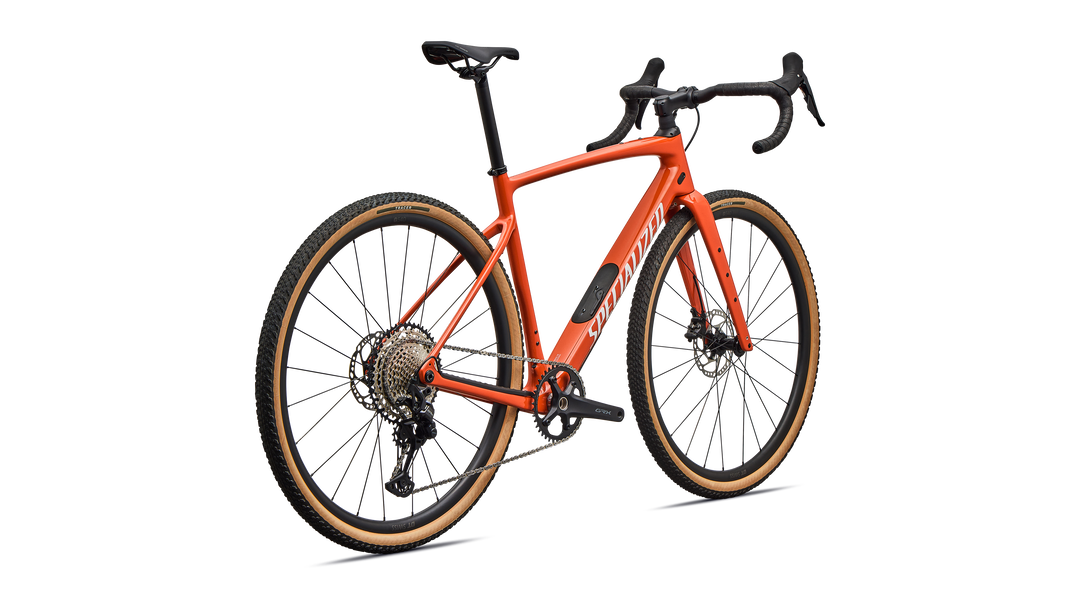

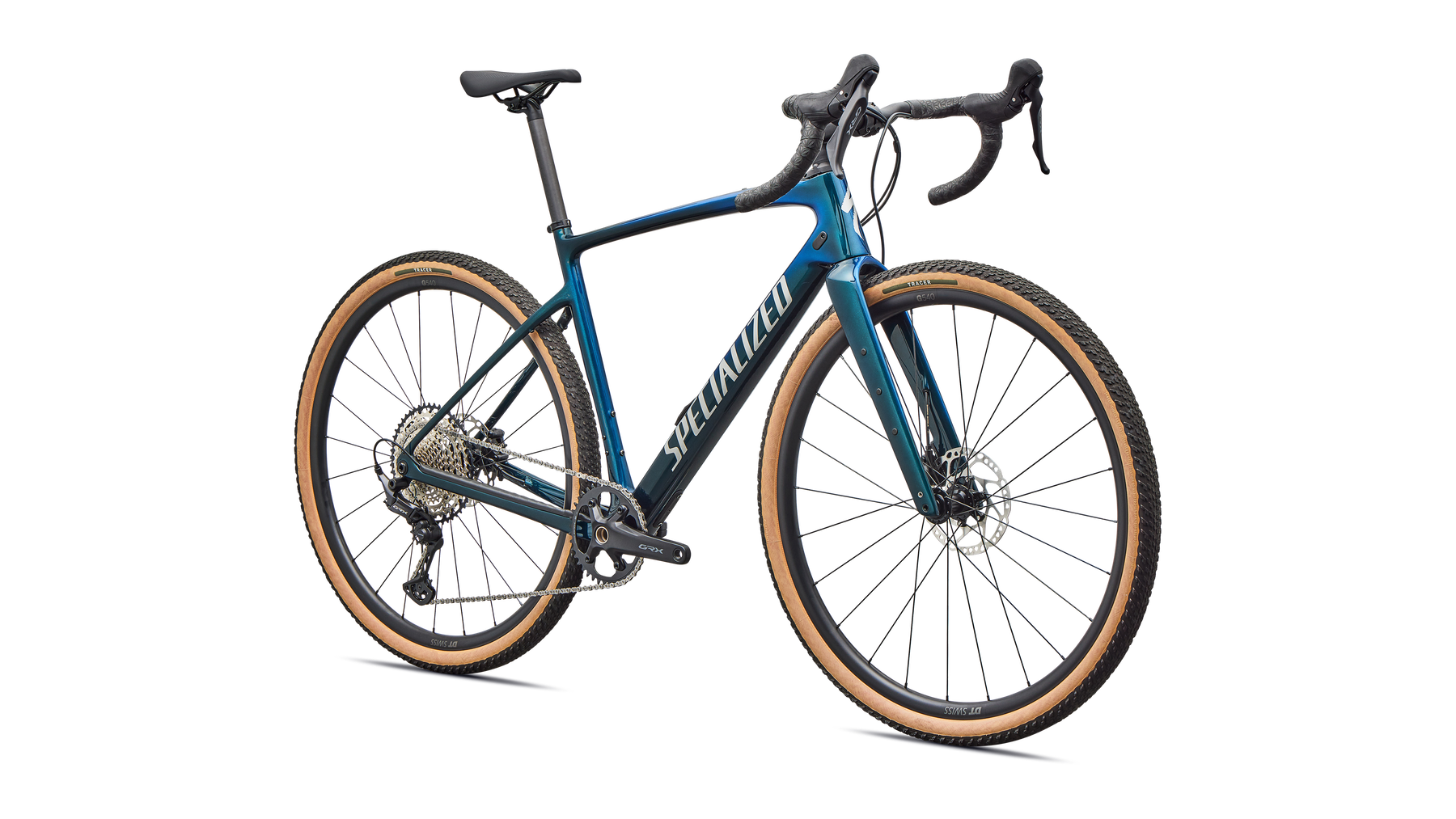

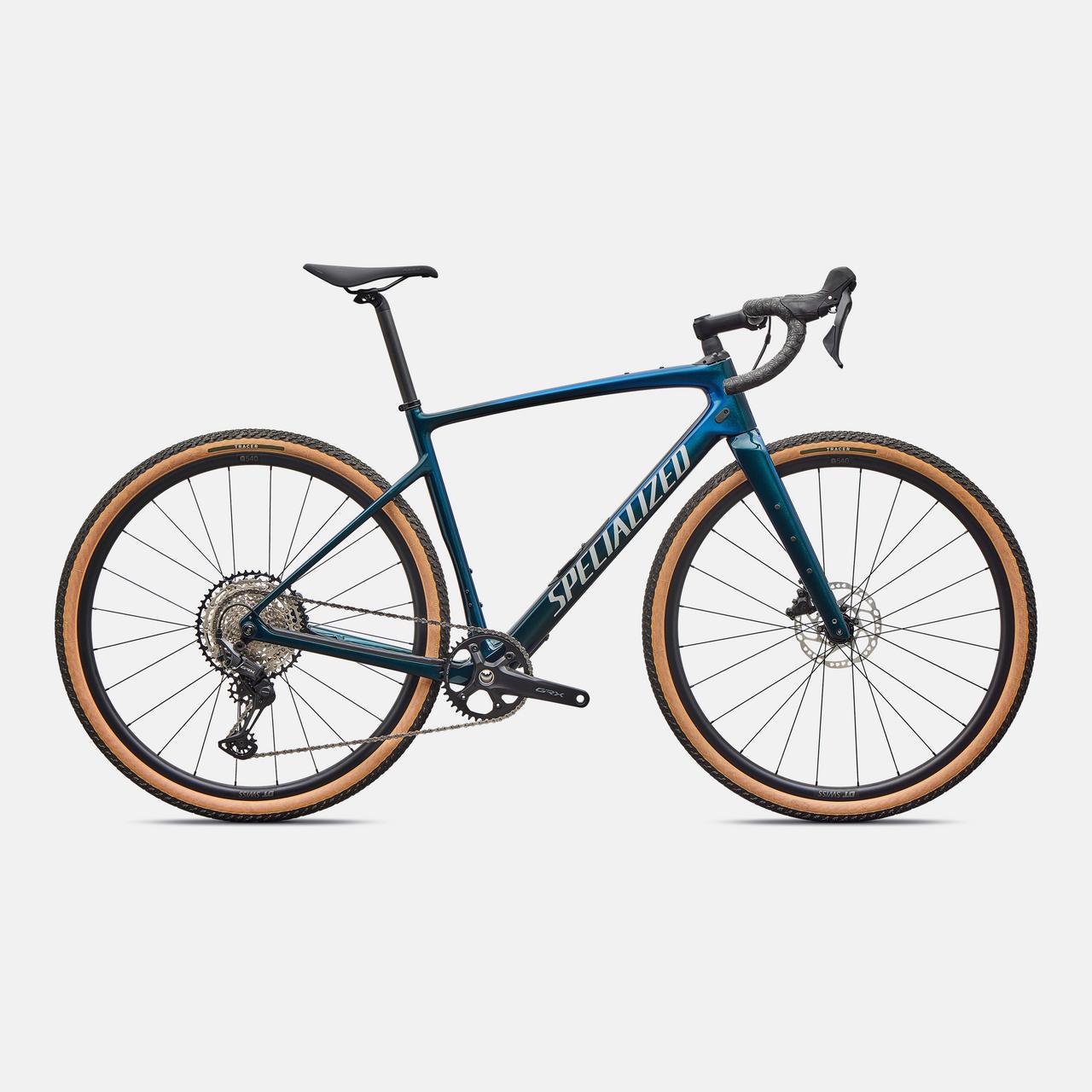

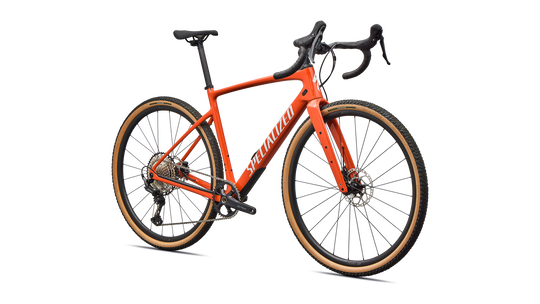

Race-tuned. Adventure-approved. The Diverge 4 gravel bike is built for full-gas race days and off-grid epics. With Future Shock 3.0, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon—or your rivals—it’s built for both.
- Use - Gravel Adventure/Race
- Frameset - FACT 9r Carbon
- Suspension - Future Shock 3.1
- Drivetrain/Wheels - Shimano GRX 600 1x12 / DT G540
- Storage - SWAT 4.0
- 9.79kg
Frameset
- Frame
- Specialized Diverge FACT 9r carbon, SWAT™ Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
- Fork
- Future Shock 3.1 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Brakes
- Front Brake
- Shimano GRX 600, Hydraulic Disc
- Rear Brake
- Shimano GRX 600, Hydraulic Disc
Drivetrain
- Bottom Bracket
- Shimano BSA Threaded 68mm
- Rear Derailleur
- Shimano GRX RX822-SGS, 12-speed
- Cassette
- Shimano SLX, CS-M7100, 12-speed, 10-51t
- Chain
- Shimano SLX, M7100, 12-speed
- Shift Levers
- Shimano GRX RX820 12-speed
- Crankset
- Shimano GRX FC-RX610, 40t
Wheels & tires
- Front Wheel
- DT Swiss G540 700c, Center Lock Disc
- Rear Wheel
- DT Swiss G540 700c, Center Lock Disc
- Front Tire
- Tracer 700x45, Tan Sidewall, Tubeless Ready
- Rear Tire
- Tracer 700x45, Tan Sidewall, Tubeless Ready
- Inner Tubes
- Presta, 700x32-50mm
Cockpit
- Saddle
- Body Geometry Power Sport, steel rails
- SeatPost
- Carbon, single-bolt, 27.2mm
- Stem
- Future Stem, Comp
- Handlebars
- Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare
- Seat Binder
- Specialized Alloy, 30.8mm
- Tape
- Supacaz Super Sticky Kush
Accessories
- SWAT
- SWAT 4.0 internal downtube storage
Product details
- Product ID
- 223514
Weight
- Weight Size
- 56
- Weight
- 9.79 kg (21 lb, 9.3 oz)
| 49 | 52 | 54 | 56 | 58 | 61 | |
| Crank Length | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 380 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 60 | 70 | 80 | 90 | 100 | 100 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 350 | 350 | 400 | 400 | 400 | 400 |
| Stack | 563 | 578 | 592 | 610 | 634 | 659 |
| Reach | 365 | 374 | 387 | 400 | 412 | 425 |
| Head Tube Length | 90 | 104 | 116 | 135 | 161 | 187 |
| Head Tube Angle | 70 | 70.5 | 71 | 71 | 71 | 71 |
| BB Drop | 85 | 85 | 85 | 85 | 85 | 85 |
| Trail | 72 | 68 | 65 | 65 | 65 | 65 |
| Fork Length, Full | 391 | 391 | 391 | 391 | 391 | 391 |
| Fork Rake/Offset | 55 | 55 | 55 | 55 | 55 | 55 |
| Front Center | 604 | 613 | 626 | 645 | 665 | 686 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1019 | 1031 | 1041 | 1060 | 1081 | 1102 |
| Top Tube Length, Horizontal | 521 | 537 | 556 | 575 | 593 | 613 |
| Bike Standover Height | 700 | 725 | 754 | 779 | 805 | 832 |
| Seat Tube Length | 400 | 430 | 470 | 500 | 530 | 560 |
| Seat Tube Angle | 74.5 | 74 | 74 | 74 | 74 | 74 |
