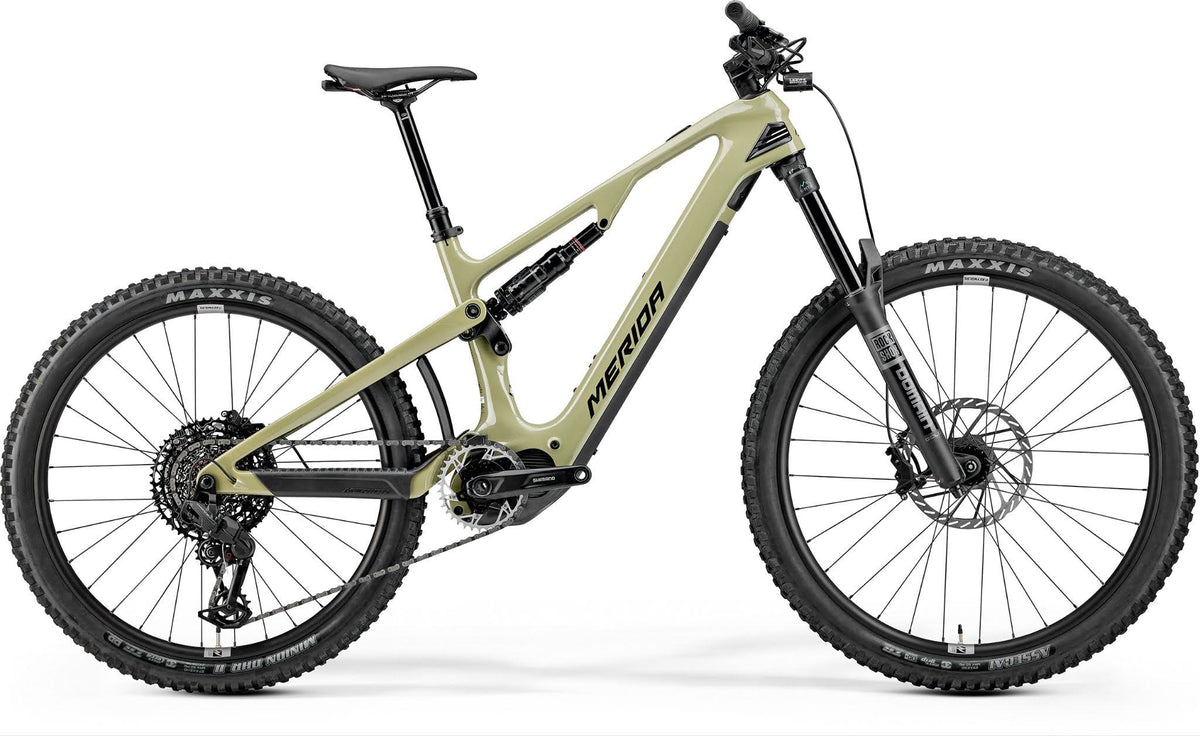

The latest addition to the eONE-SIXTY CF range takes the proven carbon fibre chassis and suspension configuration and combines it with the latest Auto and Free Shift technology thanks to Shimano's wireless Di2 XT drivetrain. The finely tuned geometry offers maximum control on the way up and down, the EP801 drive unit gives the 8000 plenty of grunt and Shimano's electornic shifting technologies let the rider concentrate on what is important - the ride.
Lightweight or full power? How about both? The eONE-SIXTY CF combines an enduro-ready lightweight full carbon chassis with a full-support motor, 600 Wh battery and an optional 360 Wh range extender, so you don't have to choose between precise, playful handling, decent range or support that'll get you up the trickiest technical sections. With 170 mm travel at the front and 174 mm at the rear, it's designed to be perfectly at home on a race track or just hitting the trails on repeat. We've also married the award-winning FAST kinematic suspension and AGILOMETER sizing of our ONE-SIXTY enduro bike with our proven e-bike heritage, so it's quite the thoroughbred bloodline. Our low-maintenance flexstay suspension offers size-tuned progression to maximise performance for all sizes of riders, plus you can run it with the latest coil shocks. With mixed size 29" front and 27.5" rear wheels as standard for playful handling, you can switch to a focused full 29er setup without messing up the geometry, thanks to our flip chip design. We've created a geometry that can take on the toughest enduro trails while maintaining a playful and fun character. Thanks to our 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whatever suits you.
| FRAME | eONE-SIXTY CF III, MAT carbon, 160 STR, 29” x 2,6” max. WHS, 148x12 AST, intube, max. 600 Wh, |
| SHOCK | Rock Shox Super Deluxe Select, |
| FORK | Domain Gold RC E-MTB, Air, 170 STR, Tapered, 44mm fork offset, 29x3.0" max WHS, |
| BRAKE FRONT | Sram DB8 Stealth, 4 piston |
| BRAKE REAR | Sram DB8 stealth, 4 piston |
| ROTOR FRONT | Sram HS2, 220mm |
| ROTOR REAR | Sram HS2, 200mm |
| CHAIN | Sram Eagle 70 Flattop Chain, |
| CRANKSET | Sram XX Eagle Transmission E-MTB for Steps, 36t |
| CRANK LENGTH | Shimano FC-EM600 165 mm all sizes |
| DERAILLEUR REAR | Sram Eagle 70 Transmission, |
| CASSETTE | Sram CS XS 1270 T-TYPE 10-52,12 |
| PEDAL | VP VPE-527, |
| GRIP | MERIDA EXPERT EC, |
| HANDLEBAR | MERIDA EXPERT eTR, 780 WHB |
| STEM | MERIDA EXPERT eTR II, MAT aluminium, 35 DSH, 0 ASD, Supernova mount, |
| STEM SIZE | 40 mm all sizes, |
| HEADSET | Acros ICR MERIDA INTEGRATED neck w/ Blocklock, |
| HUB FRONT | Novatec SL-ELITE D041SB-B15, 110x15 WHF, 32 SPH, 6 bolt |
| HUB REAR | Novatec SL-TEAM D462SB-S3S-B12-11S, 148x12 WHR, 32 SPH, 6 bolt |
| RIM | Reynolds 309 Enduro Comp, 30 IWR, MAT aluminium, Tubeless ready (tubeless tape installed), front 29", rear 27.5", |
| SADDLE | MERIDA COMP SL, V-mount, incl. MERIDA minitool, |
| SEAT CLAMP | MERIDA EXPERT, |
| SEAT POST | MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XS: 125mm travel - S: 150mm travel - M: 170SPT - L: 200mm travel - XL: 230mm travel |
| SHIFTER FRONT | Sram Dropper Lever MMX, |
| SHIFTER REAR | Sram Eagle 70 Transmission Shifter, |
| TYRE FRONT | Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip, |
| TYRE REAR | Maxxis Minion DHR II, 27.5x2.4 ", fold, 3C DD TR MaxxTerra, |
| LIGHT FRONT | Lezyne Hekto StVZO E350+ Reverse, reverse MERIDA Custom Mount |
| LIGHT REAR | USB REAR Light CG-214RG, |
| DRIVE UNIT | Shimano EP801, 85Nm |
| BATTERY | Trendpower TPS-C15-58SD, 600Wh integrated |
| DISPLAY | Shimano SC-EM800, |
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| ST seat tube [mm] | 400 | 410 | 425 | 445 | 465 |
| TT top tube [mm] | 546 | 567 | 589 | 610 | 632 |
| CS chain stay length [mm] | 446 | 446 | 446 | 446 | 446 |
| HTA head tube angle [°] | 64.4 | 64.4 | 64.4 | 64.4 | 64.4 |
| STA seat tube angle [°] | 78.5° | 78.5° | 78.4° | 78.4° | 78.3° |
| BD bottom bracket drop [mm] | 9 | 9 | 9 | 9 | 9 |
| HT head tube [mm] | 100 | 105 | 110 | 115 | 120 |
| FL fork length [mm] | 581 | 581 | 581 | 581 | 581 |
| R reach [mm] | 419 | 439 | 459 | 479 | 499 |
| S stack [mm] | 624 | 628 | 633 | 637 | 642 |
| WB wheel base [mm] | 1199 | 1221 | 1244 | 1266 | 1288 |
| SH stand over height [mm] | 776 | 770 | 765 | 760 | 755 |
