EOne Sixty 8000 2022
EOne Sixty 8000 2022

EOne Sixty 8000 2022

Regular price $10,799.00 Sale price$8,499.00
/
Tax included.

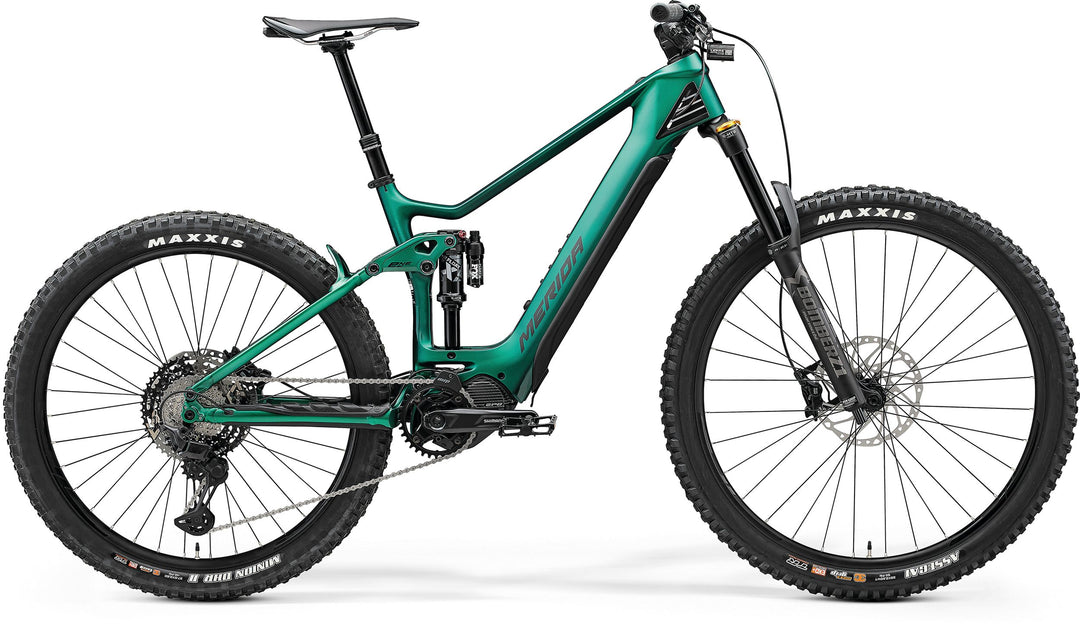

By taking the very same, multiple test and award-winning carbon/aluminium frame found on the top-end bikes and marrying it to high-value components, the eONE-SIXTY 8000 proves you don’t need to break the bank to deliver impeccable trail performance. The Marzocchi fork and Fox rear shock keep their cool no matter how rugged the trail gets, while the tough Shimano LinkGlide drivetrain and refined EP8 motor will keep you powering up hills thanks to the high-capacity 630 Wh battery.

The eONE-SIXTY has seamlessly followed in the footsteps of the 'original' eONE-SIXTY in becoming the most decorated, tested and awarded bike in MERIDA's history. This highly anticipated bike managed to collect a vast amount of amazing test results and wins, as well as a few more industry awards to its tally. E-Mountainbike gave it the 'BEST IN TEST' approval in their 'Best of 2021' eMTB group test, World of MTB also gave it their 'Best of 2021' award and FREERIDE gave the 9000 the almost perfect score of 9.5 out of ten, just to mention a few. For 2022, our carbon e-enduro bike will be equipped with the proven EP8 motor from Shimano as well as with the range extending 630 Wh internal battery. A perfectly tuned MTB geometry, paired with a stiff and lightweight carbon front triangle and tough aluminium rear, seamlessly integrated battery and a mixed wheel size combo that delivers poise and confidence on the toughest trails, the eONE-SIXTY is ready for anything you can throw at it.

Build
Frame

eONE-SIXTY CFA II, material: carbon, 150mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, MUK 37 Hanger

BB Standard: BSA, 73mm, threaded

Fork

Marzocchi Z1 Ebike+, Air, 160mm suspension travel, Tapered, 51mm fork offset, 29x2.6" max wheelsize

Rear Shock

FOX Float DPX2 Performance, platform

Bottom Bracket

BSA, 73mm, threaded

Headset

MERIDA 8152

Stem

MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount, 40 mm

Handlebar

MERIDA EXPERT eTR, 780mm width, 20mm rise

Saddle

MERIDA EXPERT CC, V-mount

Seatpost

MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, XS 100mm travel seatpost - S 125mm travel seatpost - M 150mm travel seatpost - L/XL 170mm travel seatpost

Groupset
Rear Derailleur

Shimano XT RDM8130 Shadow+ 11

Crank

Shimano CRE80-B, 34 teeth

Shifters

Shimano SL -MT500-IL / Shimano XT M8130

Cassette

Shimano LG600, 11-50 teeth, 11 speed

Chain

CNLG500

Brakes

Shimano SLX, 4 piston

Wheels
Rims

MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)

Spokes

Black stainless

Front Hub

Shimano XT, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock

Rear Hub

Shimano XT, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock

Tires

Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip

Disk Rotors

Shimano RT64 / Shimano RTEM600, 203 mm

Electric Components

eONE-SIXTY 8000 GEO

FRAME SIZE XS S M L XL
TYRE SIZES 29/27.5" 29/27.5" 29/27.5" 29/27.5" 29/27.5"
ST SEAT TUBE [MM] 405 420 440 470 500
TT TOP TUBE [MM] 563 584 605 629 652
CS CHAIN STAY LENGTH [MM] 439.5 439.5 439.5 439.5 439.5
HTA HEAD TUBE ANGLE [°] 65.5 65.5 65.5 65.5 65.5
STA SEAT TUBE ANGLE [°] 75.5 75.5 75.5 75.5 75.5
BD BOTTOM BRACKED DROP [MM] 17.5 17.5 17.5 17.5 17.5
HT HEAD TUBE [MM] 110 115 120 135 150
FL FORK LENGTH [MM] 571 571 571 571 571
R REACH [MM] 400 420 440 460 480
S STACK [MM] 628.5 633 637.5 651.5 665
WB WHEEL BASE [MM] 1168 1190 1212 1238.5 1265
SH STAND OVER HEIGHT [MM] 742 737 733 740 754
FRAME SIZE BODY HEIGHT
XS < 163 cm
S 157 - 173 cm
M 167 - 183 cm
L 177 - 190 cm
XL > 187 cm
