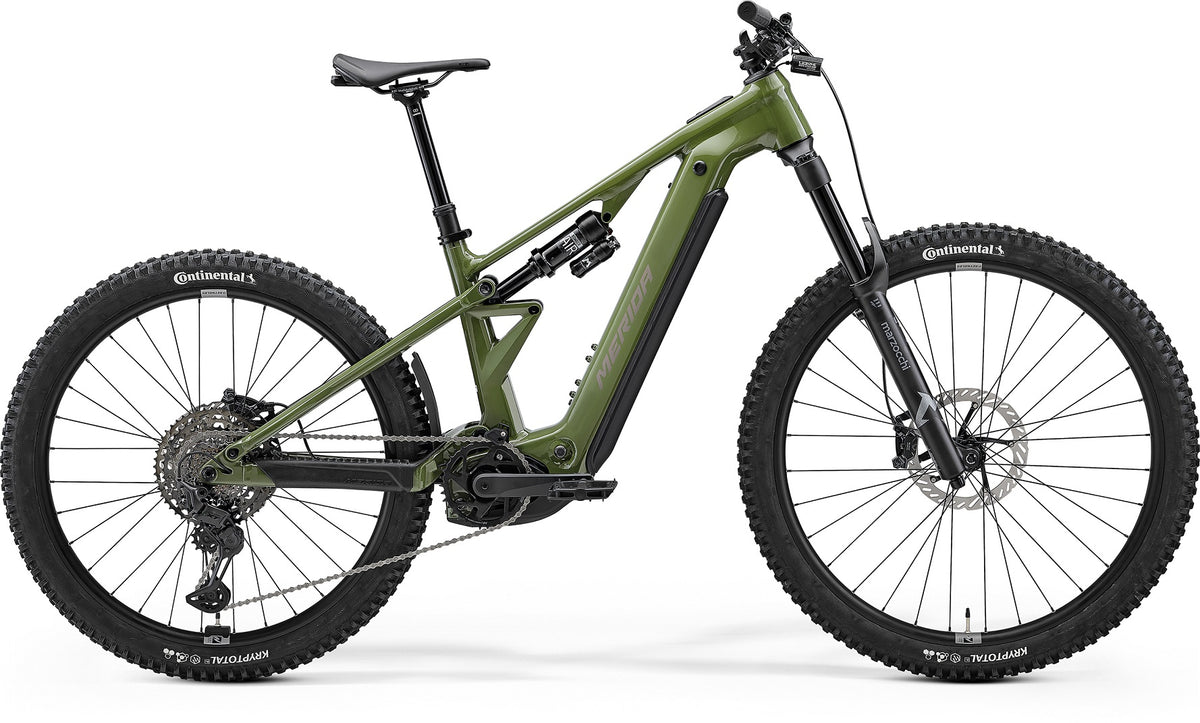

The ETMO 800 delivers serious performance on the trail without hammering your wallet. We've combined our high-value aluminium 160 mm travel frame with Bosch's powerful 100 Nm CX drive unit and big 800 Wh battery, so you can explore for hours or lap your favourite loops all day long. With mixed-size wheels for a fun but stable ride and our proven geometry, you're guaranteed fun whether you're a fresh face to mountain biking or an experienced hand. Quality kit from Shimano handles stopping and drivetrain duty, while Marzocchi's legendary Bomber suspension, including a stout 38 mm stanchion fork, takes care of the bumps.
A quality e-MTB means more runs, more fun, and more time just getting out there. This is why we’ve created the MERIDA ETMO, our most price-focussed Bosch-powered e-MTB ever. We’ve used all our aluminium frame design and manufacturing know-how to create a durable frame that takes inspiration from the award-winning long-travel eONE-EIGHTY, but in an extra versatile and affordable package. The ETMO uses 160 mm of travel* at either end and mixed wheel sizes, so it’s fun and fast on any terrain, with handling that’ll bring a smile to the face of experienced riders and fresh faces alike. We've backed this up with our lifetime frame warranty, too.
With the proven and trusted power of Bosch pedal assistance, the ETMO offers battery and drive unit options for every need and wallet, with 540, 600 or 800 Wh internal batteries and the choice of powerful CX or high-value PX drive units depending on the model. We also have EQ models that come fully equipped with fenders, lights, a kickstand and a rear rack for urban SUV use, plus PRO models that have upgraded drive unit and battery specs.
| FRAME | ETMO LITE, MAT aluminium, 160mm STR, 27.5” x 2,6” max. WHS, 148x12 AST, intube, |
| SHOCK | Marzocchi Bomber Air |
| FORK | Marzocchi Bomber Z eMTB, Air, 160 STR, Tapered, 44mm fork offset, 29x2.6" max WHS |
| BRAKE FRONT | Shimano XT, 4 piston |
| BRAKE REAR | Shimano XT, 4 piston |
| ROTOR FRONT | Shimano CL-750, 200mm |
| ROTOR REAR | Shimano CL-750, 200mm |
| CHAIN | Shimano LG500 |
| CRANKSET | FSA Direct Mount Steel Chainring, 36T |
| CRANK/SIZE | FSA CK-220 wide E-Bike Forged Crankset, 160mm for all sizes |
| BOTTOM BRACKET | |
| DERAILLEUR FRONT | |
| DERAILLEUR REAR | Shimano XT M8230 , SGS |
| CASSETTE | Shimano LG700, 11-50T, 11sp |
| GRIP | MERIDA EXPERT TR |
| HANDLEBAR | MERIDA EXPERT eTR, 780 WHB, |
| STEM | MERIDA COMP TR, MAT aluminium, 35 DSH, 0 ASD, GoPro mount |
| STEM/SIZE | 40 mm all sizes |
| HEADSET | Acros ICR EXTERNAL neck w/ Blocklock |
| HUB FRONT | Shimano TC500-B, 110x15 WHF, 32 SPH, Centerlock |
| HUB REAR | Shimano TC500-HM-B, 148x12 WHR, 32 SPH, Centerlock |
| AXLE FRONT | |
| AXLE REAR | MERIDA EXPERT TR, including removeable lever, 6/4mm allen key |
| RIM | Reynolds 309 Enduro Comp, 30 IWR, MAT aluminium, Tubeless ready (tubeless tape installed), front 29", rear 27.5" |
| SADDLE | Proxim Altius, V-mount adapter, incl. MERIDA minitool |
| SEAT POST | MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XS: 125 SPT - S: 150 SPT - M: 170SPT - L: 200 SPT - XL: 230 SPT |
| SHIFTER FRONT | Shimano SL -MT500-L |
| SHIFTER REAR | Shimano XT M8230 |
| TYRE FRONT | Continental Kryptotal-F, 29x2.4", fold, TR, Enduro casing, Soft compund |
| TYRE REAR | Continental Kryptotal-R, 27.5x2.4" , fold, Enduro casing, soft compound |
| DRIVE UNIT | Bosch Performance Line CX |
| BATTERY | Bosch PowerTube 800 , 800Wh |
| DISPLAY | Bosch Purion 400 |
| Frame Size | Short | Mid | Long | XLong |
| Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| ST seat tube [mm] | 380 | 405 | 430 | 455 |
| TT top tube [mm] | 556 | 584 | 609 | 636 |
| CS chain stay length [mm] | 446 | 446 | 446 | 446 |
| HTA head tube angle [°] | 65 | 65 | 65 | 65 |
| STA seat tube angle [°] | 78.5 | 78.5 | 78.5 | 78.5 |
| BD bottom bracket drop [mm] | 20 | 20 | 20 | 20 |
| HT head tube [mm] | 105 | 115 | 115 | 125 |
| FL fork length [mm] | 580 | 580 | 580 | 580 |
| FO fork offset [mm] | 44 | 44 | 44 | 44 |
| R reach [mm] | 425 | 450 | 475 | 500 |
| S stack [mm] | 644 | 653 | 653 | 662 |
| WB wheel base [mm] | 1202 | 1231 | 1256 | 1285 |
| SH stand over height [mm] | 745 | 748 | 751 | 754 |
