Norco  |  SKU: 592969
20% off

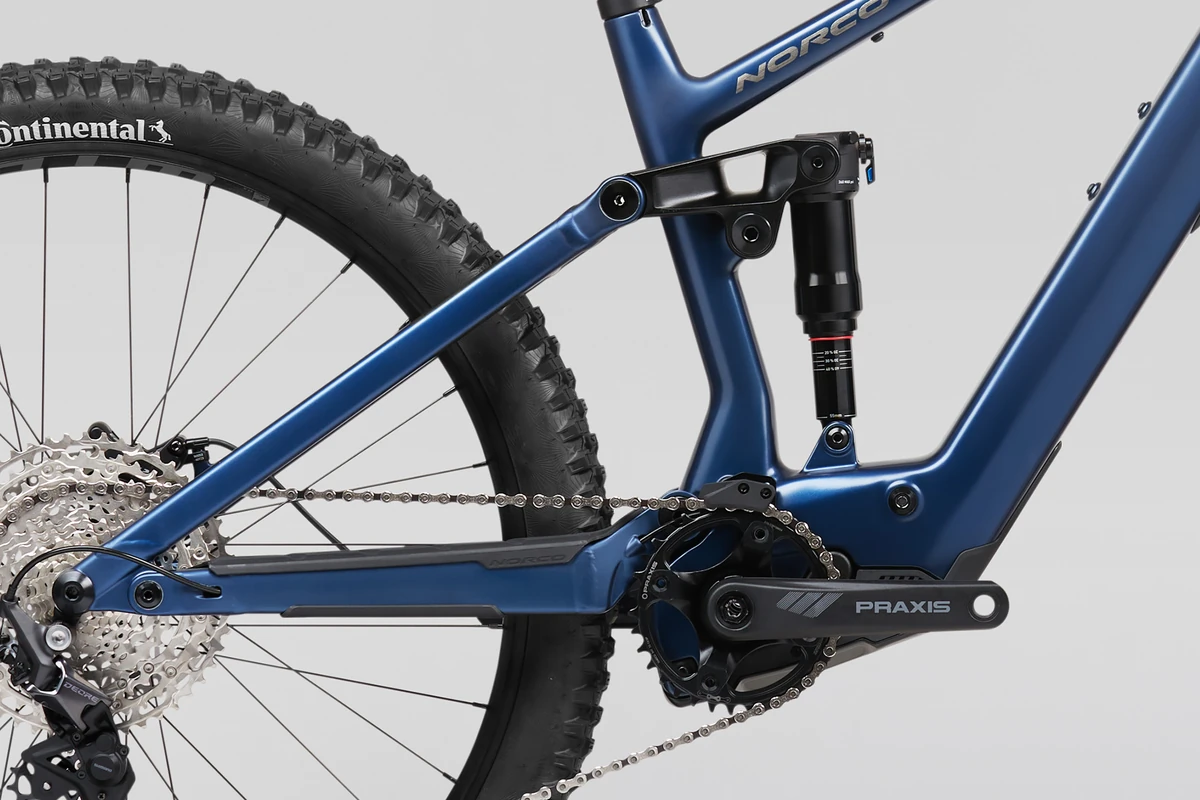

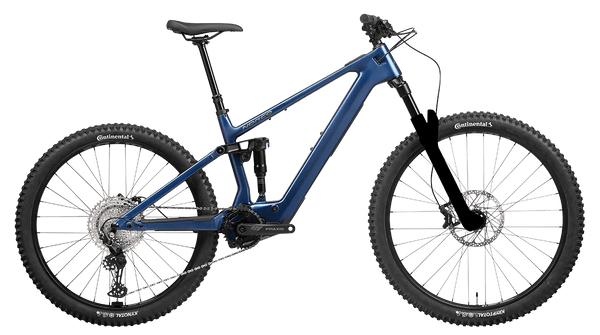

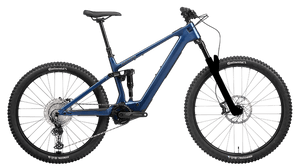

Fluid VLT C3 140 2024

$8,799.20 $10,999.00
Tax included
Size
Colour

Description

Get more rides in and make the most of every minute of the lightweight Fluid VLT C3 140. Featuring the next-level Bosch Performance Line SX drive system, and 140mm of precision-tuned suspension, integrating mixed wheels across all 5 frame sizes for optimum weight balance & handling.

Specification

FRAME Fluid VLT Carbon Front Triangle, Alloy SS and CS, 27.5" Wheel, 140mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
FORK RockShox suspension
REAR SHOCK RockShox Deluxe Select+, 185x55mm Trunion

REAR SHIFTER Shimano Deore SL-M6100
REAR DERAILLEUR Shimano Deore RD-M6100
CRANKSET Praxis Alloy HD eMTB, 165mm
CASSETTE Shimano Deore CS-M6100-12 11-51T, 12 Speed
CHAIN KMC e12

FRONT BRAKE TRP Slate EVO, 4 Piston
FRONT BRAKE ROTOR TRP TR203, 203mm, 2.3mm Thick
REAR BRAKE TRP Slate EVO, 4 Piston
REAR BRAKE ROTOR TRP TR180, 180mm, 2.3mm Thick
BRAKE LEVERS TRP Slate EVO for Shimano I-Spec

HANDLEBAR 6061 Butted Alloy, 800mm, 25mm Rise
STEM 6061 Alloy 40mm Length, 35mm Clamp
SEATPOST TranzX YSI34 Dropper, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5)
HEADSET Sealed ZS
HEADSET SPACER Carbon, 2x10mm, 1x5mm
SADDLE WTB Volt Med
GRIPS WTB Wavelength

FRONT HUB Bear Pawls 110x15mm Boost, 6 Bolt
REAR HUB Bear Pawls, 6 Pawl 3 Sealed Bearing, Steel Driver Body, 6-Bolt, Micro Spline
RIMS WTB ST Tough 32H, 27.5" Rear, 29" Front, 30mm ID
FRONT TIRE Continental Kryptotal 29" x 2.4" Trail
REAR TIRE Continental Xynotal 27.5" x 2.4" Trail

DRIVE UNIT Bosch Performance Line SX
BATTERY Bosch CPT 400Wh

WEIGHT 20.3 kg (44.7 lbs)
WEIGHT SIZE S3

Geometry



1 2 3 4 5
29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5"
Travel (mm front/mm rear)
150/140
Reach
422.5 447.5 472.5 497.5 522.5
Stack
610 619 628 637 646
HTA Head Tube Angle
64.5
OS Fork Offset
44
ST Seat Tube Length
385 395 415 445 475
STA Effective Seat Tube Angle
76.50 76.75 77.00 77.25 77.50
RC Rear Centre Length
432 432 436 440 444
BB Bottom Bracket Drop
28/8
BBH Bottom Bracket Height
350
HTT Horizontal Top Tube
569 593 618 642 666
WB Wheelbase
1181 1210 1243 1277 1310
SOH Standover
715 701 703 720 743
HT Head Tube Length
100 110 120 130 140
Trail
132
Recommended Seatpost Drop
125 150 170 200 200
Maximum Post Insertion
240 250 270 300 330
Stem Length
40
Crank Length
165
Tire Size
2.35" – 2.6"
Water Bottle Compatible
1 x 620 mL 1 x 750 mL 1 x 750 mL 1 x 750 mL 1 x 750 mL

Size

Get more rides in and make the most of every minute of the lightweight Fluid VLT C3 140. Featuring the next-level Bosch Performance Line SX drive system, and 140mm of precision-tuned suspension, integrating mixed wheels across all 5 frame sizes for optimum weight balance & handling.
