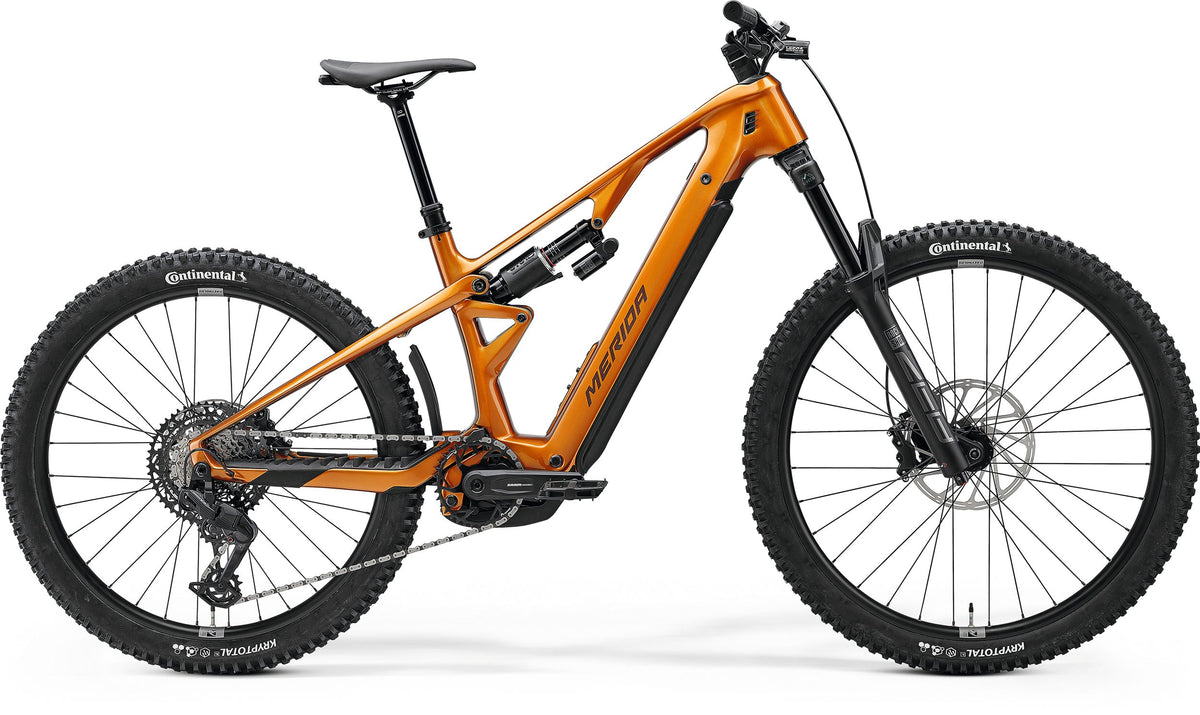

The LITHOS 6000 delivers a huge dose of e-enduro performance and value for any rider or racer. We've taken our carbon fibre 170 mm travel frame and paired it with the hugely strong Bosch CX drive unit and a removable 800 Wh battery, so it's ready to ride and rip, whatever turn the trail takes. Planted handling and sublime traction from our race-derived geometry and kinematics are paired with high-value, high-performance components. The RockShox Zeb Select fork and Vivid shock deliver impressive control, while four-piston DB6 brakes will deal with excess momentum with ease. Add in the tough Reynolds wheelset, grippy Continental tyres and a rock-solid SRAM Eagle 70 drivetrain and you're good to go.
Even in the most imposing terrain, it is possible to find flow. Named after the Ancient Greek for rock or stone, the LITHOS is designed for serious enduro riders and racers, with a single-minded focus on speed, no matter what turn the trail takes.
With a full carbon frame and 170 mm of travel at either end, it’s built for the toughest tracks, pushing hard with friends and racing against the clock. The handling has been engineered to help you carry speed, no matter what the gradient or ground. The geometry is made to maximise traction on flat turns and confidence on steep sections with a longer chainstay and higher stack, while travel-adjustable dropper posts and our AGILOMETER sizing mean you can fine-tune fit and handling.
Because you need absolute faith in your setup for flat-out technical riding, we doubled down on versatility, durability and reliability when creating the LITHOS. That’s why we use the latest Bosch CX and CX Race drive units plus 600 and 800 Wh batteries, giving big-brand performance with proven worldwide sales support.
You can run a lightweight 600 Wh battery for agile handling or a high-capacity 800 Wh for the big days, plus it’s possible to route the cables cleanly through our WIRE PORT or semi-externally via headtube ports if you need rapid access. We also give the choice of running a full 29” setup for flat-out speed or the standard mixed 29/27.5” setup to retain plenty of agility, while both air and coil rear shocks will work perfectly.
| FRAME | LITHOS CF I , MAT carbon, 160 STR, 29" x 2,4" max. WHS, 148x12 AST, intube, |
| SHOCK | Rock Shox Vivid Base |
| FORK | Rock Shox Zeb Select eMTB, Air, 170 STR, Tapered, 44mm fork offset, 29x2.6" max WHS |
| BRAKE FRONT | Sram DB6 stealth, 4 piston |
| BRAKE REAR | Sram DB6 stealth, 4 piston |
| ROTOR FRONT | Sram CenterLine, 220mm |
| ROTOR REAR | Sram CenterLine, 200mm |
| CHAIN | Sram Eagle 70 Flattop |
| CHAINRING | Sram Eagle Transmission E-MTB for Bosch, 36T |
| CRANKSET | Sram S1000 Eagle E-MTB Crank, 160mm all sizes |
| BOTTOM BRACKET | |
| DERAILLEUR REAR | Sram Eagle 70 Transmission |
| CASSETTE | Sram CS XS 1270 T-TYPE 10-52T, 12sp |
| PEDAL | VP VPE-533 |
| GRIP | MERIDA COMP TR |
| HANDLEBAR | MERIDA EXPERT eTR, 780 WHB, |
| STEM | MERIDA EXPERT eTR II, MAT aluminium, 35 DSH, 0 ASD, Supernova mount |
| STEM SIZE | 40 mm all sizes |
| HEADSET | Acros ICR MERIDA INTEGRATED neck w/ Blocklock |
| HUB FRONT | Novatec SL-Team D041SB-B15, 110x15 WHF, 32 SPH, 6 bolt |
| HUB REAR | Novatec SL-Team D952RSB, 148x12 WHR, DT Swiss ratchet compatible, 32 SPH, 6 bolt, HG freehub |
| AXLE FRONT | |
| AXLE REAR | MERIDA EXPERT TR, including removeable lever, 6/4mm allen key |
| RIM | Reynolds 309 Enduro Comp, 30 IWR, MAT aluminium, Tubeless ready (tubeless tape installed), front 29", rear 27.5" |
| SADDLE | MERIDA COMP SL, V-mount, incl. MERIDA minitool |
| SEAT POST | MERIDA EXPERT TR II, 34.9 DSP, 0 SSB, XS: 125 SPT - S: 150 SPT - M: 170SPT - L: 200 SPT - XL: 230 SPT |
| SHIFTER FRONT | Sram dropper lever MMX |
| SHIFTER REAR | Sram Eagle 70 Transmission Shifter |
| TYRE FRONT | Continental Kryptotal-F, 29x2.4", fold, TR, Enduro casing, Soft compound |
| TIRE REAR | Continental Kryptotal-R, 27.5x2.4" , fold, Enduro casing, soft compound |
| DRIVE UNIT | Bosch Performance Line CX |
| BATTERY | Bosch PowerTube 800 , 800Wh |
| SWITCH | Bosch Mini Remote |
| DISPLAY | Bosch Kiox 400C |
| Frame Size | Short | Mid | Long | XLong |
| Tyre Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| ST seat tube [mm] | 410 | 425 | 445 | 465 |
| TT top tube [mm] | 570 | 593 | 621 | 650 |
| CS chain stay length [mm] | 447 | 447 | 447 | 447 |
| HTA head tube angle [°] | 64 | 64 | 64 | 64 |
| STA seat tube angle [°] | 78.5 | 78.5 | 78.5 | 78.5 |
| BD bottom bracket drop [mm] | 10 | 10 | 10 | 10 |
| HT head tube [mm] | 110 | 120 | 130 | 145 |
| FL fork length [mm] | 586 | 586 | 586 | 586 |
| FO fork offset [mm] | 44 | 44 | 44 | 44 |
| R reach [mm] | 440 | 460 | 485 | 510 |
| S stack [mm] | 637 | 646 | 655 | 669 |
| WB wheel base [mm] | 1235 | 1259 | 1289 | 1320 |
| SH stand over height [mm] | 762 | 762 | 765 | 769 |
