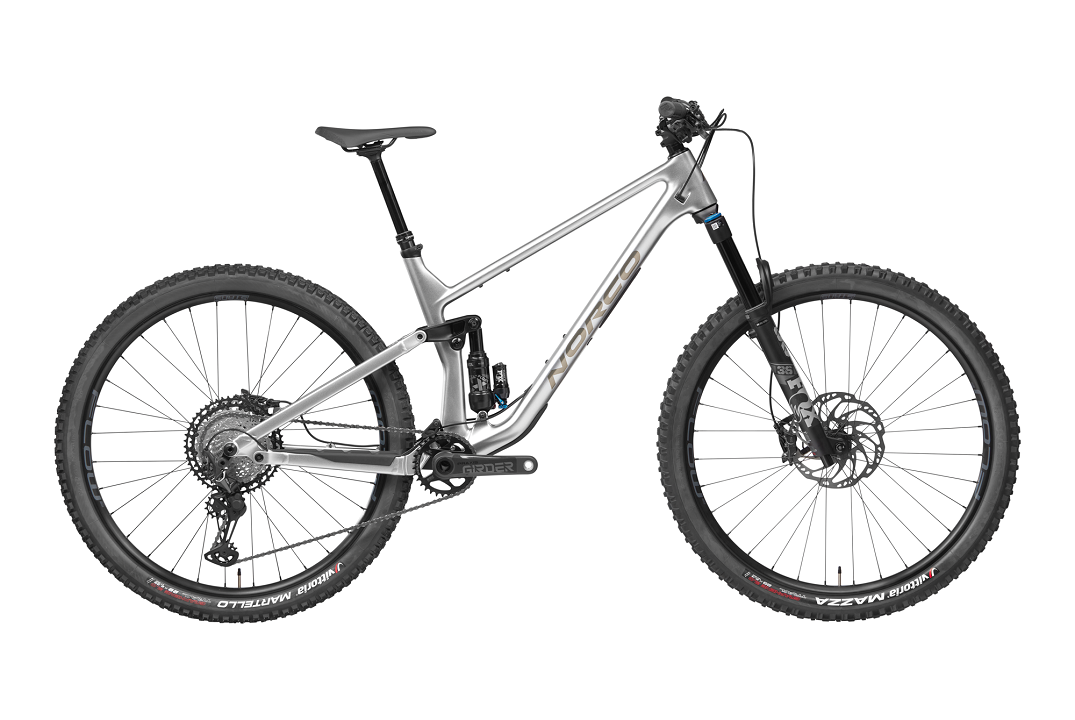

Using Norco's Ride Aligned™ design system to create its fit, geometry and suspension kinematics, the Optic C2 XT’s playfully aggressive personality is complemented by 125mm of rear travel via a custom Fox Performance Elite FLOAT DPX2 shock and a 140mm Fox Performance Elite 36 fork.
Adding to its high-speed trail performance, the Optic C2 XT features a Shimano XT 12-speed drivetrain with Praxis Girder Carbon M30 cranks. Shimano XT 4-Piston 203/180mm brakes control speed, and the light weight, robust wheels feature Stan’s Flow S1 rims on Shimano XT Boost hubs.
| 01. FRAME | Carbon Front Triangle, Aluminum Rear, 125mm Travel, Ride Aligned™ |
| 02. FORK | Fox Performance Elite FLOAT 36, GRIP2, 140mm Travel, 42mm Offset |
| 03. REAR SHOCK | Fox Performance Elite FLOAT DPX2, 190x45mm |
| 04. REAR SHIFTER | Shimano XT SL-M8100 I-Spec EV |
| 05. REAR DERAILLEUR | Shimano XT RD-M8100 |
| 06. CRANKSET | Praxis Girder Carbon M30, 32T, 170mm |
| 07. BOTTOM BRACKET | Praxis M30 BB92 |
| 08. CASSETTE | Shimano XT CS-M8100, 10-51T, 12 Speed |
| 09. CHAIN | Shimano XT CN-M8100 |
| 10. FRONT BRAKE | Shimano XT BR-M8120, 4 Piston, Metallic Pads |
| 11. FRONT BRAKE ROTOR | Shimano SM-RT70 Ice Tech, 203mm |
| 12. REAR BRAKE | Shimano XT BR-M8120, 4 Piston, Metallic Pads |
| 13. REAR BRAKE ROTOR | Shimano SM-RT70 Ice Tech, 180mm |
| 14. BRAKE LEVERS | Shimano XT BR-M8020 |
| 15. HANDLEBAR | TranzX Butted 6061 Alloy, 780mm, 20mm Rise |
| 16. STEM | Norco 6061 Alloy, 45mm Length, 35mm Clamp |
| 17. SEATPOST | X-Fusion Manic dropper, 31.6mm, 125mm (S), 150mm (M,L), 170mm (XL) |
| 18. HEADSET | FSA Internal Sealed Bearing |
| 19. SADDLE | Fizik Alpaca Terra, Wingflex |
| 20. GRIPS | DMR Deathgrip |
| 21. FRONT HUB | Shimano XT HB-8110-B, 15x110mm Boost, Center Lock |
| 22. REAR HUB | Shimano XT FH-8110-B 12x148mm Boost, 32H, Micro Spline, Center Lock |
| 23. RIMS | Stan's Flow S1 29", 32H |
| 24. FRONT TIRE | Vittoria Mazza 2.4" Trail G2.0 |
| 25. REAR TIRE | Vittoria Martello 2.35" Trail G2.0 |
| 26. SPOKES/NIPPLES | Sapim Sprint DB Stainless |
| 27. VALVES | Stan's Universal 35mm Presta Valve Stem |
| 28. SEALANT | Stan's - 200ml |
