Regular price$19,290.00
/
Tax included.

The Mountain Bikers E Bike

Living in uncharted territory, the Relay is a lightweight, mid-power ebike here for all of your rides, battery or human powered. From square one the Relay was built with modularity in mind. Starting with a frame that accommodates 160 or 170 travel front and rear, as well as dual 29 or mixed wheels, this bike is ready for any trail you point it down. At the core of this chariot is the Fazua Ride 60 system that provides 60nm of power to get you up the hill, with a 430 wh battery to keep you going for miles on end. We have always wanted a bike that could provide both an ebike and a human powered experience in one chassis, and this is it. This system is light, efficient, and quiet, providing a more intuitive and natural feel on trail than many expect from a powered ride. The Relay is here to meet all of your mountain biking needs.

More images to come

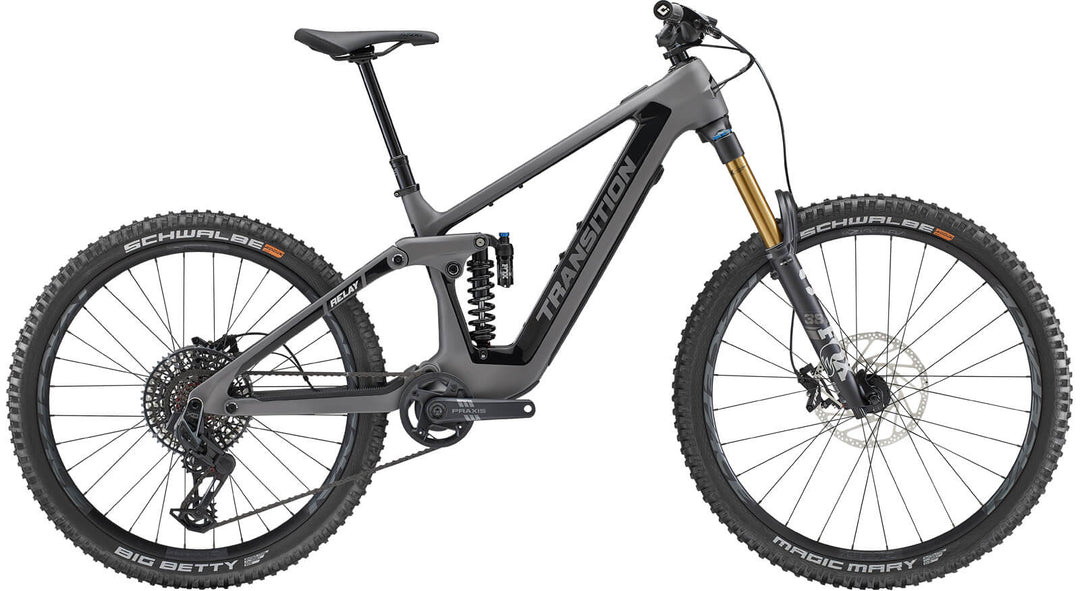

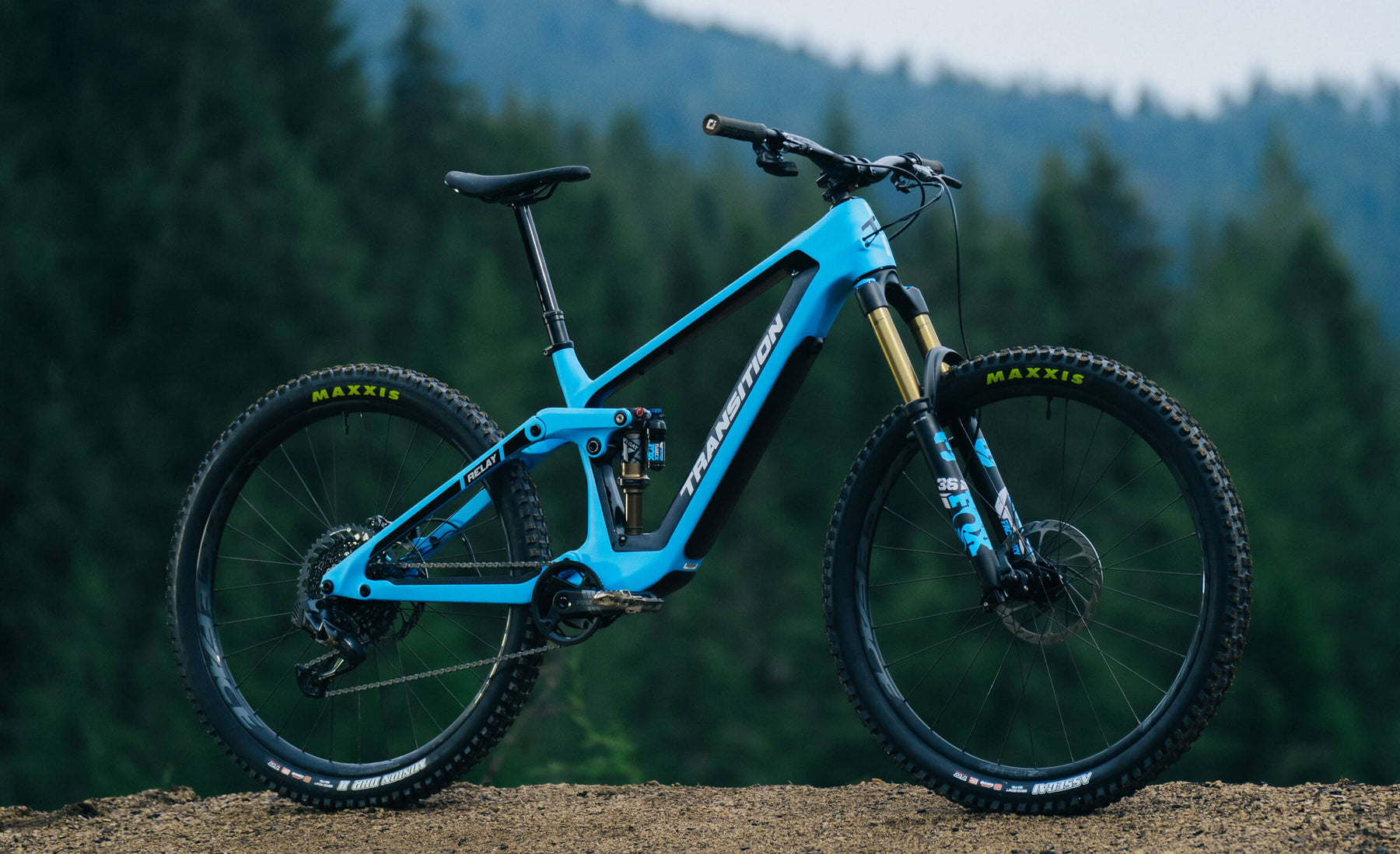

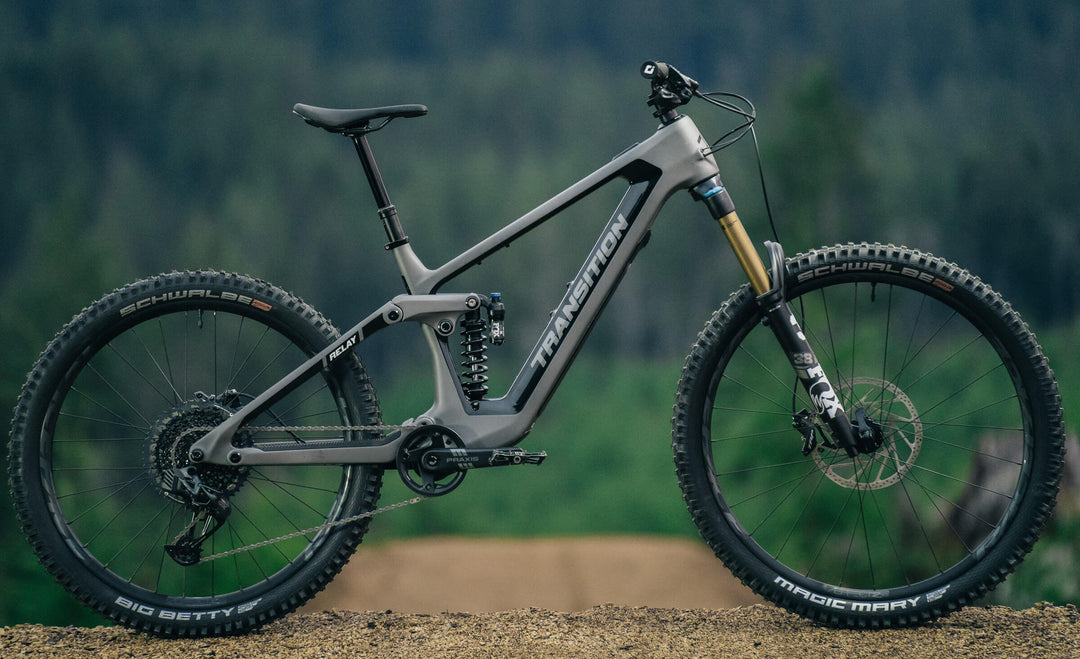

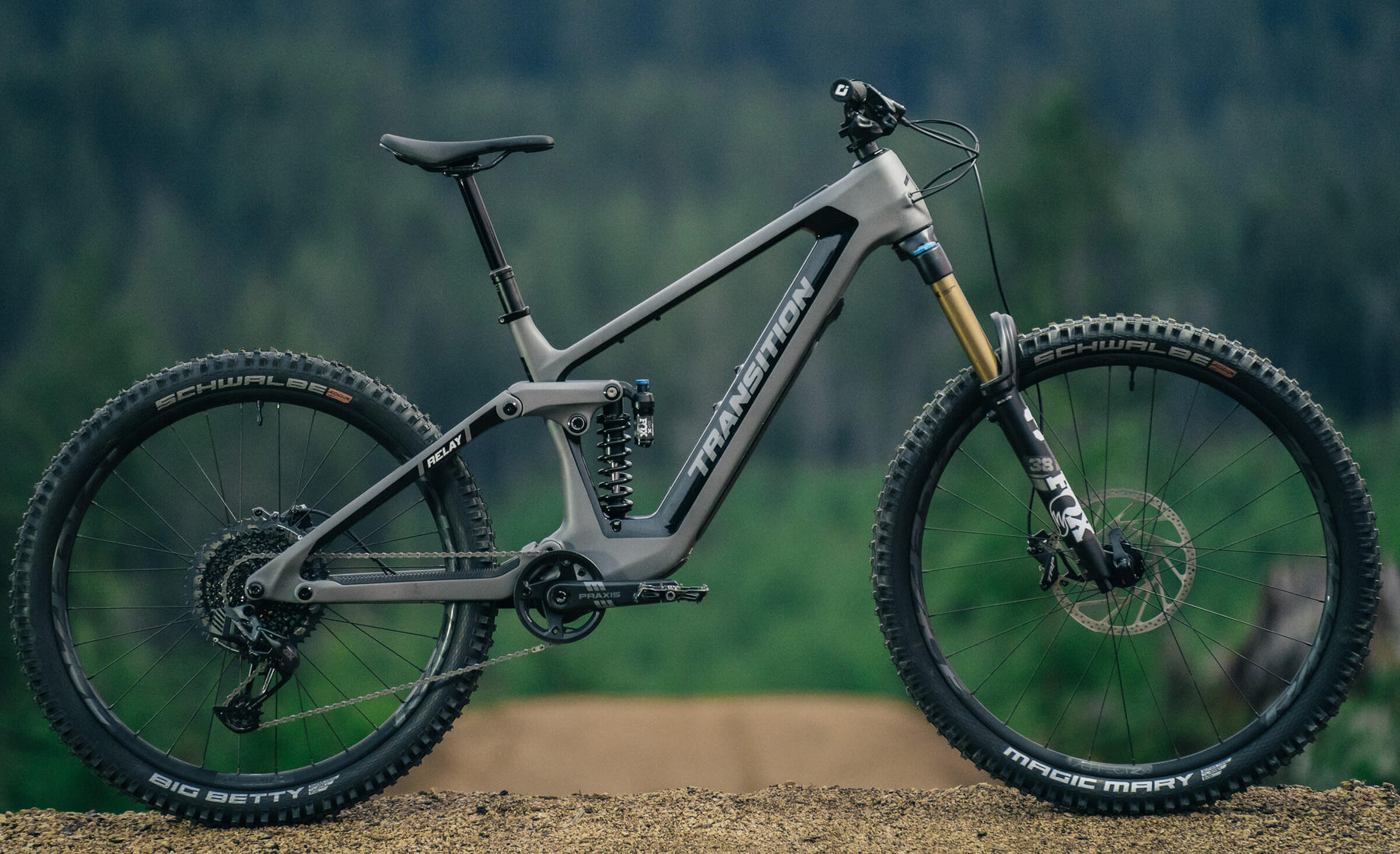

Frame  - Transition Relay Carbon
Motor - Fazua Ride 60
Battery - Fazua Energy 430 Removable
Display- Fazua LED Hub
Mode - Switch Fazua Ring Ctrol
Rear Shock - Fox DHX Coil Factory Series
(170mm Travel/205x65)
Fork - Fox Float 38 Grip 2 Factory 29
(170mm Travel/44mm Offset/1.5 Taper)
Headset - FSA No 55R/44
Stem - ANVL Swage (40mm)
Bar - ANVL Mandrel Alloy
(20mm XS/SM, 30mm MD/LG, 40mm XL)
Grips - ODI Elite Flow Lock-On
Sadde - SDG Bel-Air V3
Seatpost - OneUp Dropper Post
120mm XS
150mm SM
180mm MD
210mm LG/XL/XXL
Brakes - TRP DH-R EVO
Rotors - TRP R1 2.3 (203mm)
Shifter - New SRAM XO AXS
Derailleur - New SRAM XO AXS
Cassette - New SRAM XO
Chain - New SRAM XO

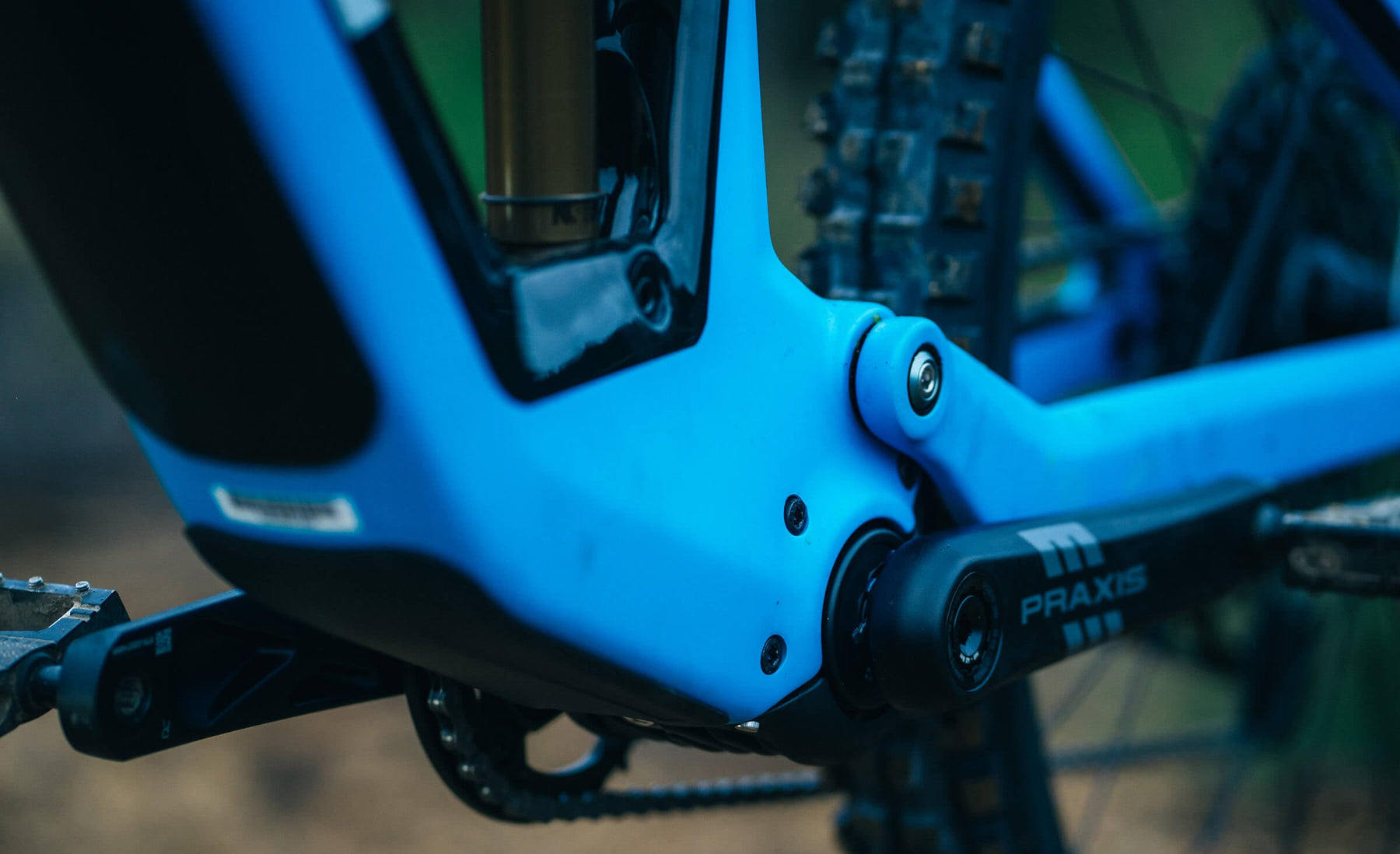

Crank - Praxis ETOR Alloy
(160mm XS, 165mm SM-XXL)
Chainring - SRAM 104 BCD 32t Alloy Ring
Spider - Transition Direct Mount Spider
Includes Bashguard
Rims - Raceface Aeffect R, 6069 Alloy
Spokes - RaceFace 2.0/1.7/2.0
J-Bend, w/Brass Nipples
Hubs - RaceFace Trace 28H
Front Tire - Schwalbe Magic Mary, Super Trail, Soft (29x2.4)
Rear Tire - Schwalbe Big Betty, Super Trail, Soft (27.5x2.4)
Other - Fazua Charger, Tubeless Valves & Sealant

Geo XS | XS PNW SM | SM PNW MD | MD PNW L | L PNW XL | XL PNW  XXL | XXLPNW
 Reach 410 | 405 430 | 422 460 | 452 485 | 477 510 | 502 535 | 527
 Stack (Carbon) 590 | 588 615 | 615 628 | 634 637 | 643 646 | 652 655 | 661
 Stack (Alloy) 595 | 593 620 | 620 628 | 634 637 | 643 646 | 652 655 | 661
Effective TT Length 523 | 532 553 | 564 586 | 597 614 | 631 642 | 665 671 | 696
Seat Tube Length (Carbon) 380 390 410 430 460 490
Seat Tube Length (Alloy) 410 410 410 430 460 490
Effective ST Angle 79.7 | 79.3 79.1 | 78.4 78.4 | 77.7 77.8 | 77.1 77.3 | 76.6 77.0 | 76.3
Reference Seat Height 560 600 660 720 780 820
Actual ST Angle 71 | 70.6 71 | 70.3 71 | 70.3 71 | 70.3 71 | 70.3 71 | 70.4
ST Offset At BB 90 90 90 90 90 90
Head Tube Length (Carbon) 100 100 115 125 135 145
Head Tube Length (Alloy) 105 105 115 125 135 145
Head Tube Angle 64.0 | 63.6 64.0 | 63.3  64.0 | 63.3 64.0 | 63.3 64.0 | 63.4 64.0 | 63.4
Chainstay Length 436 442 | 440  442 | 440 448 | 446 448 | 446 448 | 446
Wheelbase 1167 | 1172 1208 | 1211 1244 | 1247 1280 | 1282 1309 | 1312 1338 | 1341
Bottom Bracket Drop 15 | 11 25 25 25 25 25
Estimated BB Height 340 | 343 350 350 350  350 350
