FAST PACED, EPIC RIDES
PUSHING THE ENVELOPE UP AND DOWN THE TRAIL
CHASING PERSONAL RECORDS

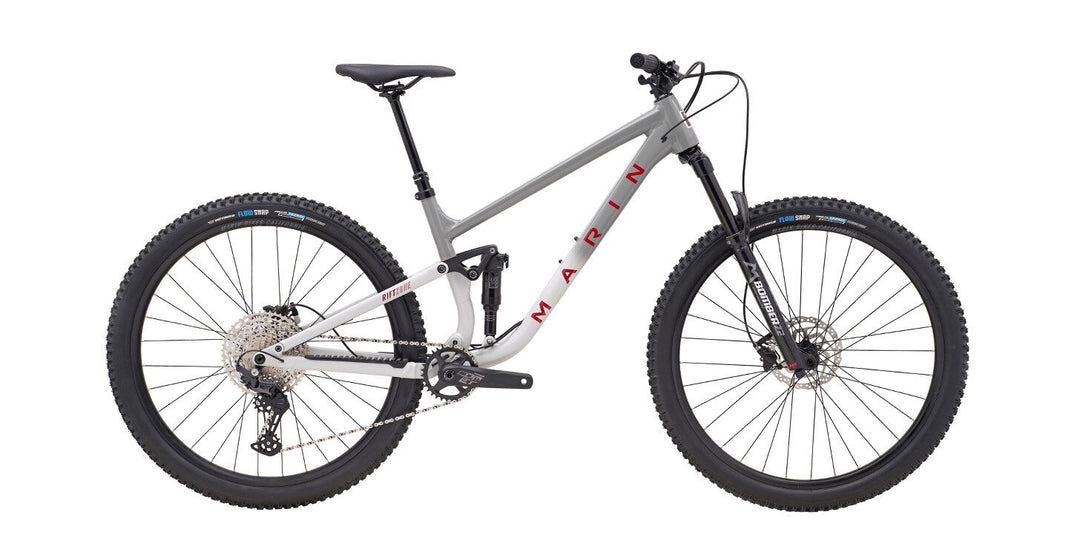

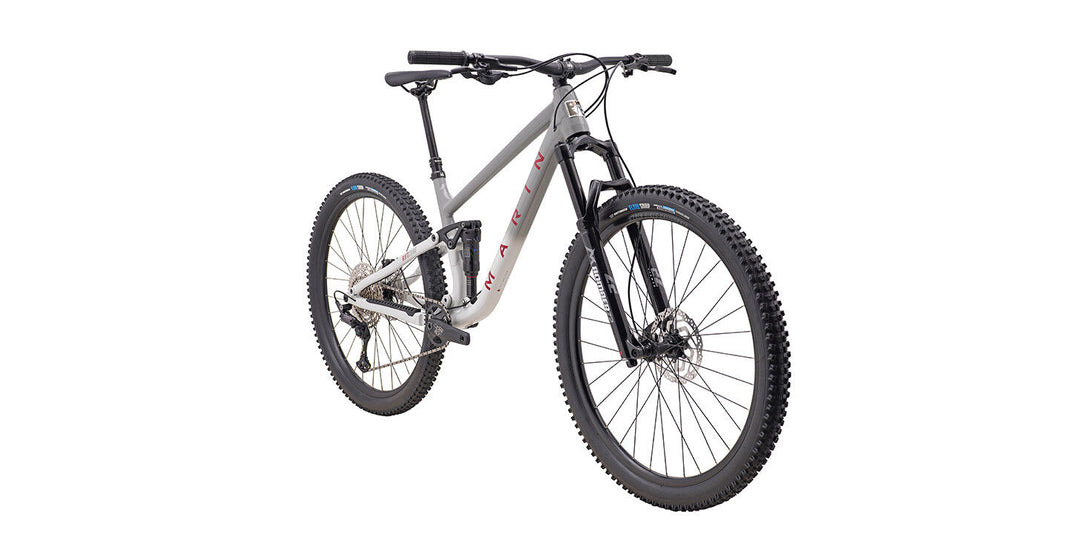

The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.
Key upgrades from Rift Zone 29 1:
- RockShox Deluxe Select R Debonair rear shock
- Shimano Deore 12-speed drivetrain
- Vee Tire Flow Snap 2.35" tires
-
FRAME
All New Series 3 6061 Aluminum Frame, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
-
FRONT SUSPENSION
Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset
-
REAR SUSPENSION
RockShox Deluxe Select RT, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 210x55mm, M8x25mm Hardware
-
RIMS
Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
-
HUB, REAR
Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body
-
HUB, FRONT
Shimano HF-MT410B, 110x15mm, Centerlock
-
SPOKE, NIPPLES
14g Black Stainless Steel
-
TIRES
Vee Tire Flow Snap 29x2.35", Tackee Compound, Tubeless Ready
-
DERAILLEUR, REAR
Shimano Deore, 12-Speed, SGS
-
DERAILLEUR, FRONT
-
-
SHIFT LEVER
Shimano Deore, 12-Speed, SL-M6100-R
-
CRANKSET
FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
-
BOTTOM BRACKET
External Sealed Cartridge Bearing
-
CHAIN
KMC X-12 Silver and Black
-
CASSETTE
Shimano, Deore M6100, 12-Speed, 10-51T
-
BRAKE, FRONT
Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
-
BRAKE, REAR
Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
-
BRAKE LEVERS
Shimano BL-MT201
-
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
-
STEM
Marin 3D Forged Alloy, 35mm
-
GRIPS
Marin Grizzly Lock On
-
HEADSET
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
-
SEATPOST
TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
-
SADDLE
Marin Speed Concept
-
PEDALS
-
-
EXTRAS
Bolt-On Thru-Axle
| Size | SM | MD | LG | XL |
| STACK | 623.6 | 628.2 | 637.3 | 641.8 |
| REACH | 435 | 460 | 485 | 515 |
| HEADTUBE ANGLE | 65.5° | 65.5° | 65.5° | 65.5° |
| HEADTUBE LENGTH | 110 | 115 | 125 | 130 |
| SEATTUBE ANGLE | 77° | 77° | 77° | 77° |
| SEATTUBE LENGTH | 390 | 400 | 425 | 430 |
| TOPTUBE EFFECTIVE | 579 | 605 | 632.1 | 663.2 |
| BB HEIGHT | 343 | 343 | 343 | 343 |
| BB DROP | 35 | 35 | 35 | 35 |
| CHAINSTAY | 430 | 430 | 430 | 430 |
| WHEELBASE | 1170 | 1205.1 | 1234.4 | 1266.3 |
| STANDOVER HEIGHT | 690.2 | 691.2 | 701.7 | 700.5 |
| FORK OFFSET | 44 | 44 | 44 | 44 |
| SEATPOST DIAMETER | 30.9 | 30.9 | 30.9 | 30.9 |
| HANDLEBAR WIDTH | 780 | 780 | 780 | 780 |
| STEM LENGTH | 35 | 35 | 35 | 35 |
| CRANK LENGTH | 170 | 170 | 170 | 170 |
