FAST PACED, EPIC RIDES
PUSHING THE ENVELOPE UP AND DOWN THE TRAIL
CHASING PERSONAL RECORDS

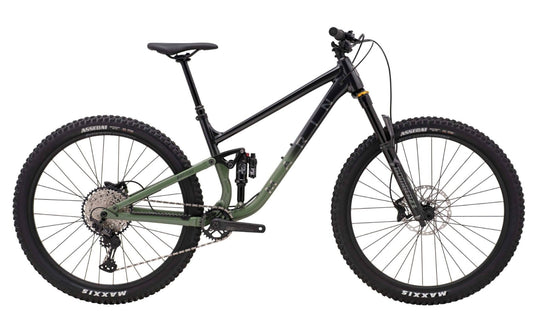

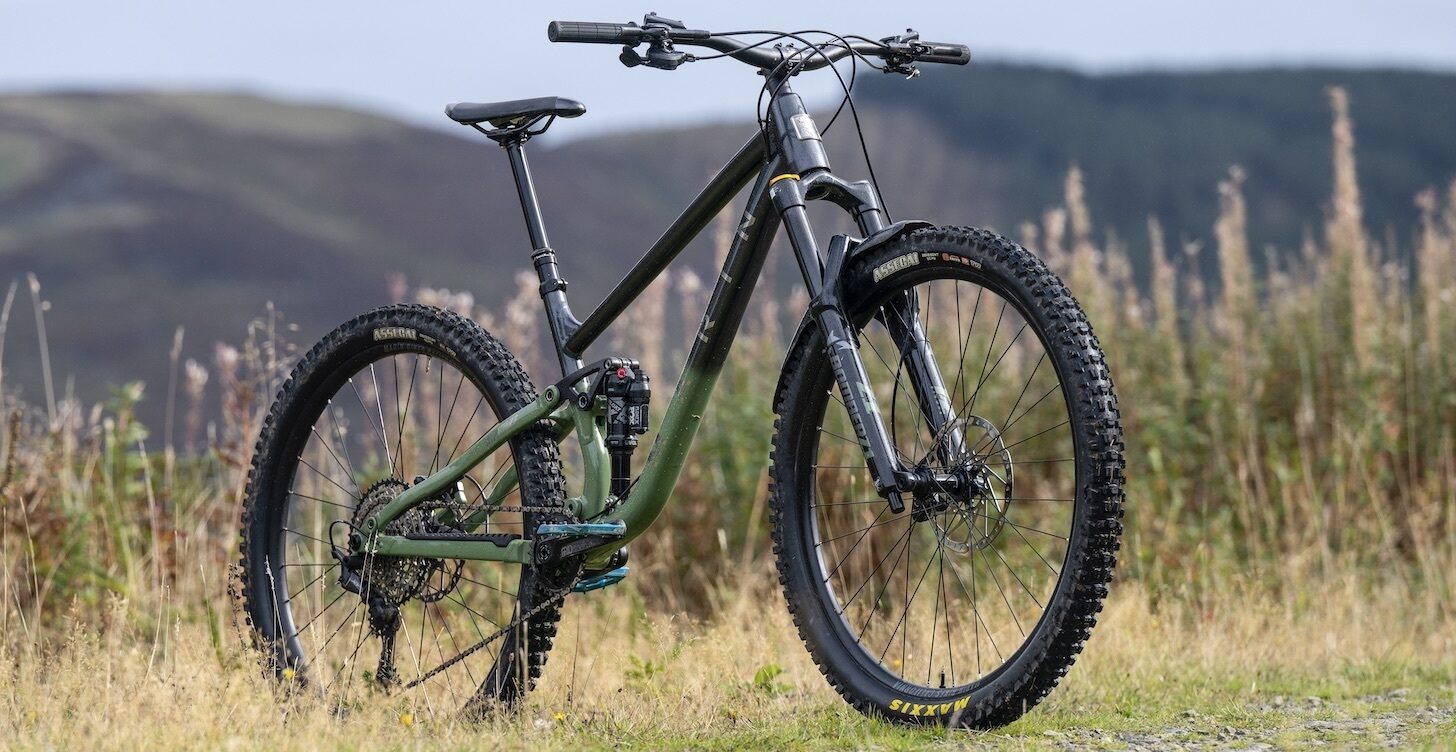

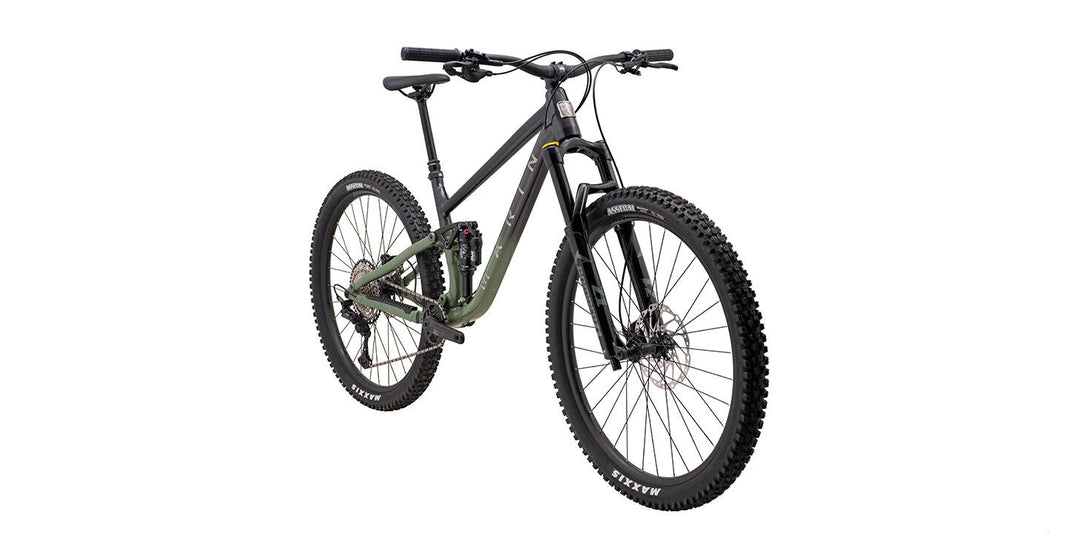

The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.
-
FRAME

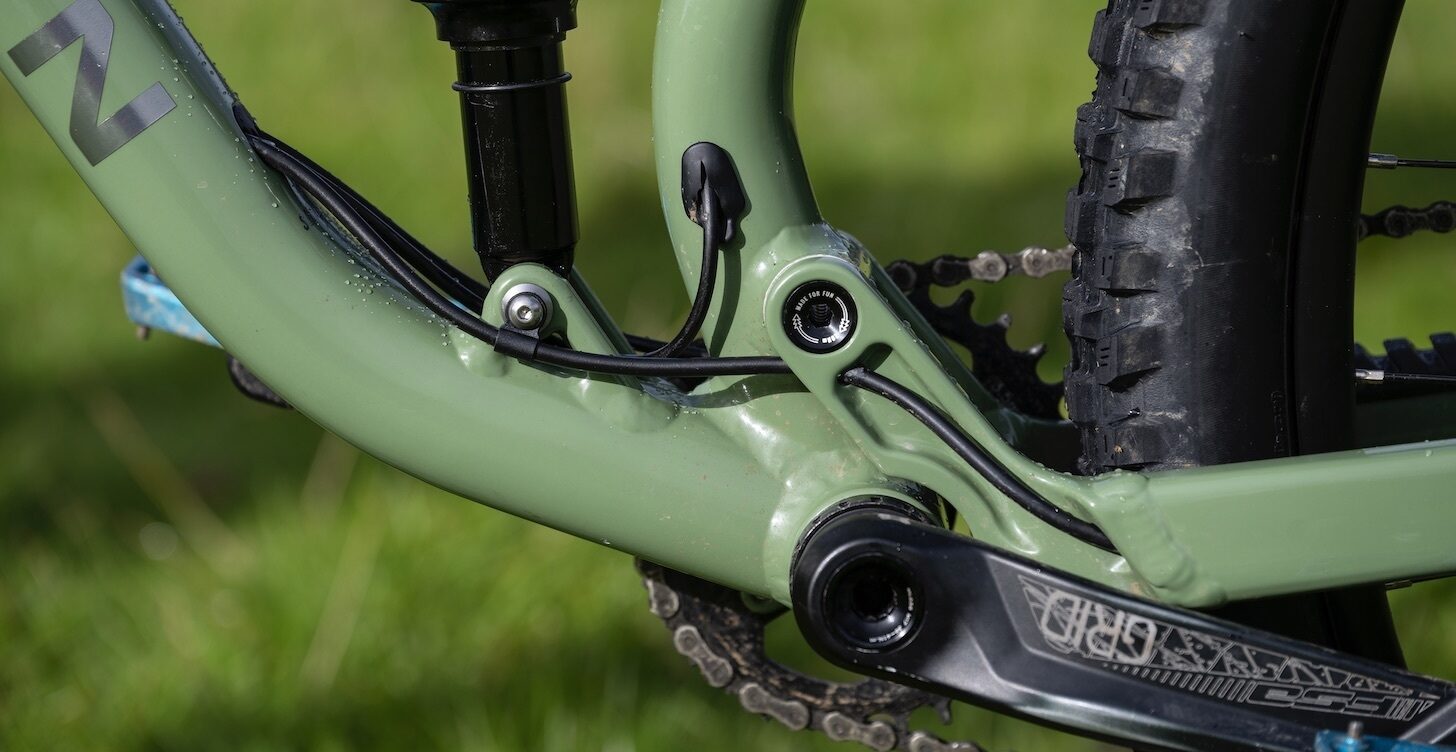

All New Series 3 6061 Aluminum Frame, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
-
FRONT SUSPENSION
Marzocchi Bomber Z1 29", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset
-
REAR SUSPENSION

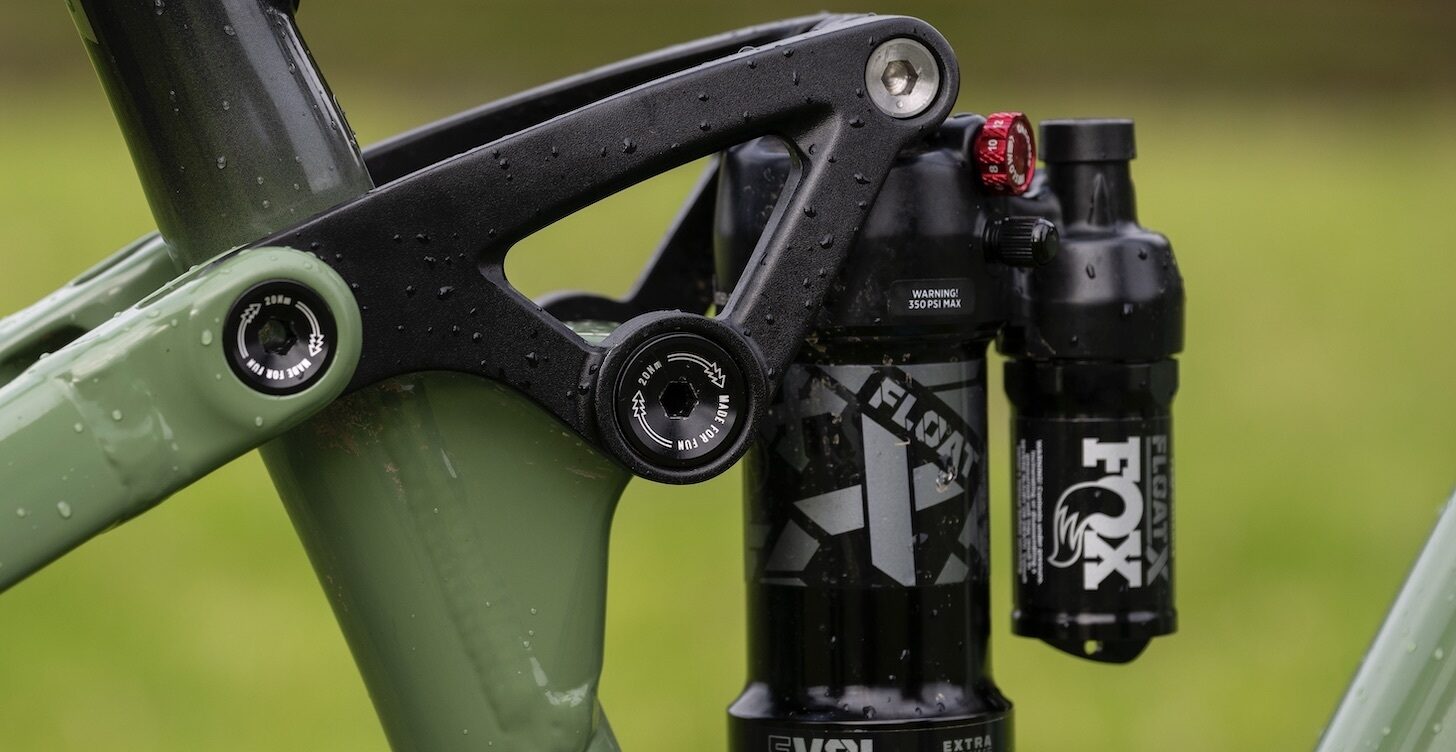

Fox Float X, Performance Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, M8x30mm Top, M8x25mm Bottom
-
RIMS
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
-
HUB, REAR
Forged Alloy, 148x12mm, Quad Sealed Bearings, Disc, 32H, Standard Freehub Body
-
HUB, FRONT
Forged Alloy, 110x15mm, Disc, 32H
-
SPOKE, NIPPLES
14g Black Stainless Steel
-
TIRES
Maxxis Assegai, 29x2.5", MAXX TERRA, EXO, Tubeless Compatible
-
DERAILLEUR, REAR
Shimano XT, 12-Speed, SGS
-
DERAILLEUR, FRONT
-
-
SHIFT LEVER
Shimano SLX, 12-Speed, SL-7100R
-
CRANKSET
FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
-
BOTTOM BRACKET
Mego EXO 73mm BSA
-
CHAIN
KMC X-12 Silver and Black
-
CASSETTE
Shimano, SLX 12-Speed, 10-51T
-
BRAKE, FRONT
Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, Metallic Pads, 203mm Rotor
-
BRAKE, REAR
Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, Metallic Pads 180mm Rotor
-
BRAKE LEVERS
Shimano BL-M4100 Hydraulic Lever, I-Spec EV Compatible
-
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
-
STEM
Marin 3D Forged Alloy, 35mm
-
GRIPS
Marin Grizzly Lock On
-
HEADSET
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
-
SEATPOST
X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
-
SADDLE
Marin Speed Concept
-
-
EXTRAS
Bolt-On Thru-Axle
| Size | SM | MD | LG | XL |
| STACK | 623.6 | 628.2 | 637.3 | 641.8 |
| REACH | 435 | 460 | 485 | 515 |
| HEADTUBE ANGLE | 65.5° | 65.5° | 65.5° | 65.5° |
| HEADTUBE LENGTH | 110 | 115 | 125 | 130 |
| SEATTUBE ANGLE | 77° | 77° | 77° | 77° |
| SEATTUBE LENGTH | 390 | 400 | 425 | 430 |
| TOPTUBE EFFECTIVE | 579 | 605 | 632.1 | 663.2 |
| BB HEIGHT | 343 | 343 | 343 | 343 |
| BB DROP | 35 | 35 | 35 | 35 |
| CHAINSTAY | 430 | 430 | 430 | 430 |
| WHEELBASE | 1170 | 1205.1 | 1234.4 | 1266.3 |
| STANDOVER HEIGHT | 690.2 | 691.2 | 701.7 | 700.5 |
| FORK OFFSET | 44 | 44 | 44 | 44 |
| SEATPOST DIAMETER | 30.9 | 30.9 | 30.9 | 30.9 |
| HANDLEBAR WIDTH | 780 | 780 | 780 | 780 |
| STEM LENGTH | 35 | 35 | 35 | 35 |
| CRANK LENGTH | 170 | 170 | 170 | 170 |
All lengths in millimeters
|
Marin Rift Zone 29 |
|
|
Height cms |
Bike Size |
|
160-169 |
SM |
|
166-179 |
MD |
|
176-189 |
LG |
|
186-193 |
XL |
