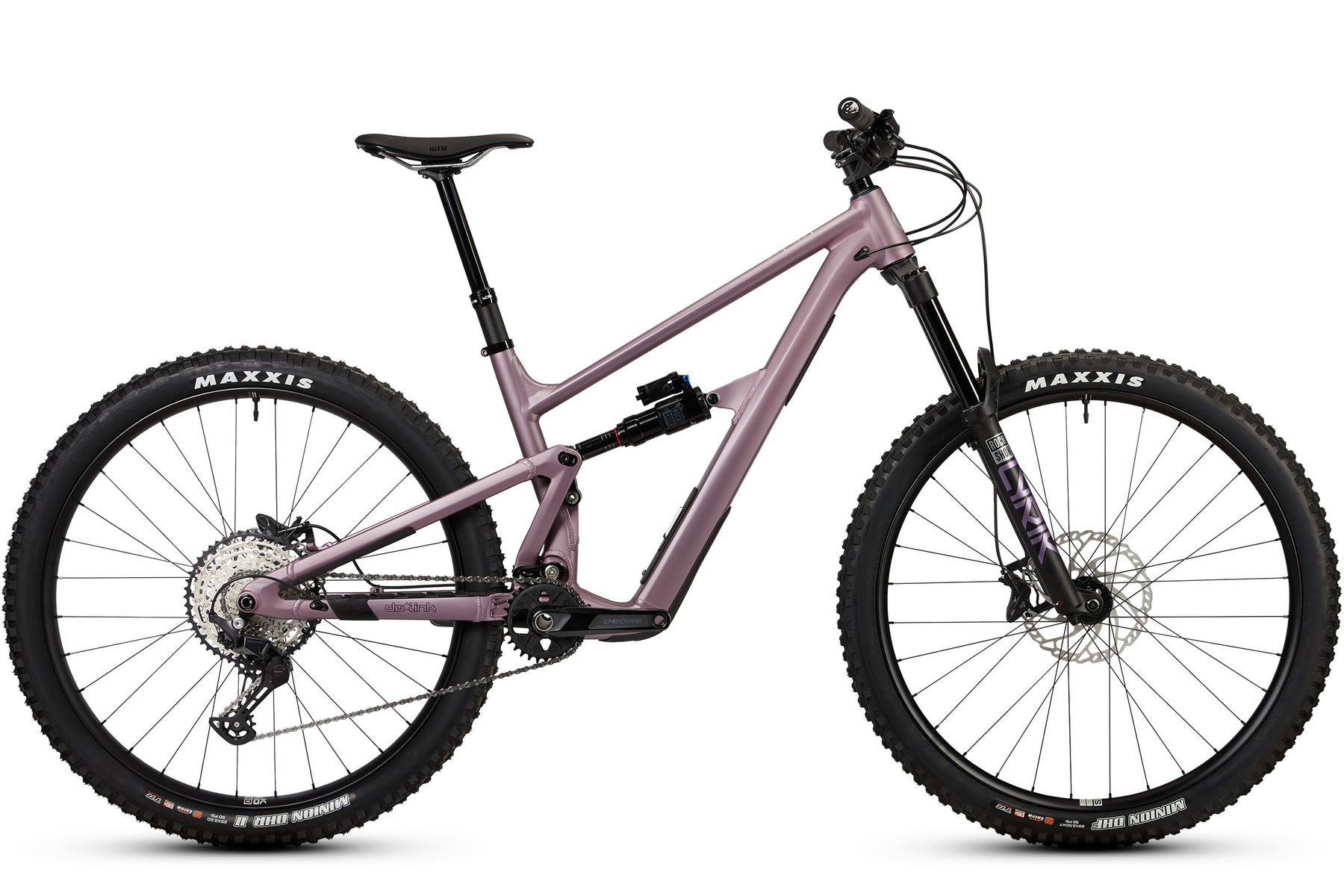

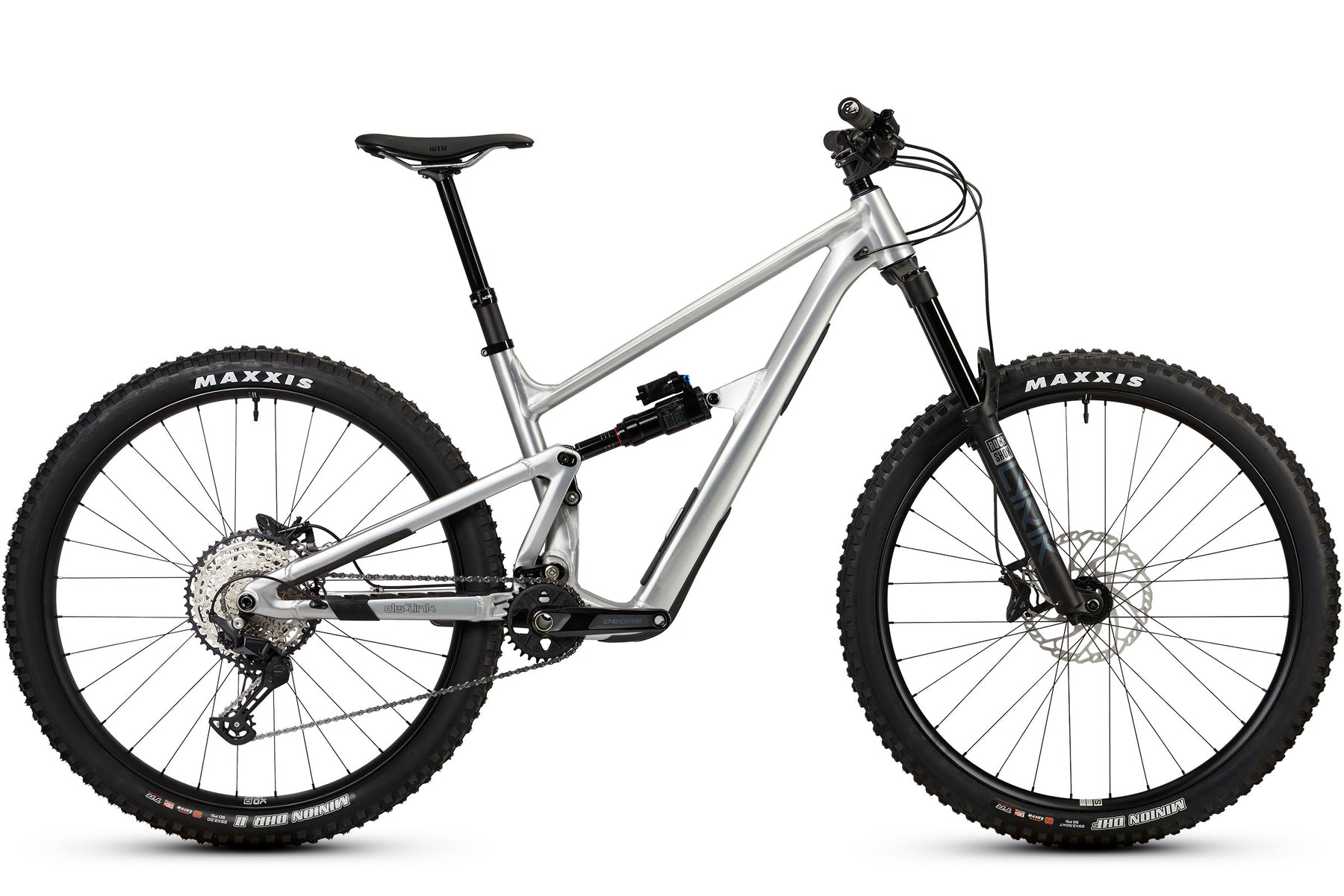

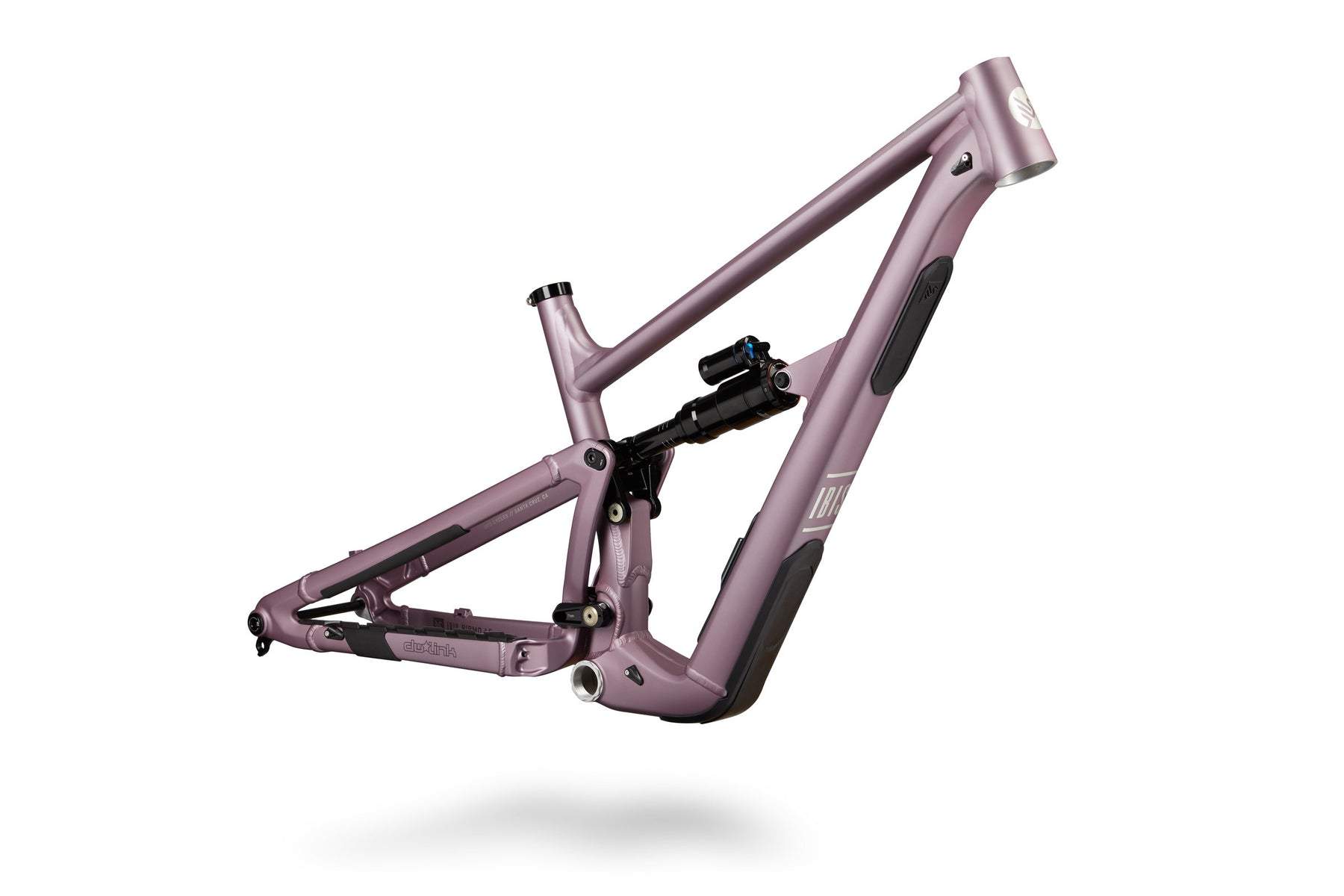

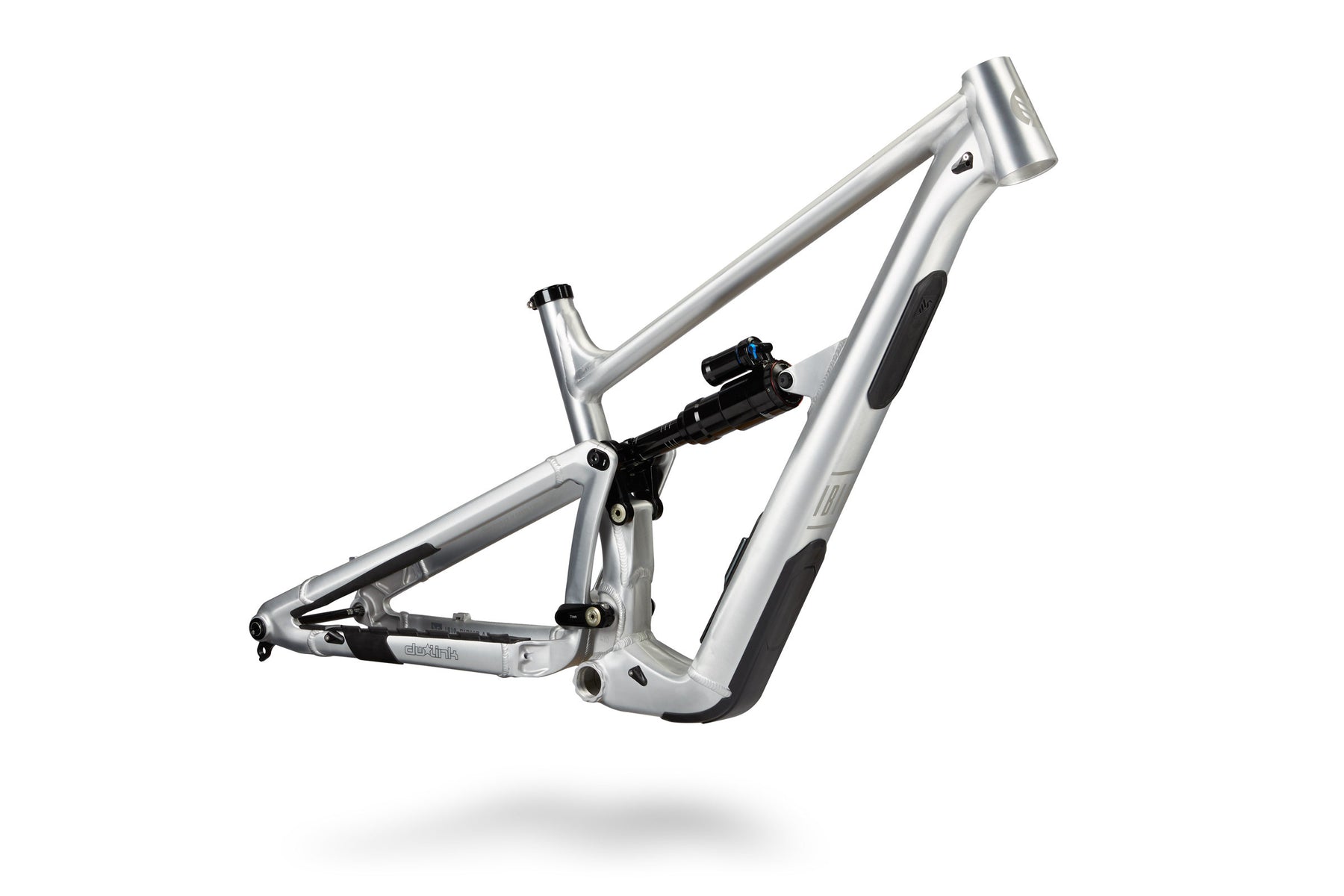

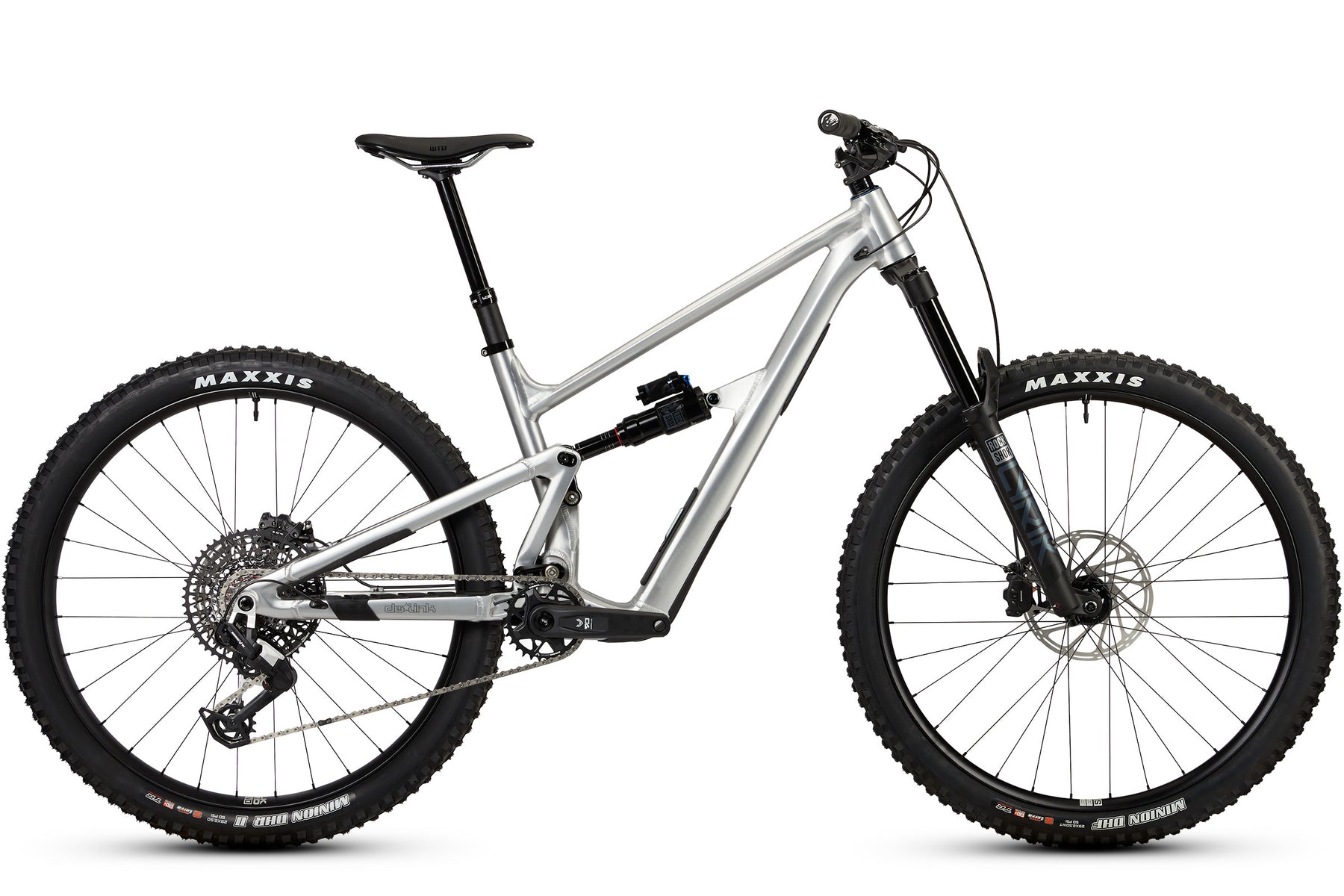

The Ripmo AF legend continues, bringing big-mountain capability to a rugged, aluminum package — blending long-travel confidence with trail-friendly efficiency.
With 160mm front and 150mm rear travel, dw-link suspension, and Flip chips for using a 27.5” or 29” rear wheel, it’s built for steep descents, chunky terrain, and climbs better than it should. Progressive geometry and a durable frame make it ideal for riders who push hard and want a bike that can keep up, lap after lap. Whether you're racing enduro, exploring alpine singletrack, or sending the local lines, the Ripmo AF delivers the same legendary performance as its carbon sibling. The Ripmo AF has all of the same features as the carbon bike; in-frame storage with two bags, coil compatibility, progressive geometry, all at a more approachable price.
| Deore | 90 | Frame | |
| Fork | RockShox Lyrik, 15QRx110, 160mm | RockShox Lyrik, 15QRx110, 160mm | |
| Shock | RockShox Super Deluxe Select 230mm x 60mm | RockShox Super Deluxe Select 230mm x 60mm | RockShox Super Deluxe Select 230mm x 60mm |
| Wheels | Blackbird Send Alloy (Send I front, Send II rear) | Blackbird Send Alloy (Send I front, Send II rear) | |
| Front Tire | Maxxis Assegai 29x2.5 EXO+ | Maxxis DHF, 29" x 2.5", Exo+ | |
| Rear Tire | Maxxis DHR2, EXO+ | Maxxis DHR2, EXO+ | |
| Brakes | Shimano Deore, M6120, 4-Piston | SRAM Maven | |
| Rotors (F/R) | Shimano RT-66 6-Bolt 200F/200R | SRAM Centerline 6-Bolt 200F/200R | |
| Crankset | Shimano Deore M6120 24mm spindle | SRAM Eagle 90 Transmission DUB 30t Alloy Ring | |
| Bottom Bracket | Shimano MT501 | SRAM DUB BSA | |
| Rear Derailleur | Shimano Deore M6100 SGS | SRAM Eagle 90 Transmission | |
| Shifter | Shimano Deore, M6100 | SRAM Eagle 90 Transmission | |
| Cassette | Shimano Deore, M6100, 10-51T | SRAM XS 1275 Transmission, T-Type, 10-52T | |
| Chain | KMC X12 | SRAM GX Eagle Transmission, T-Type | |
| Headset | Cane Creek 50: ZS44/ZS56 | Cane Creek 50: ZS44/ZS56 | |
| Grips | Lizard Skins Strata Single Clamp | Lizard Skins Strata Single Clamp | |
| Handlebar | Ibis Aluminum, 780mm | Ibis Aluminum, 780mm | |
| Stem | Ibis 31.8mm | Ibis 31.8mm | |
| Seatpost | KS Vantage Dropper, 34.9mm | KS Vantage Dropper, 34.9mm | |
| Saddle | WTB Silverado Fusion CrMo 142 | WTB Silverado Fusion CrMo 142 |
Ibis ultra low standovers give you the ability to size your frame based on horizontal fit without worrying about vertical clearances.
64.5°Head Tube Angle I 76.5-77.5°Seat Tube Angle I 432–440mm Chainstays
| Nominal Size | SM | MD | XM | LG | XL | |
|---|---|---|---|---|---|---|
| Seat Tube | A | 395 | 400 | 415 | 457 | 477 |
| Top Tube | B | 578 | 605 | 630 | 655 | 685 |
| Head Tube | C | 85 | 95 | 110 | 125 | 140 |
| Chainstay 29" | D | 435 | 435 | 436 | 438 | 440 |
| Chainstay MX | D | 432 | 432 | 433 | 435 | 437 |
| Seat Tube Angle | E | 77° | 76.5° | 76.5° | 77° | 77.5° |
| Saddle Height for Seat Tube Angle | F | 650 | 700 | 745 | 790 | 830 |
| Head Tube Angle | G | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| Wheelbase | H | 1195 | 1219 | 1249 | 1286 | 1329 |
| Stack | I | 616 | 622 | 633 | 643 | 654 |
| Reach | J | 436 | 456 | 478 | 506 | 540 |
| BB Height* | 338 | 341 | 344 | 349 | 350 | |
| BB Drop 29" | K | 36 | 33 | 30 | 27 | 24 |
| Standover | L | 693 | 734 | 757 | 772 | 784 |
| Recommended Seatpost Drop | 140 | 170 | 185 | 213 | 213 | |
| Crank Length | 165 | 165 | 170 | 170 | 170 | |
| Tire Size | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | 2.35-2.5" | |
| Water Bottle Size | 1 x 26oz | 1 x 26oz | 1 x 26oz | 1 x 26oz | 1 x 26oz |
| SM | 152 - 168CM |
| MD | 165 - 175CM |
| XM | 173 - 183CM |
| LG | 180 - 191CM |
| XL | 188 - 201CM |
