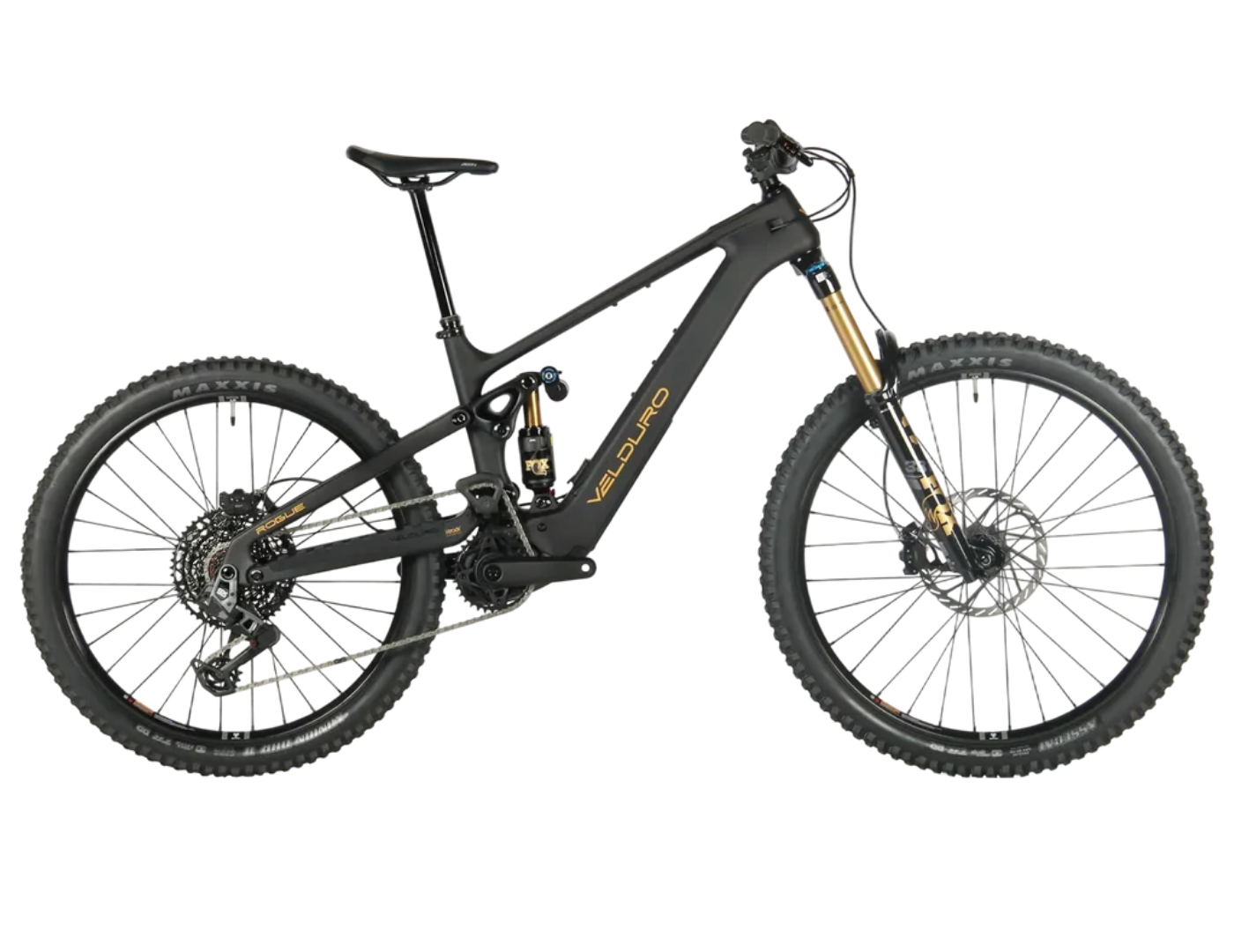

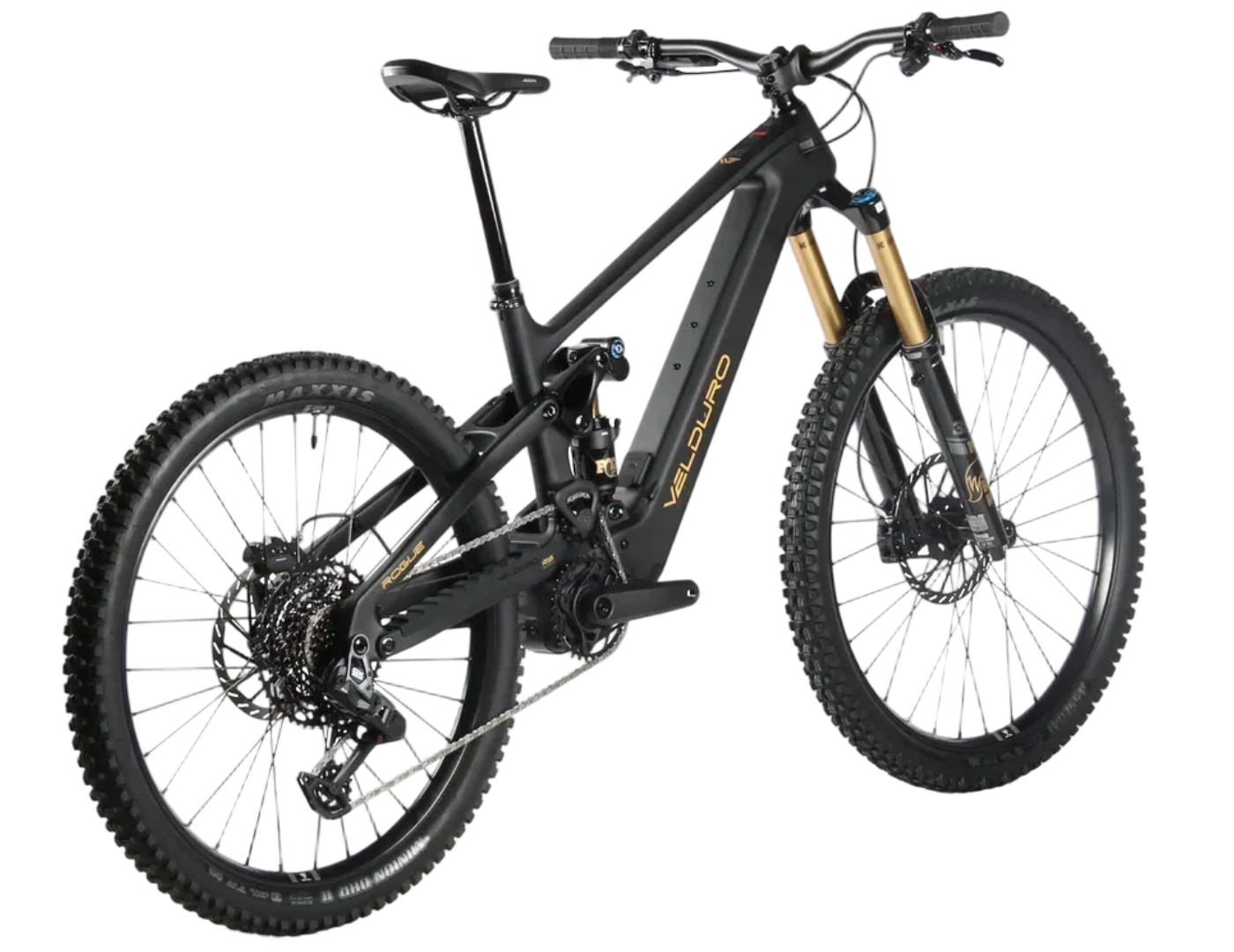

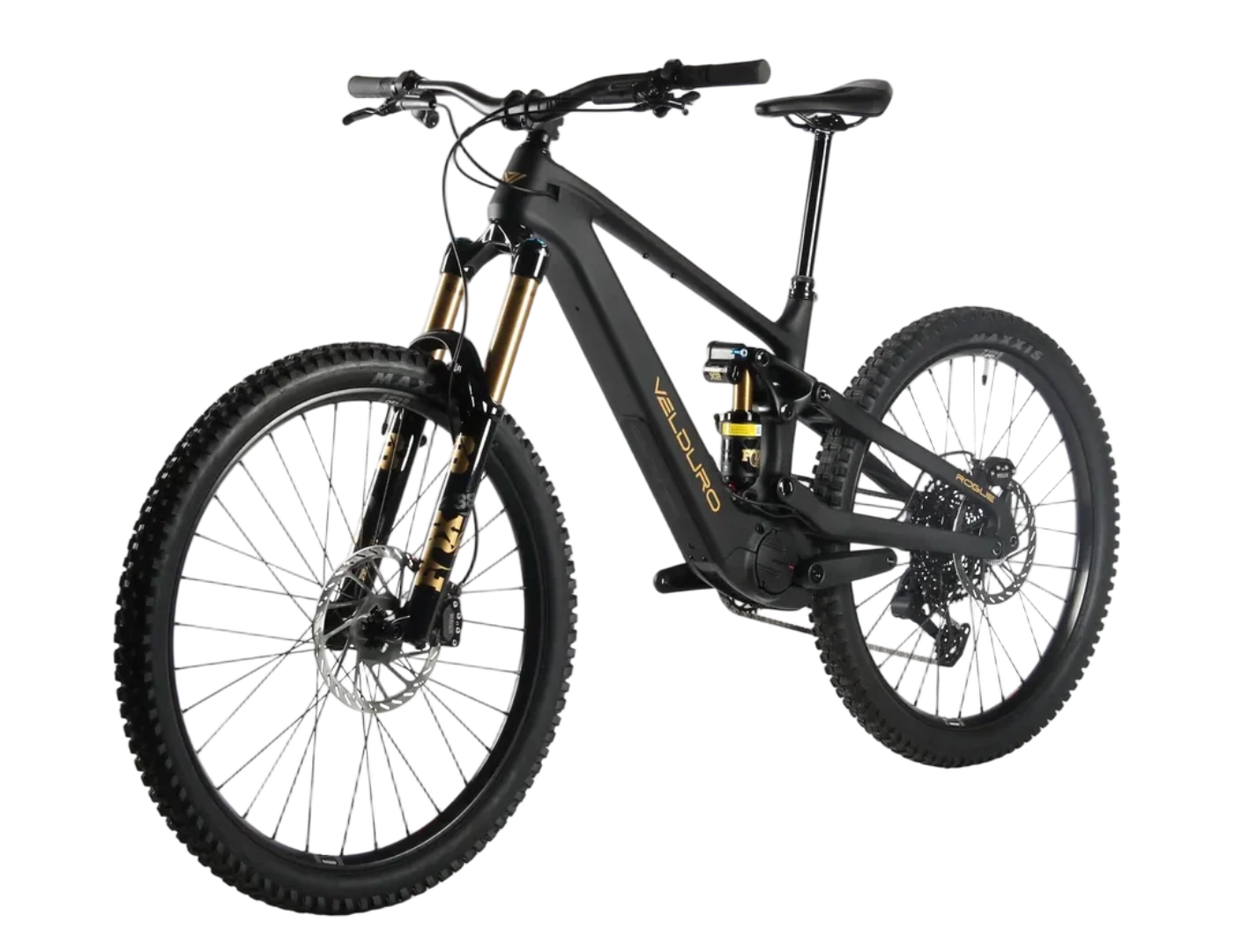

Meet the Gold Award wining Rogue R. Engineered for the ultimate MX enduro experience. Featuring custom-tuned FOX suspension, SRAM AXS GX Eagle 10-52T drivetrain, and powerful Maven Silver four-piston brakes, this bike is built to perform. Weighing just 23.6 kg and powered by an 800 Wh battery, the Rogue R delivers all-day capability with i-track enhanced suspension for unmatched control and responsiveness on any terrain. This is the ultimate Avinox M2S powered enduro EMTB! Secure yours online or with your local dealer.
Frame I Saddle l Dropper l CockpitÂ
- Carbon fibre enduro frame,
-165mm rear travel, up to 170mm with 27.5 rear wheel
- mid-pivot
- battery integrated
- rear wheel flip chip
- shock position flip chip
- inner cable routing
- Boost 12x148mm
-16T idler, with oversize bearings. - Headset: FSA No.57 Alloy MTB ZS44/56
- Saddle: Fizik Terra Aidon X5
- Seat post lever: ONEUP Dropper lever V3.1
- Seat Post Clamp:ONEUP KIT 22.2
- Dropper:ONEUP V3 mechanical Dia.31.6
S: 180mm travel, M/L: 210mm travel,
XL: 240mm travel - Handlebar: OneUp, alloy, 800L, 35R.
- Stem: ONEUP Stem 42mm forged
- Grips: Velduro: thick grips - Black.
Drive Train l Brakes l Cranks
- Brakes:Sram Mavan Silver 4- Pistion hydraulic brake
- Discs: Sram HS2 disc front 220 , rear 200mm
- Pedal: Riders Choice
- Shift lever: Sram AXS pod controller
- Rear Derailleur: Sram AXS GX eagle transmission derailleur w/ power cable
- Crankset: Avinox SL crank 155mm
- Cassette: Sram XS-1275 10-52T
- Chain :Sram GX Flat top Chain
- Chainwheel Sram EMTB Eagle 34T
Wheels l Tires
- Wheel set: Velduro e-Enduro carbon, EC-30
- Front Hub: Alloy, 2 sealed cartridge bearings, 15x110 thru-axle, 28h,
straight-pull, 6-bolt - Rear Hub: Alloy, 4 sealed cartridge bearings, 148x12 thru-axle, 28h,
straight-pull, 6-bolt, 78T - Spokes: Sapim e-light straight pull
- Rim: Carbon,F 29’/R 27.5’, 30mm internal width
- Front tire: Maxxis Assegai M356Ru 29*2.5 3C Grip/DD/TR BK
- Rear tire: Maxxis Minion DHR2 M327 Ru27.5*2.4 3C Terra/DD/TR BK
- Your Rogue is tubeless ready, but comes with tube.
Avinox Drive System
- Motor: AVINOX M2S 250W 130Nm, Boost to 150Nm, 1300W Peak Power
- Battery: AVINOX 36V 800Wh
- Charger: AVINOX 4A 168W
- Display: AVINOX DP100
Suspension Forks
- Fox 38 F-S 2026, 29 inch, 170mm,
Grip X2, 15X110mm - Fox float X2 F-S 2026, 205X65mm (custom factory tuned for the Rogue)
| SM | MD | LG | XL | ||
| A | Eff. Seattube Length (mm) | 390 | 410 | 430 | 465 |
| B | Headtube Angle (°) | 63.5 | 63.5 | 63.5 | 63.5 |
| C | Eff. Toptube Length (mm) | 582 | 604 | 623 | 647.5 |
| D | Reach (mm) | 440 | 466 | 485 | 515 |
| E | Act. Seattube Angle (°) | 75.5 | 75.5 | 75.5 | 75.5 |
| F | Seattube Offset (mm) | 30 | 30 | 30 | 30 |
| G | Eff. Seattube Angle (°) | 78 | 78 | 78 | 78 |
| H | Chainstay Length (mm) | 440 | 440 | 440 | 440 |
| I | BB Drop at Rear Wheel (mm) | 10.5 | 10.5 | 10 | 10 |
| J | BB Drop at Front Wheel (mm) | 34 | 34 | 34 | 34 |
| K | Headtube Length (mm) | 110 | 110 | 120 | 125 |
| L | Axle to Crown (mm) | 584 | 584 | 584 | 584 |
| M | Fork Offset (mm) | 44 | 44 | 44 | 44 |
| N | Trail (mm) | 140 | 140 | 140 | 140 |
| O | Stack (mm) | 634 | 634 | 643.5 | 648 |
| P | Wheelbase (mm) | 1229 | 1255 | 1276 | 1311 |
| Q | BB Height (mm) | 343.5 | 343.5 | 344 | 344 |
| Recommended Height (CM) | 160-172 | 172-182 | 180-188 | 185-195 | |
