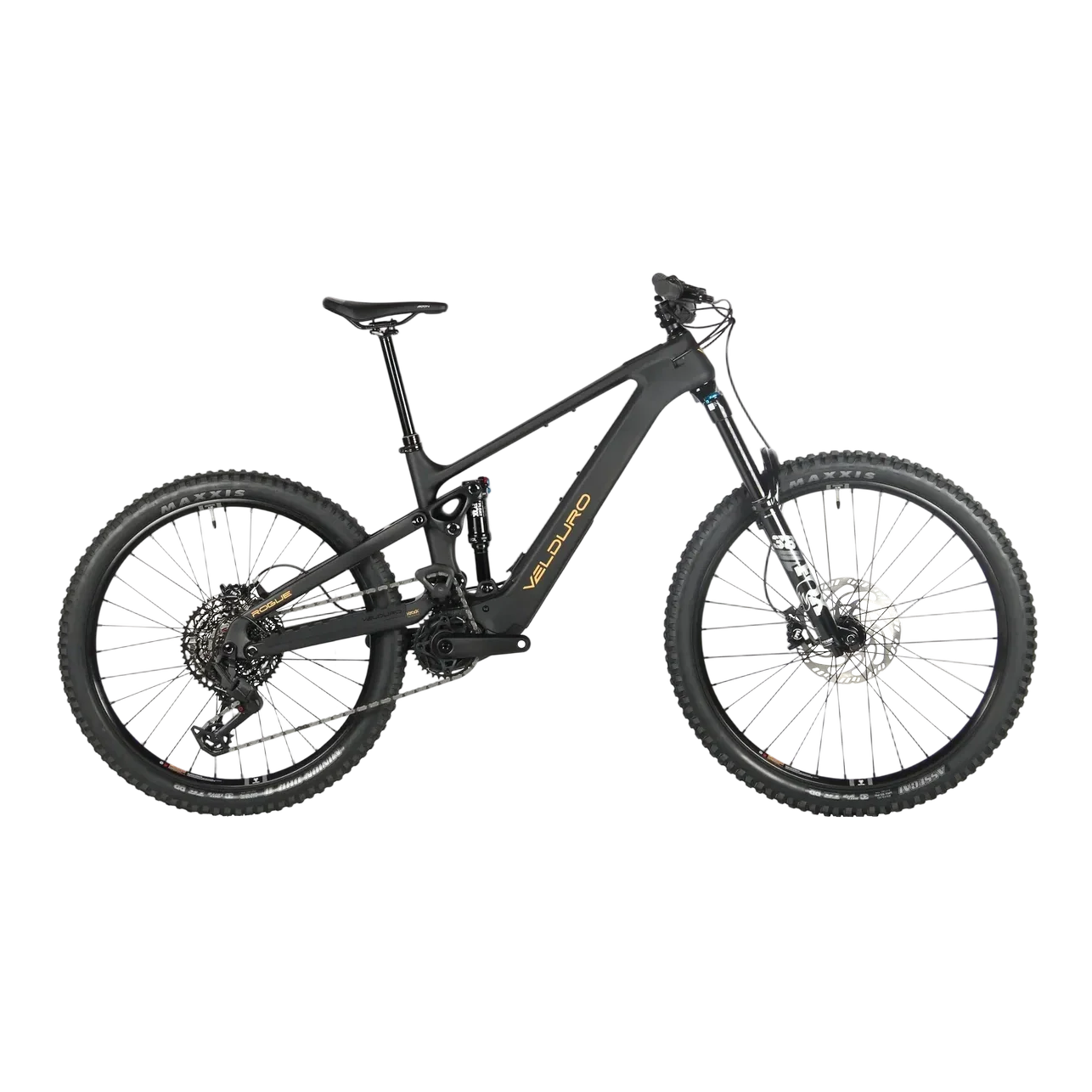

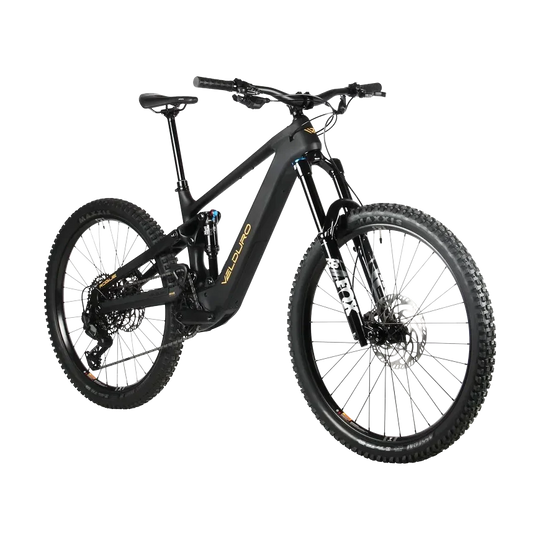

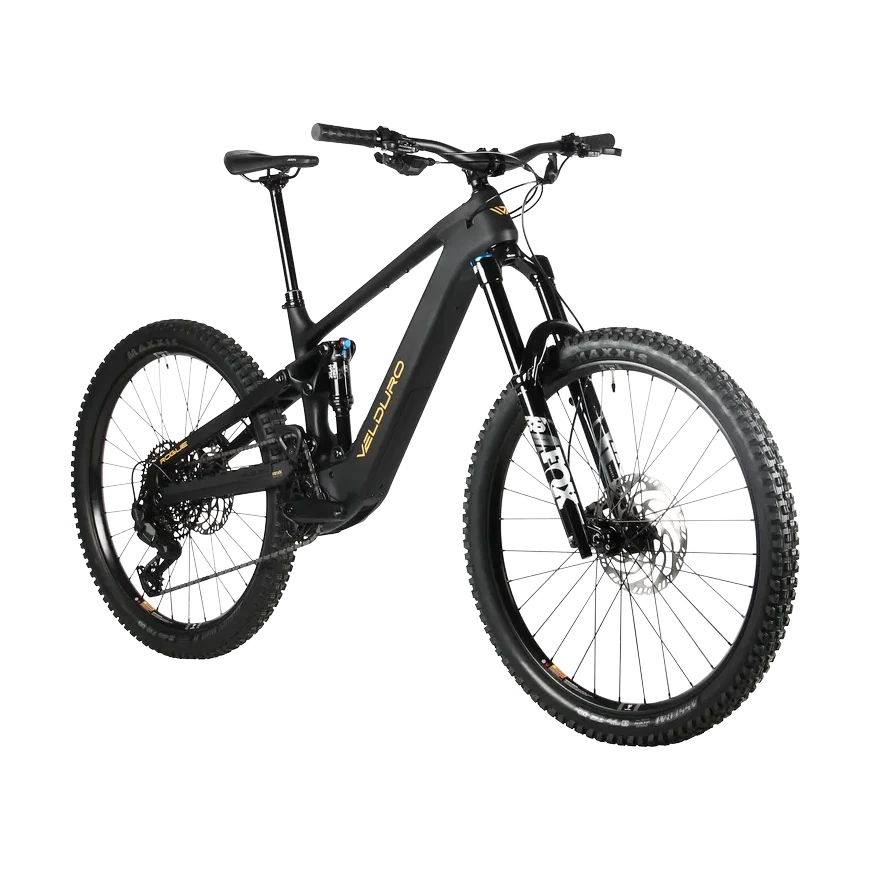

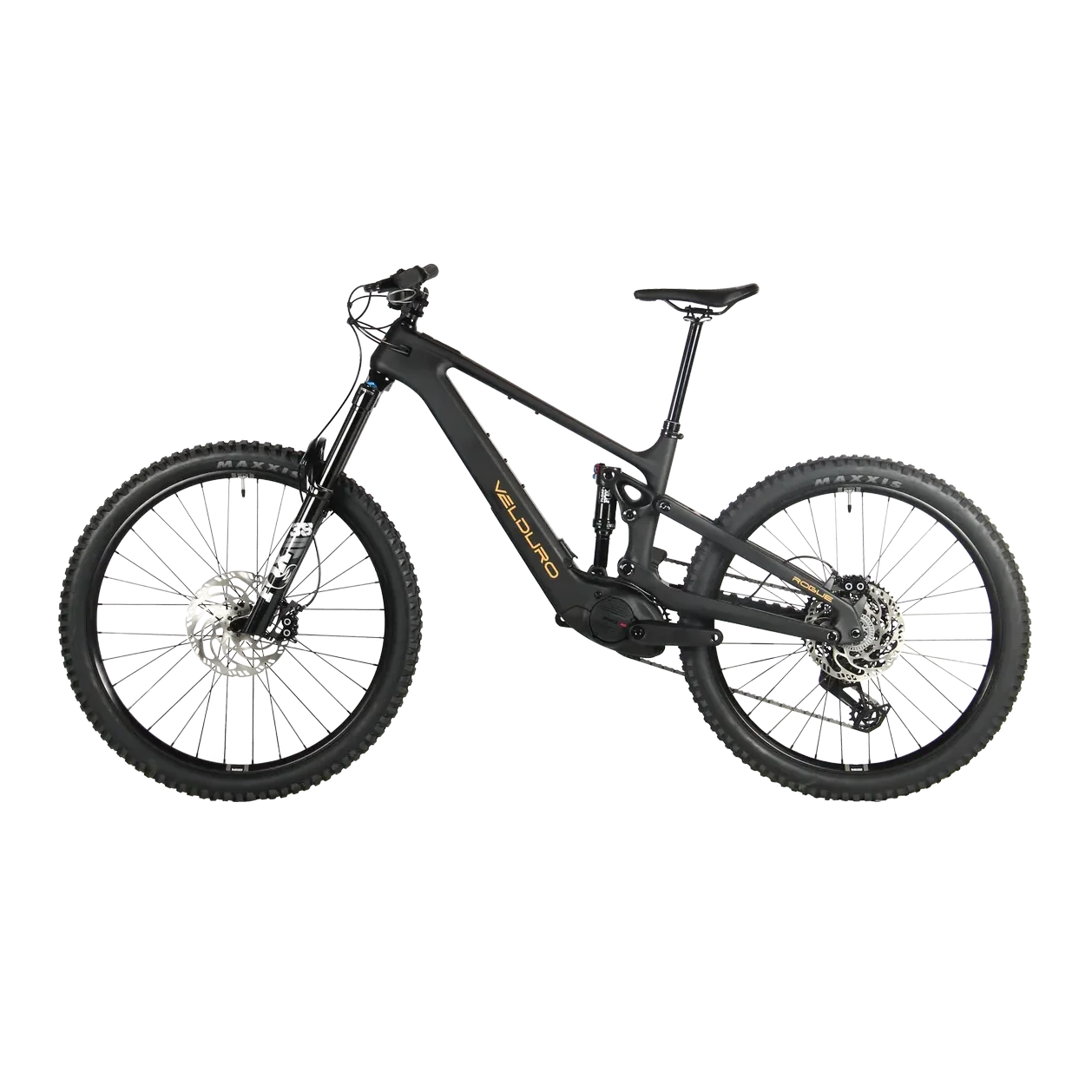

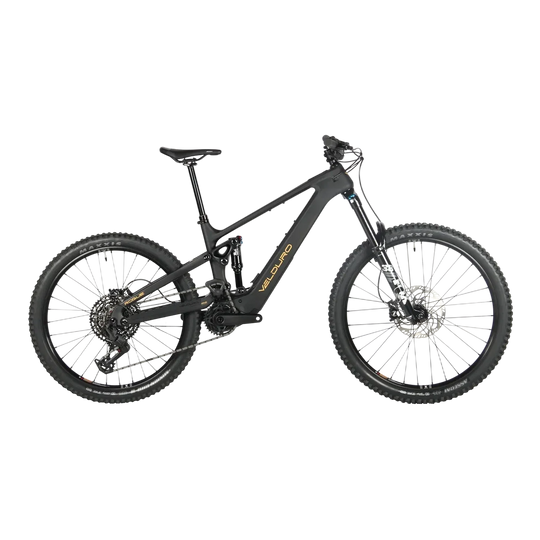

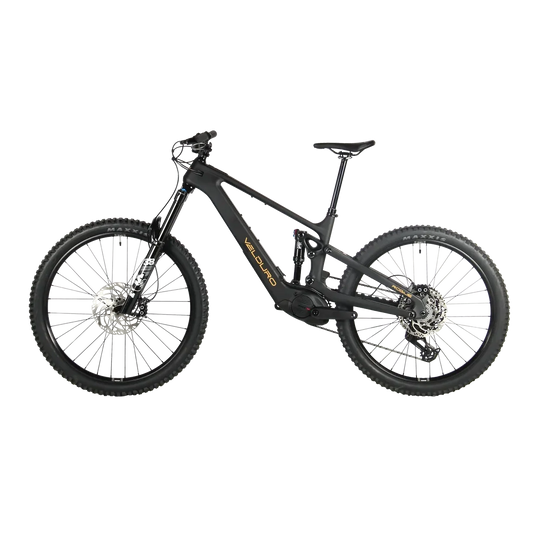

Award-Winning Performance. Unmatched Value. The award-winning Rogue X delivers premium e-enduro performance without the premium price tag. Built with no compromises, it features race-proven FOX 38 forks and FOX Float suspension, paired with the durable and high-performance SRAM Eagle 70 Transmission drivetrain.Powered by the advanced M2S Avinox System, the Rogue X provides exceptional power, control, and responsiveness on every ride. Magura MT5 brakes offer outstanding stopping power and confidence, whether you're tackling steep climbs or charging technical descents.The Rogue X is available now. Contact your local dealer to place an order and experience the next level of e-enduro riding.
Frame I Saddle l Dropper l CockpitÂ
- Carbon fibre enduro frame,
-165mm rear travel, up to 170mm with 27.5 rear wheel
- mid-pivot i-track suspension
- battery integrated
- rear wheel flip chip
- shock position flip chip
- inner cable routing
- Boost 12x148mm
-16T idler, with oversize bearings. - Headset: FSA No.57 Alloy MTB, ZS44/56mm
- Saddle: Fizik Terra Aidon X5.
- Dropper: Velduro Enduro mechanical, Dia.31.6, Travel: S&M:170mm, L&XL: 200mml.
- Handlebar: Velduro Enduro, Alloy, 35D 800L. rise 20.
- Stem: Velduro Enduro, Alloy, 35D, 40mm long.
- Grips: Velduro MTB grips, 22.4mm, one side ring, closed end.
Drive Train l Brakes l Cranks
- Brakes:Â Magura MT5 HC,hydraulic brake, 4-Piston, heavy duty
- Disc: Magura MDR-C heavy duty disc, front 220mm, rear 203mm
- Pedal: Riders Choice
- SHIFT LEVER:Sram eagle 70 shifter
- REAR DERAILLEUR: Sram eagle 70 transmission mechanical
- CRANKSET: Avinox SL crank 155mm
- CASSETTE: Sram XS-1270 10-52T Eagle Transmission
- CHAIN :Sram Eagle 70 Flat top Chain
- CHAINWHEEL: Sram 34T eagle Transmission E-MTB Chainring 104 BCD
Wheels l Tires
- Wheel set: Velduro e-Enduro Alloy, EA-30
- Front Hub: Alloy, 2 sealed cartridge bearings, 15x110thru-axle, 32h, straight-pull, 6-bolt
- Rear Hub: Alloy, 4 sealed cartridge bearings, 148x12thru-axle, 32h, straight-pull, 6-bolt, 21T
- Spokes: Sapim e-light J-bend
- Rim: Alloy,F 29’/R 27.5’, 30mm internal width
- Front tire: Maxxis Assegai M356Ru 29*2.5 3C Grip/DD/TR BK
- Rear tire: Maxxis Minion DHR2 M327 Ru27.5*2.4 3C Terra/DD/TR BK
- Your Rogue is tubeless ready, but comes with tube.
Avinox Drive System
- Motor: AVINOX M2S 250W 130Nm, Boost to 150Nm, 1300W Peak Power
- Battery: AVINOX 36V 800Wh
- Charger: AVINOX 4A 168W
- Display: AVINOX DP100
Suspension Forks
- Fox 38 P-S 2026, 29 inch, 170mm,Grip, 15X110mm
- Fox float P-S 2026, 205X65mm (custom factory tuned for the Rogue)
| SM | MD | LG | XL | ||
| A | Eff. Seattube Length (mm) | 390 | 410 | 430 | 465 |
| B | Headtube Angle (°) | 63.5 | 63.5 | 63.5 | 63.5 |
| C | Eff. Toptube Length (mm) | 582 | 604 | 623 | 647.5 |
| D | Reach (mm) | 440 | 466 | 485 | 515 |
| E | Act. Seattube Angle (°) | 75.5 | 75.5 | 75.5 | 75.5 |
| F | Seattube Offset (mm) | 30 | 30 | 30 | 30 |
| G | Eff. Seattube Angle (°) | 78 | 78 | 78 | 78 |
| H | Chainstay Length (mm) | 440 | 440 | 440 | 440 |
| I | BB Drop at Rear Wheel (mm) | 10.5 | 10.5 | 10 | 10 |
| J | BB Drop at Front Wheel (mm) | 34 | 34 | 34 | 34 |
| K | Headtube Length (mm) | 110 | 110 | 120 | 125 |
| L | Axle to Crown (mm) | 584 | 584 | 584 | 584 |
| M | Fork Offset (mm) | 44 | 44 | 44 | 44 |
| N | Trail (mm) | 140 | 140 | 140 | 140 |
| O | Stack (mm) | 634 | 634 | 643.5 | 648 |
| P | Wheelbase (mm) | 1229 | 1255 | 1276 | 1311 |
| Q | BB Height (mm) | 343.5 | 343.5 | 344 | 344 |
| Recommended Height (CM) | 160-172 | 172-182 | 180-188 | 185-195 | |
