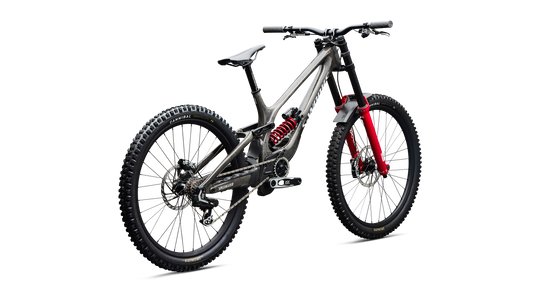

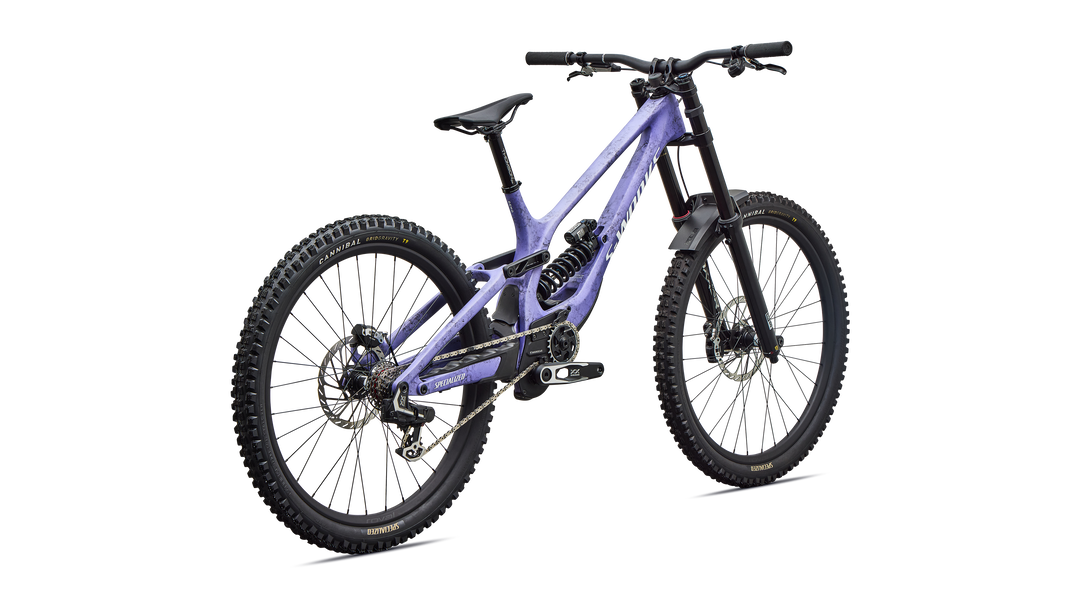

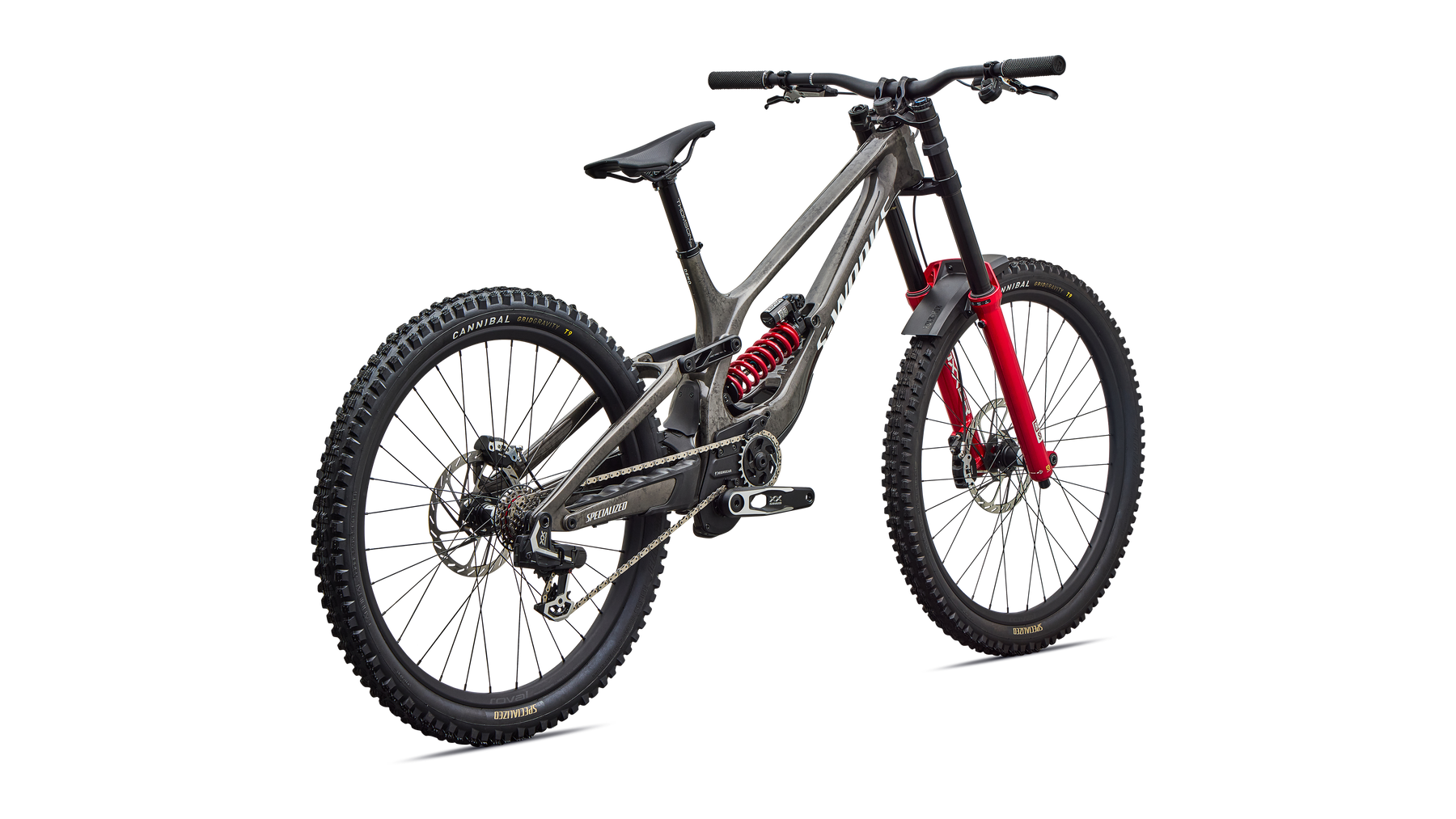

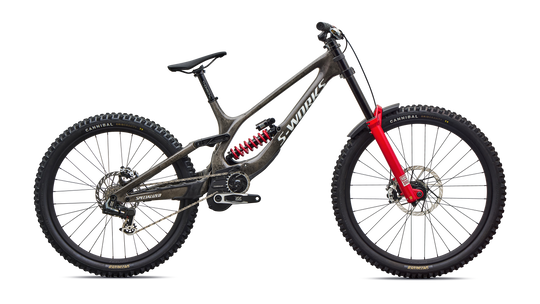

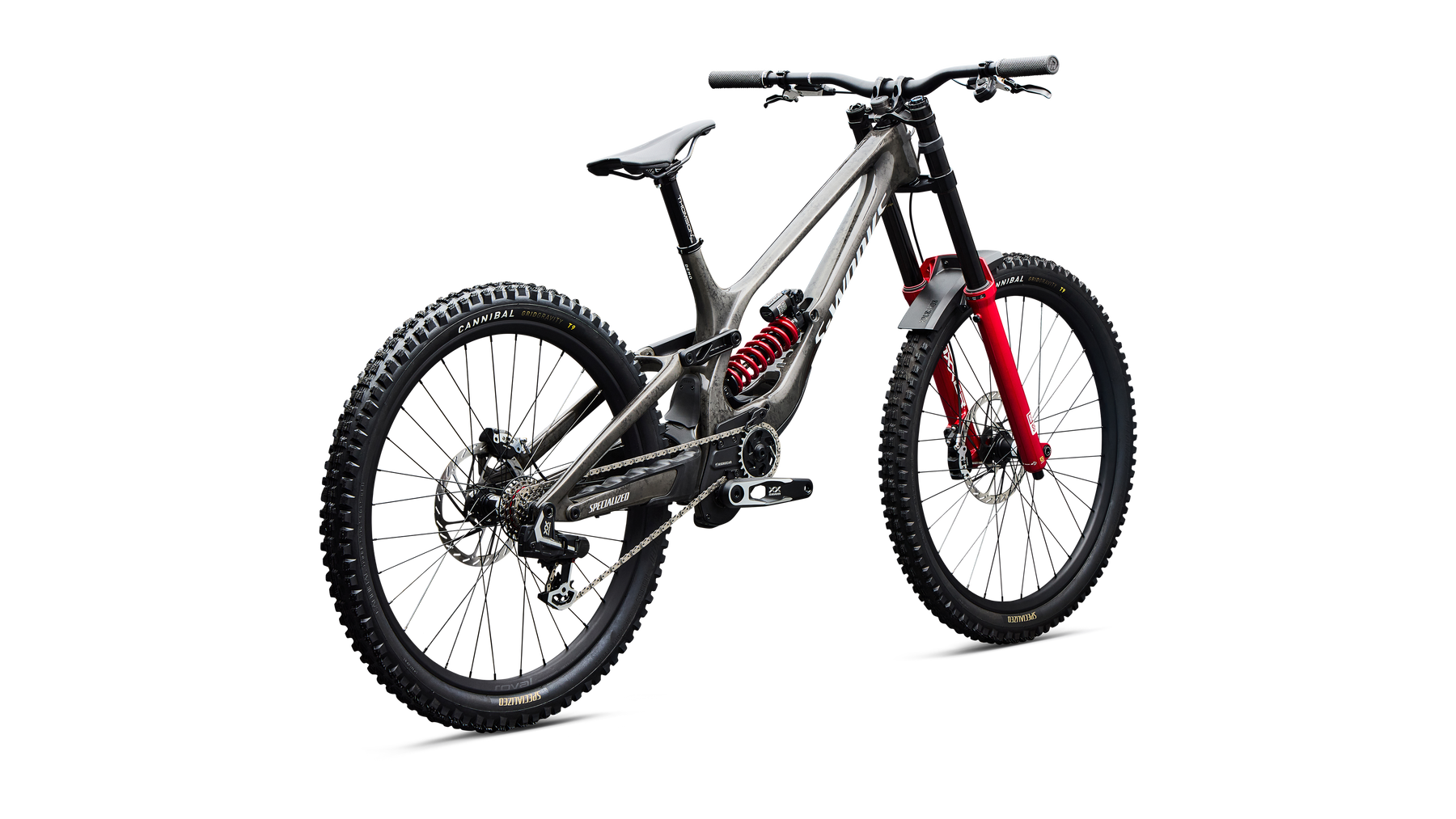

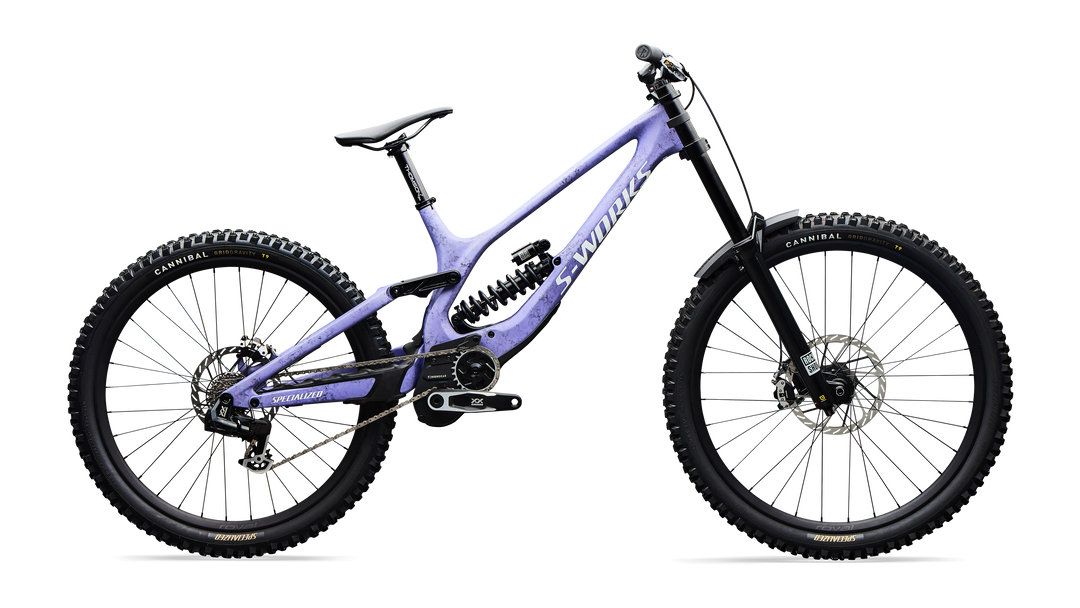

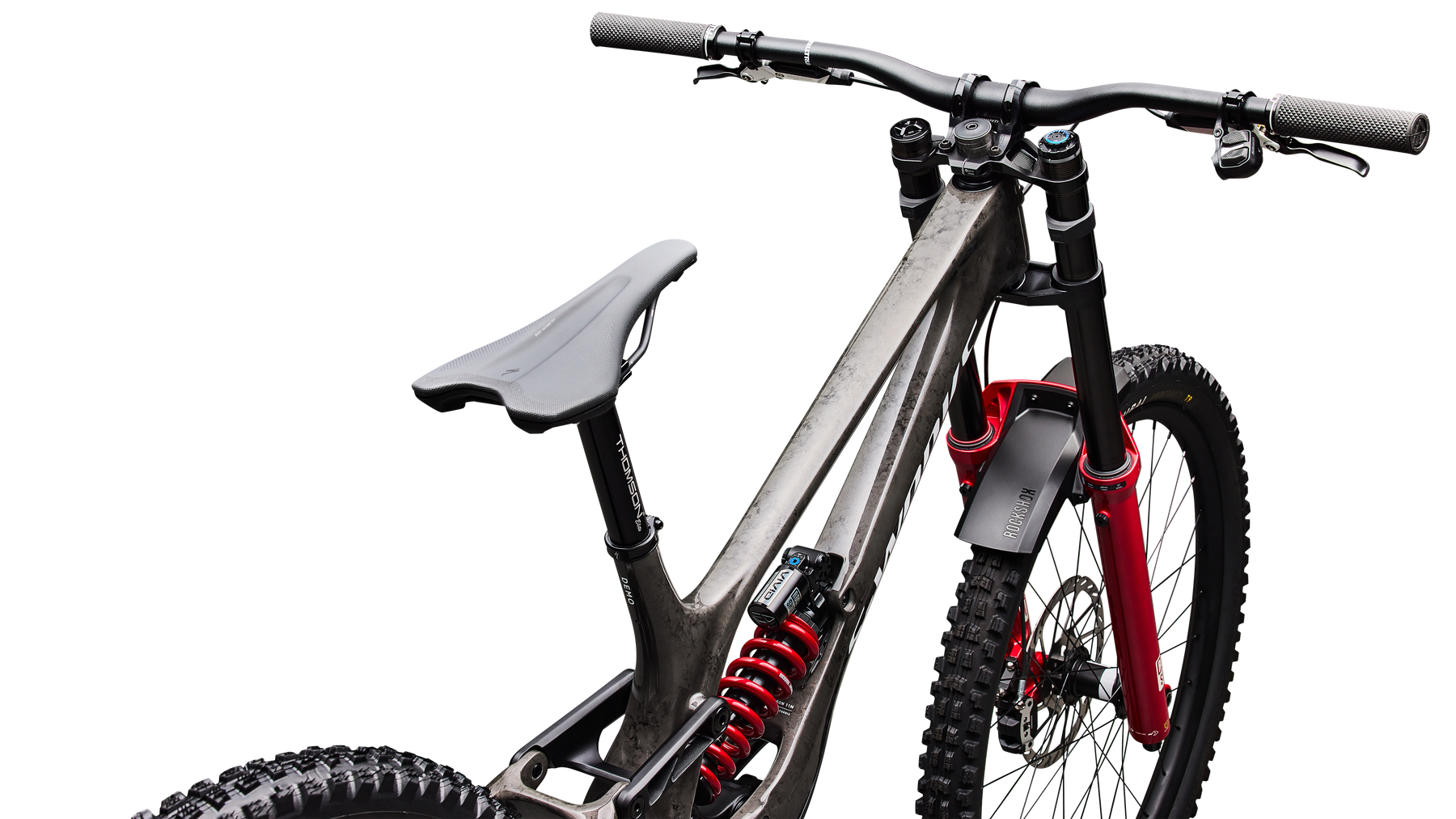

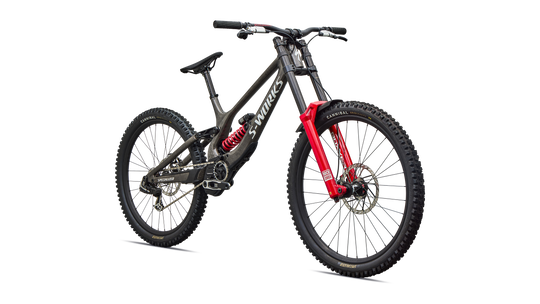

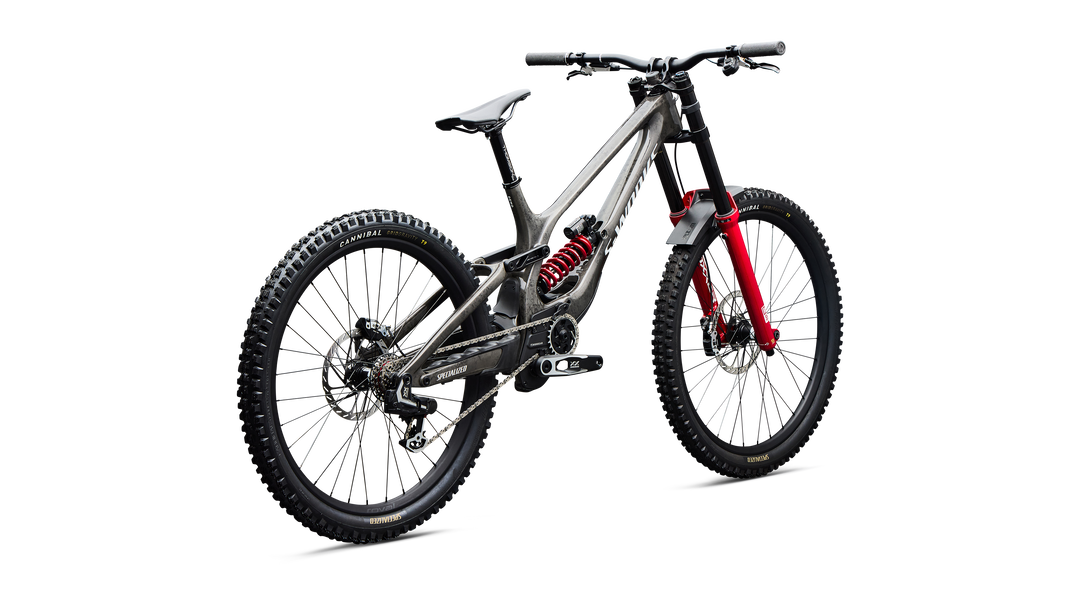

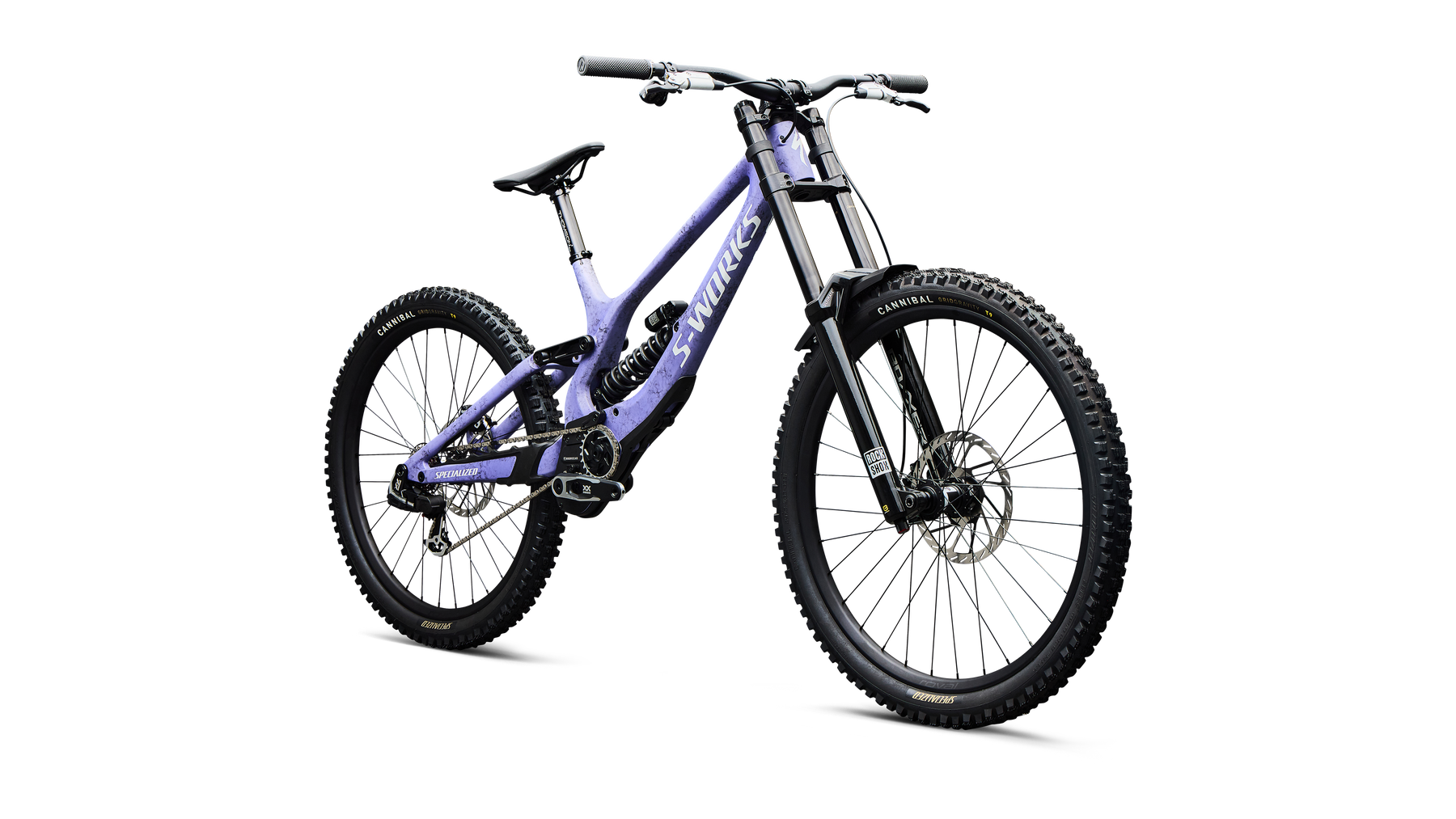

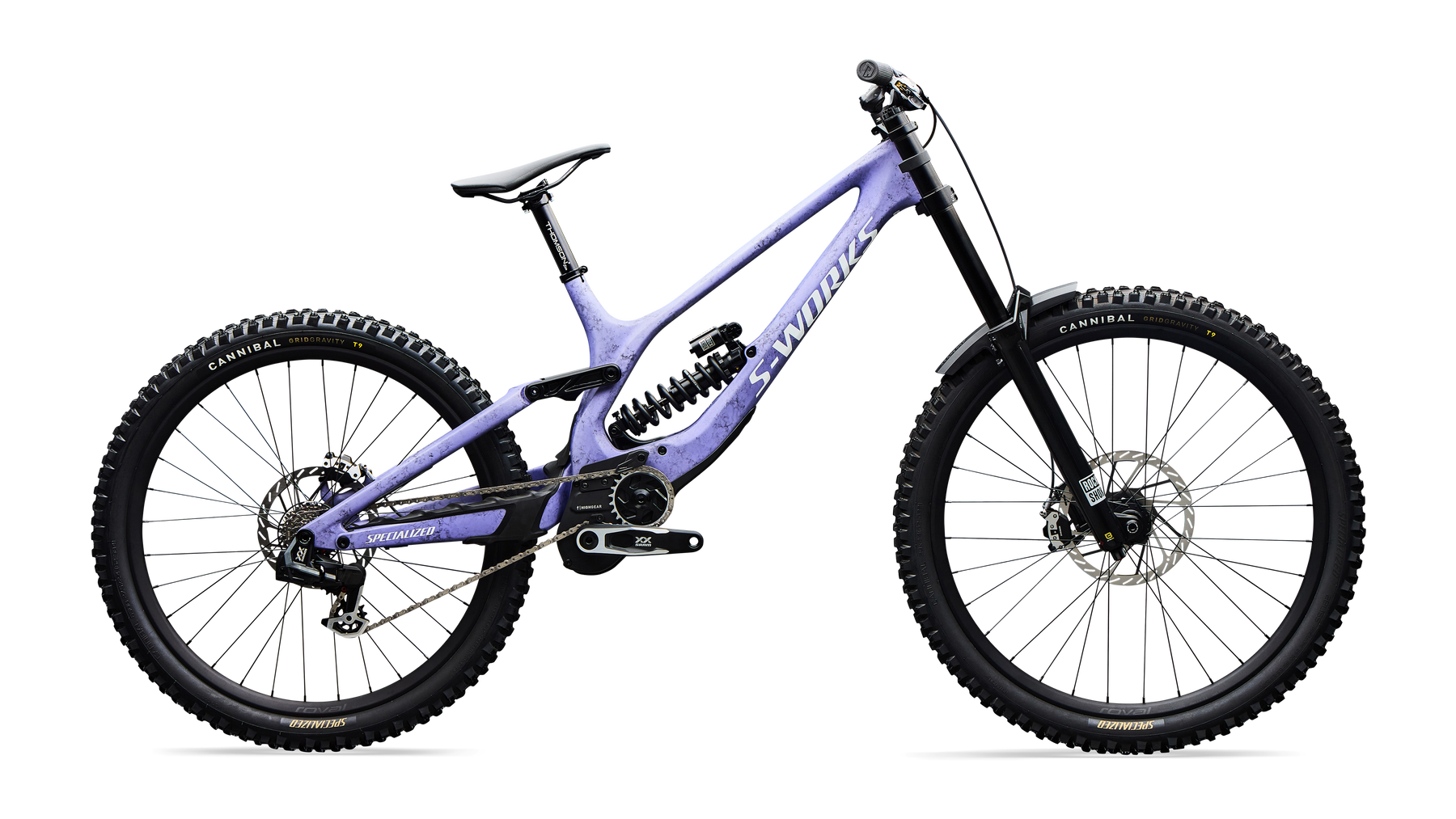

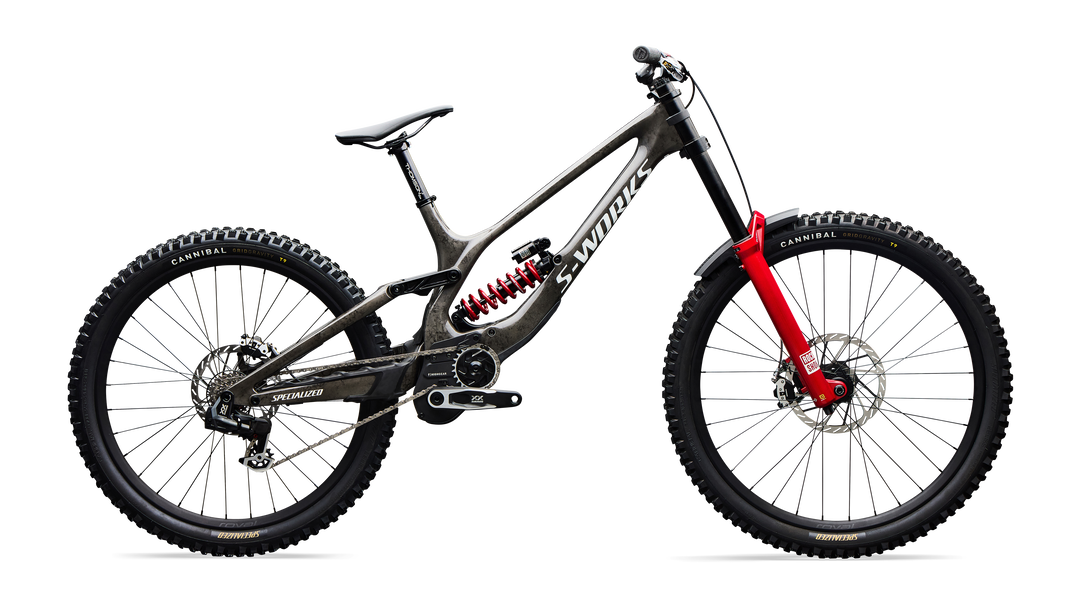

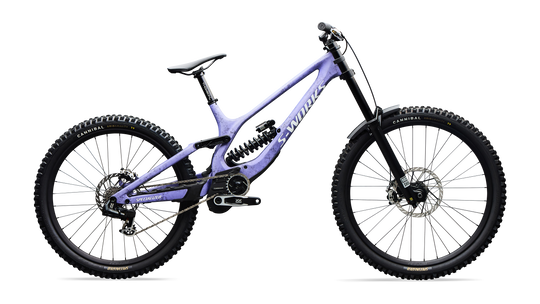

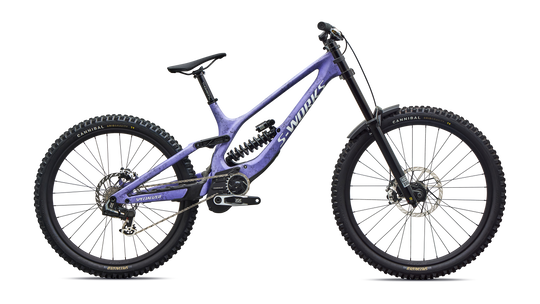

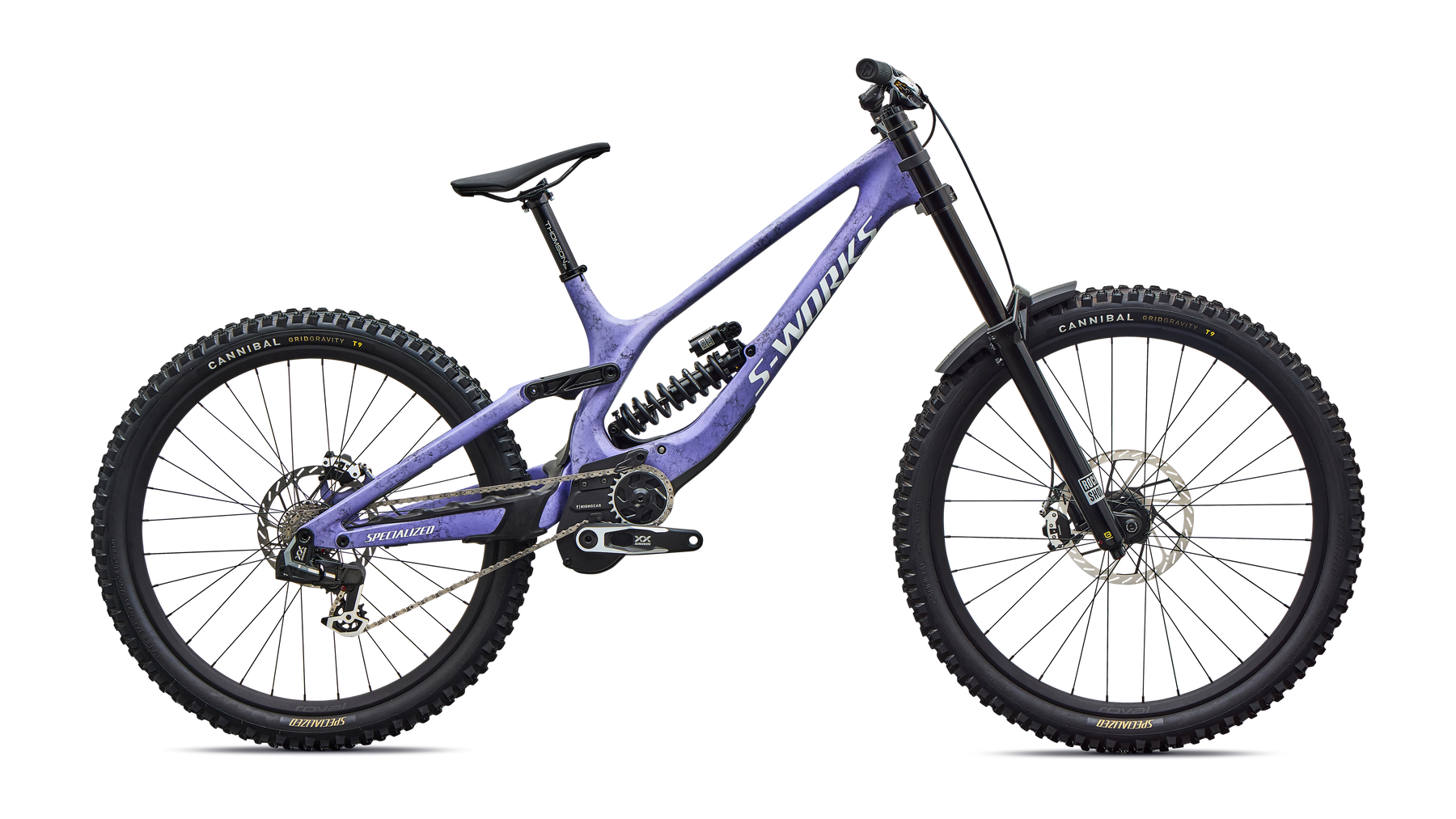

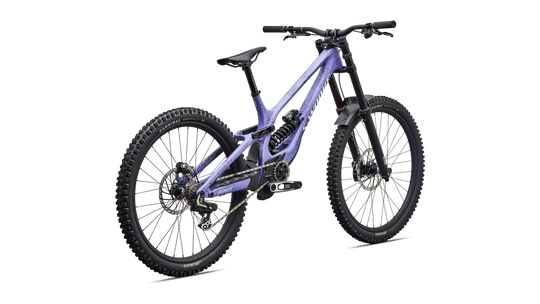

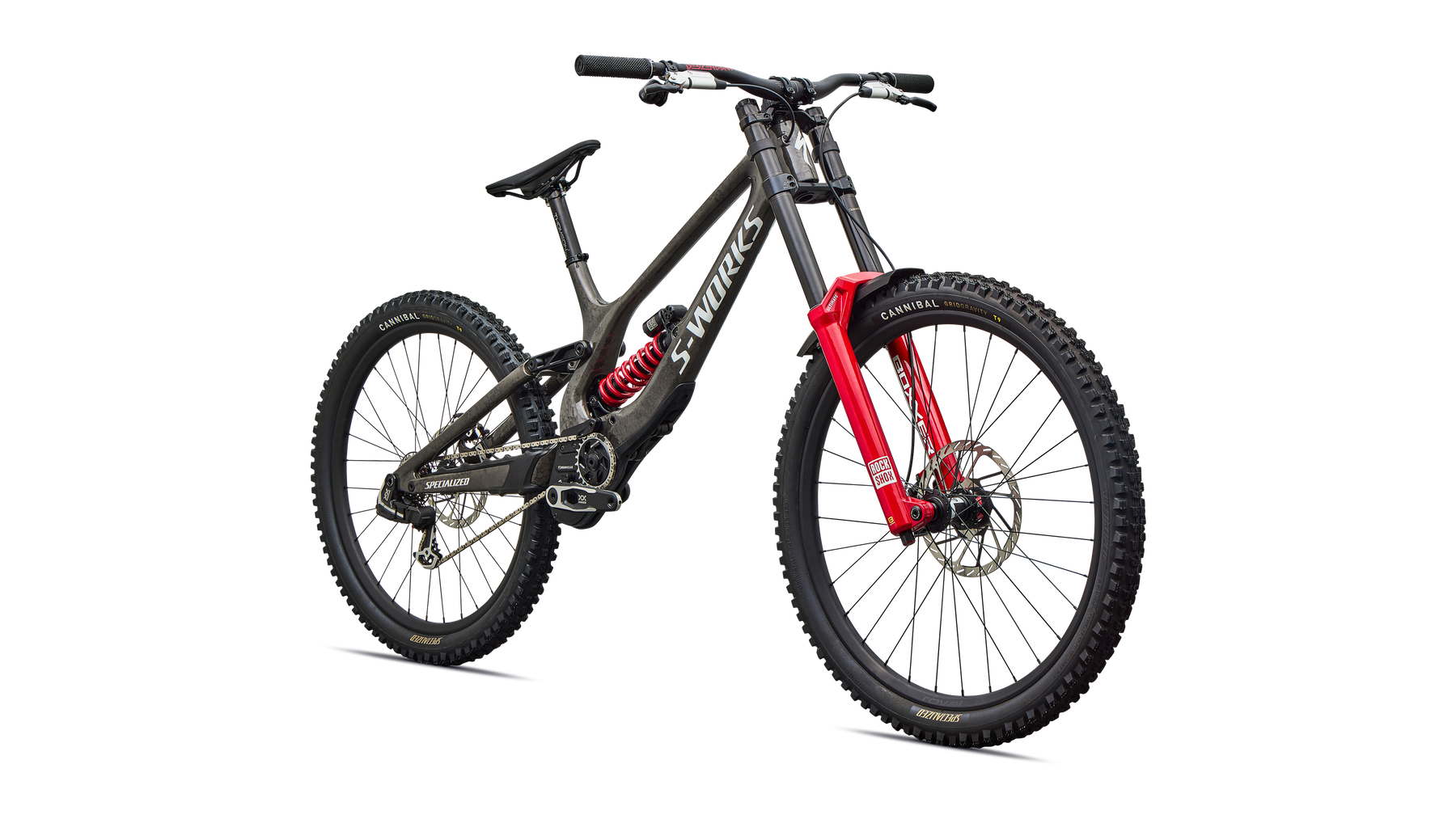

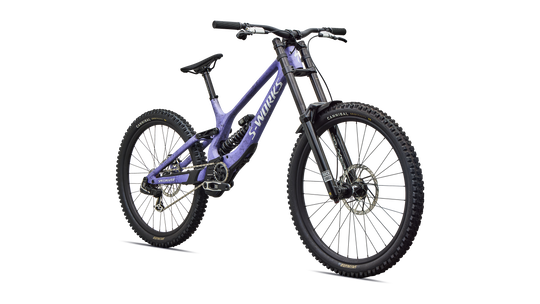

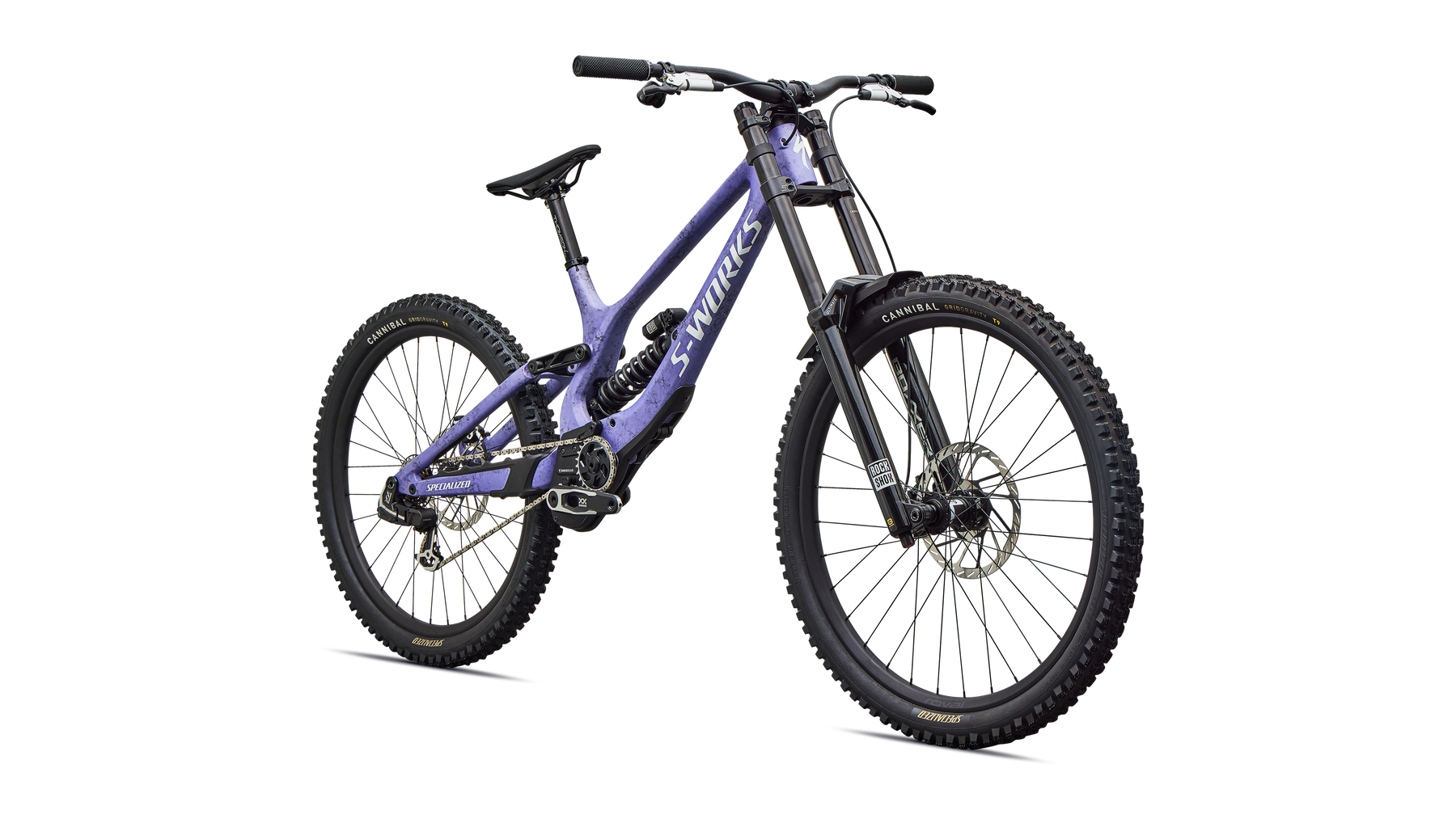

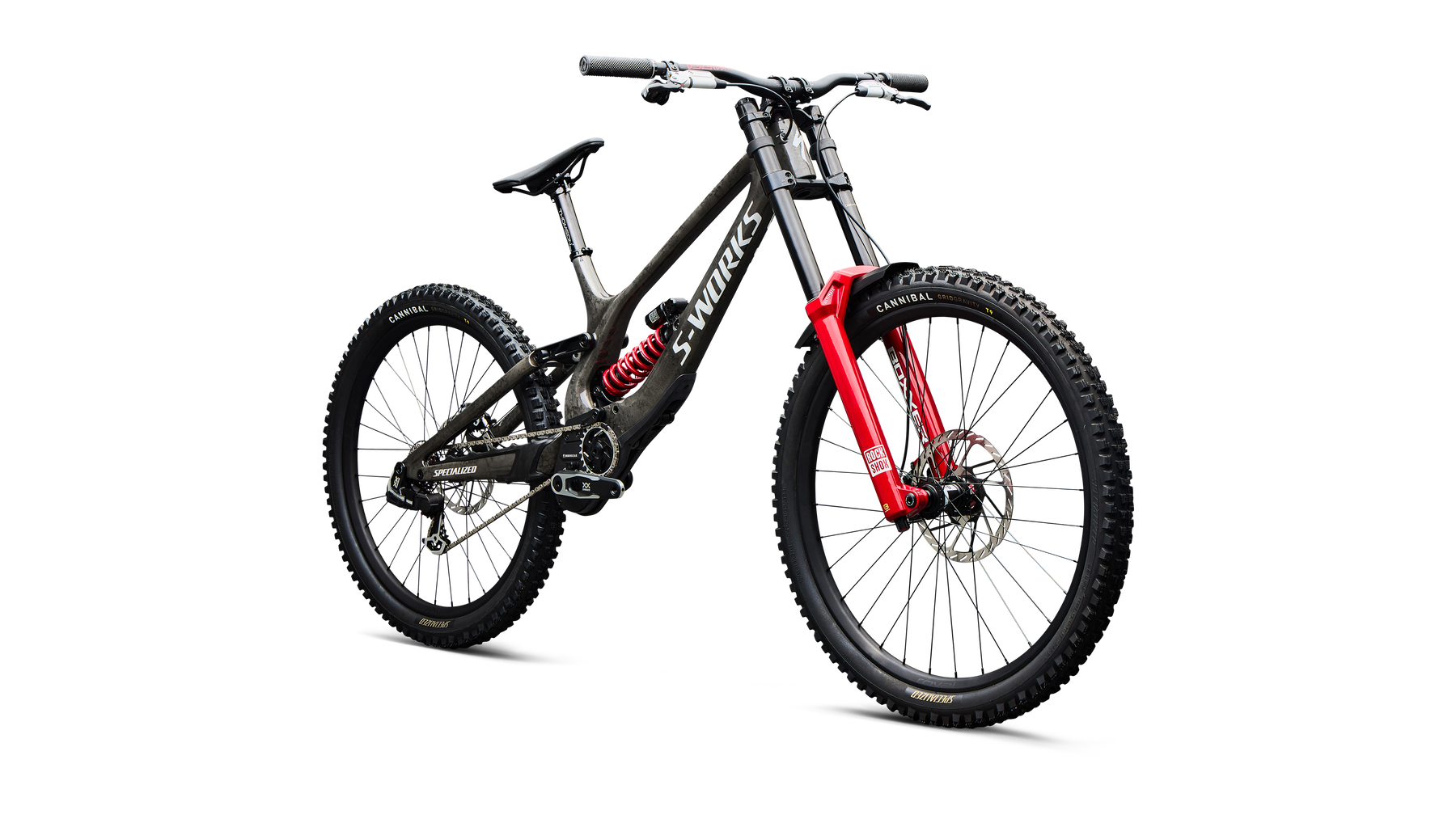

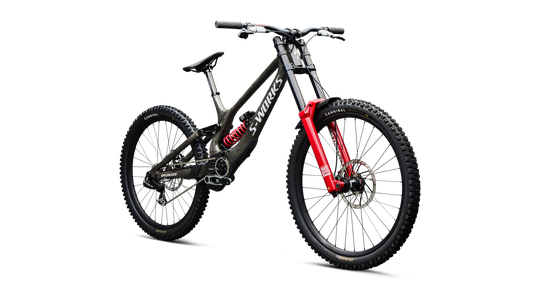

The Speed of Trust
Unmatched Control, Composure, Speed.
Developed over three years with World Cup-winning prototypes and the fastest riders on the planet, Demo 11 had one objective: go faster everywhere. Not through hype. Through race-proven innovation that delivers the predictable control and composure racers trust to drop into flow instantly, commit harder, hold faster lines, and carry more speed from gate to finish.
At a Glance
Use
World Cup Downhill Racing
Frame
FACT 11m Carbon Race Chassis w/OBB Linkage
Suspension
Fork: 200mm RockShox Boxxer Ultimate<br>Shock: RockShox Vivid Coil Ultimate DH (200mm Travel)
Drivetrain
HighGear Drivetrain, +30mm Clearance<br>SRAM XX DH Transmission
Brakes
SRAM Maven Ultimate brakes (220/200)
Wheels
Roval Traverse Gravity Rims with DT Swiss 350 hubs
- Frame
- 200mm travel FACT 11m carbon frame with HighGear system, 165mm cranks, reach adjust headset cups, BB adjust, full internal cable routing, 148mm rear spacing
- Seat Binder
- Specialized Alloy 34.9, Steel Bolt
- Fork
- Rockshox Boxxer Ultimate, tall crowns, 52mm offset, 200mm travel
- Rear Shock
- Rockshox Vivid Coil Ultimate DH, 250x75mm,S3 - 450lbs., S4 - 500lbs., S5 - 525lbs
- Rear Brake
- SRAM Maven Ultimate B1, 4-piston caliper, hydraulic disc, 200mm rotor
- Front Brake
- SRAM Maven Ultimate B1, 4-piston caliper, hydraulic disc, 220mm rotor
- Shift Levers
- SRAM AXS Pod Ultimate with DISCRETE CLAMP
- Cassette
- SRAM CS XS 797 T-TYPE 10-24 DH XD
- Bottom Bracket
- SRAM GXP
- Rear Derailleur
- SRAM XX DH AXS T-Type
- Crankset
- SRAM XX HighGear Crankset, 165mm length.
- Chain
- SRAM XX, T-Type
- Rear Tire
- Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
- Front Tire
- Cannibal GRID Gravity T9 TLR Downhill Tire 29x2.4
- Rear Wheel
- Roval Traverse Gravity Alloy 27.5" Rim, 32h alloy rim, 28mm inner rim width, DT Swiss 350 hub, 12x148mm, Sapim D-Light Spokes
- Front Wheel
- Roval Traverse Gravity Alloy 29" Rim, 32h alloy rim, 28mm inner rim width, DT Swiss 350 hub, 20x110mm, Sapim D-Light Spokes
- Inner Tubes
- Standard, Presta Valve
- Saddle
- Body Geometry Henge DH, hollow titanium rails, 130mm
- Grips
- Deity Supracush, Lock On, 34mm OD, 133mm Length, Black

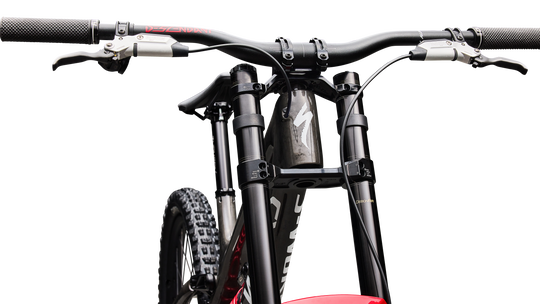

- Stem
- SRAM Descendant DH Stem, 35mm Clamp, 50mm length, Direct Mount, Black

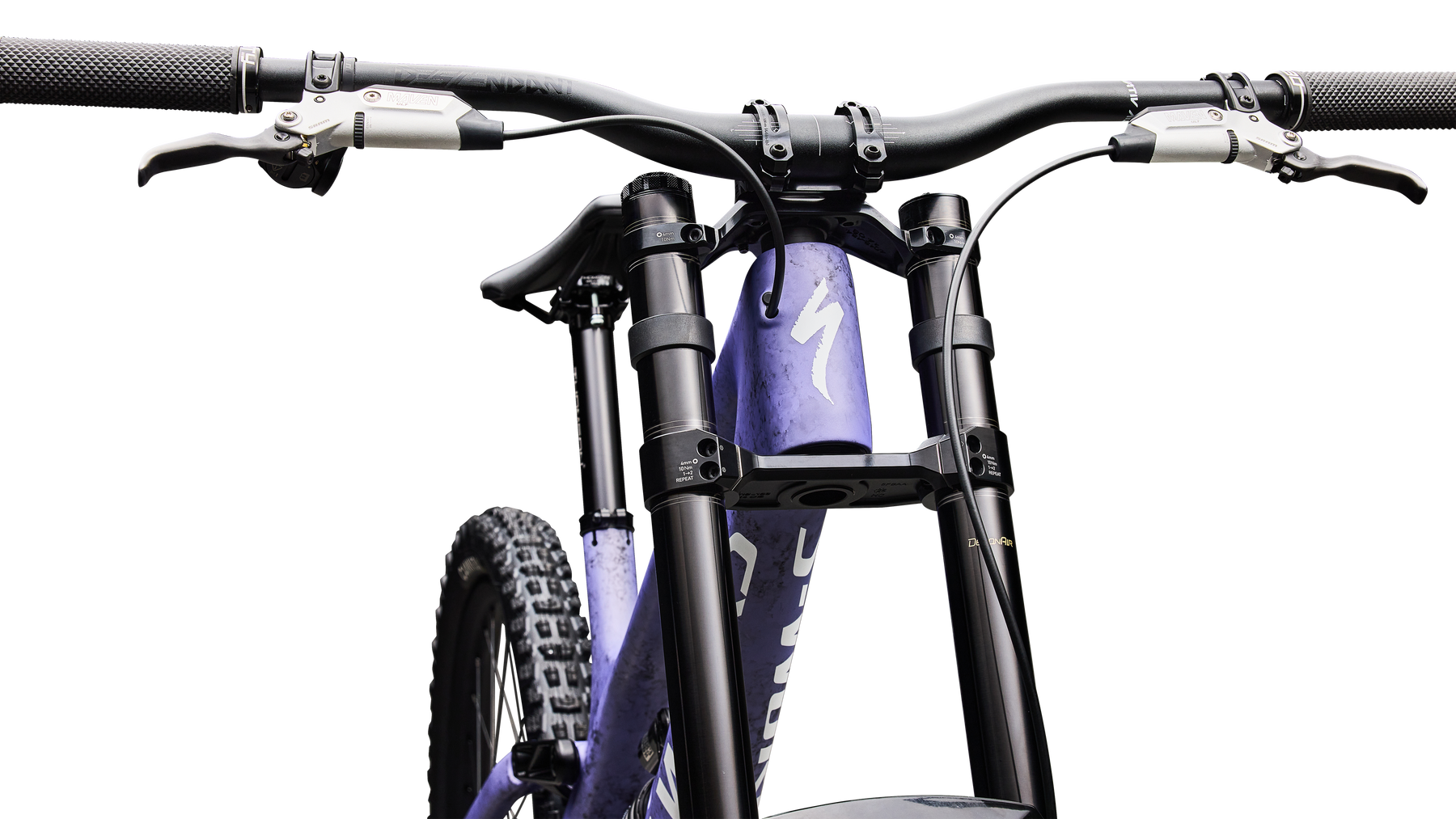

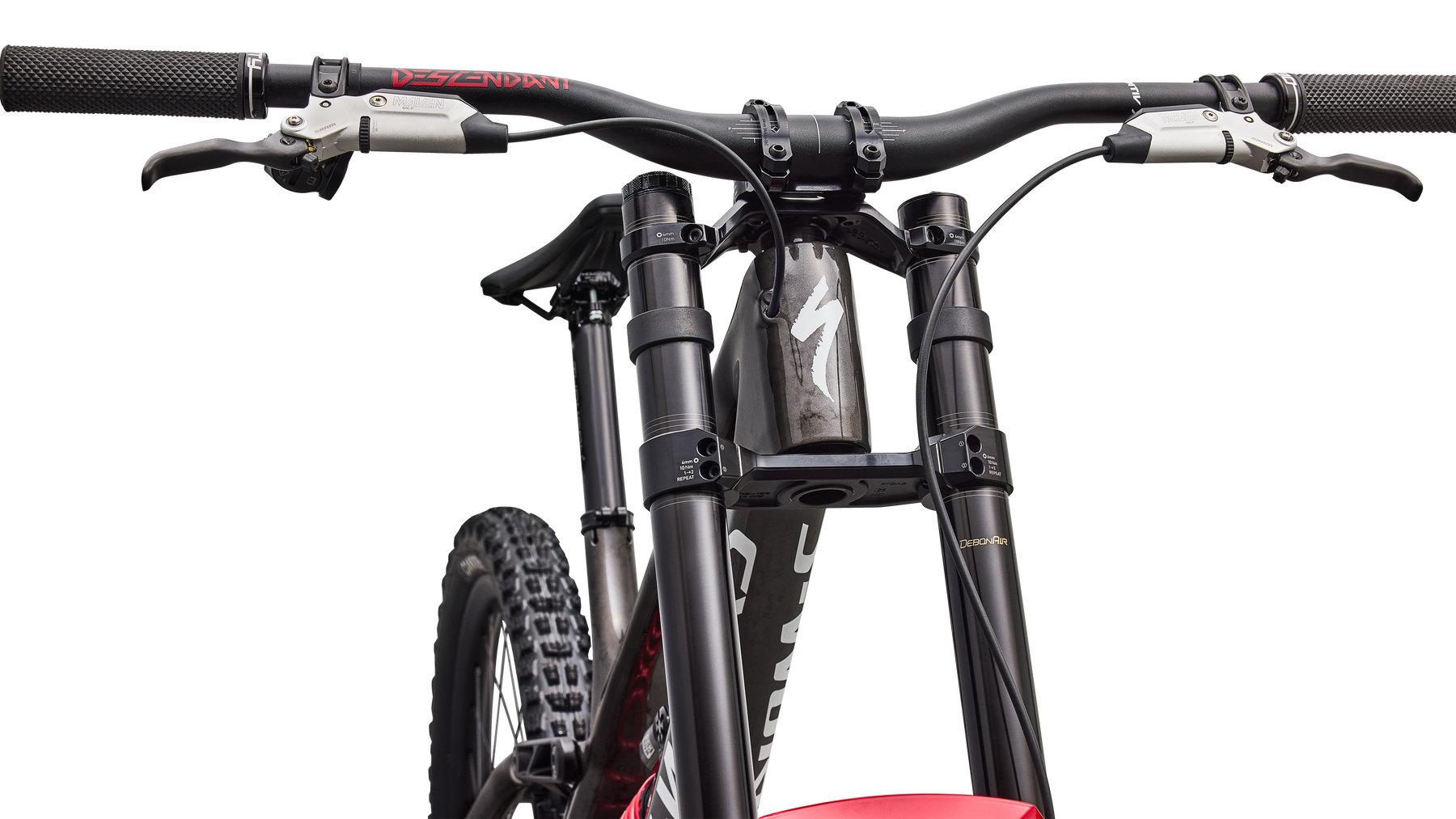

- Handlebars
- SRAM Descendant Handlebar, 35mm clamp, 800mm width, 30mm rise
- SeatPost
- Thomson, alloy, straight, 12-degree clamp
- Product ID
- 293955
- Weight
- 19.03 kg (41 lb, 15.3 oz)
- Weight Size
- S4
| S3 | S4 | S5 | |
| Crank Length | 165 | 165 | 165 |
| Handlebar Width | 800 | 800 | 800 |
| Stem Length | 50 | 50 | 50 |
| Saddle Width | 130 | 130 | 130 |
| Seatpost Length | 367 | 367 | 367 |
| Stack (high) | 640 | 640 | 640 |
| Stack (low) | 645 | 645 | 645 |
| Reach (middle) | 445 | 475 | 500 |
| Reach Adjustment | 6 | 6 | 6 |
| Headtube Length | 110 | 110 | 110 |
| Headtube Angle | 62.5 | 62.5 | 62.5 |
| BB Height (high) | 355 | 355 | 355 |
| BB Height (low) | 348 | 348 | 348 |
| BB Drop | 20 | 20 | 20 |
| Fork Length (full) | 611 | 611 | 611 |
| Trail | 137 | 137 | 137 |
| Fork Rake/Offset | 52 | 52 | 52 |
| Front Center | 825 | 857 | 880 |
| Horizontal Rear Center | 435 | 445 | 455 |
| Chainstay Length | 435 | 445 | 455 |
| Wheelbase | 1260 | 1302 | 1335 |
| Seat-Tube Length | 420 | 400 | 420 |
| Seat-Tube Angle | 78 | 78 | 78 |
| Top Tube Length | 582 | 614 | 637 |
