Get Ready To Rally

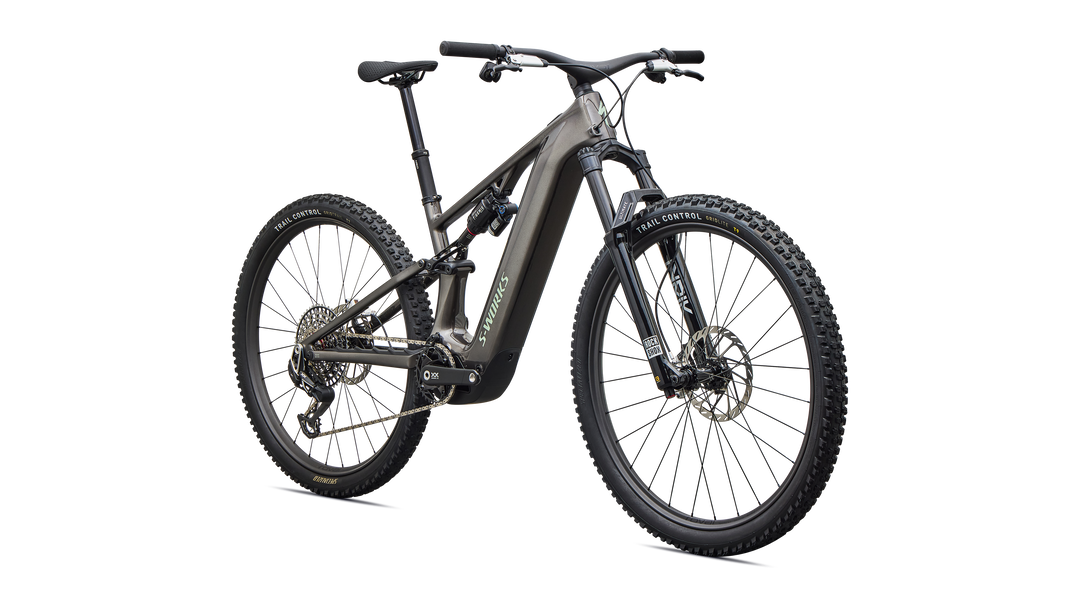

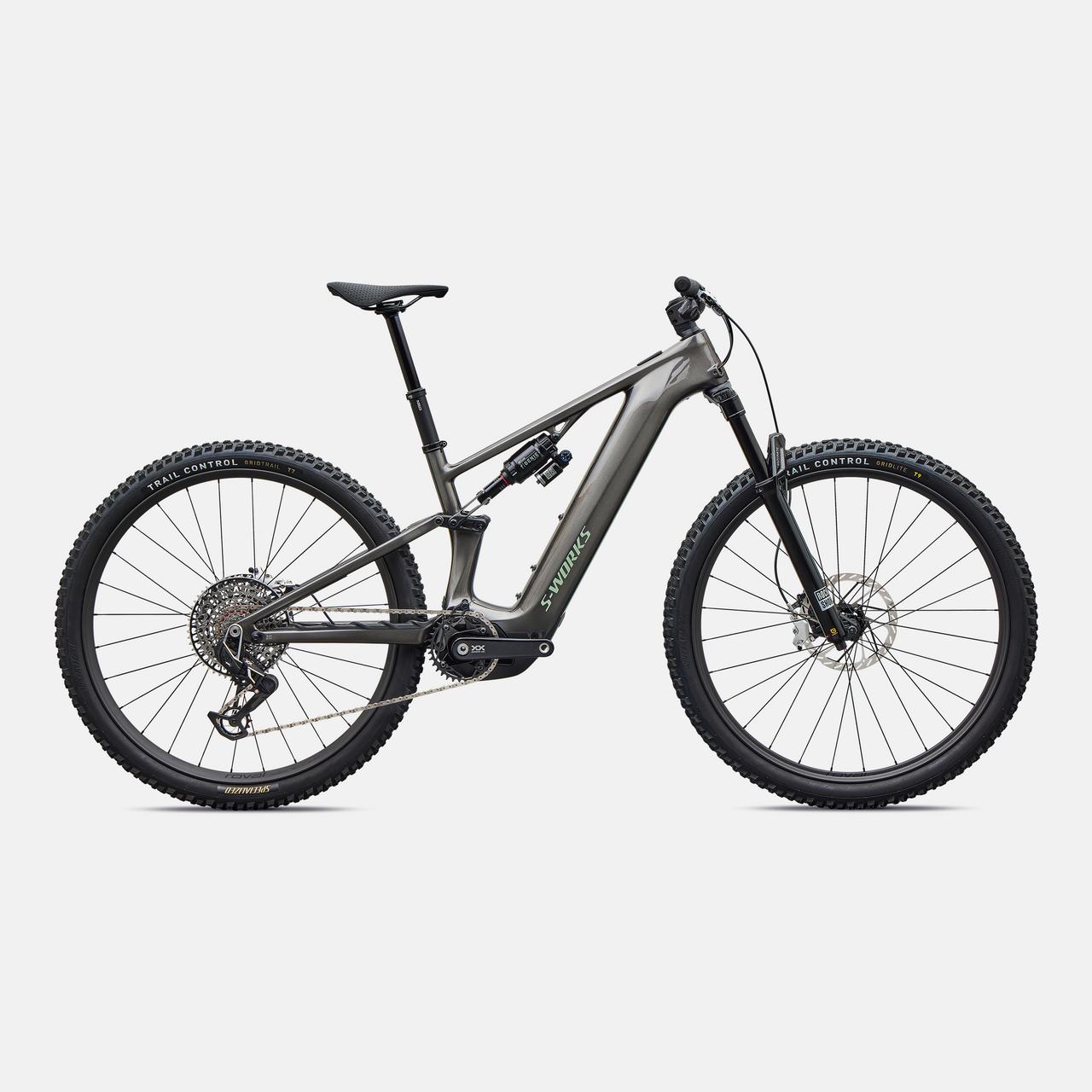

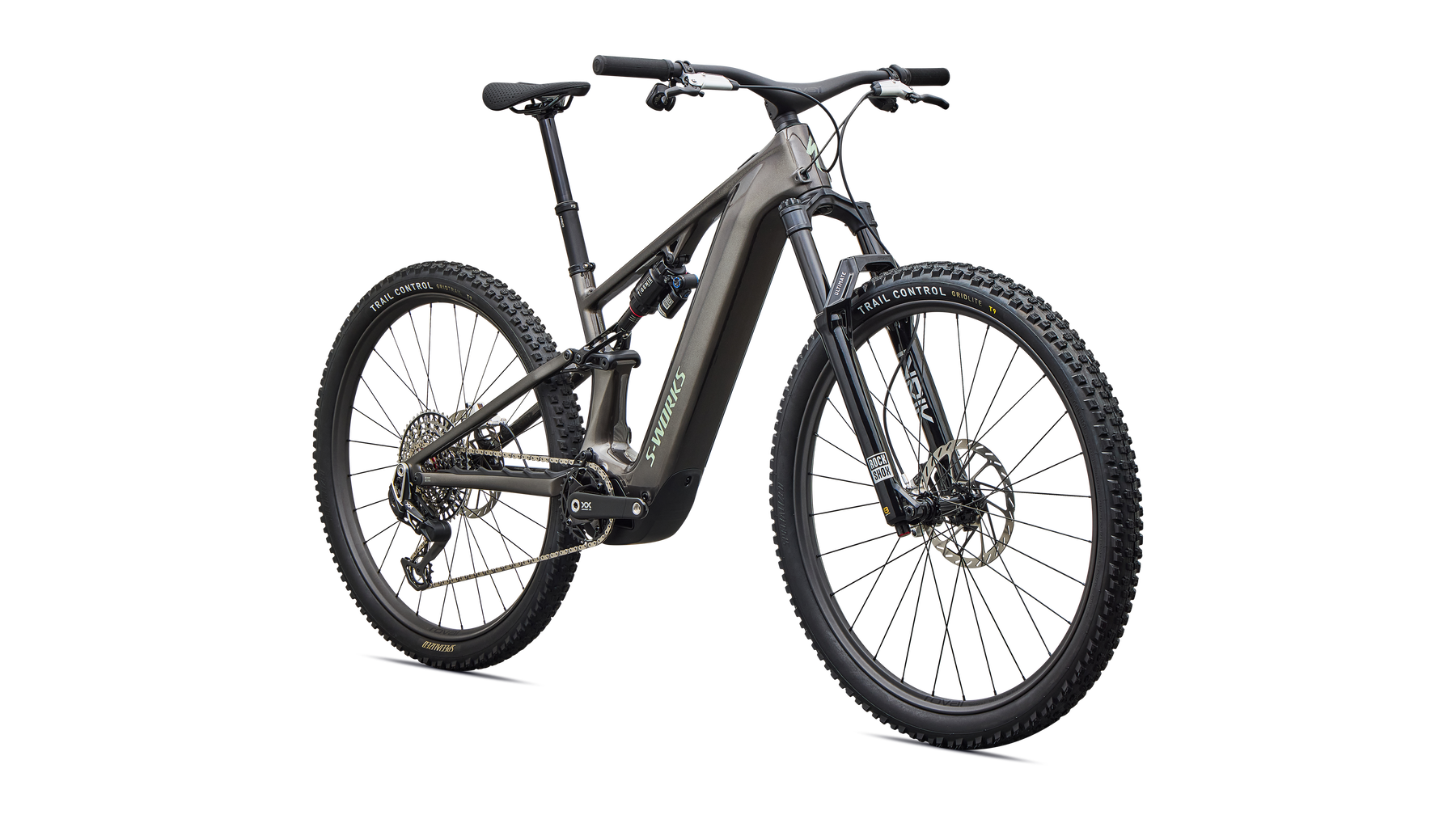

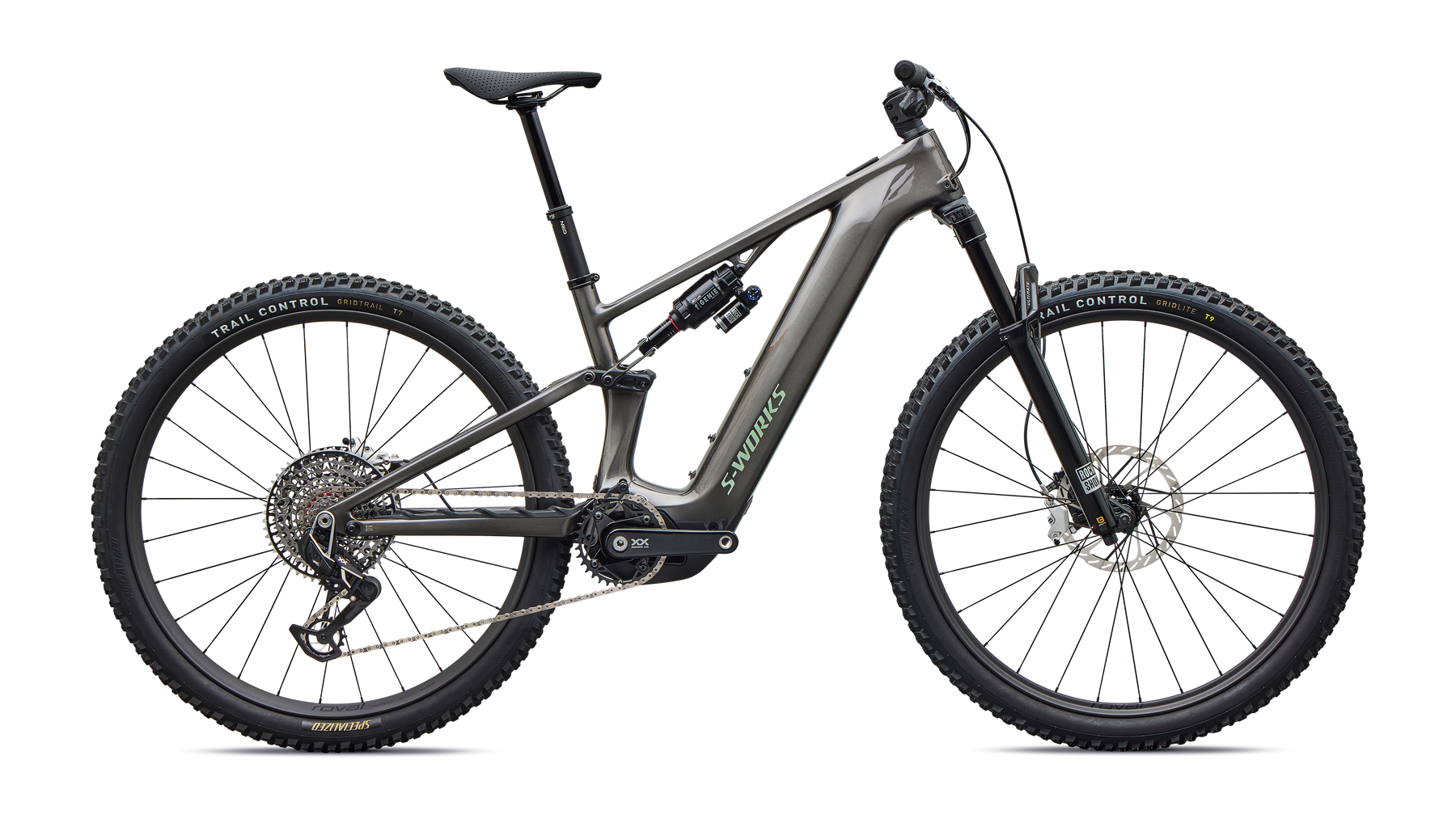

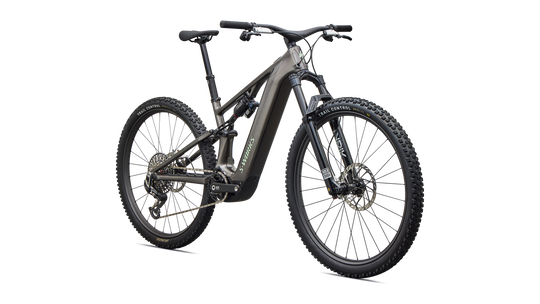

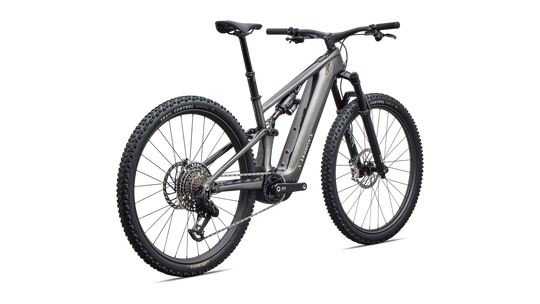

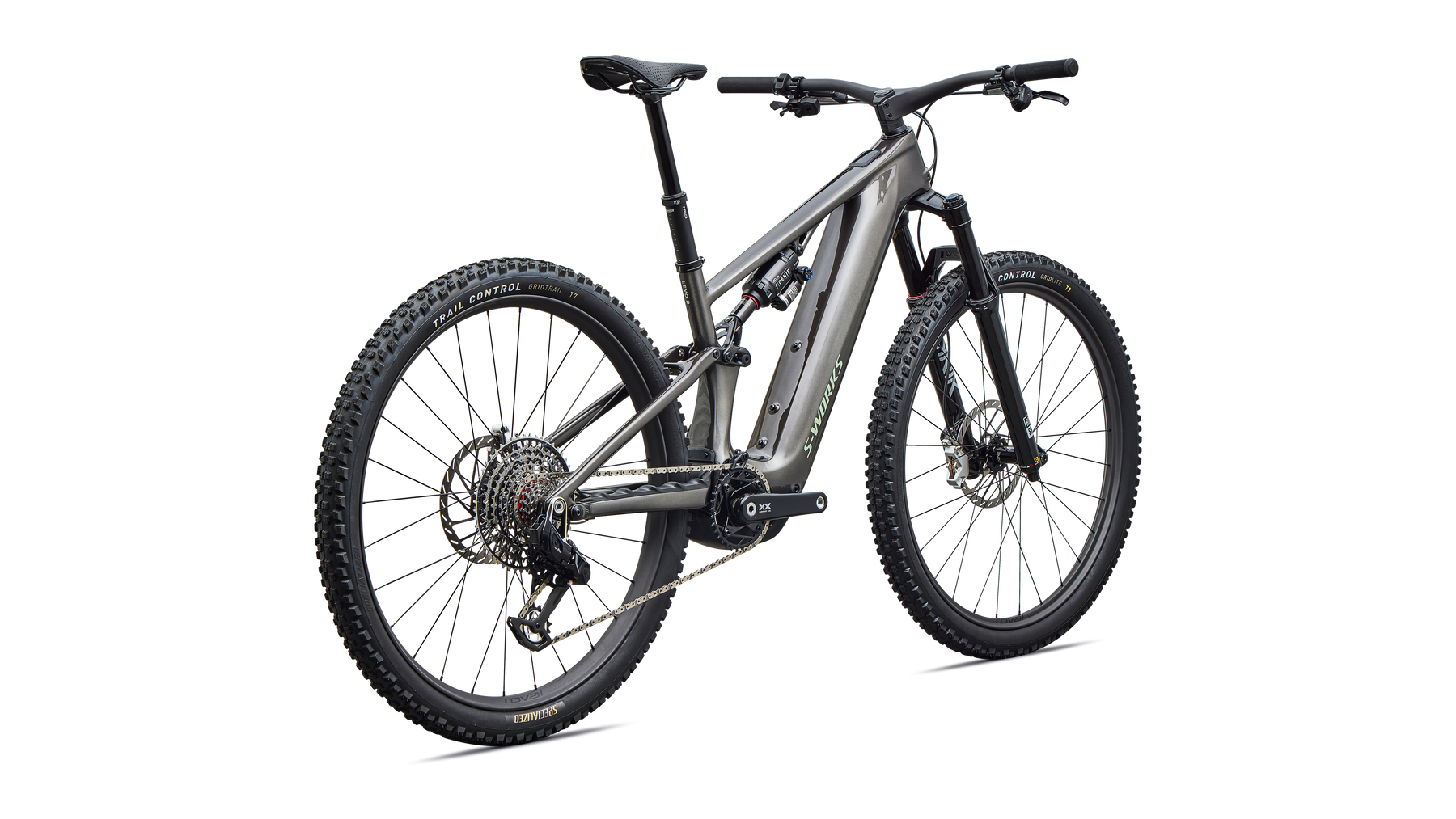

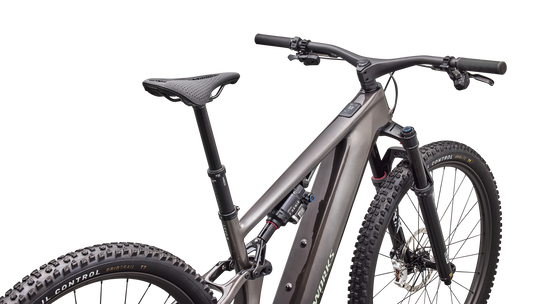

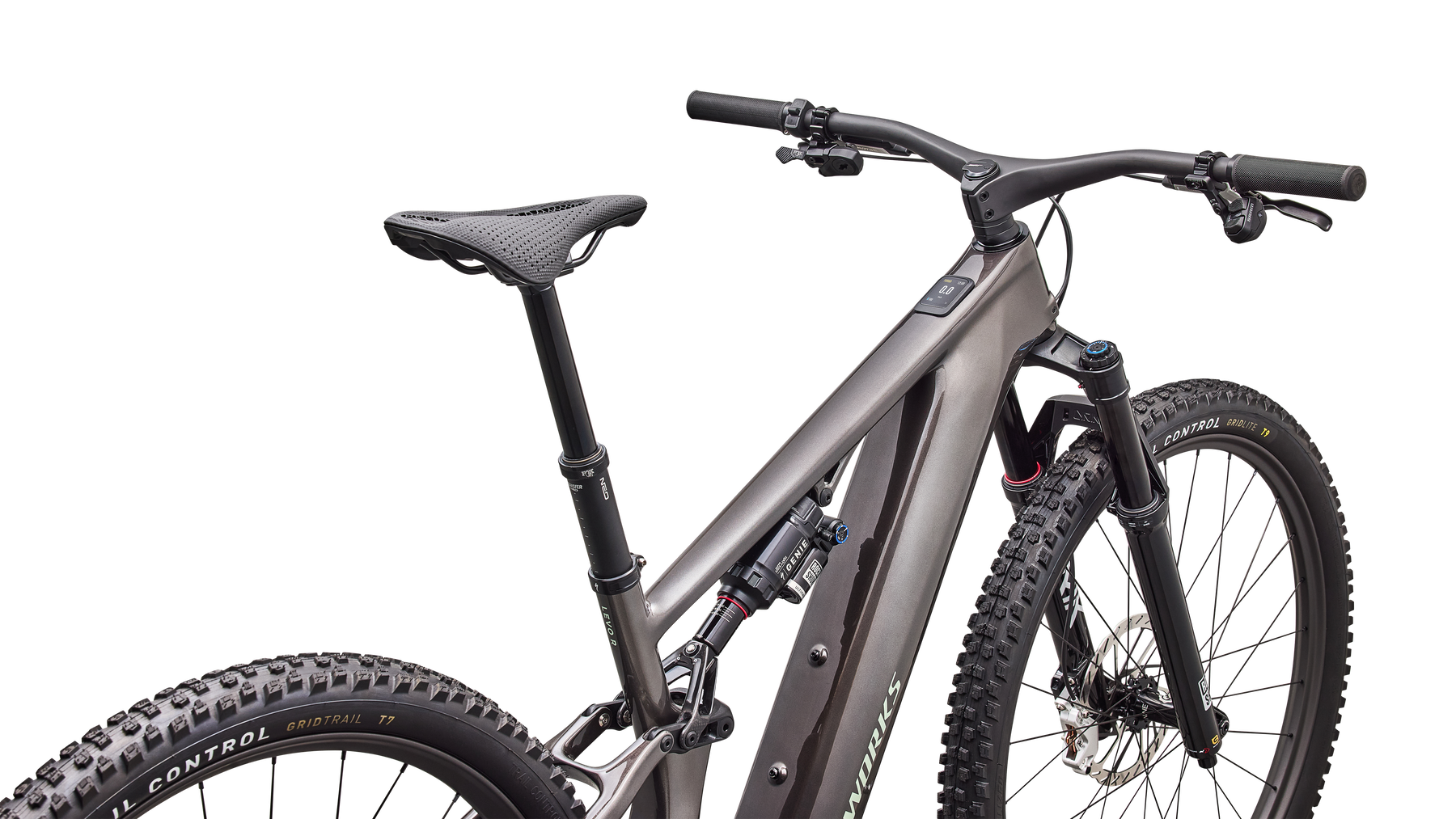

S-Works Turbo Levo R
Nothing this powerful has ever felt this agile. Light, tight, and ready to fight, the Levo R e-MTB channels the SuperNatural power of Levo 4—but sheds its manners. And with complete builds up to 2 kg lighter than Levo 4, it brings an even more responsive, lively feel to every trail. Its purpose‑built chassis and XC Trail‑tuned suspension make it feel like a rally car unleashed on dirt: you and Levo R become one, stealing endless flow and finishing with the grin of a thief who slipped away clean.
E-bike
- Battery
- 900Wh Battery
- UI/Remote
- Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
- Charger
- Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
- Motor
- Specialized 3.1 S-Works motor, 111Nm power, 850W power
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- FACT 11m Carbon, carbon shock extension, titanium hardware, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel
Suspension
- Rear Shock
- All New Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 190x45mm
- Fork
- All New SRAM Rockshox Lyrik Ultimate, 29" 140mm, LinearXL air spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust
Brakes
- Front Brake
- SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 200mm rotor
- Rear Brake
- SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
- Chainrings
- SRAM 34t T-Type chainring, 104 BCD, steel
- Shift Levers
- SRAM AXS POD Ultimate Controller
- Crankset
- SRAM XX Carbon crank, 160mm, ISIS interface
- Rear Derailleur
- SRAM XX SL Eagle AXS
- Cassette
- SRAM XX Transmission, XS 1297, 10-52t
- Chain
- SRAM XX, T-Type
Wheels & tires
- Rear Wheel
- Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 Hydra 2 Hub, 12x148mm, 32H, DT Swiss Revolite Spokes, 6 bolt
- Front Wheel
- Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 Hydra 2 Hub, 15x110mm, 28H, DT Swiss Revolite Spokes, 6 bolt
- Rear Tire
- Specialized Trail Control, GRID Casing, T7 Compound, TLR, 29x2.4
- Front Tire
- Specialized Trail Control, GRID Casing, T9 Compound, TLR, 29x2.4
- Inner Tubes
- Specialized Turbo Tube
Cockpit
- Seatpost
- New FOX Transer NEO, E-Opt, 34.9mm, S2: 125mm, S3: 150mm, S4-6: 200mm, 1320mm cable powered by e-system battery
- Handlebars

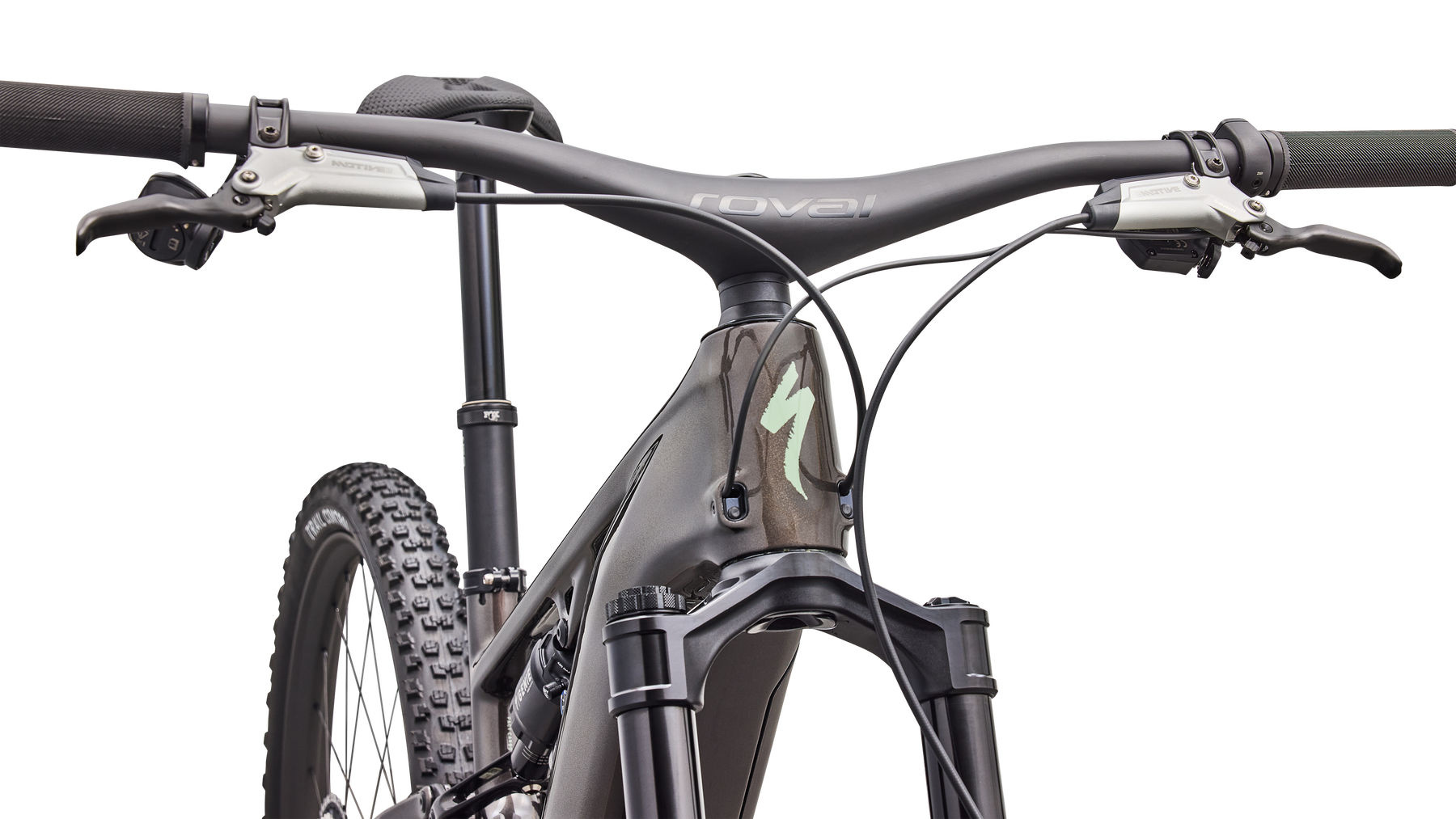

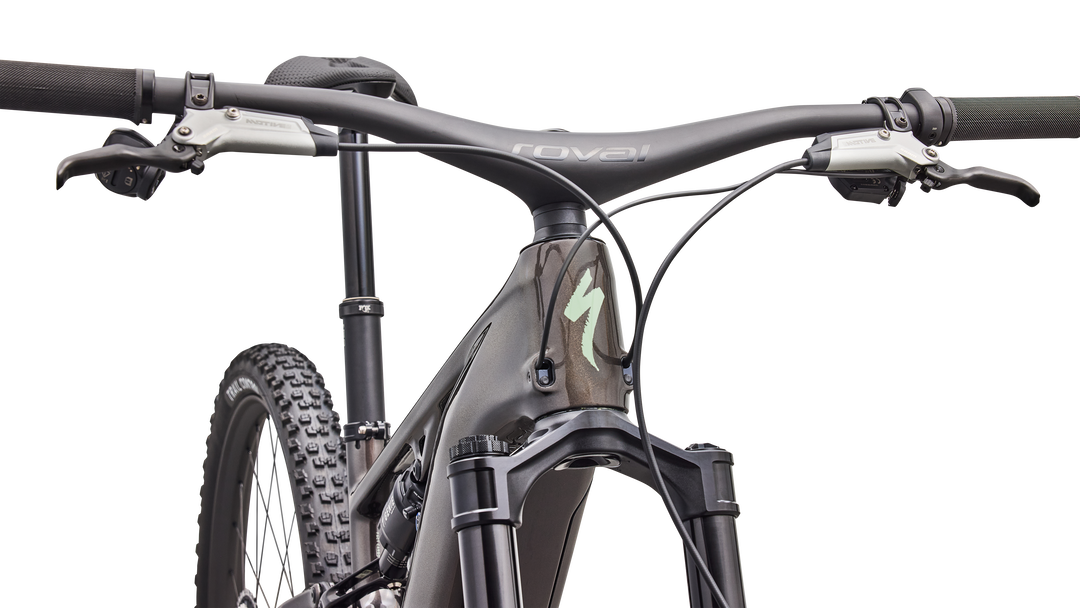

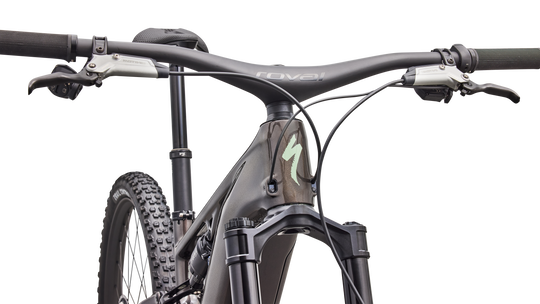

- Roval Control SL RISE Integrated cockpit, 50mm integrated stem, 8-degree backsweep, 2 degree upsweep, 780mm wide
- Saddle
- Specialized S-Works Power Mirror, Ti Rails, 143mm/155mm
- Grips
- Specialized Trail Grips
Accessories
- SWAT
- SWAT internal downtube storage
Product details
- Product ID
- 291045
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 21.82 kg (48 lb, 1.7 oz)
- Weight Size
- S3
| S2 | S3 | S4 | S5 | S6 | |
| Crank Length | 160 | 160 | 160 | 160 | 160 |
| Handlebar Width | 780 | 780 | 780 | 780 | 780 |
| Saddle Width | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 125 | 150 | 175 | 200 | 200 |
| Stack | 607 | 616 | 630 | 644 | 657 |
| Reach | 420 | 450 | 475 | 500 | 525 |
| Head-Tube Length | 100 | 110 | 125 | 140 | 155 |
| Head-Tube Angle | 65 | 65 | 65 | 65 | 65 |
| B-B Height (low) | 339 | 339 | 339 | 339 | 339 |
| B-B Drop | 36 | 36 | 36 | 36 | 36 |
| Trail | 126 | 126 | 126 | 126 | 126 |
| Fork Length (full) | 550 | 550 | 550 | 550 | 550 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
| Front Center | 736 | 770 | 801 | 833 | 863 |
| Chain-Stay length | 447 | 447 | 447 | 447 | 447 |
| Wheelbase | 1181 | 1215 | 1246 | 1277 | 1309 |
| Top-Tube Length (horizontal) | 560 | 592 | 620 | 649 | 677 |
| Bike Stand-Over Height | 763 | 773 | 783 | 793 | 803 |
| Seat-Tube Length | 385 | 405 | 425 | 445 | 465 |
| Seat-Tube Angle | 77 | 77 | 77 | 77 | 77 |
| Seat Post Max Insertion | 227 | 249 | 271 | 292 | 312 |
| Seat Post Min Insertion | 80 | 80 | 80 | 80 | 80 |
| Saddle Height for Effective ST Angle | 690 | 735 | 780 | 825 | 870 |
