Get Ready to Rally
SuperNatural Power, Agility, and Range

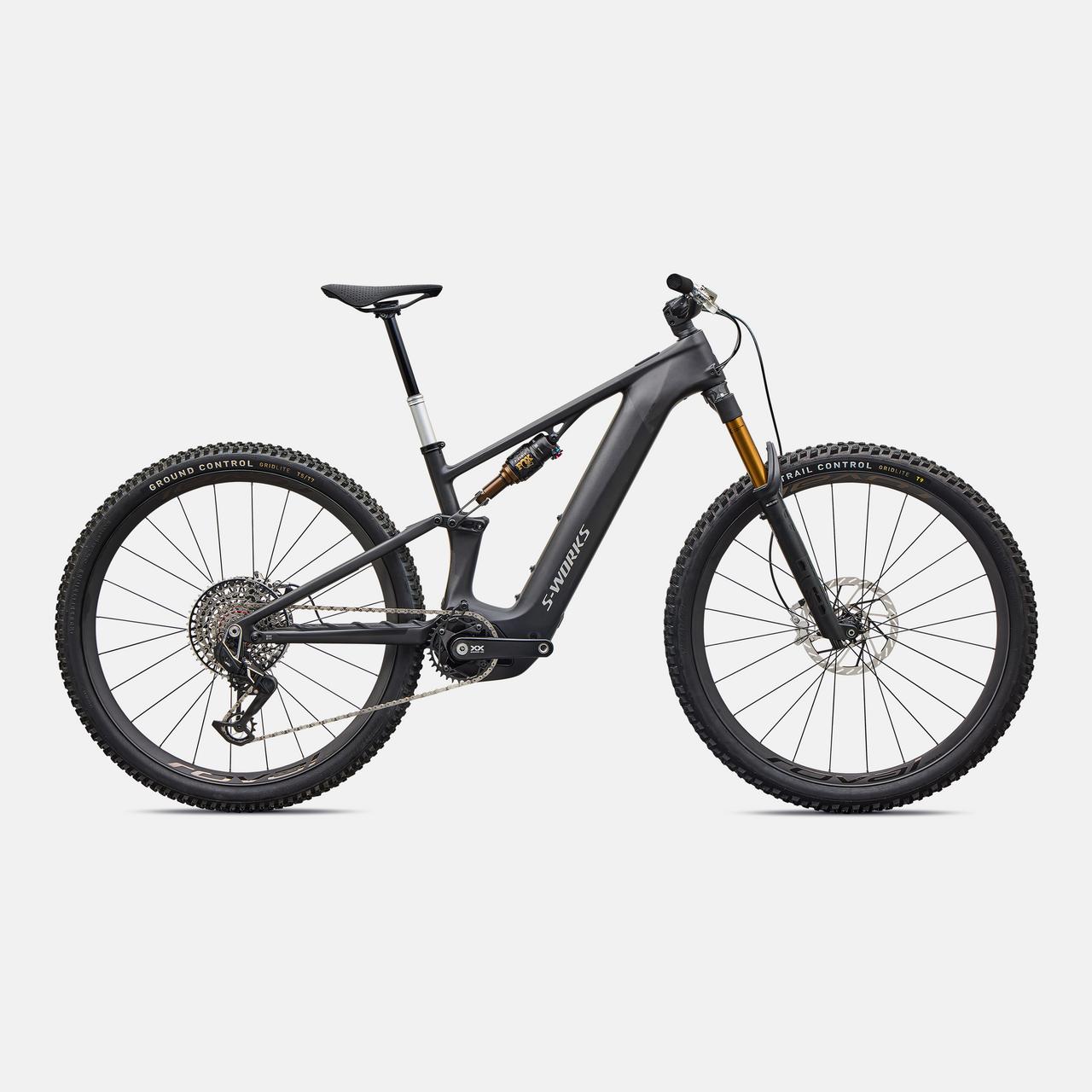

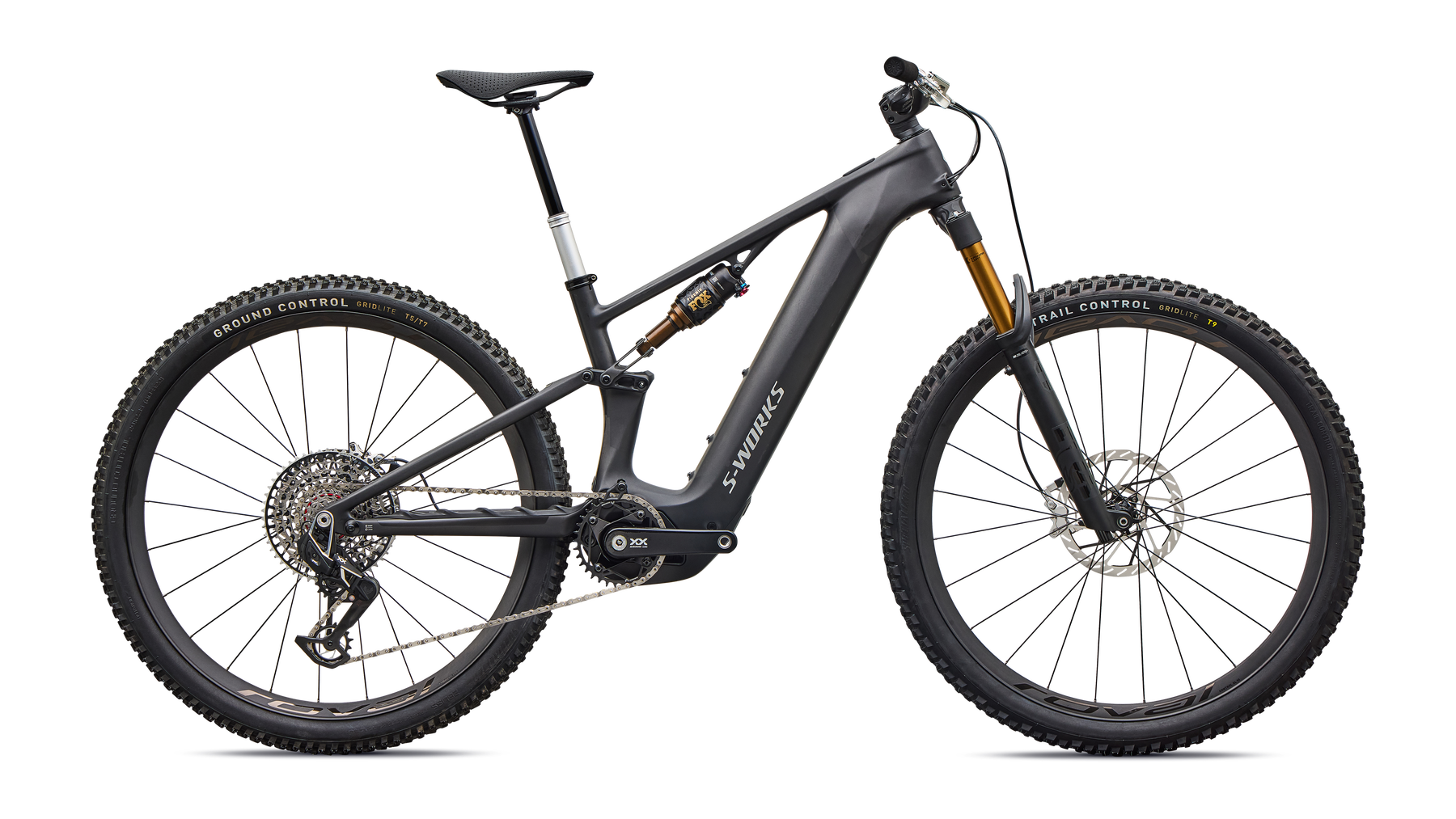

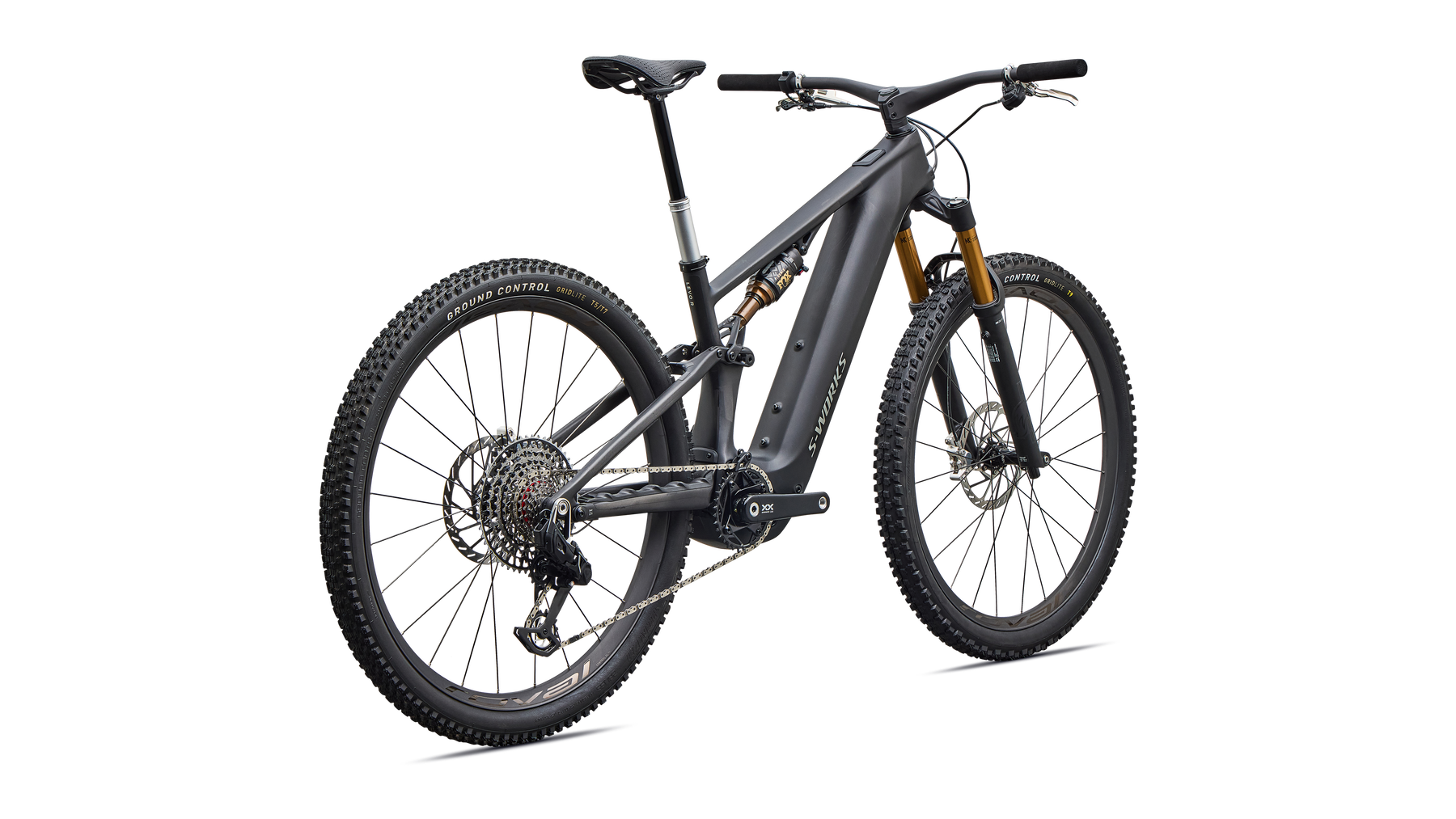

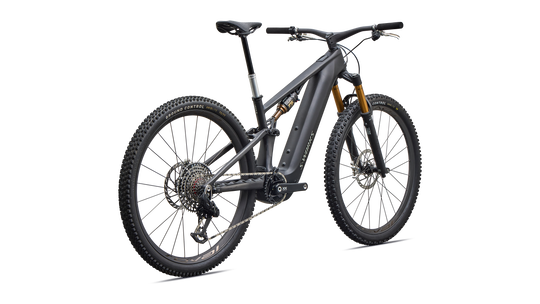

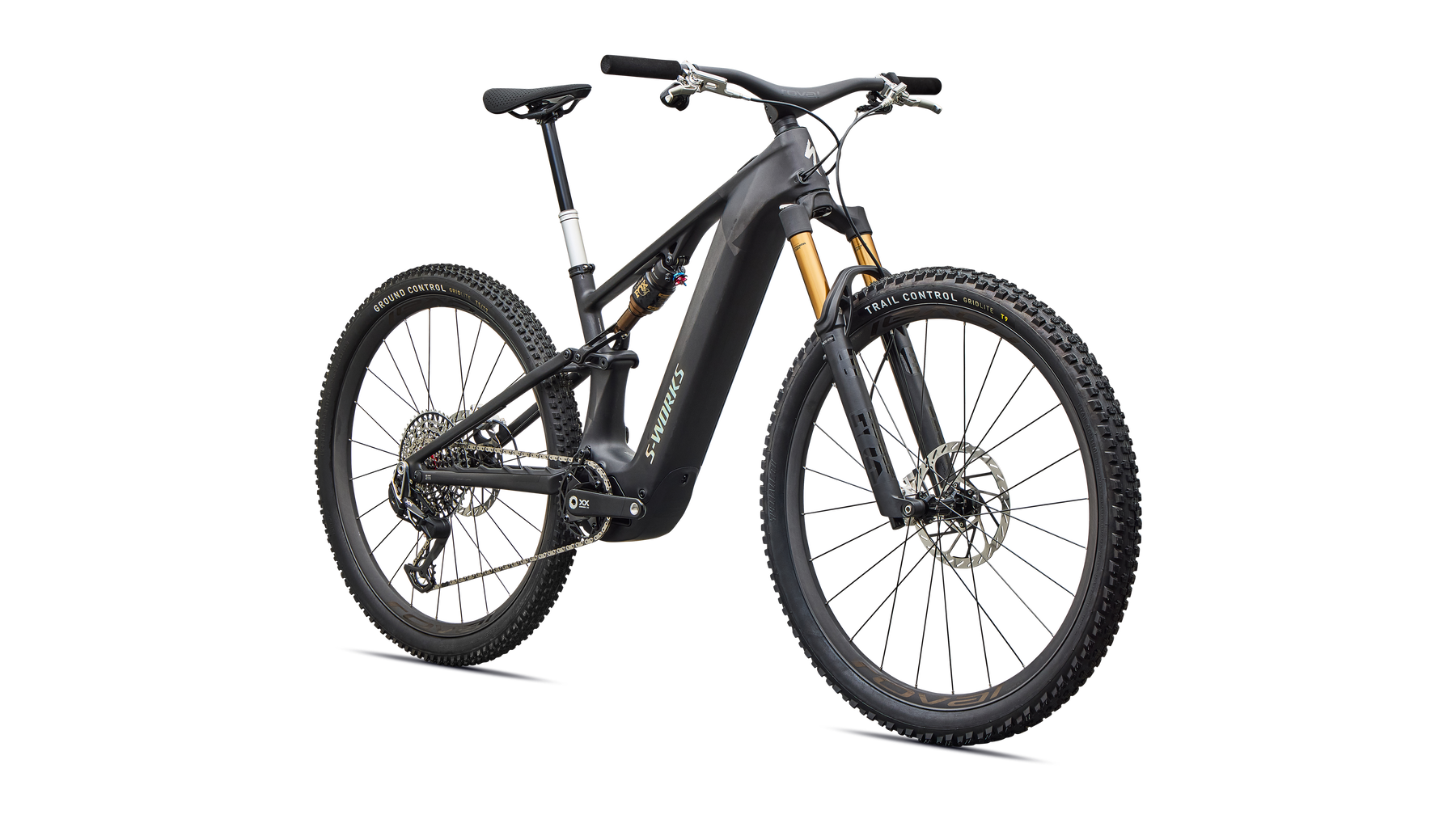

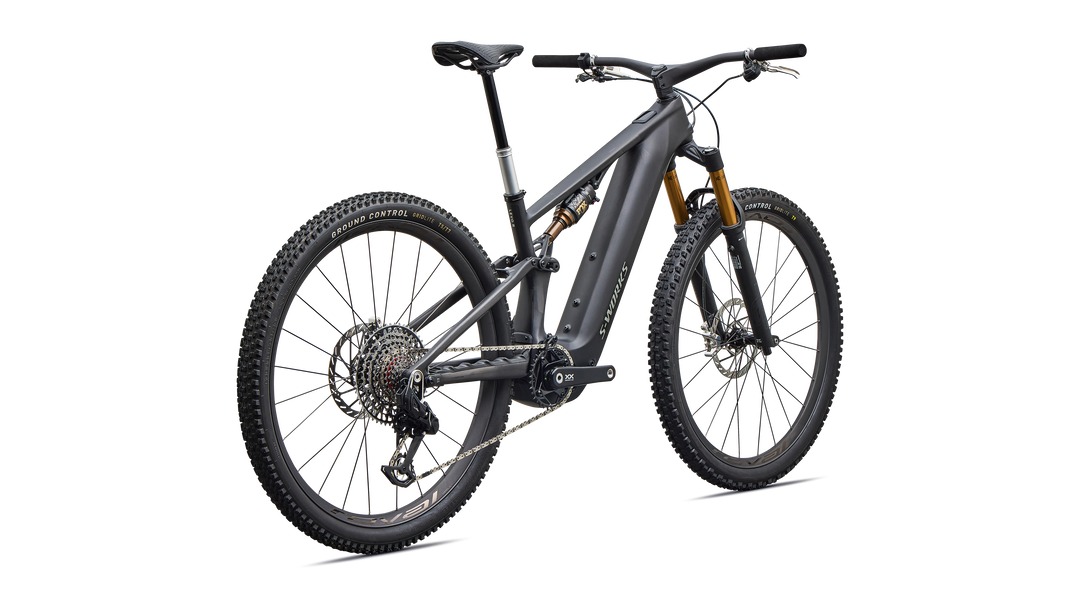

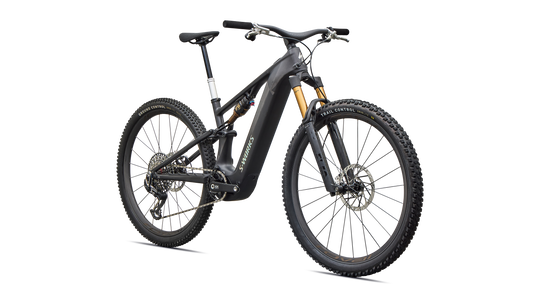

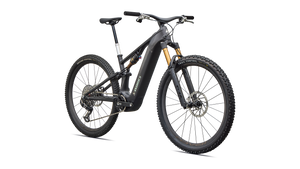

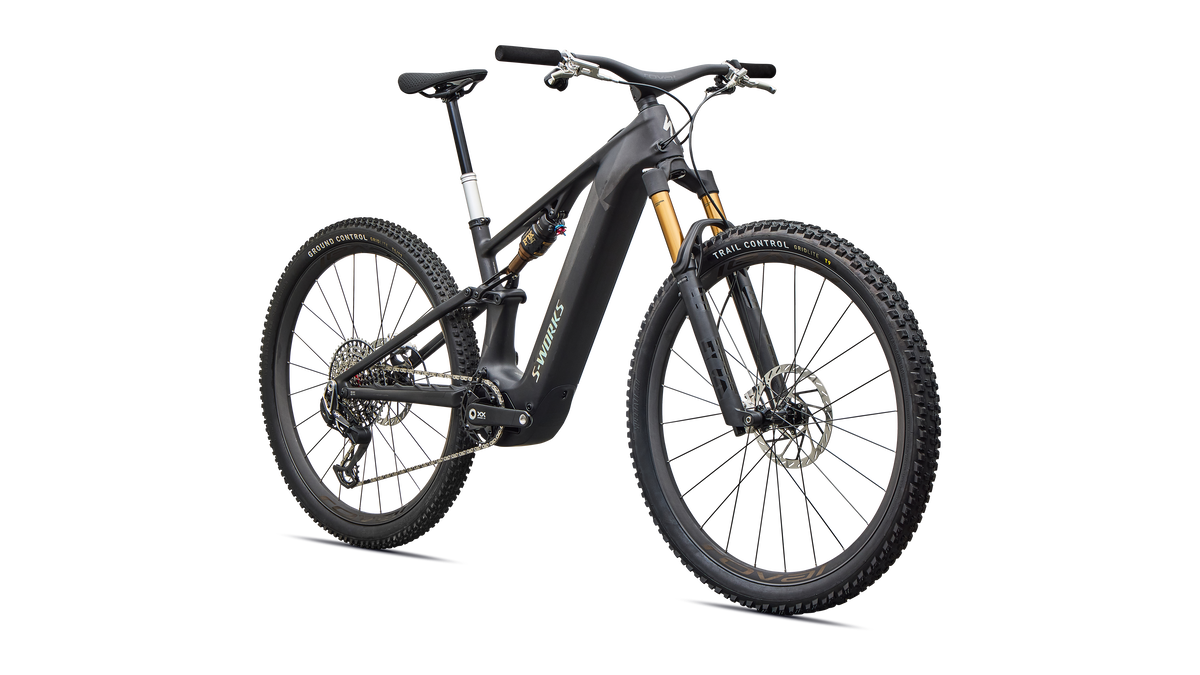

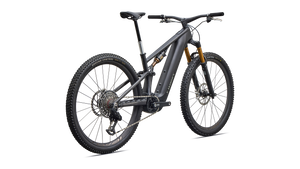

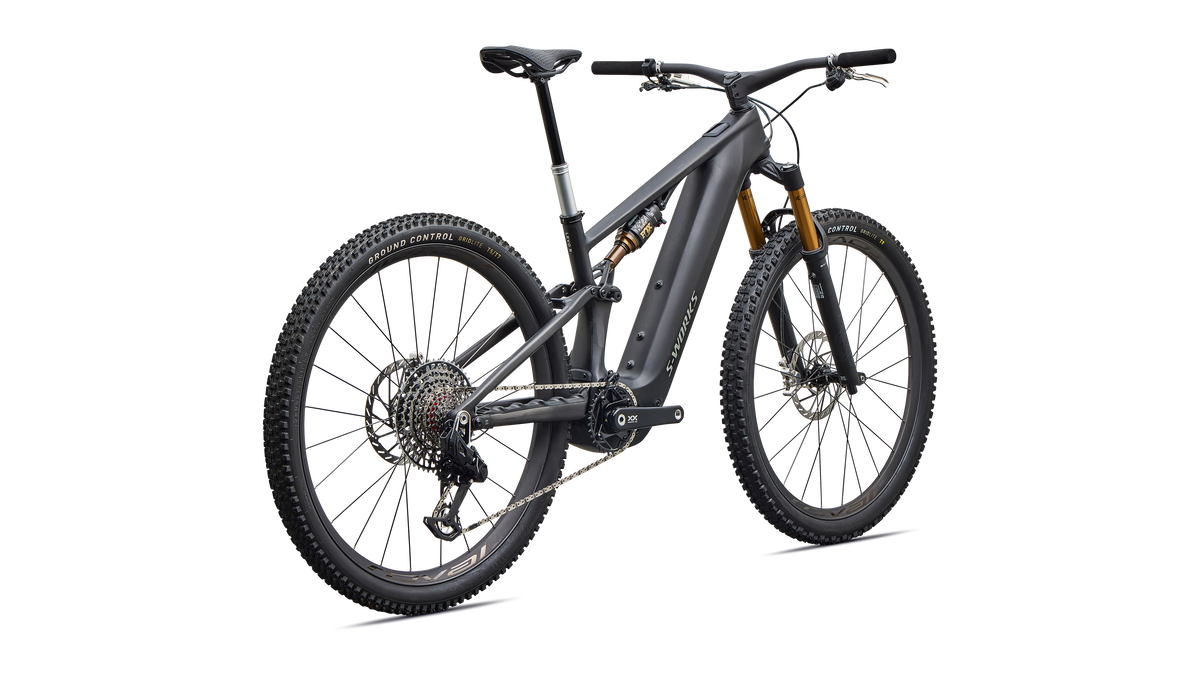

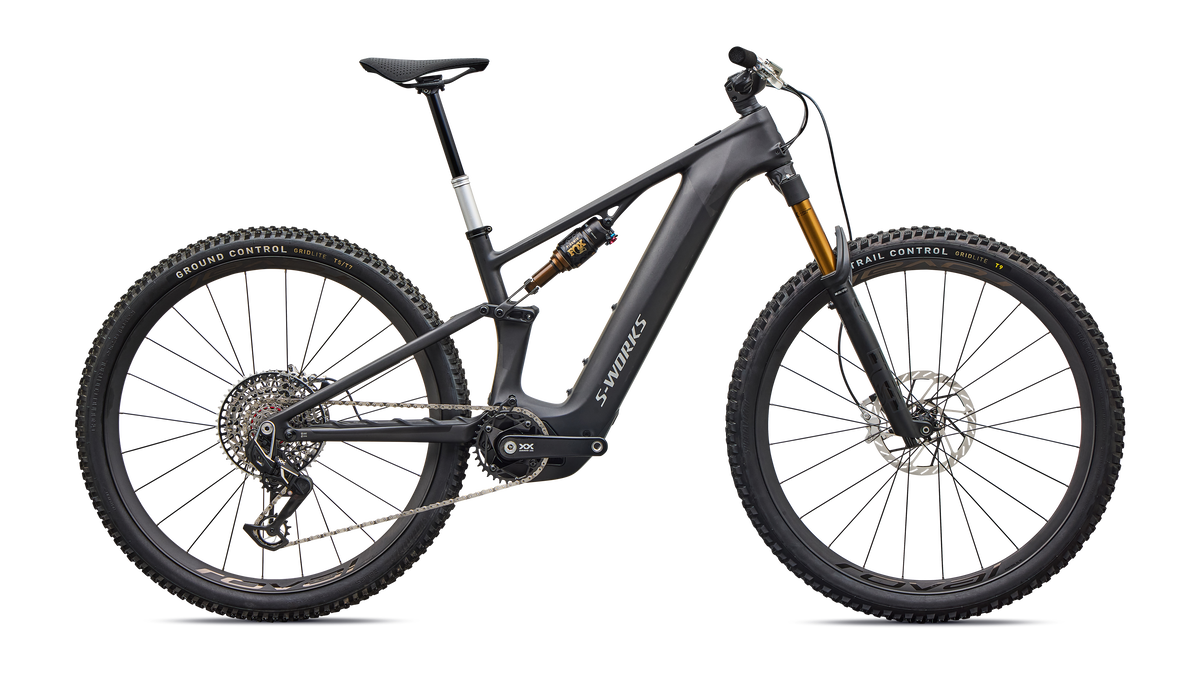

Levo R Ultralight. Nothing rides faster, feels lighter, or handles with more precision. It delivers blistering speed by combining the award-winning SuperNatural power of Levo 4 with our lightest complete build, tipping the scales at just 18.8 kg (41.4 lbs). A purpose-built chassis with XC Trail geometry and a curated spec create a bike that accelerates like nothing else, climbs effortlessly, and attacks every trail with unmatched agility.
E-bike
- Battery
- 600Wh Battery
- UI/Remote
- Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
- Charger
- Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
- Motor
- Specialized 3.1 S-Works motor, 111Nm power, 850W power
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- FACT 11m Carbon, carbon shock extension, titanium hardware, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel
Suspension
- Fork
- FOX 36 SL Factory, GRIP X Damper, HSC, LSC, LSR adjust, 140mm travel, 44mm offset, 15x110mm
- Rear Shock
- FOX FLOAT Factory GENIE, Ride Dynamics Developed, 2-position compression adjust, 190x45mm
Brakes
- Rear Brake
- TRICKSTUFF Direttissima, 4-piston, 180mm rotor
- Front Brake
- TRICKSTUFF Direttissima, 4-piston, 200mm rotor
Drivetrain
- Chainrings
- SRAM 34t T-Type chainring, 104 BCD, steel
- Shift Levers
- SRAM AXS Pod Ultimate with Discrete Clamp
- Crankset
- SRAM XX Carbon crank, 160mm, ISIS interface
- Rear Derailleur
- SRAM XX SL Eagle AXS
- Cassette
- SRAM XX Transmission, XS 1297, 10-52t
- Chain
- SRAM XX, T-Type
Wheels & tires
- Rear Wheel
- Roval Control SL VI, Mini hooked carbon, 25mm inner width, tubeless ready, Industry 9 Solix hub, Vonoa Carbon spokes w/ Ti end pieces, 12x148mm
- Front Wheel
- Roval Control SL VI, Mini hooked carbon, 25mm inner width, tubeless ready, Industry 9 Solix hub, Vonoa Carbon spokes w/ Ti end pieces, 15x110mm
- Rear Tire
- Specialized Ground Control, Grid Lite Casing, T5/T7 Compound, 29x2.35
- Inner Tubes
- Specialized TPU inner tube
- Front Tire
- Specialized Trail Control, GRID Casing, T9 Compound, TLR, 29x2.4
Cockpit
- Seatpost
- BIKEYOKE REVIVE 3.0 - silver ltd, 30.9mm diameter, S2: 125mm, S3: 160mm, S4: 185mm, S5: 213mm
- Handlebars

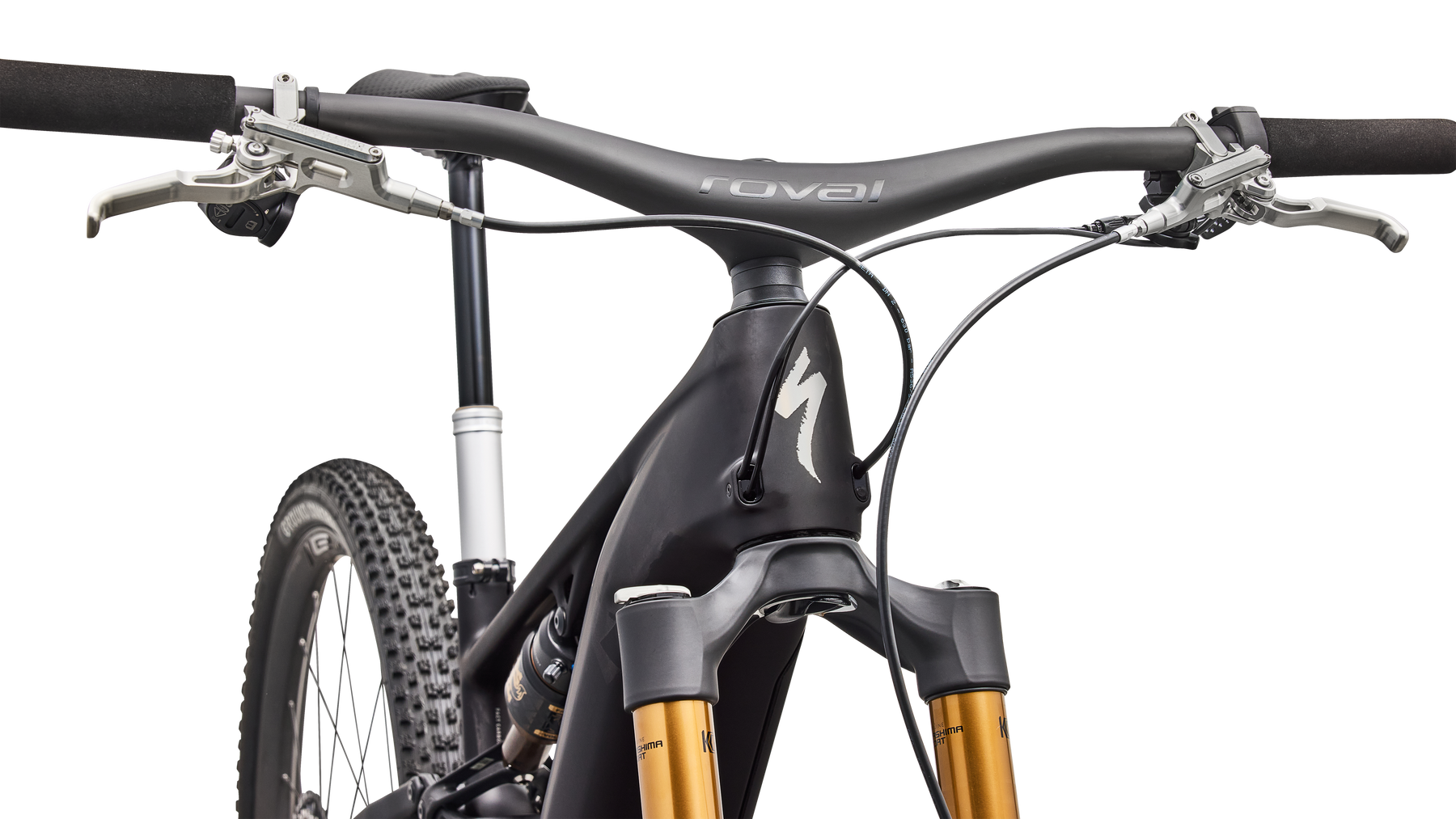

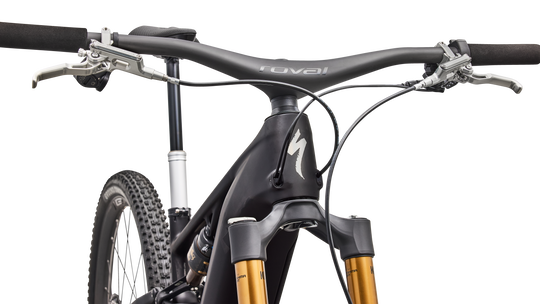

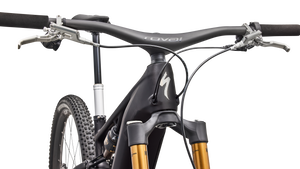

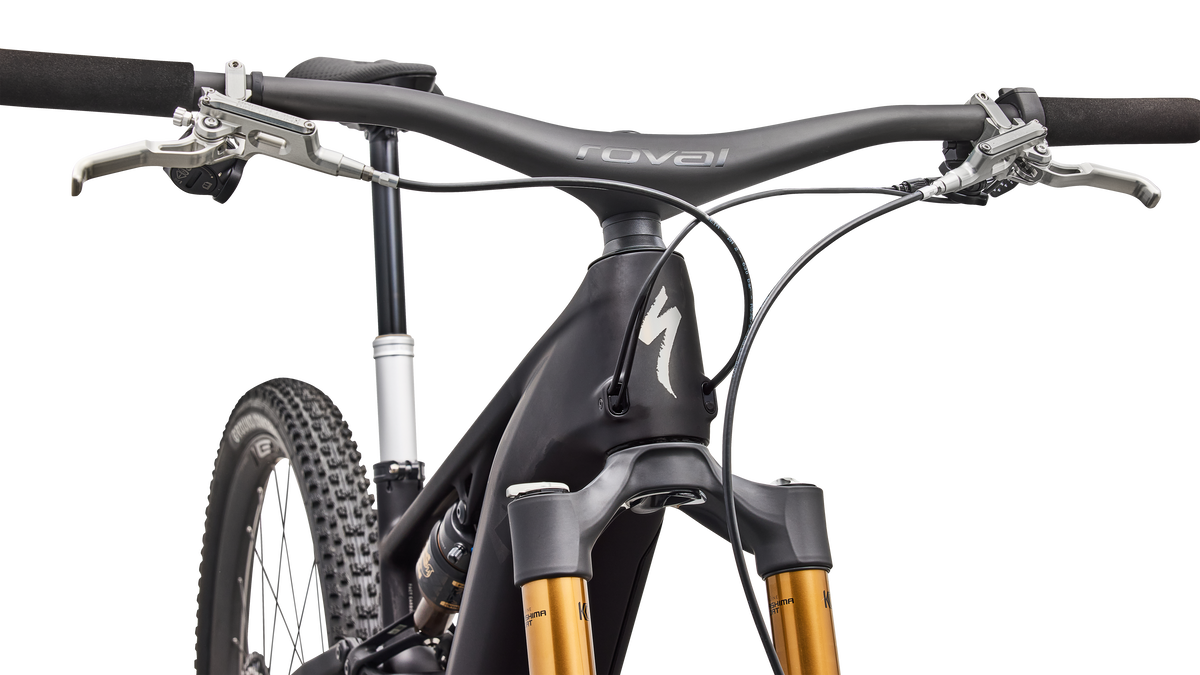

- Roval Control SL RISE Integrated cockpit, 50mm integrated stem, 8-degree backsweep, 2 degree upsweep, 780mm wide
- Saddle

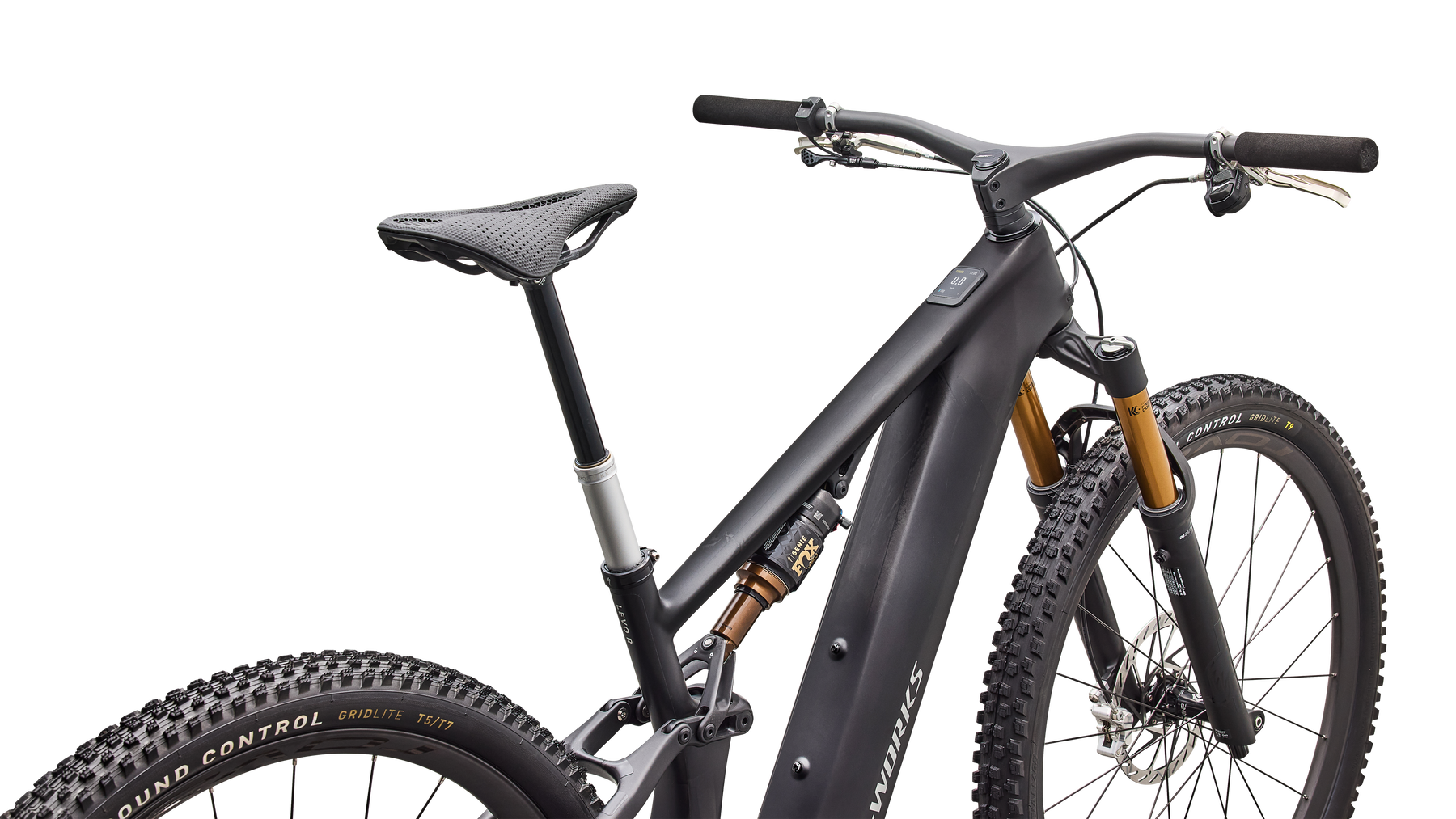

- S-Works Power Mirror, Carbon rails, Carbon base, 143mm
- Grips
- Supacaz foam grip, 135mm length, closed end
Accessories
- SWAT
- SWAT internal downtube storage
Product details
- Product ID
- 298375
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)
Weight
- Weight
- 18.84 kg (41 lb, 8.6 oz)
- Weight Size
- S3
| S2 | S3 | S4 | S5 | |
| Crank Length | 160 | 160 | 160 | 160 |
| Handlebar Width | 780 | 780 | 780 | 780 |
| Saddle Width | 143 | 143 | 143 | 143 |
| Seatpost Length | 125 | 160 | 185 | 213 |
| Stack | 607 | 616 | 630 | 644 |
| Reach | 420 | 450 | 475 | 500 |
| Head-Tube Length | 100 | 110 | 125 | 140 |
| Head-Tube Angle | 65 | 65 | 65 | 65 |
| B-B Height (low) | 339 | 339 | 339 | 339 |
| B-B Drop | 36 | 36 | 36 | 36 |
| Trail | 126 | 126 | 126 | 126 |
| Fork Length (full) | 550 | 550 | 550 | 550 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 |
| Front Center | 736 | 770 | 801 | 833 |
| Chain-Stay length | 447 | 447 | 447 | 447 |
| Wheelbase | 1181 | 1215 | 1246 | 1277 |
| Top-Tube Length (horizontal) | 620 | 649 | 560 | 592 |
| Bike Stand-Over Height | 763 | 773 | 783 | 793 |
| Seat-Tube Length | 385 | 405 | 425 | 445 |
| Seat-Tube Angle | 77 | 77 | 77 | 77 |
| Seat Post Max Insertion | 227 | 249 | 271 | 292 |
| Seat Post Min Insertion | 80 | 80 | 80 | 80 |
| Saddle Height for Effective ST Angle | 690 | 735 | 780 | 825 |
