Regular price $3,199.00 Sale price$2,499.00
/
Tax included.

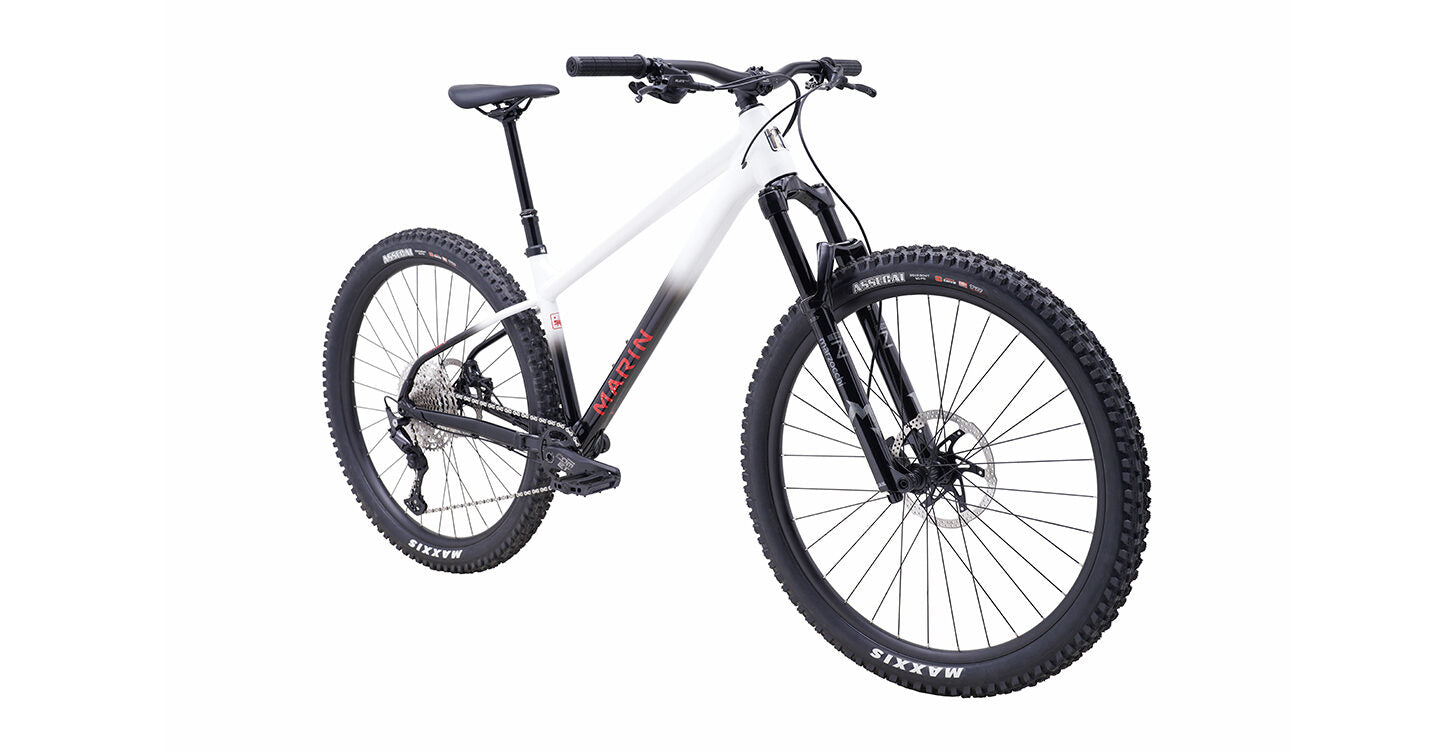

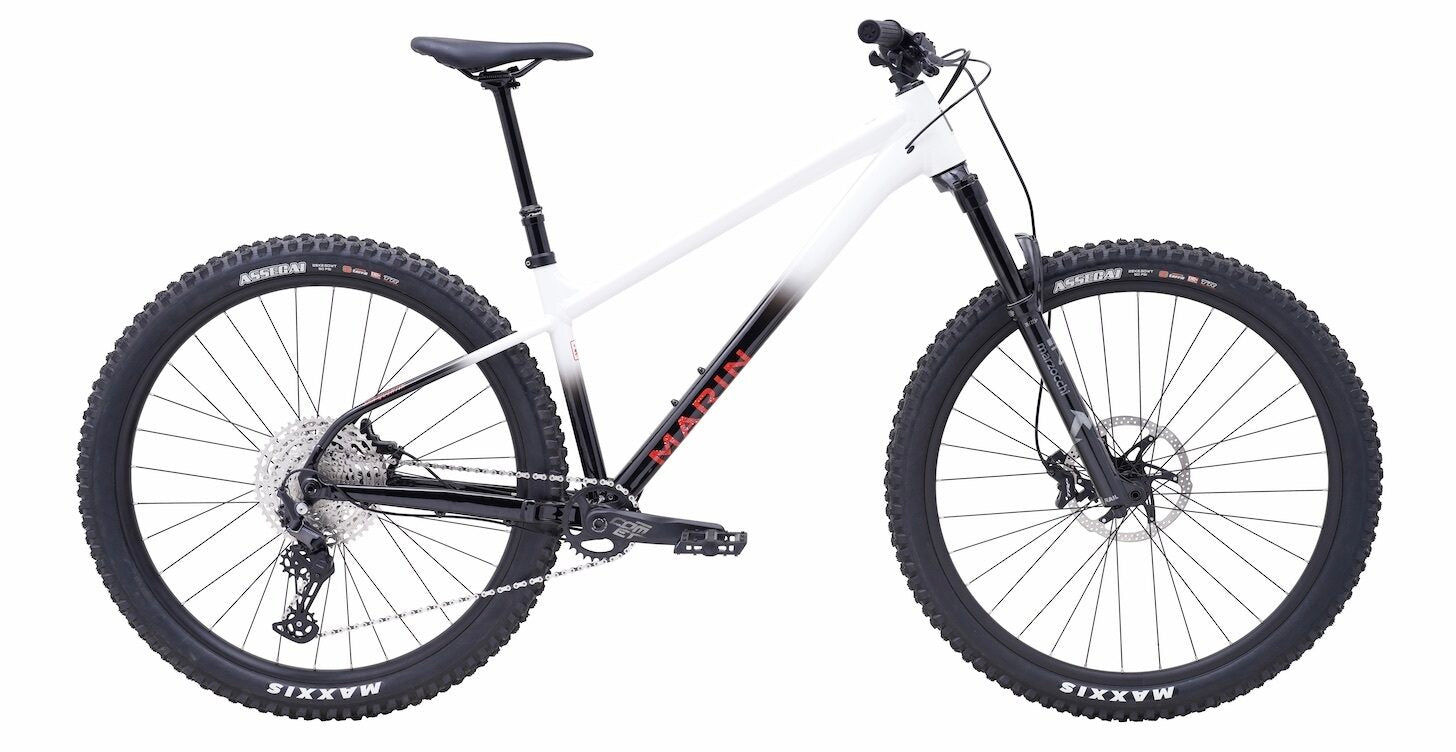

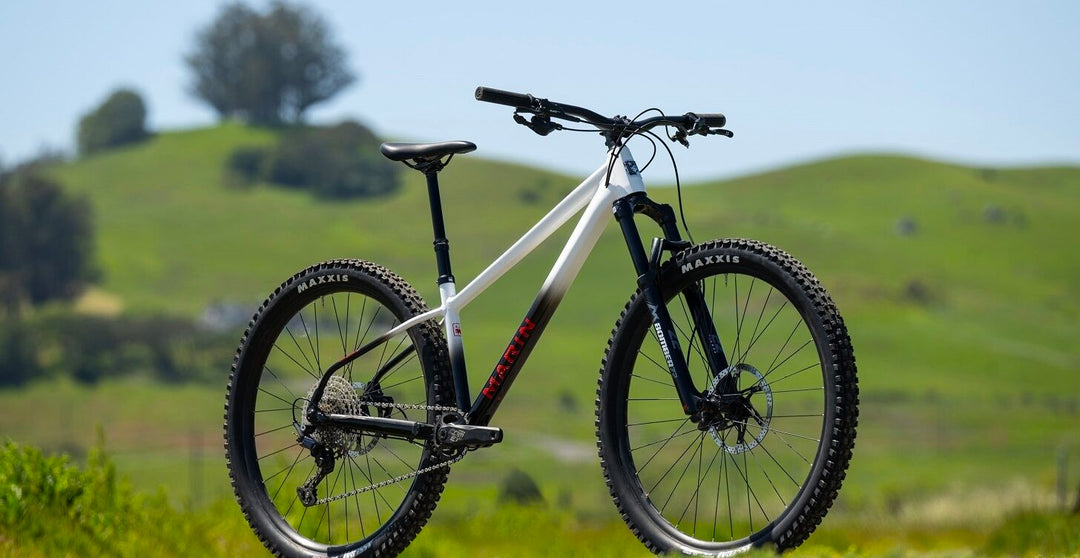

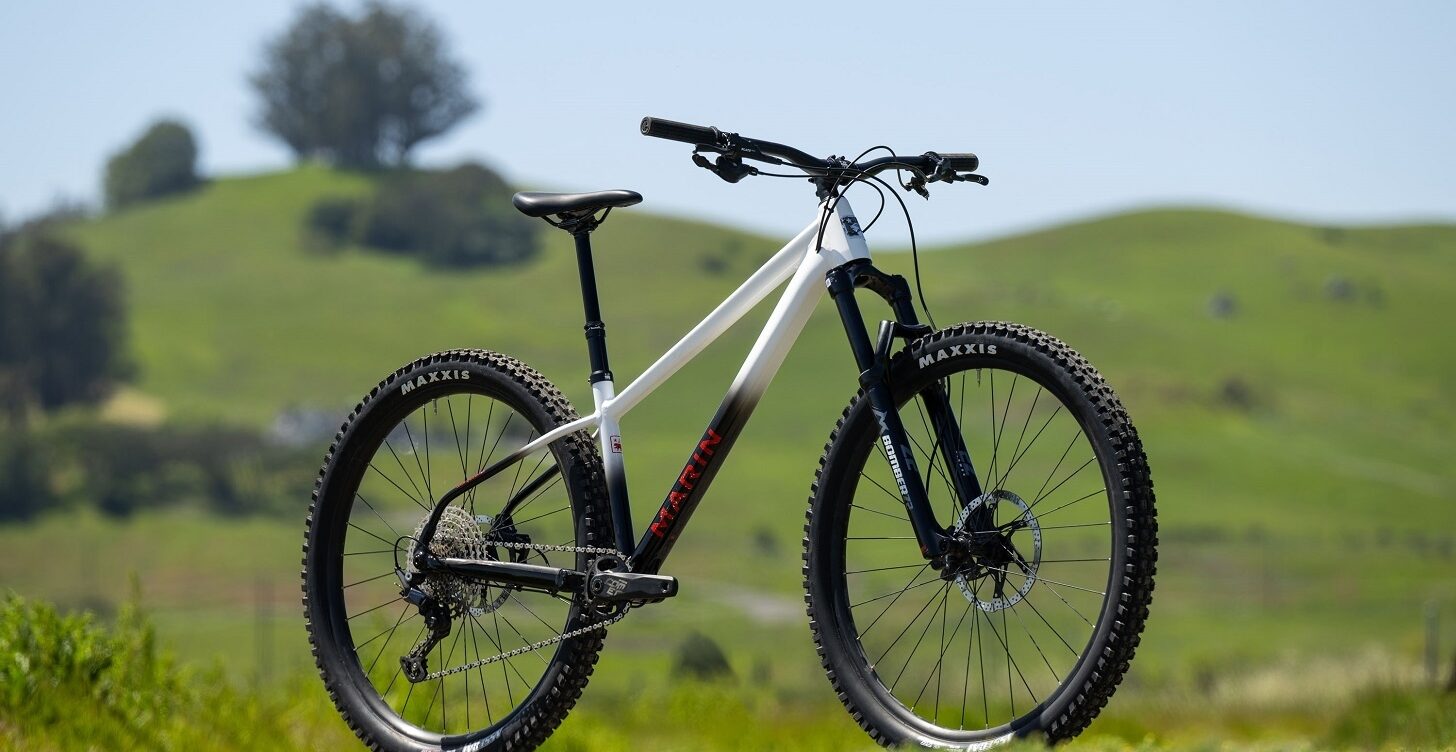

Dirt jump DNA with all the speed and roll-over of 29" wheels. The San Quentin 3 29 is the top dog in the SQ 29 family. We’ve worked tirelessly to create the very best-specced San Quentin 29 ever but still kept the price tag down to earth and in reach of everyone. Marzocchi Z2 fork? Check. Tektro 4-piston brakes and 12-speed drivetrain? TranzX dropper post? You got it. FSA cranks, Maxxis rubber and plenty of kick-ass Marin kit? Abso-freakin-lutely.

Key upgrades over the San Quentin 2 29":

  • Marzocchi Bomber Z2 fork
  • Shimano Deore wide-range 12-speed drivetrain
  • Tektro Slate EVO 4-piston brakes
  • Maxxis Assegai tubeless compatible tires
    • FRAME

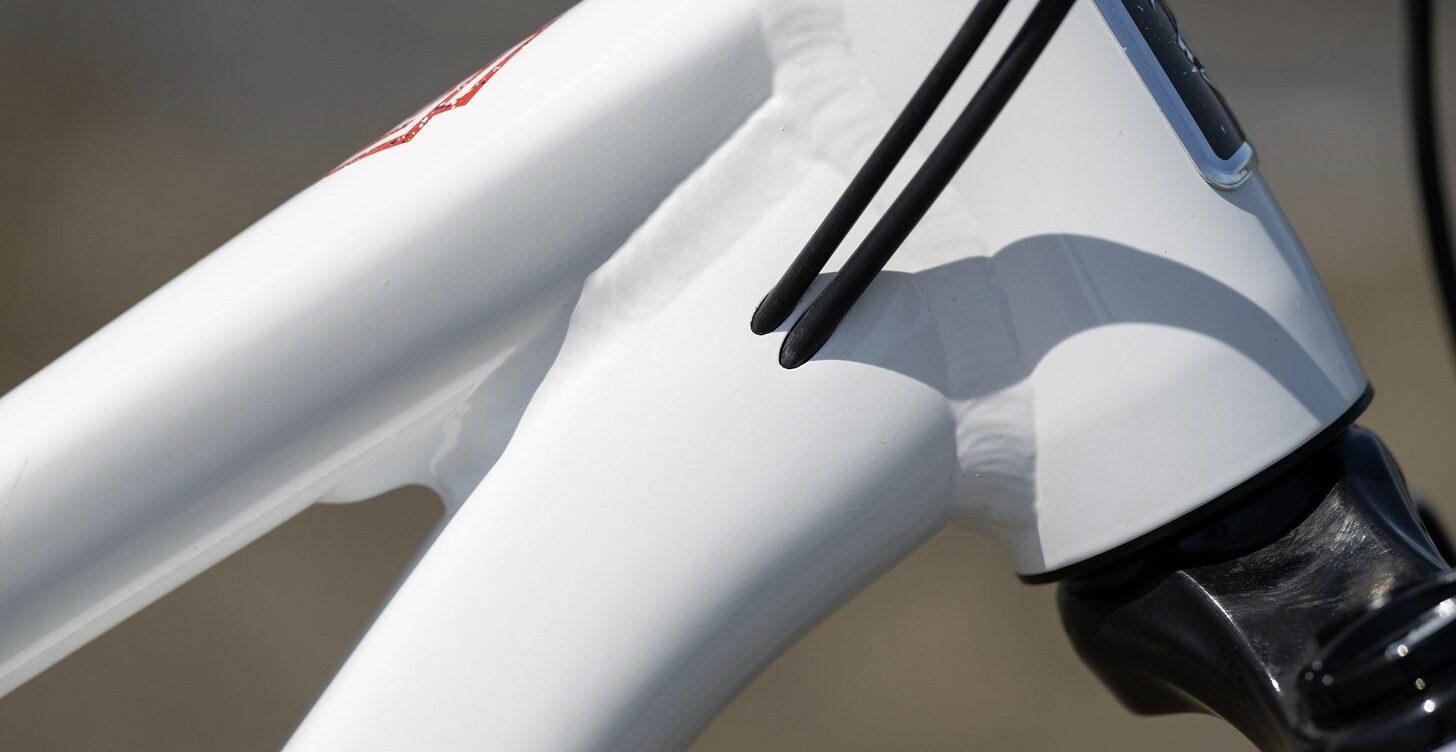

      All New Series 3 6061 Aluminum, Double Butted, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB

    • FRONT SUSPENSION

      Marzocchi Bomber Z2, 110x15mm Boost Spacing, 140mm Travel, Kabolt Axle, 44mm Offset

    • RIM

      Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Sleeved Joint, 32H, Tubeless Compatible

    • HUB REAR

      Shimano FH-TC500, 148x12, MicroSpline Freehub Body, Centerlock Disc, 32H

    • HUB FRONT

      Shimano HF-MT410B, 110x15mm, Disc

    • SPOKES NIPPLES

      14g Black Stainless Steel

    • TIRES

      Maxxis Assegai, 29 x 2.5" MAXX TERRA, EXO Casing, Tubeless Compatible

    • DERAILLEUR REAR

      Shimano Deore, 12-Speed, SGS

    • DERAILLEUR FRONT

      -

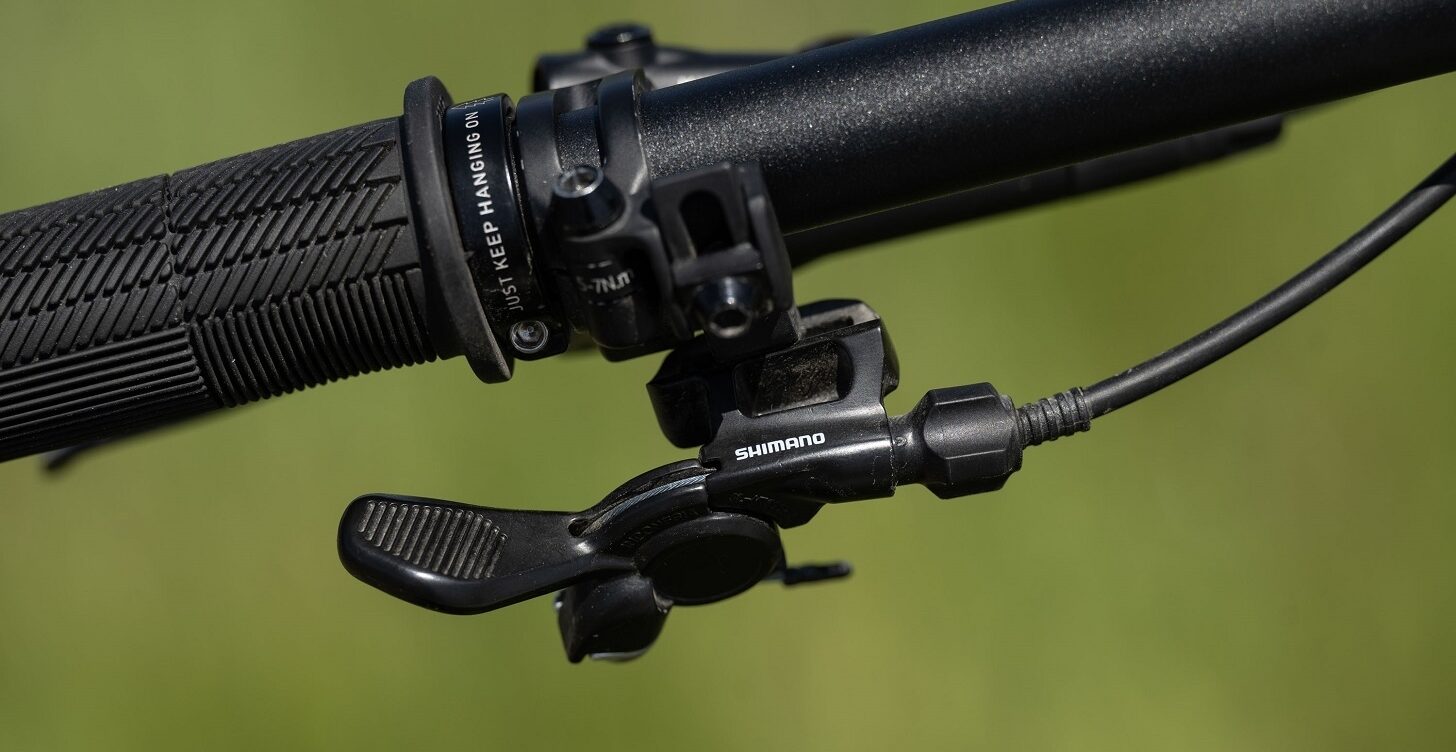

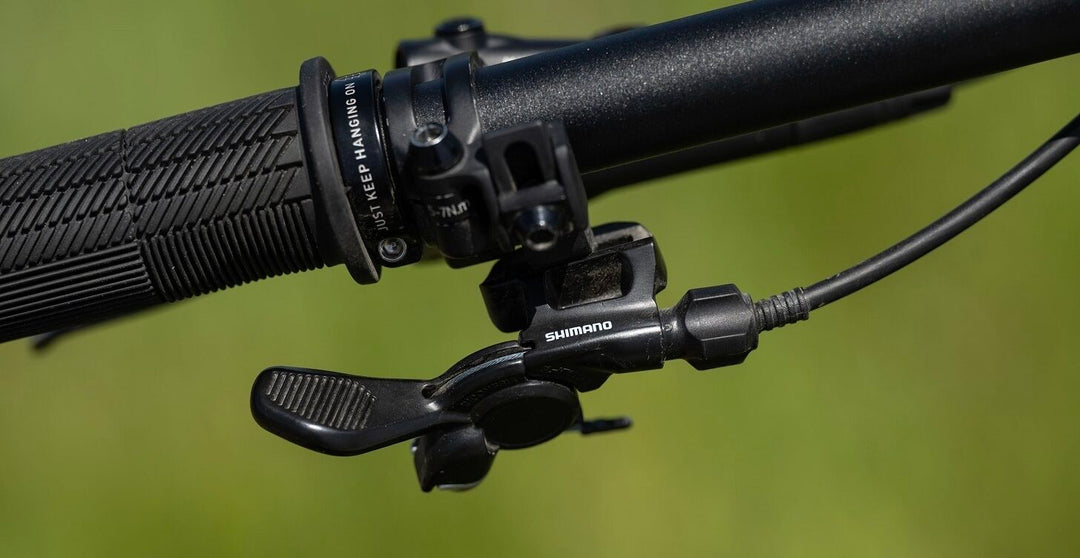

    • SHIFT LEVER

      Shimano Deore, 12-Speed, SL-6100IR

    • CRANKSET

      FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

    • BOTTOM BRACKET

      FSA MegaExo 73mm BSA

    • CHAIN

      KMC X-12 Silver and Black

    • CASSETTE

      SunRace, 12-Speed, MicroSpline, 10-51T

    • BRAKES FRONT

      TRP Slate EVO, 4-Piston Hydraulic, Resin Pads, 203mm Rotor

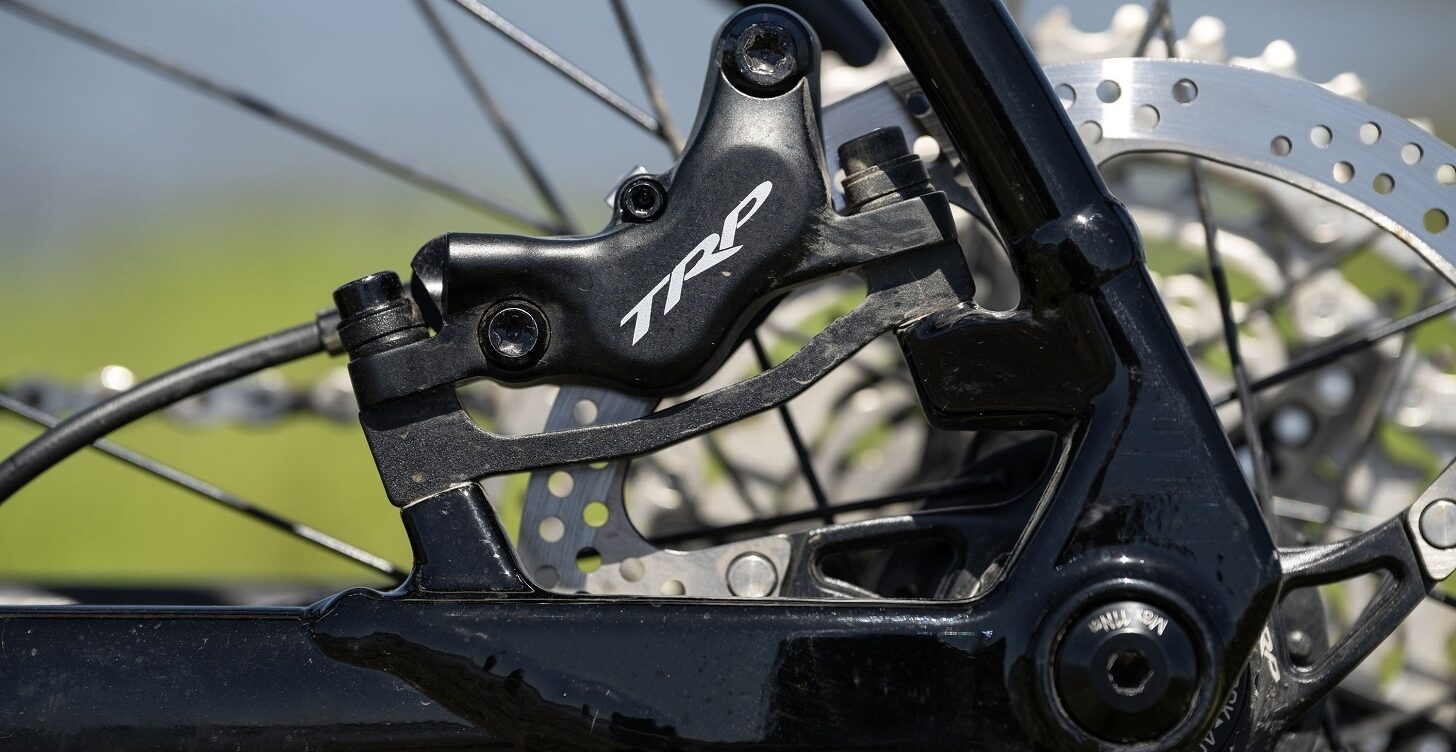

    • BRAKES REAR

      TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 180mm Rotor

    • BRAKE LEVERS

      TRP Slate EVO, I-Spec EV Compatible

    • HANDLEBAR

      Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

    • STEM

      Marin 3D Forged Alloy, 35mm

    • GRIPS

      Marin Grizzly Lock On

    • HEADSET

      FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

    • SEATPOST

      TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M 150mm Travel, Size L-XL 170mm Travel, 30.9mm

    • SADDLE

      Marin Speed Concept

    • PEDALS

      Marin Oso OE Flat


    SM MD LG XL
    STACK 632 636 645 650
    REACH 422 450 470 500
    HEADTUBE ANGLE 64° 64° 64° 64°
    HEADTUBE LENGTH 115 120 125 130
    SEATTUBE ANGLE 77° 77° 77° 77°
    SEATTUBE LENGTH 330 380 410 420
    TOPTUBE EFFECTIVE 568 596 619 650
    BB HEIGHT 316 316 316 316
    BB DROP 50 50 50 50
    CHAINSTAY 430 430 430 430
    WHEELBASE 1182 1212 1236 1268
    STANDOVER HEIGHT 650 683 688 695
    FORK OFFSET 44 44 44 44
    SEATPOST DIAMETER 30.9 30.9 30.9 30.9
    HANDLEBAR WIDTH 780 780 780 780
    STEM LENGTH 35 35 35 35
    CRANK LENGTH 170 170 170 170
