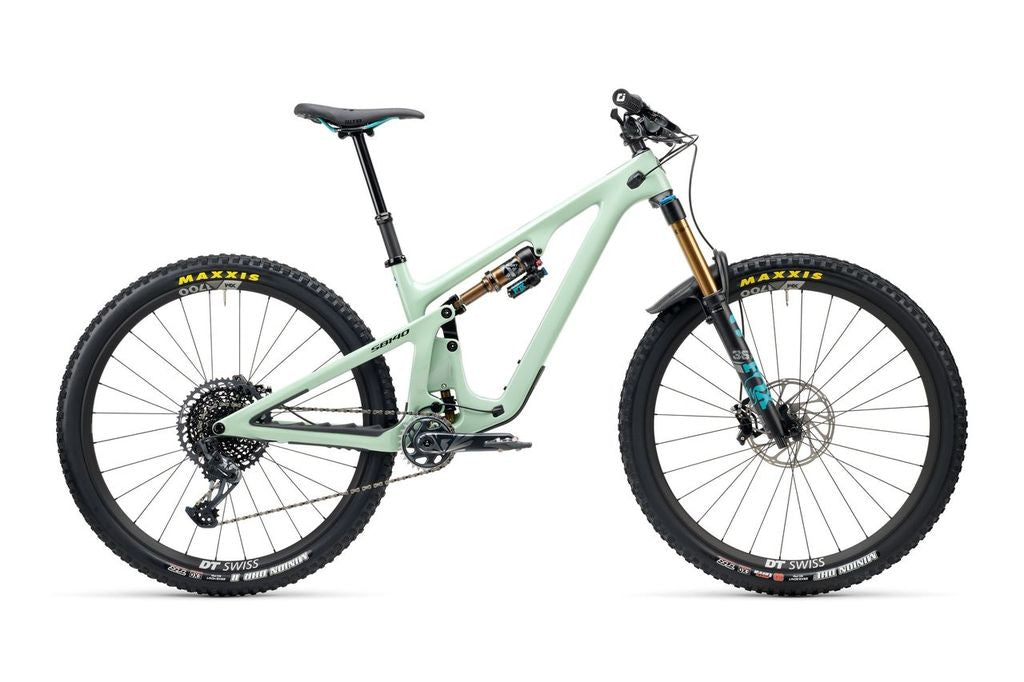

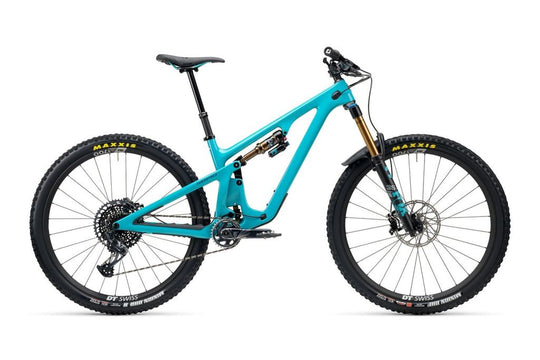

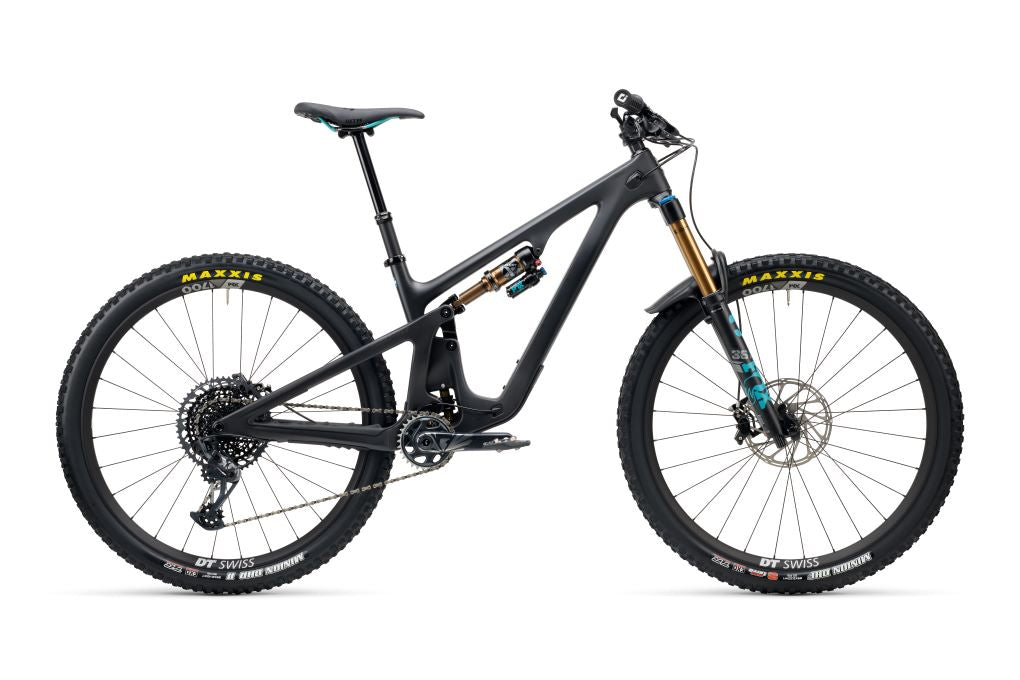

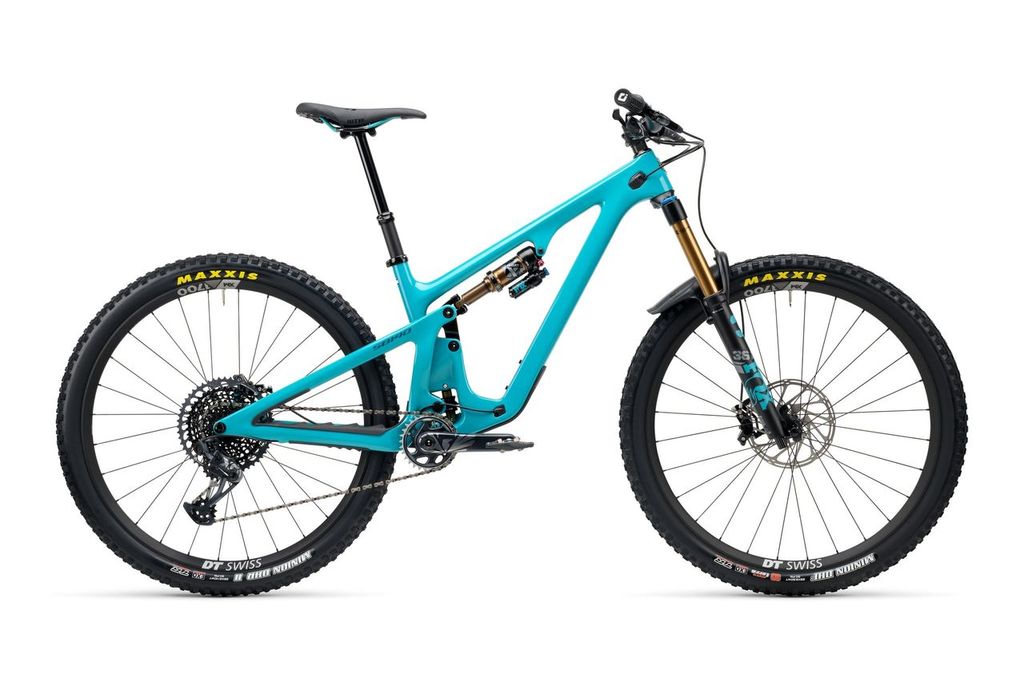

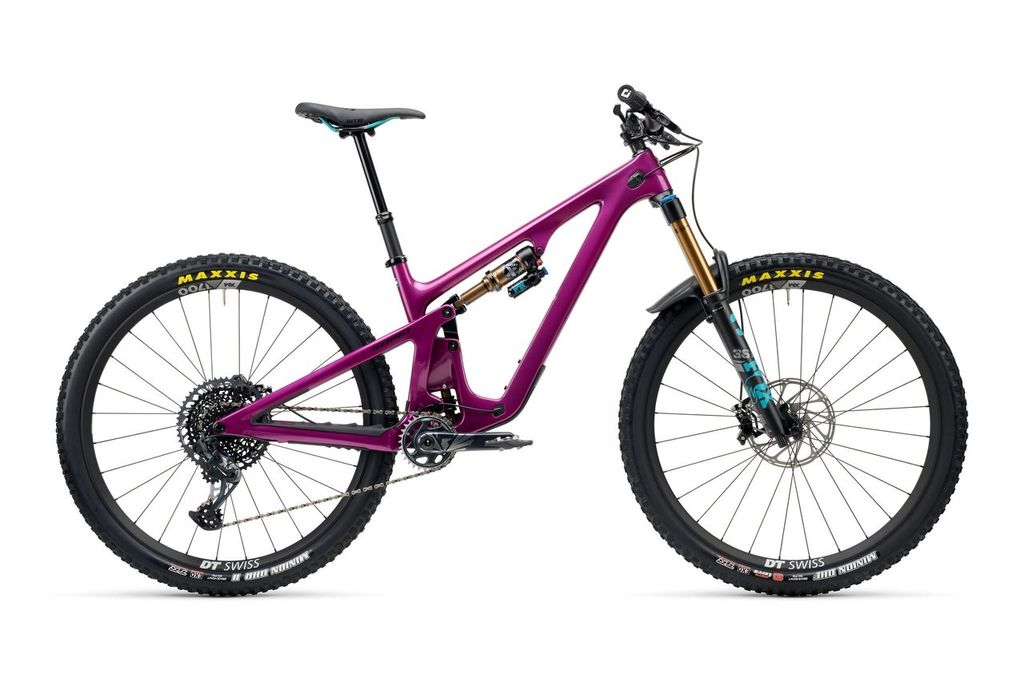

SB140 29R T-Series T1 GX/X01 Lunch Ride 2023
SB140 29R T-Series T1 GX/X01 Lunch Ride 2023
SB140 29R T-Series T1 GX/X01 Lunch Ride 2023
SB140 29R T-Series T1 GX/X01 Lunch Ride 2023

SB140 29R T-Series T1 GX/X01 Lunch Ride 2023

Regular price $14,740.00 Sale price$11,055.00
/
Tax included.

Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rain and the air. The unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule. The mountain bike.

This is the mountain bike you reach for when the trail is untamed and unrelenting, in both directions. "Trail bike" is a term that gets used pretty liberally in the industry, so we designed the SB140 to be even better suited to go deep and find out what's on the other side.





Fork - Factory 36 Grip2 160mm

Shock - Fact Floatx

Front Tire - Minion 3c Maxx Terra Exo 29x2.5

Rear Tire - Minion Dhr Ii 3c Exo 29x2.4

Rear Rotor - Centerline 180

Front Rotor - Centerline 200

Headset - 40 Integrated 8mm

Wheelset - Xm1700 29" 30mm (New)

Bb - Dub Bsa 73 Mtb

Tubes - Stans

Bar - Yeti 35x780

Stem - Enduro Mk3 35x50 Oe

Crank - X1 30t Carbon

Seat - Silverado Custom

Brakes - Code Rsc

Rear - Der X01

Cassette - 1275 10-52

Chain - Gx 122 Link

Shift - Gx 12spd

Post - Transfer Performance

Grips - Elite Pro Black

Frame - Sb140 29 T-Series Frame



SB140 LR

160 MM FORK
SM MD LG XL 2XL
SEAT TUBE LENGTH 365 400 440 470 485
EFF. TOPTUBE LENGTH 573 603 624 652 671
HEADTUBE ANGLE 65.0 65.0 65.0 65.0 65.0
EFF. SEAT TUBE ANGLE 77.0 77.0 77.0 77.0 77.0
ACTUAL SEATTUBE ANGLE 71.8 72.2 72.4 72.8 73.3
CHAINSTAY LENGTH 436 438 440 442 444
WHEELBASE 1188 1221 1246 1277 1304
ESTIMATED BB HEIGHT 342 342 342 342 342
STANDOVER 726 733 737 739 744
HEADTUBE LENGTH 92 95 100 112 134
AXLE TO CROWN 575 575 575 575 575
OFFSET 44 44 44 44 44
STACK 617 620 625 635 655
REACH 430 460 480 505 520
FRONT CENTER 752 783 806 835 860
VERTICAL FORK TRAVEL 145 145 145 145 145
SM 5'1" - 5'7"
MD 5'5 - 5'11"
LG 5'10" - 6'3"
XL 6'1 - 6'7"
2XL 6'5 - 6'11"
