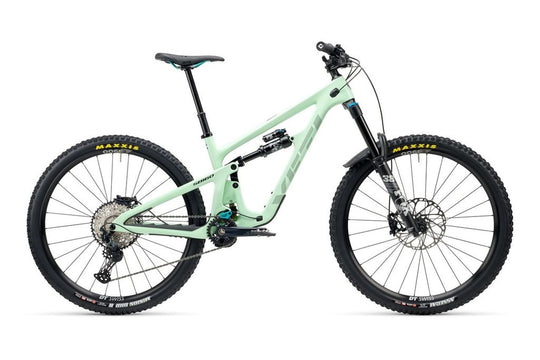

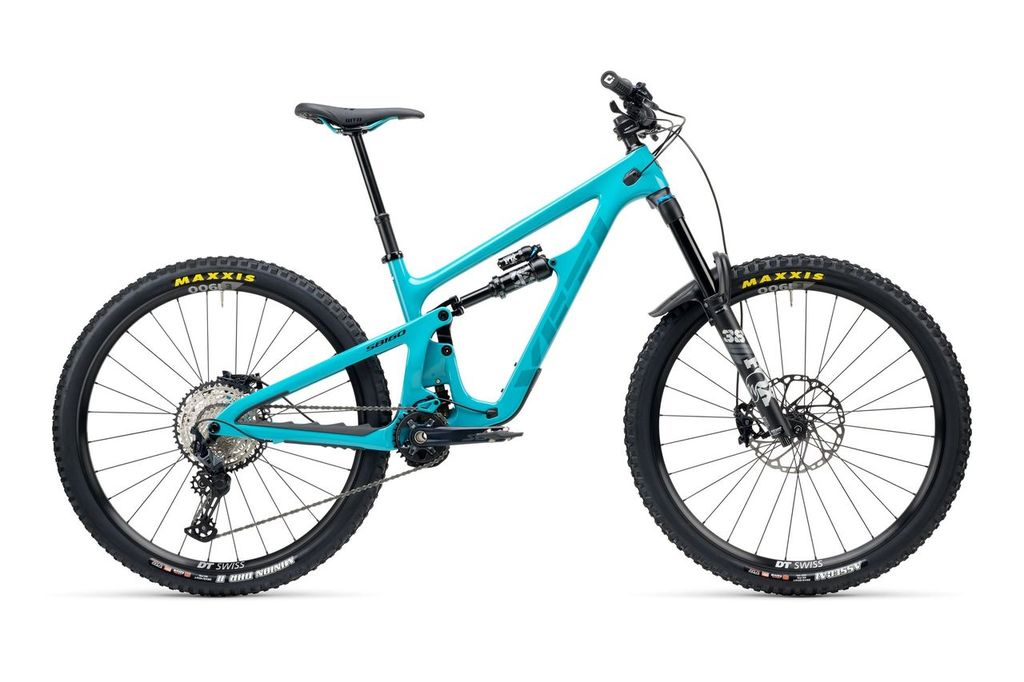

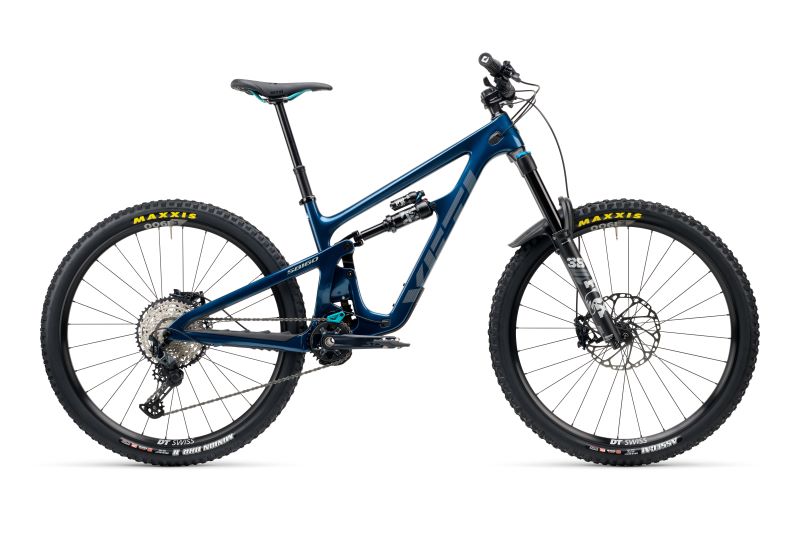

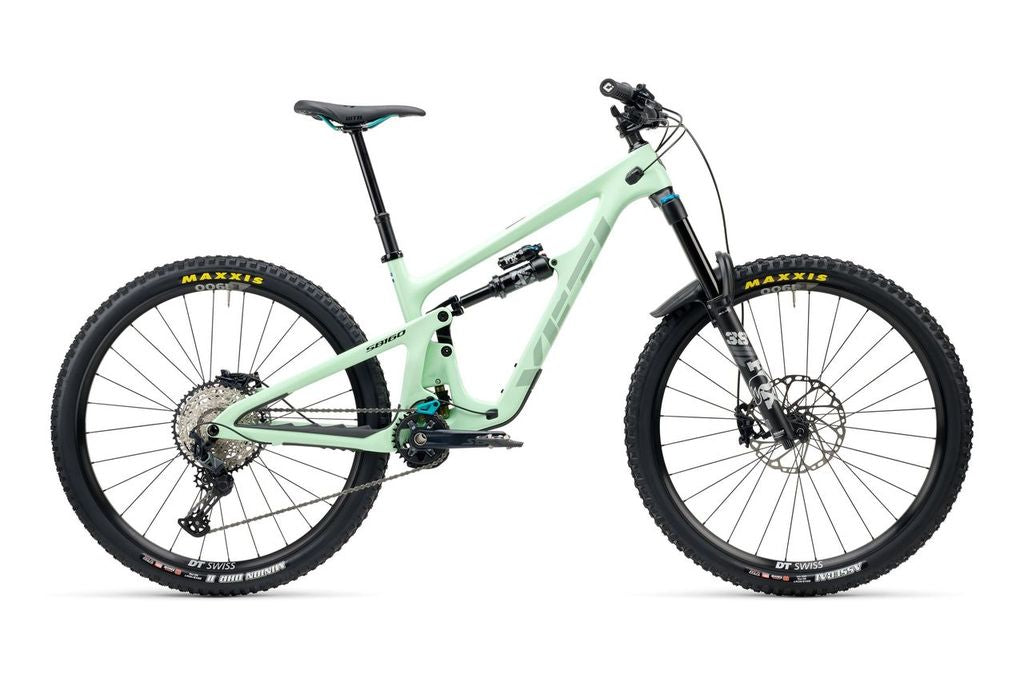

Upholding a time-tested, race-bred ethos that says nothing should hold a rider back from the sheer joy of untethered speed. Built off one of the most winning race platform in EWS history, the SB160 is pure race machinery. Honed for more.
Be fastest.
Fork - Perf 38 170mm
Shock - Perf Floatx
Front Tire - Assegai Exo+ 29x2.5
Rear Tire - Minion Dhr Ii 3c Exo+ 29x2.4
Rear Rotor- Smrt66l
Front Rotor - Smrt66ll
Headset - 40 Integrated Custom 51 15mm
Wheelset - E1900 29" 30mm
Bb - Xt Bb Bsa 73mm
Tubes - Stans
Bar - Ride Wide Alloy Enduro 35x800 Al2014 35mm Rise
Stem - Enduro Mk3 35x50 Oe
Crank - Slx 30t
Seat - Silverado Custom
Brakes - Slx 4 Piston
Rear - Der Slx
Cassette - Slx 10-51
Chain - Slx 126 Link
Shift - Xt 12spd
Post - Oneup Dropper Post
Grips - Elite Pro Black
| 170MM FORK | SM | MD | LG | XL | 2XL |
| SEAT TUBE LENGTH | 365 |
400 |
440 | 470 | 485 |
| EFF. TOP TUBE LENGTH | 571 | 602 | 624 | 651 | 670 |
| HEAD TUBE ANGLE˚ | 64 |
64 | 64 | 64 | 64 |
| EFF. SEAT TUBE ANGLE˚ | 77.5 | 77.5 | 77.5 | 77.5 | 77.5 |
| ACTUAL SEATTUBE ANGLE | 72.1 | 72.1 | 72.1 | 72.1 | 72.1 |
| CHAINSTAY LENGTH | 437 | 439 | 441 | 443 | 445 |
| WHEELBASE | 1211 | 1246 | 1270 | 1302 | 1329 |
| ESTIMATED BB HEIGHT | 353 |
353 | 353 | 353 | 353 |
| STANDOVER | 735 | 744 | 750 | 756 | 757 |
| HEAD TUBE LENGTH | 95 |
101 |
107 |
118 |
140 |
| FORK (AXLE TO CROWN) | 588 |
588 | 588 | 588 | 588 |
| FORK (OFFSET) | 44 | 44 | 44 | 44 | 44 |
| STACK | 615 | 620 | 625 | 635 | 655 |
| REACH | 435 |
465 | 485 | 510 | 525 |
| FRONT CENTER | 774 | 807 |
829 |
859 |
884 |
| VERTICAL FORK TRAVEL | 153 |
153 | 153 | 153 | 153 |
| SM | 155-170CM |
| MD | 165-180CM |
| LG | 178-191CM |
| XL | 185-201CM |
| 2XL | 195-210CM |
