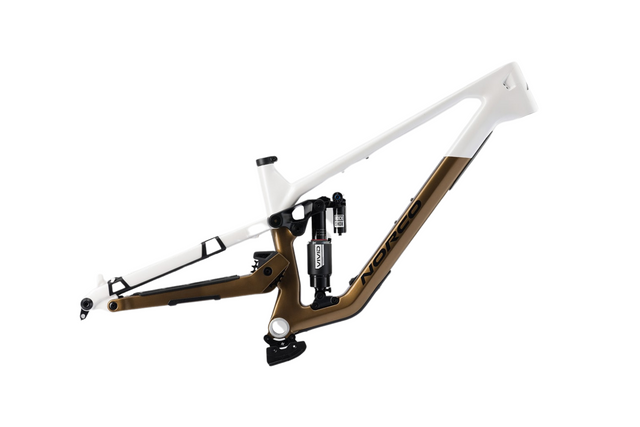

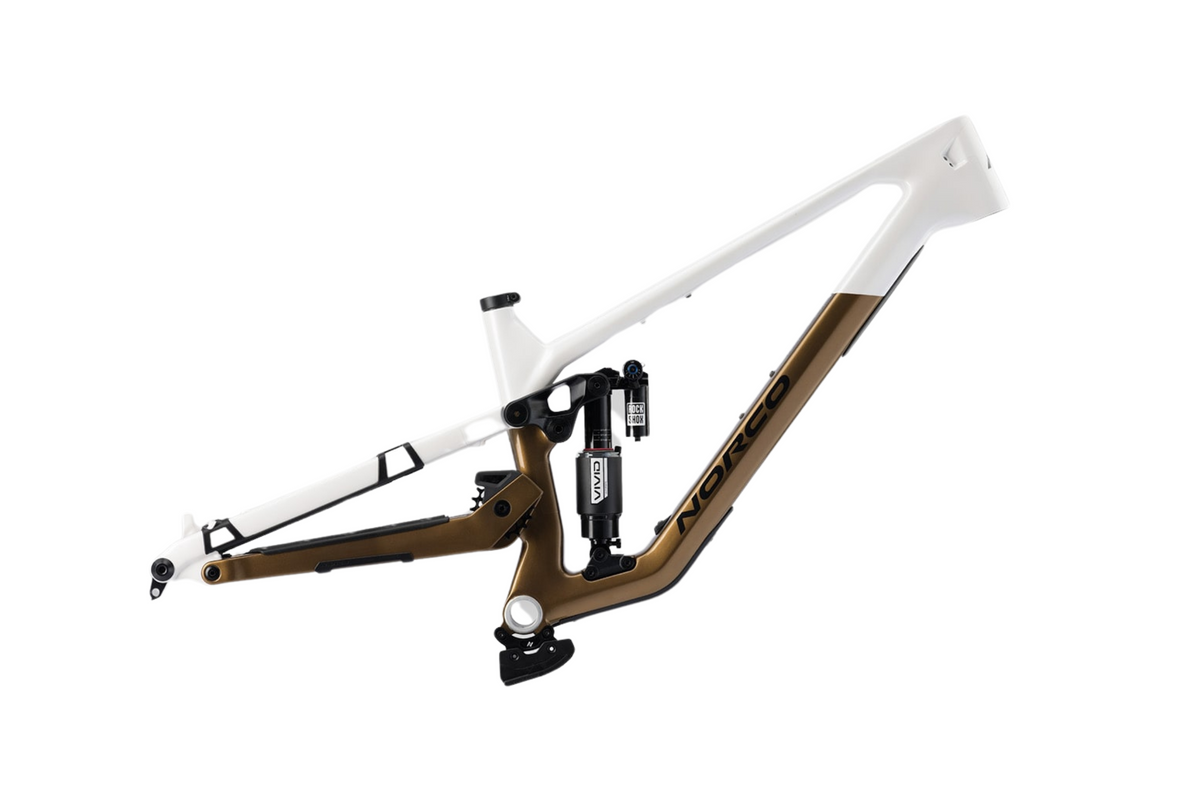

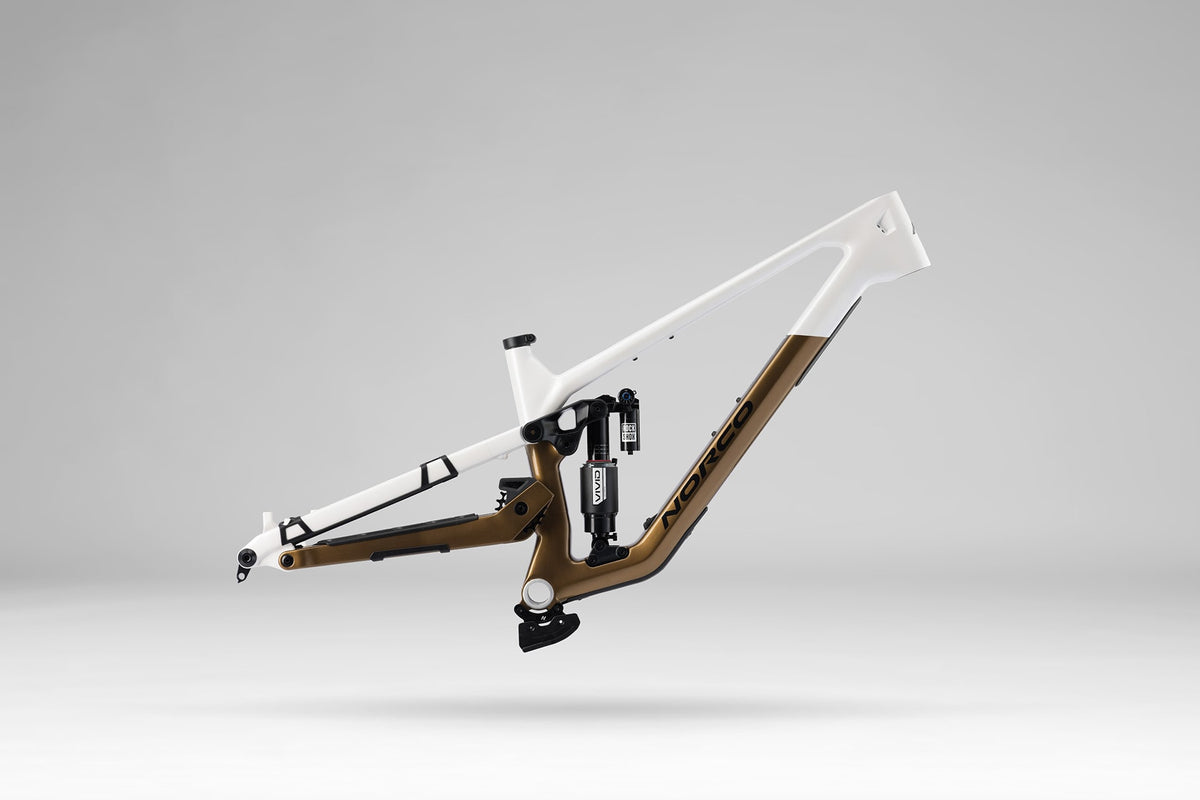

Sight C Frameset 2024
Sight C Frameset 2024
Sight C Frameset 2024

Sight C Frameset 2024

Regular price$6,499.00
/
Tax included.

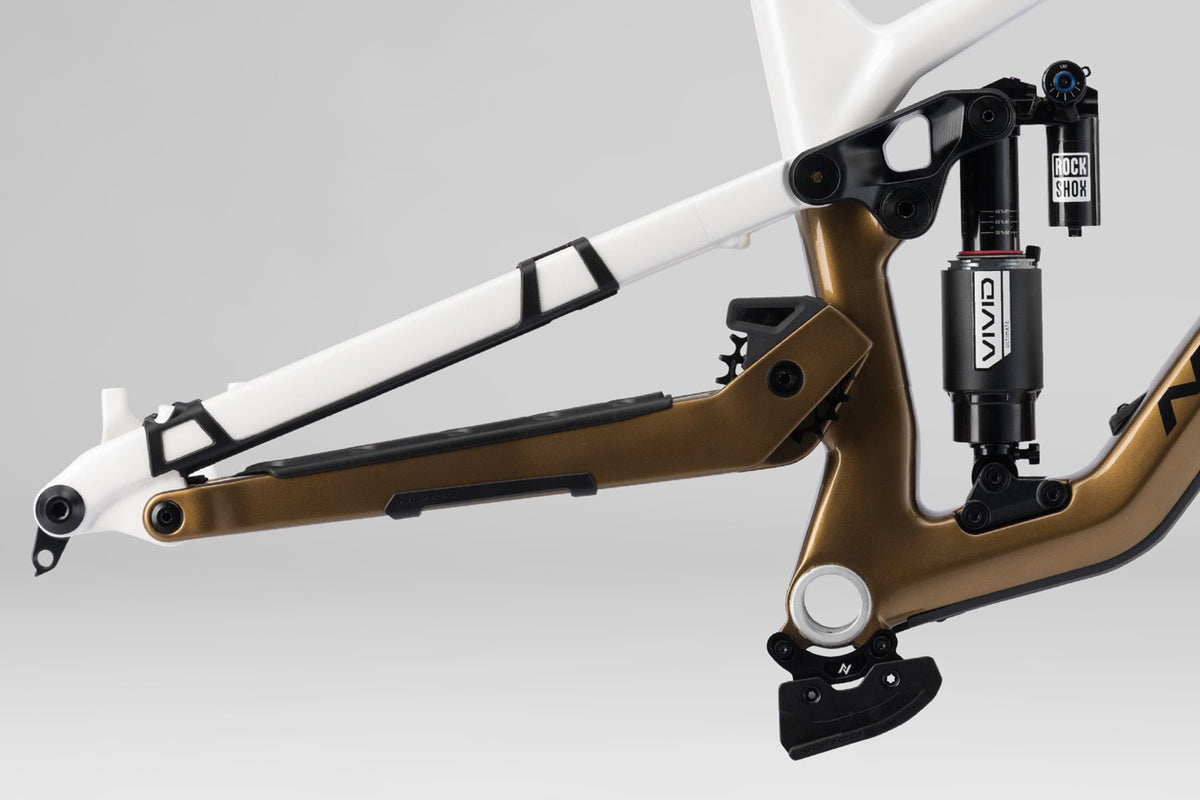

Whether you’re carving down a steep loam line, dropping in for an enduro stage, or heading into the backcountry for an all-day epic, this bike performs. With increased rearward axle path, idler, and the innovative VPSHP suspension layout, this new design gives the Sight next level confidence and capability, up or down the mountain. With 160/150mm of travel, the 2024 Sight takes the best of the Range platform and has tightened it up into a light, pedal friendly, maneuverable, high-pivot package.

FRAME Sight Carbon, VPSHP, 150mm Travel, UDH Compatible
REAR SHOCK Rockshox Vivid Ultimate Air, 205x60mm Trunnion
CHAIN TENSIONER Norco Idler Guide and Lower Guide
SEATPOST CLAMP Norco Alloy Nutted Clamp

Wheel Size 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5" 29" 29" 29" 29" 29"
Travel (mm front/mm rear)
160/150
Reach 422.5 447.5 472.5 497.5 522.5 422.5 447.5 472.5 497.5 522.5
Stack 618 627 636 645 654 618 627 636 645 654
HTA Head Tube Angle
64.0
64
OS Fork Offset
44
ST Seat Tube Length 350 370 385 430 445 350 370 385 430 445
STA Effective Seat Tube Angle 77.00 77.25 77.50 77.75 78.00 77 77.25 77.5 77.75 78
RC Rear Centre Length 420 424 428 432 436 426 430 434 438 442
BB Bottom Bracket Drop
25/4
25/25
BBH Bottom Bracket Height
353
HTT Horizontal Top Tube 565 589 613 637 661 565 589 613 637 661
WB Wheelbase 1181 1214 1247 1281 1314 1186 1219 1253 1286 1319
SOH Standover 673 679 685 708 720 673 679 685 708 720
HT Head Tube Length 105 115 125 135 145 105 115 125 135 145
Trail
135
Recommended Seatpost Drop 150 170
200
230 150 170
200
230
Maximum Post Insertion 250 270
300
330 250 270
300
330
Stem Length
40
Crank Length
170
Tire Size
2.35" – 2.6"
Water Bottle Compatible
1 x 750 mL
