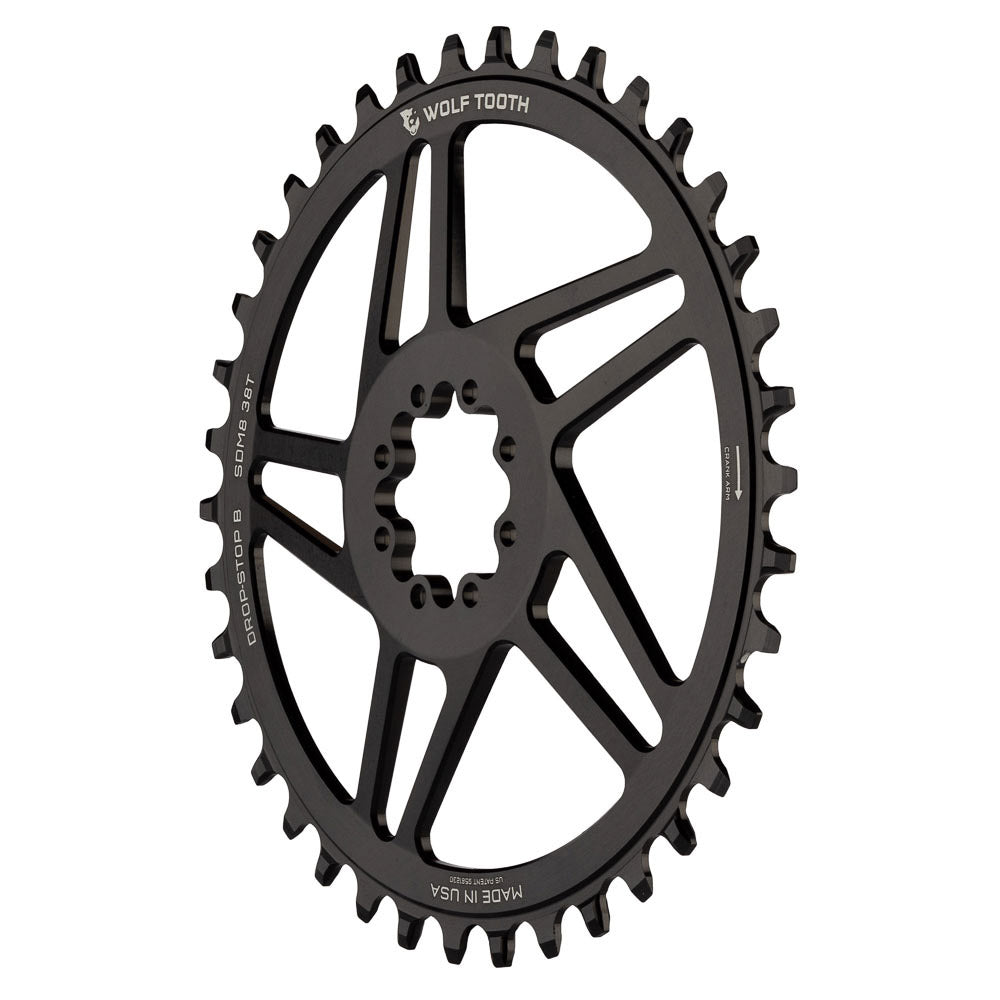

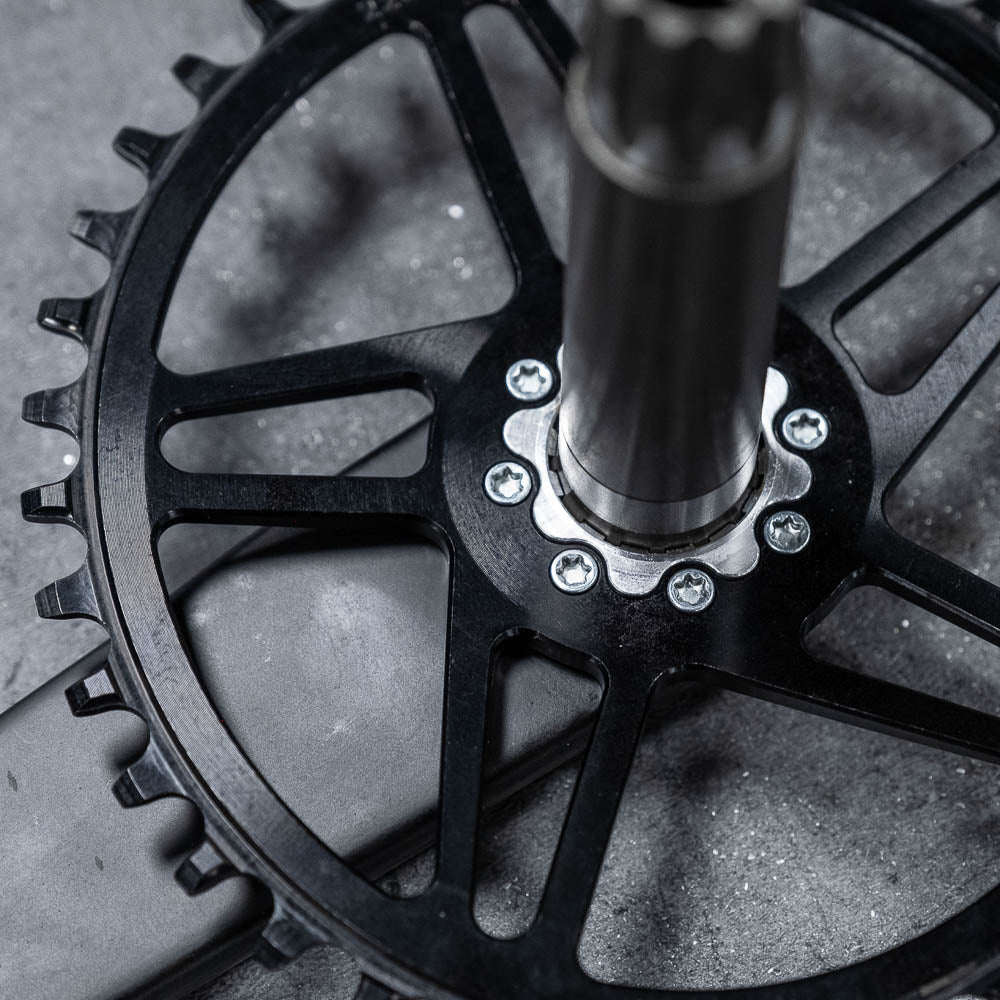

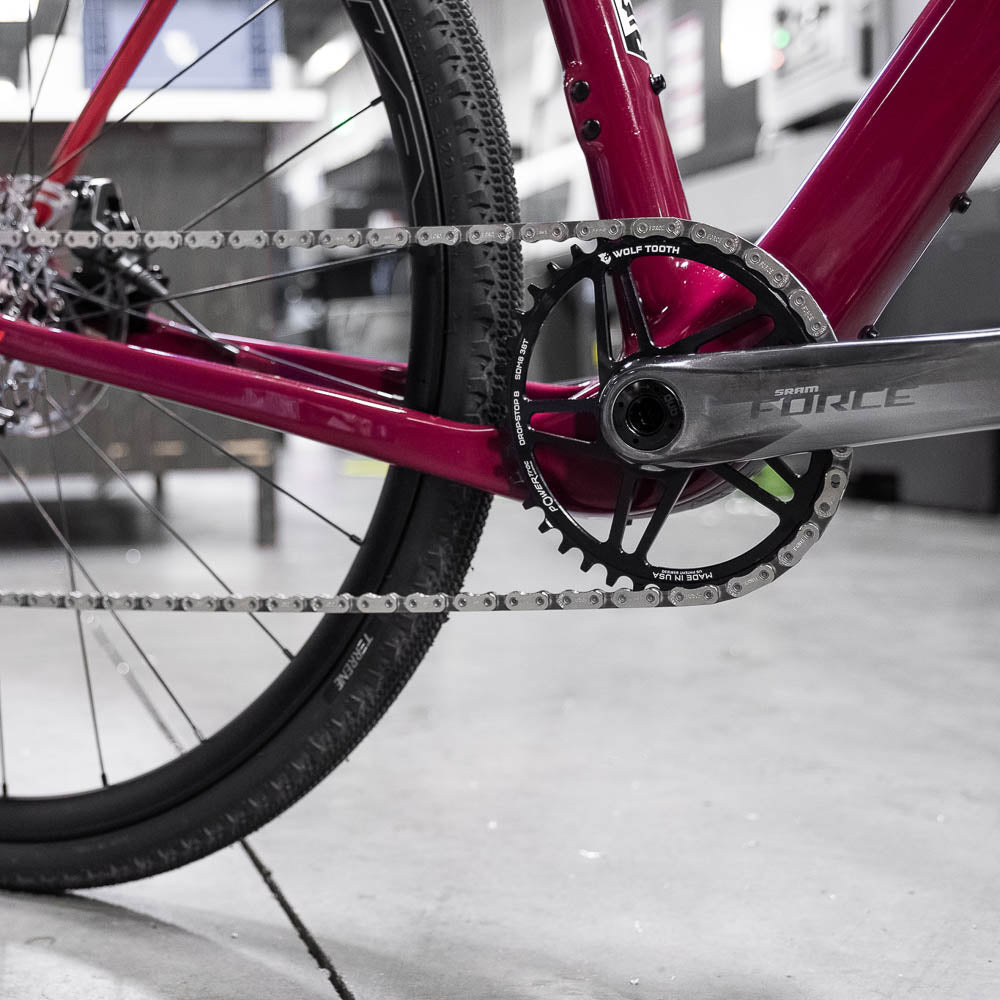

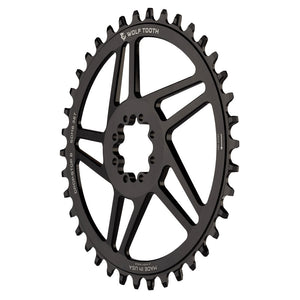

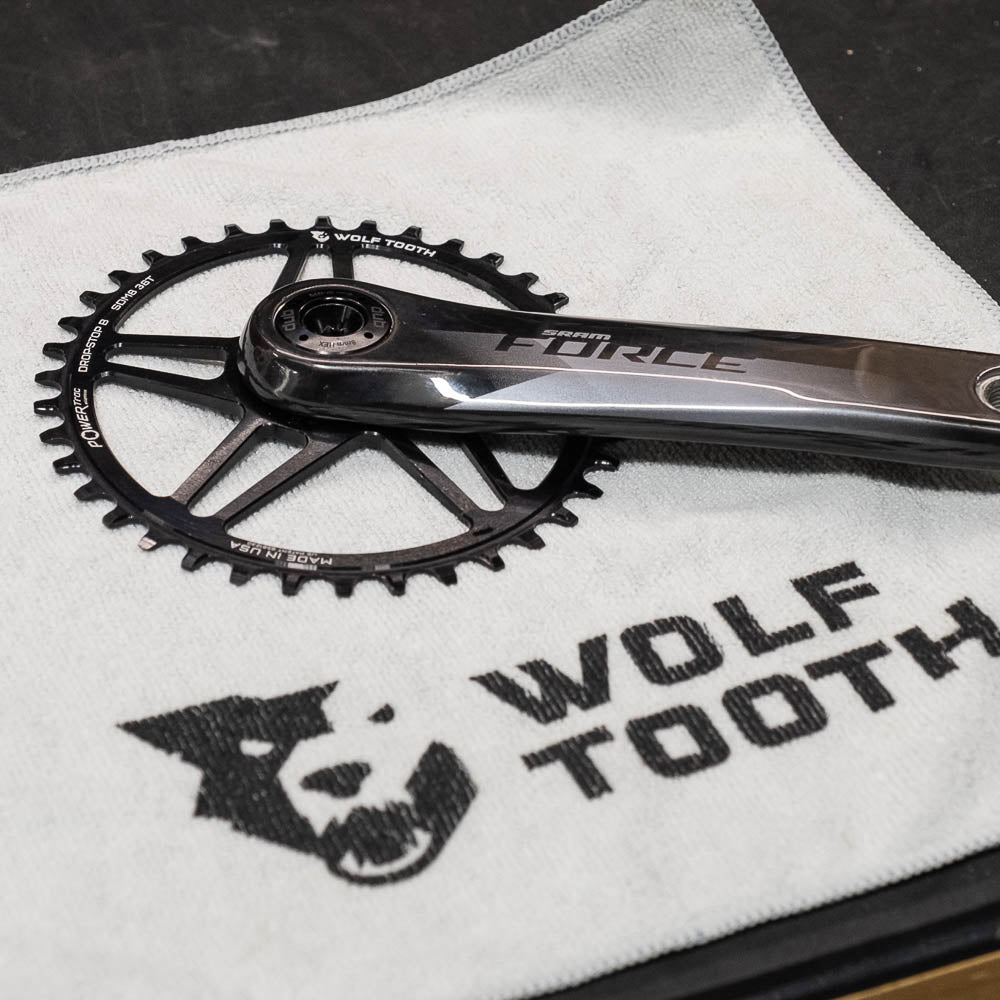

Direct mount chainrings for SRAM cranks with 8-bolt mounting replace your existing spider and chainring with one clean looking, lightweight, and stiff piece of machined billet.
-
Drop-Stop technology: On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction.
- Alternating wide/narrow tooth pattern prevents chain derailment.
COMPATIBILITY
- These direct mount chainrings will replace your existing chainring and spider or replace the direct mount chainring for SRAM AXS cranksets and other cranks that use the 8-bolt mounting. Most SRAM cranksets have traditionally used a 3-bolt mounting, but the 8-bolt mounting has always been used on the Quarq power meter cranks. Now some non-power meter cranks like SRAM AXS use the 8-bolt mounting.
- All SRAM Direct Mount DUB road cranksets use the 8-bolt mounting standard. These cranksets use either 107 BCD or 94 BCD; any of those cranksets with a removable spider use the 8-bolt mount.
- 6mm offset
- Chainline 45mm
- Use Drop-Stop B for all 9, 10, and 11spd chains or 12spd KMC, Connex, Wippermann, Campagnolo, SRAM Eagle, SRAM Road and Transmission (T-type) Flattop chains
DROP-STOP TECHNOLOGY
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile delivers ultimate chain retention and mud shedding ability. See below for Drop-Stop B compatibility.
RECOMMENDATIONS
- We recommend the use of a clutch style rear derailleur for the best chain security.
- Use the included custom T20 bolts. Torque 4Nm with T20 tool
SPECIFICATIONS
Weight: 38T • 89g | 40T • 106g | 42T • 109g | 44T • 111g
Material: 7075-T6 aluminum

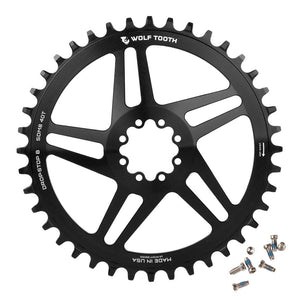

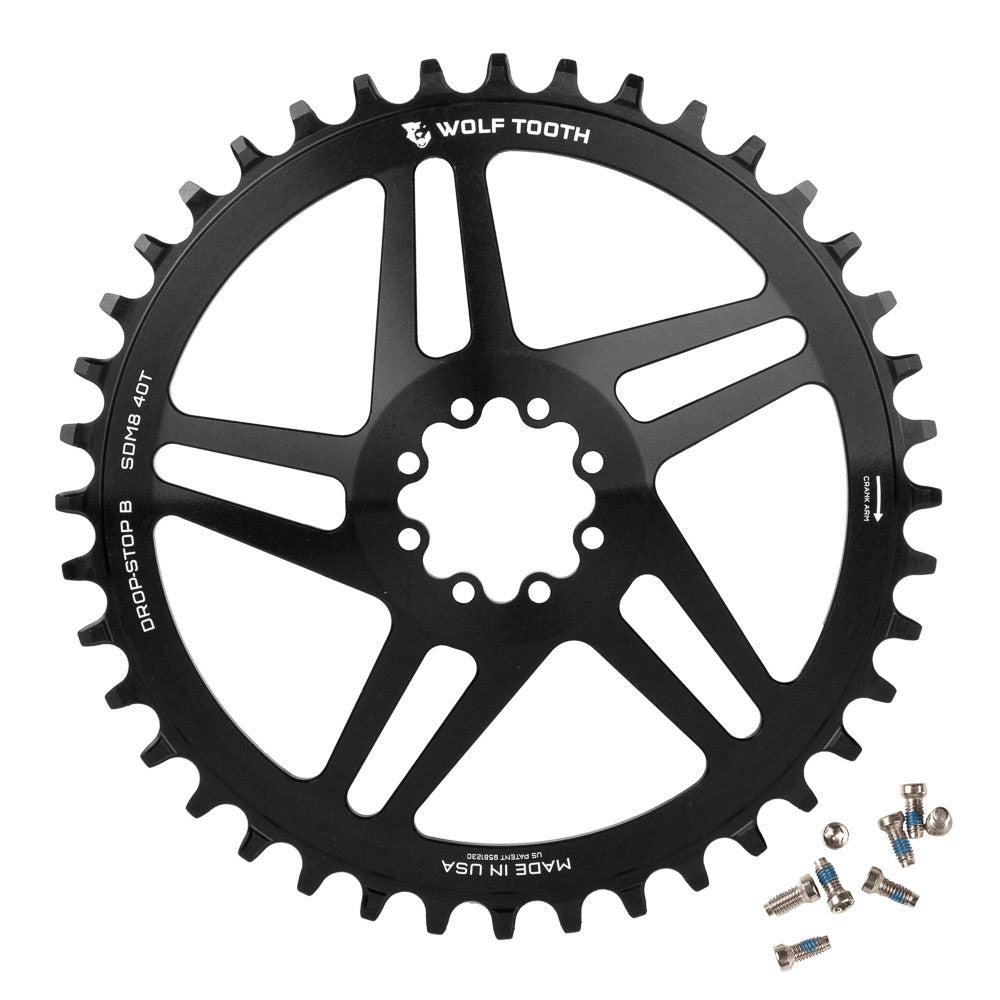

Included: set of eight custom T20 stainless steel bolts
Made in the USA
