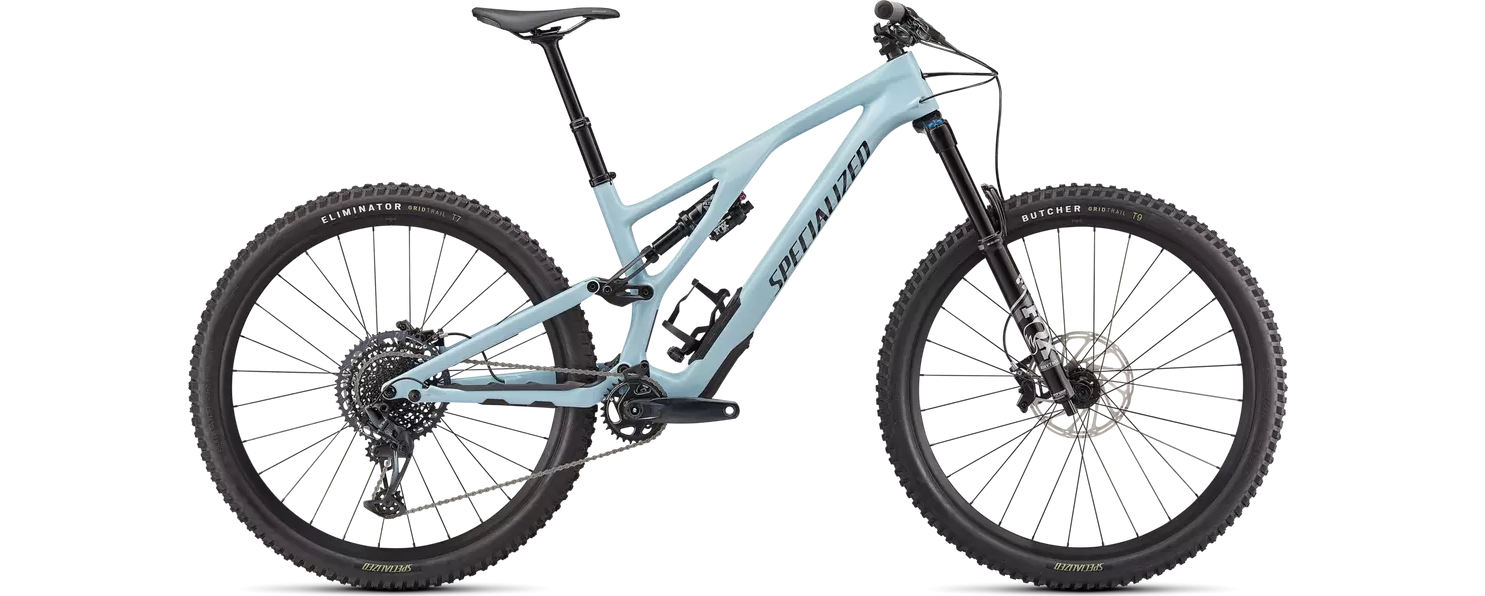

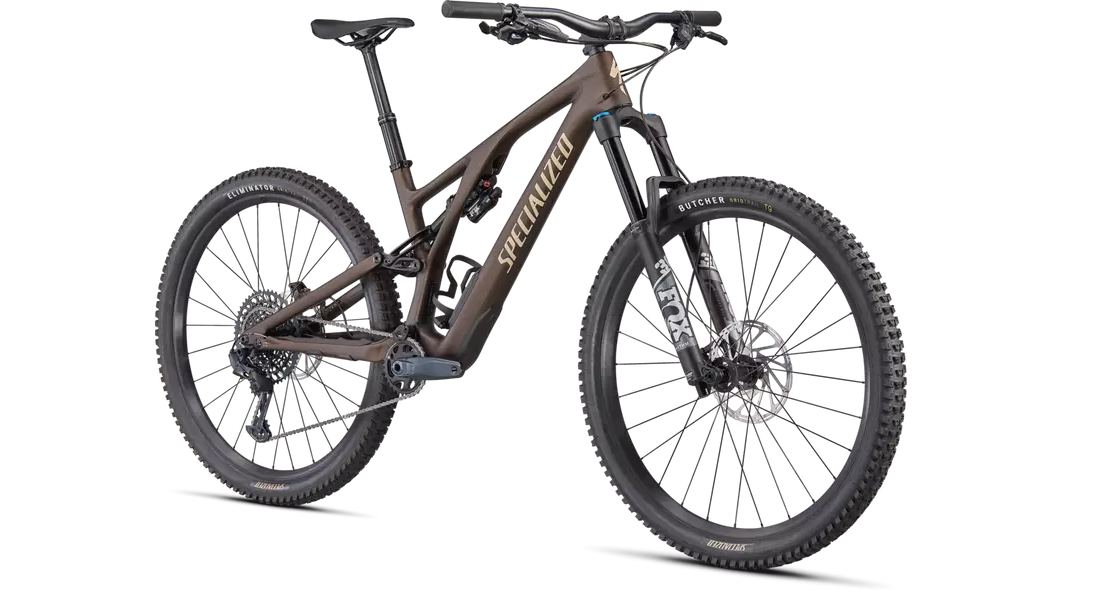

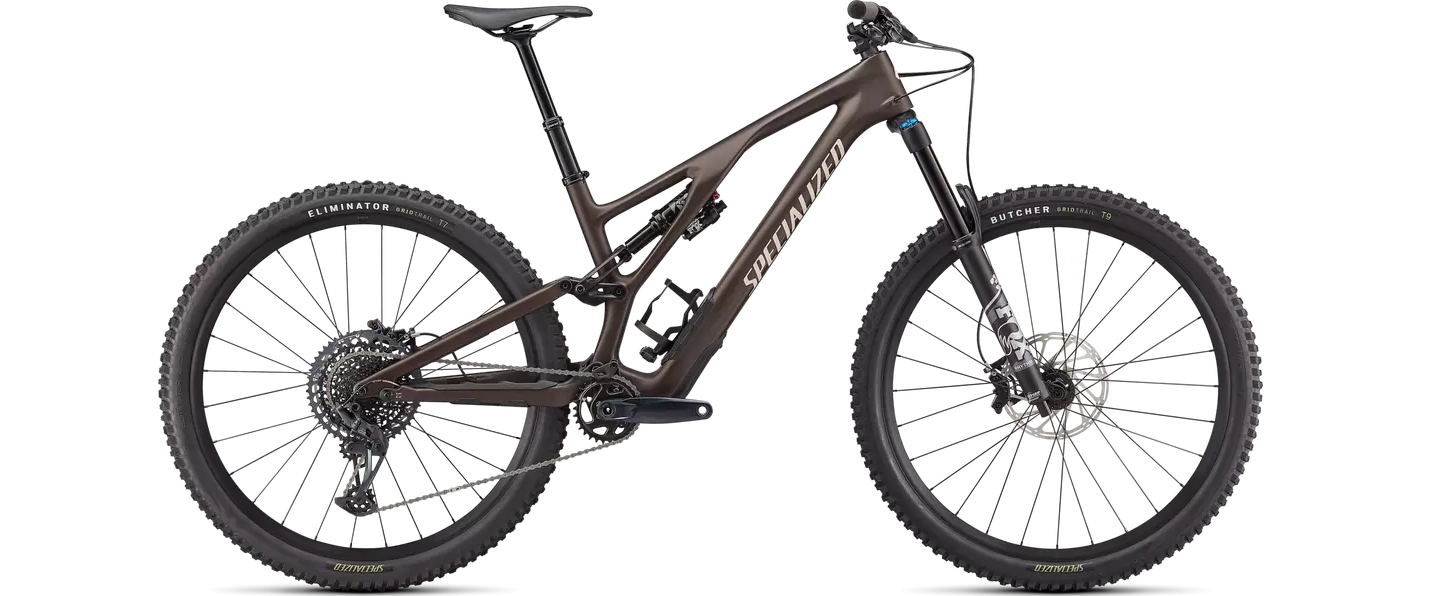

Stumpjumper Evo Comp Carbon 2022
Stumpjumper Evo Comp Carbon 2022
Stumpjumper Evo Comp Carbon 2022
Stumpjumper Evo Comp Carbon 2022
Stumpjumper Evo Comp Carbon 2022
Stumpjumper Evo Comp Carbon 2022

Stumpjumper Evo Comp Carbon 2022

Regular price $8,800.00 //
/

In order to bring EVO fun to the masses, we took our FACT 11m carbon frame (yes, the same one as the S-Works), dressed it with a bullet-proof SRAM GX Eagle 12-speed drivetrain and a tough as nails set of alloy wheels, and set it loose to shred unsuspecting trails everywhere.

  • All the travel in the world is useless without the proper shock tuning and kinematics. For the new Stumpjumper EVO design, we prioritized kinematic performance. Applying lessons learned while developing the Enduro, then following that with more than 1,000 hours of field and suspension lab development, we’ve not only improved the pedaling performance of the Stumpjumper, but we’ve made it more capable, agile, and lively. We increased anti-squat, so the suspension better resists pedal bob, and we further improved bump performance on square-edge hits. Bottom line? This thing shreds trails, not legs.
  • The S-Sizing geometry of the new Stumpjumper EVO is our most progressive yet. Long, low, slack, short offset fork, steeper seat tube angle – these are requirements for modern progressive riding. But not everyone jibs the same way, which is why the geo on the new Stumpjumper EVO is fully adjustable with six different settings. You can adjust the BB height by 10mm, you can adjust your head angle by two-degrees, and you can make these adjustments independently of each other. Finally, if you want to go full-party mullet-mode, the EVO lets you run a 27.5-inch rear wheel mated with a 29-inch front.
  • Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight.
  • We introduced the SWAT™ door on the Stumpjumper in 2016, adding room IN your frame for those “oh sh**t” necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant. With the new Stumpjumper, we have increased the volume and added a SWAT™ Bladder, giving you an extra 22oz of water storage – the same size as a small water bottle – hidden in your downtube.

FRAMESET

Frame

FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel

SWAT

Increased-volume SWAT™ Door integration with 22oz SWAT™ Bladder

Seat Binder

Alloy, 38.6mm

SUSPENSION

Rear Shock

FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, S1:210x50mm, S2-S6:210x55mm

Suspension

Fork

FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, S1:150mm of travel, S2-S6:160mm of travel

COCKPIT

Stem

Alloy Trail Stem, 35mm bar bore

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm width

Tape

Specialized Trail Grips

Saddle

Bridge Comp, Hollow Cr-mo rails, 155/143mm

SeatPost

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm

BRAKES

Front Brake

SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm

Rear Brake

SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm

DRIVETRAIN

Rear Derailleur

SRAM GX Eagle, 12-speed

Shift Levers

SRAM GX Eagle, 12-speed

Cassette

SRAM XG-1275, 12-speed, 10-52t

Chain

SRAM NX Eagle, 12-speed

Crankset

SRAM X1 6K, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm

Chainrings

Alloy, 30T

Bottom Bracket

SRAM DUB, BSA 73mm, threaded

WHEELS

Rims

Specialized 29, hookless alloy, 30mm inner width, tubeless ready

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h

Spokes

DT Swiss Industry

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 29x2.3"

Inner Tubes

Standard, Presta valve

S1 S2 S3 S4 S5 S6
BB Drop 40 35 35 35 35 35
BB Height 335 340 340 340 340 340
Bike Standover Height 733 764 763 762 767 770
Chainstay Length 438 438 438 438 448 448
Fork Length (full) 561 571 571 571 571 571
Fork Rake/Offset 44 44 44 44 44 44
Front Center 732 756 780 809 838 873
Headtube Angle 64.5 64.5 64.5 64.5 64.5 64.5
Headtube Length 95 95 105 115 125 135
Max Seatpost Insertion 180 180 200 220 240 260
Min Seatpost Insertion 80 80 80 80 80 80
Reach 408 428 448 475 498 528
Seat Tube Angle 78 77.6 77.2 76.9 77 77
Seat Tube Length 385 385 405 425 445 465
Stack 613 617 626 635 644 654
Top-tube Length (horizontal) 538 564 590 623 647 679
Trail 131 131 131 131 131 131
Wheelbase 1167 1191 1216 1247 1285 1319
