One Bike To Rule All Trails

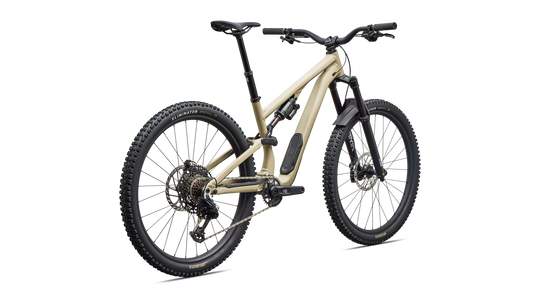

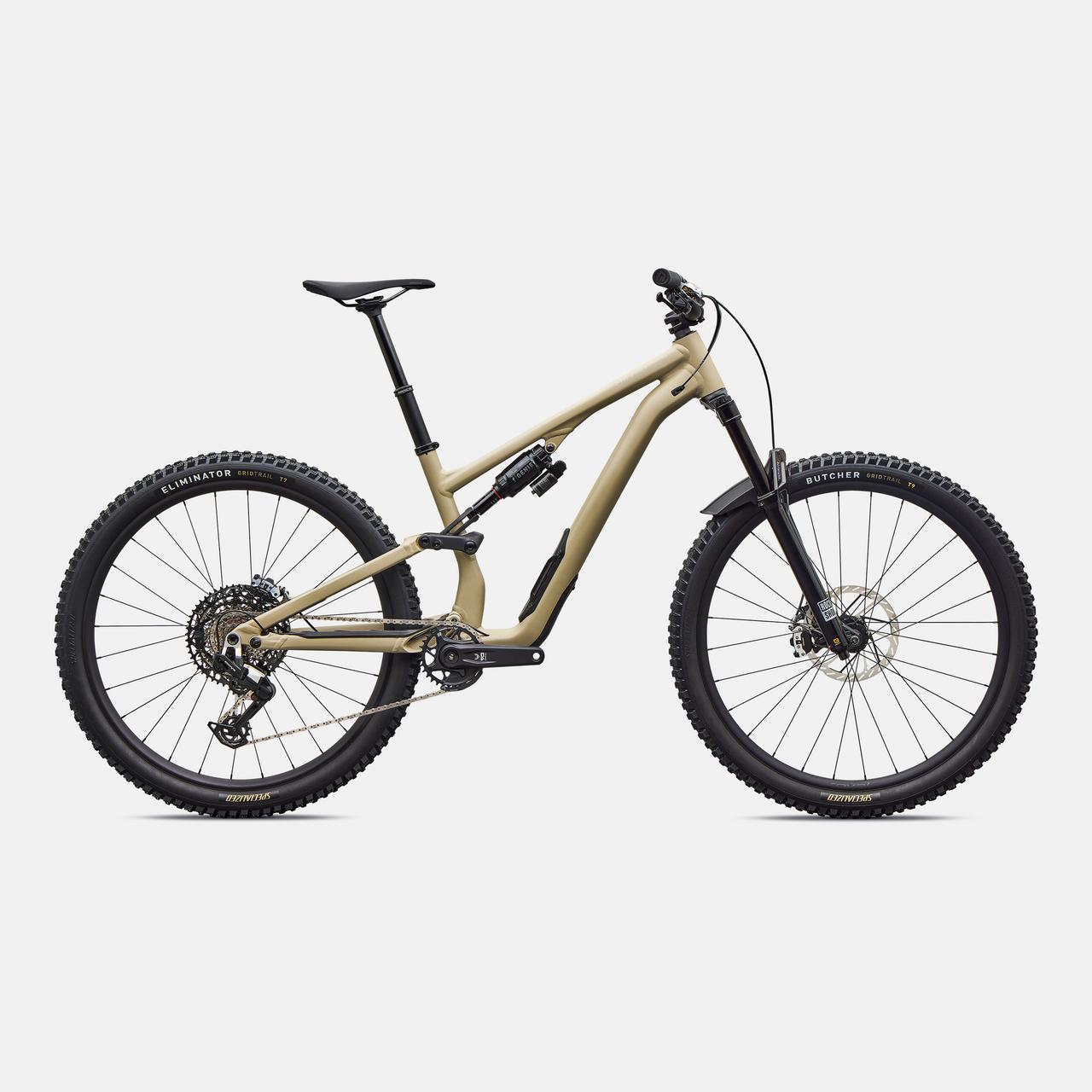

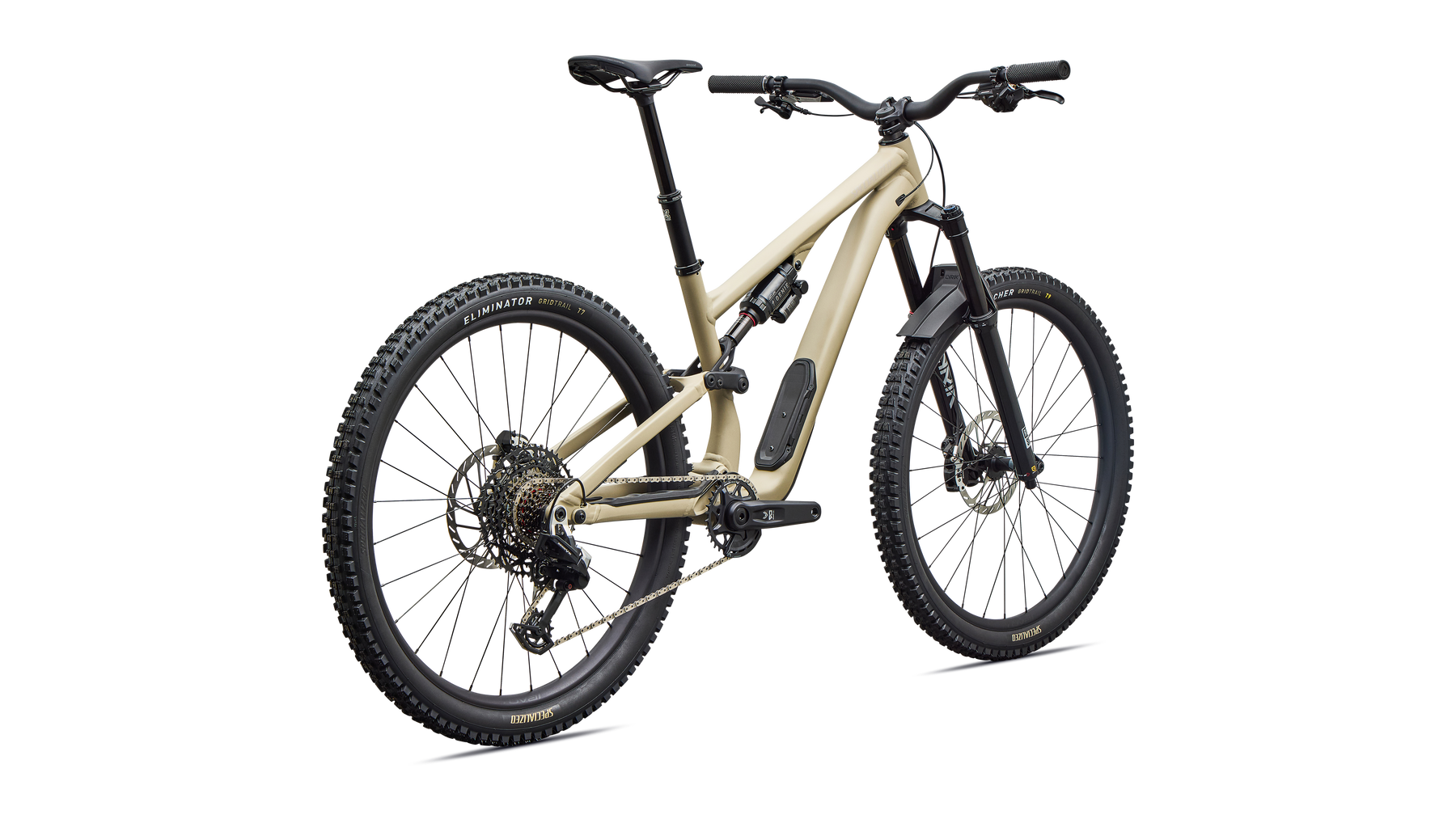

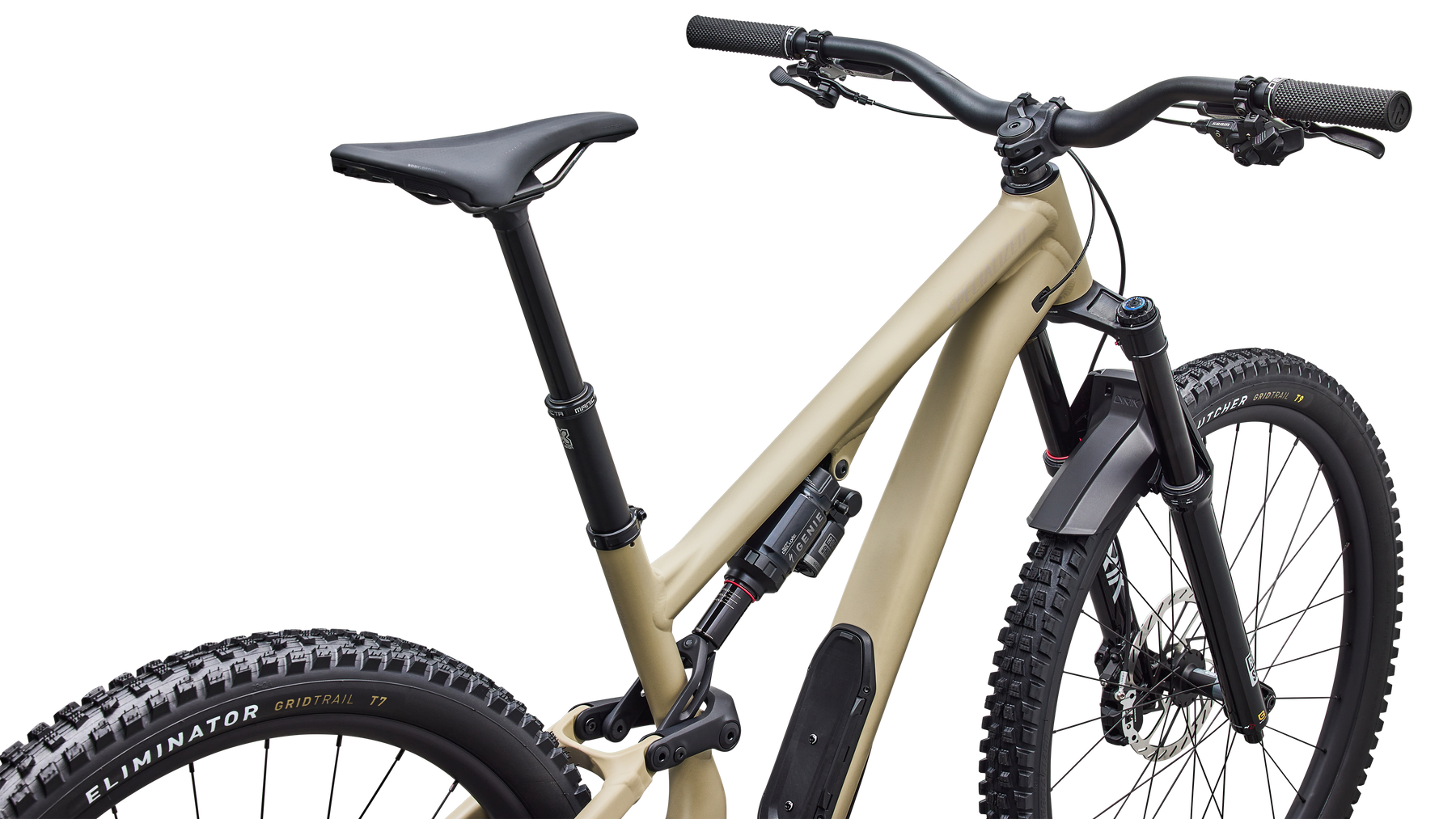

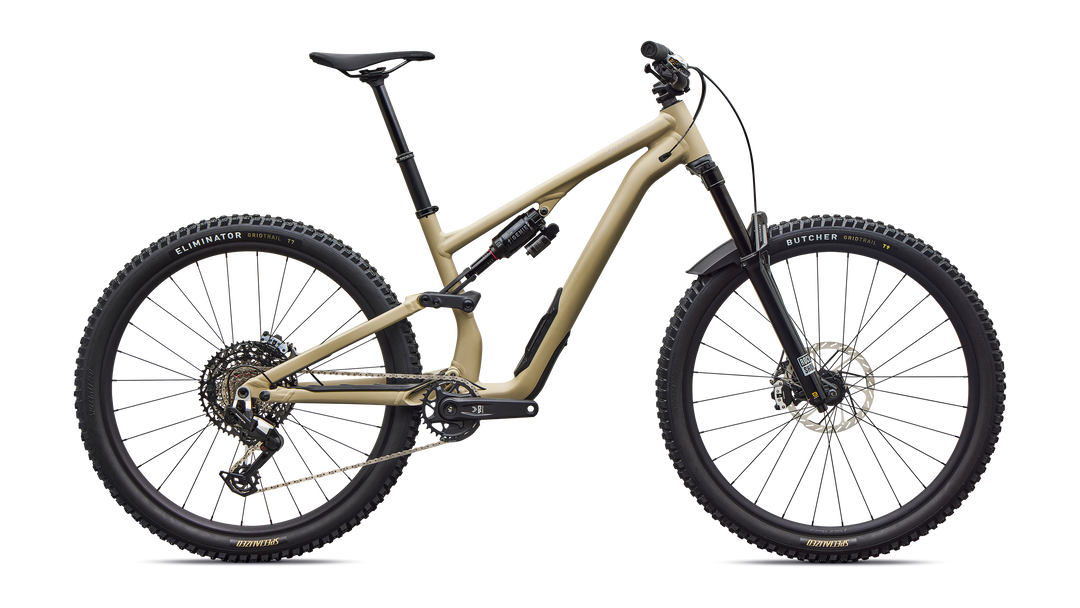

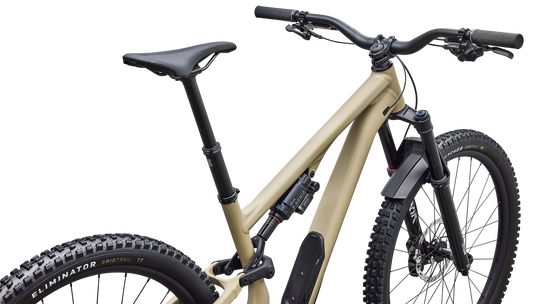

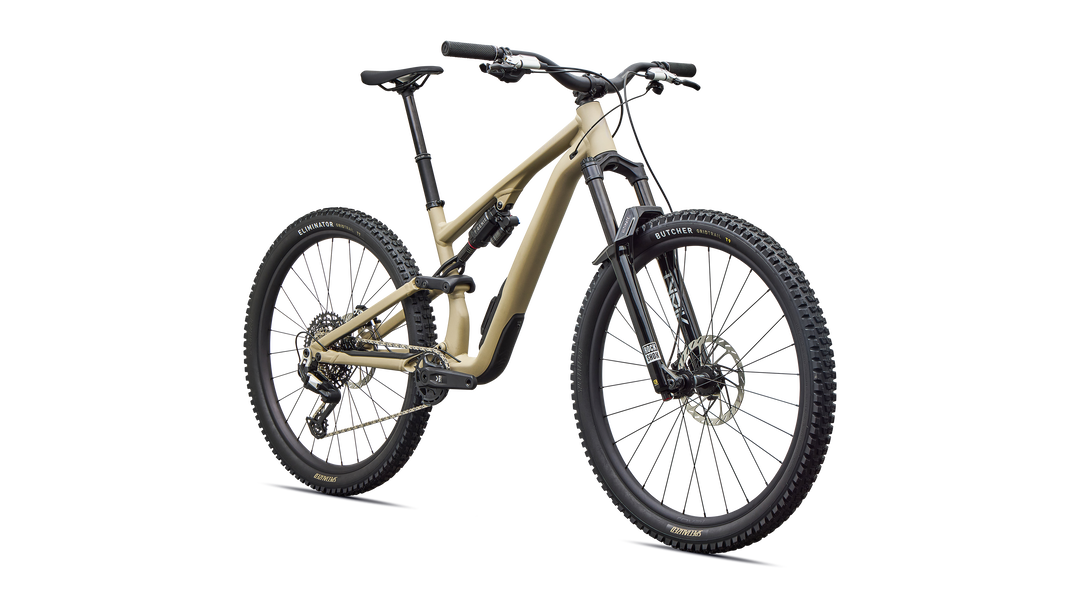

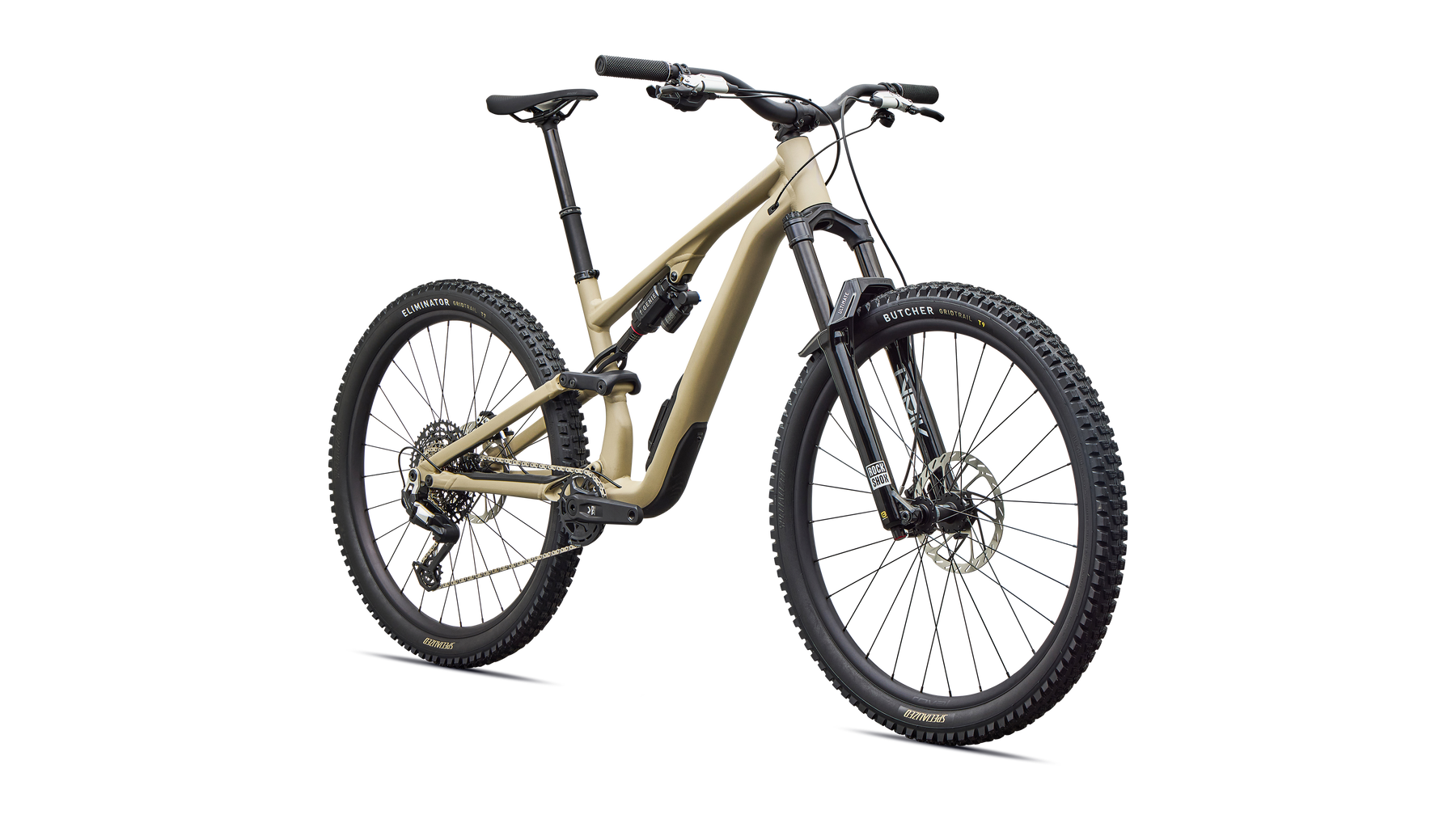

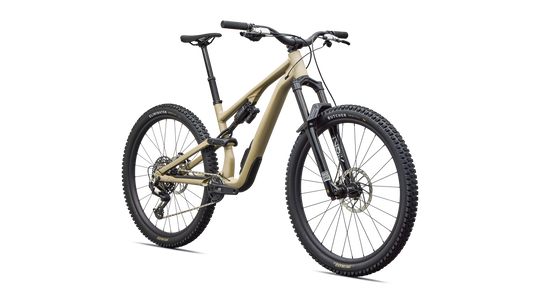

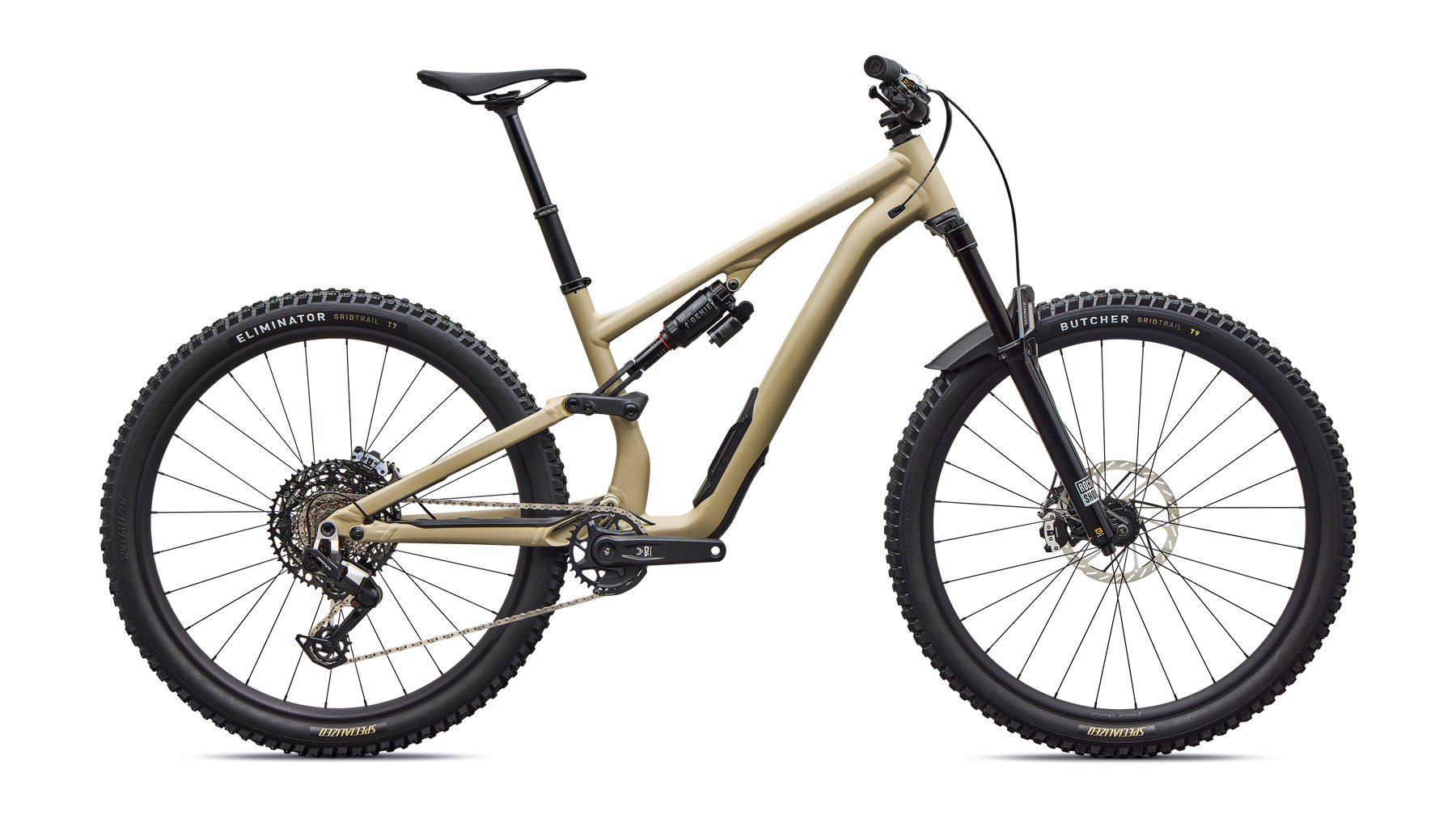

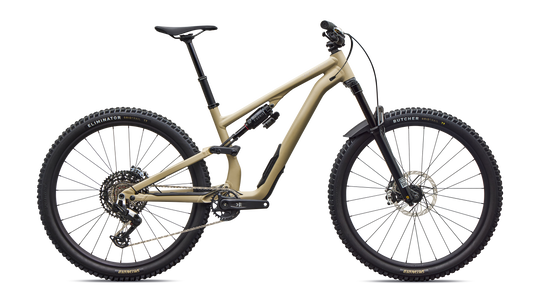

Stumpjumper 15 EVO Elite Alloy
Stumpjumper 15 EVO is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you? Check, check, check.
At a Glance
Use
Trail
Frame
M5 Alloy, SWAT Door integration, adjustable Trail Geometry
Suspension
Front: 160mm RockShox Lyrik Ultimate fork<br>Rear: 145mm RockShox Super Deluxe Select shock w/ GENIE
Drivetrain
SRAM Eagle 90 Transmission
Wheels
Roval Traverse HD Alloy wheels w/ DT Swiss 370 hubs
Weight
16.79 kg (37 lb, 0.2 oz)
Frameset
- Seat Binder
- Alloy, 38.6mm
- Frame
- M5 alloy chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
- SWAT
- SWAT 4.0 internal downtube storage
Suspension
- Fork
- All New SRAM Rockshox Lyrik Ultimate, 29" 160mm (S2-S6); 150mm (S1), LinearXL air spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust
- Rear Shock
- All New Rockshox Super Deluxe Select GENIE, GENIE adjustable airspring, rebound adjust, 210x55mm
Brakes
- Rear Brake
- SRAM Maven Ultimate B1, 4-piston caliper, hydraulic disc, 200mm rotor
- Front Brake
- SRAM Maven Ultimate B1, 4-piston caliper, hydraulic disc, 200mm rotor
Drivetrain
- Cassette
- SRAM 12-speed,10-52t
- Shift Levers
- SRAM 90 trigger, 12-speed, single click
- Bottom Bracket
- SRAM DUB Threaded Wide
- Rear Derailleur
- SRAM Eagle 90 T-Type
- Crankset
- SRAM Eagle 90, S1-S3: 165mm, S4-S6: 170mm, 55mm chainline, 32T
- Chain
- SRAM GX Eagle Transmission 12-Speed Flattop Chain
Wheels & tires
- Front Tire
- Butcher, GRID TRAIL casing, Gripton T9 compound, TLR, 29X2.4
- Rear Tire
- Eliminator, GRID TRAIL casing, Gripton T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4"
- Front Wheel
- Roval Traverse Rim 29", hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370 Hub, 15x110mm, 28h, Sapim Force Spokes
- Rear Wheel
- Roval Traverse Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370 Hub, 15x110mm, 28h, Sapim Force Spokes, S1-S2: 27.5", S3:-S6: 29"
- Inner Tubes
- Standard, Presta Valve
Cockpit
- Stem
- Specialized, 35mm Clamp, 35mm Reach
- Saddle
- Bridge Comp, Hollow Cr-mo rails 155/143
- Grips
- Deity Supracush, Lock On, 34mm OD, 133mm Length, Black

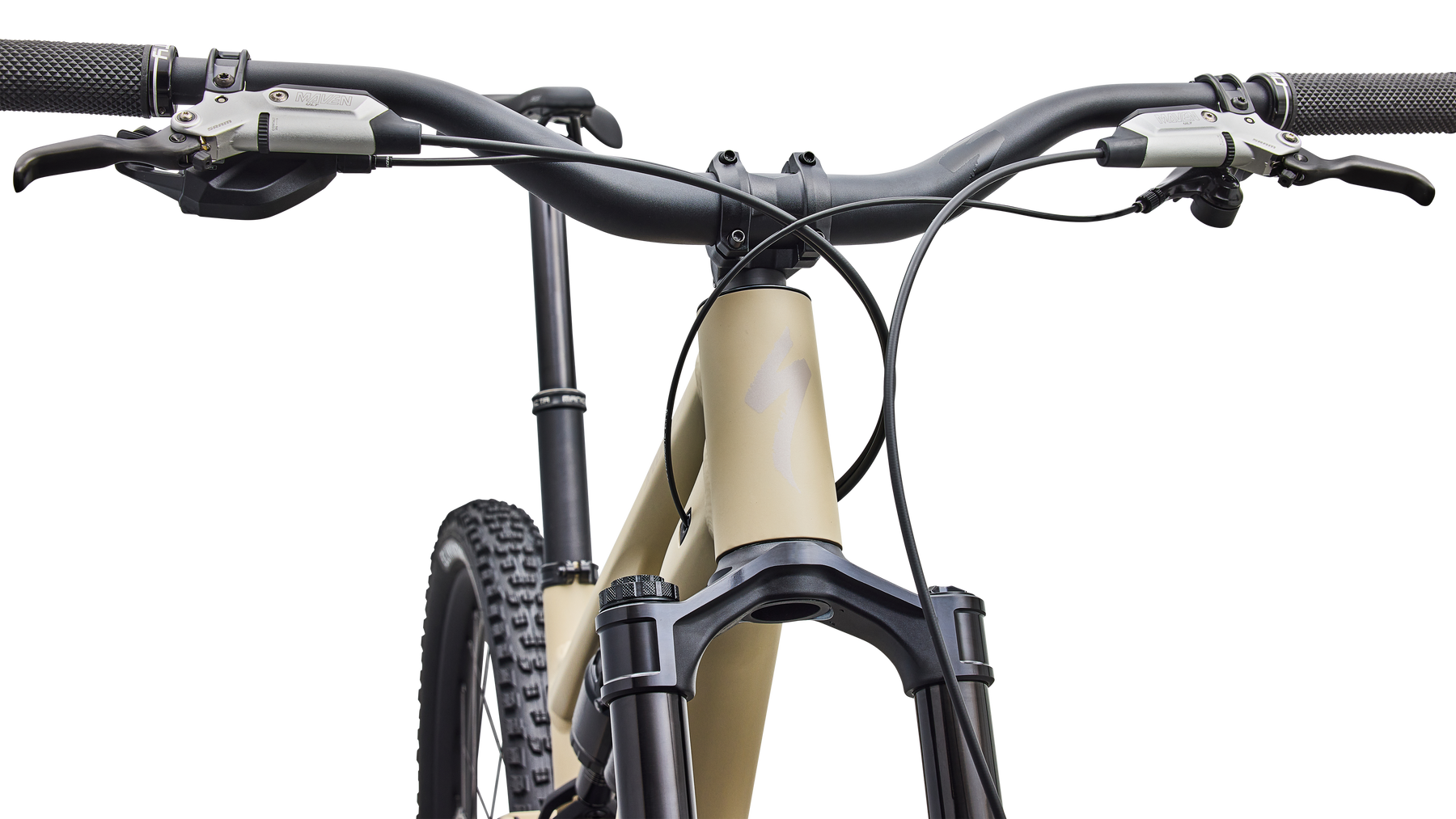

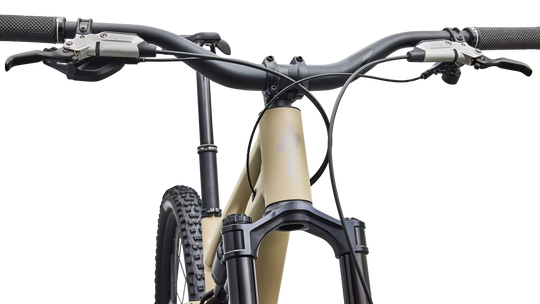

- Handlebars
- Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S6: 800 width, 50mm rise
- Seatpost
- Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
Product details
- Product ID
- 263531
Weight
- Weight
- 16.79 kg (37 lb, 0.2 oz)
- Weight Size
- S4
| S2 | S3 | S4 | S5 | S6 | |
| Crank Length | 165 | 165 | 170 | 170 | 170 |
| Handlebar Width | 780 | 800 | 800 | 800 | 800 |
| Stem Length | 35 | 35 | 35 | 35 | 35 |
| Saddle Width | 155 | 143 | 143 | 143 | 143 |
| Seatpost Length | 150 | 170 | 200 | 200 | 230 |
| Stack | 621 | 630 | 644 | 658 | 671 |
| Reach | 420 | 445 | 470 | 495 | 525 |
| Headtube Length | 100 | 110 | 125 | 140 | 155 |
| Headtube Angle | 64 | 64 | 64 | 64 | 64 |
| BB Height | 340 | 340 | 340 | 340 | 340 |
| BB Drop | 35 | 35 | 35 | 35 | 35 |
| Trail | 134 | 134 | 134 | 134 | 134 |
| Fork Length (full) | 573 | 573 | 573 | 573 | 573 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
| Front Center | 755 | 785 | 816 | 848 | 884 |
| Chainstay Length | 432 | 435 | 435 | 445 | 445 |
| Wheelbase | 1186 | 1217 | 1249 | 1290 | 1327 |
| Top-tube Length (horizontal) | 574 | 596 | 625 | 649 | 678 |
| Bike Standover Height | 751 | 745 | 745 | 745 | 751 |
| Seat Tube Length | 385 | 405 | 425 | 445 | 465 |
| Seat Tube Angle | 76.5 | 76.5 | 76 | 76 | 76 |
| Saddle Height for Effective ST Angle | 690 | 735 | 780 | 825 | 870 |
| Max Seatpost Insertion | 245 | 255 | 255 | 285 | 285 |
| Min Seatpost Insertion | 80 | 80 | 80 | 80 | 80 |
