Regulators, mount up!
The all-mountain workhorse is here to deliver fun on every trail.

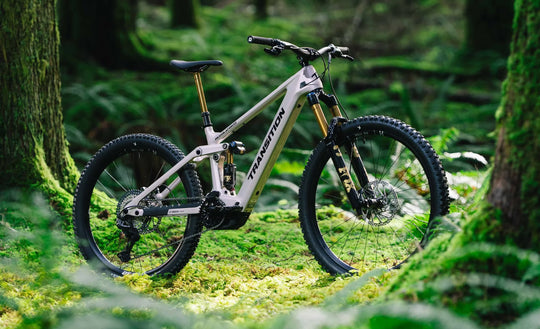

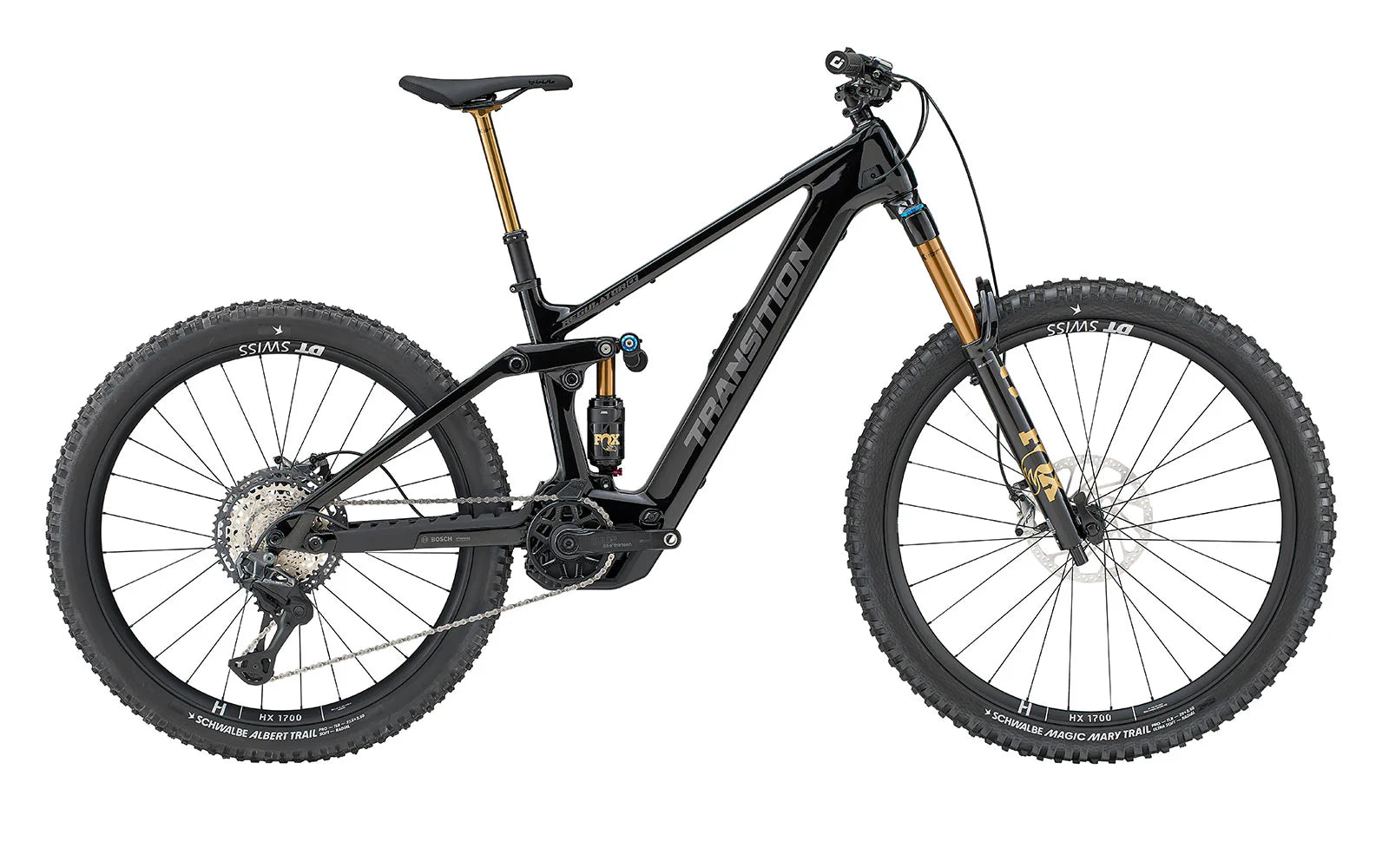

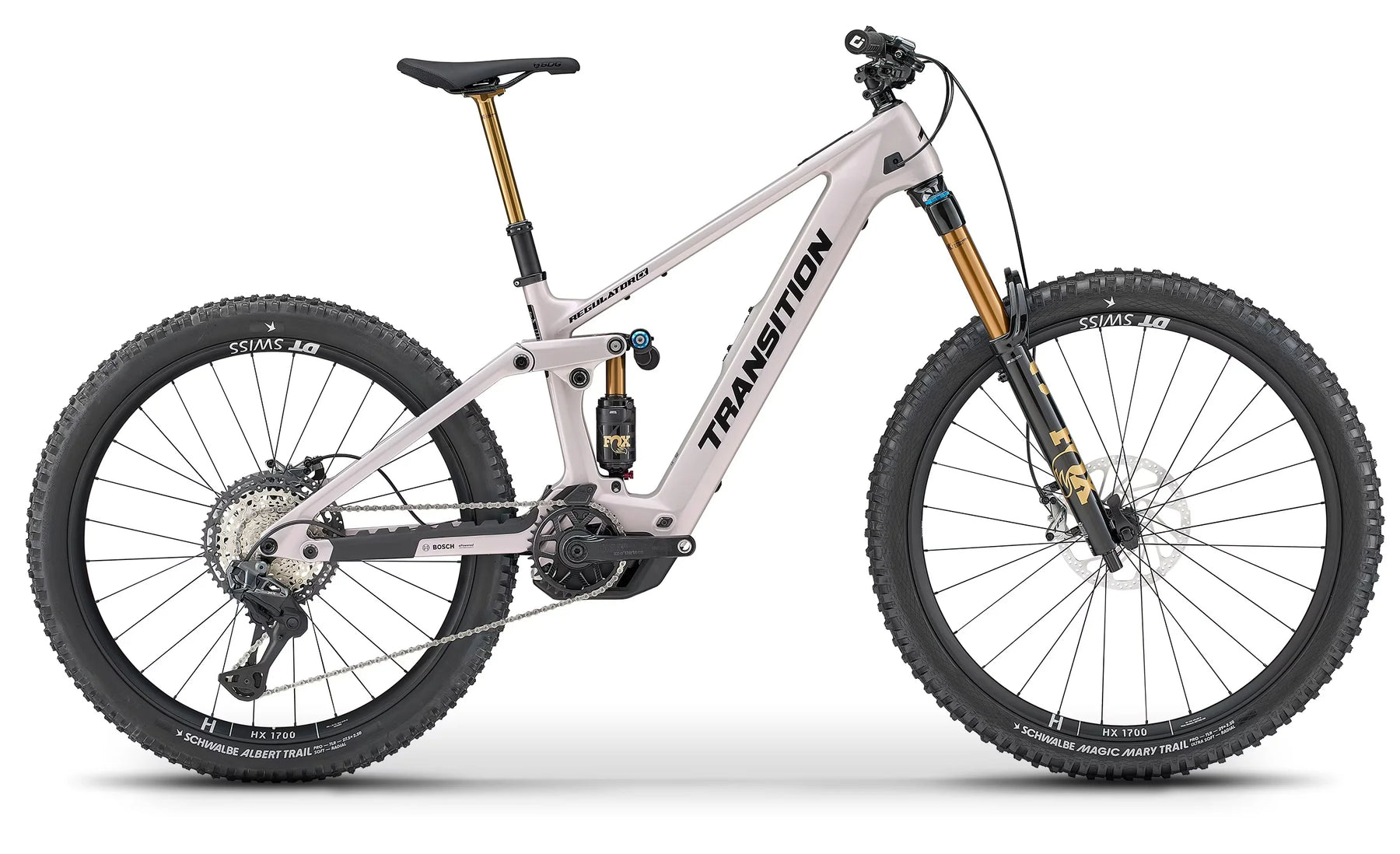

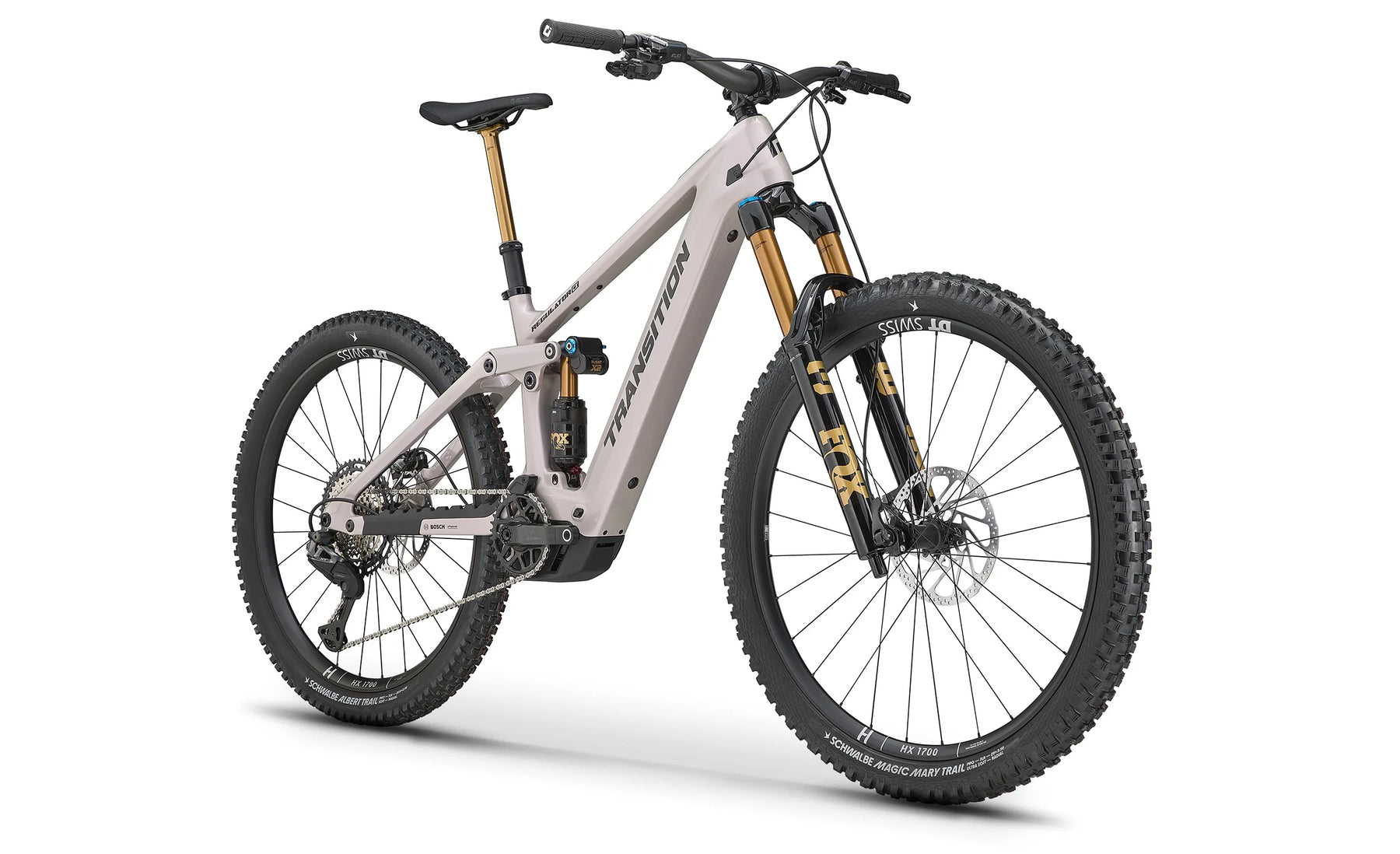

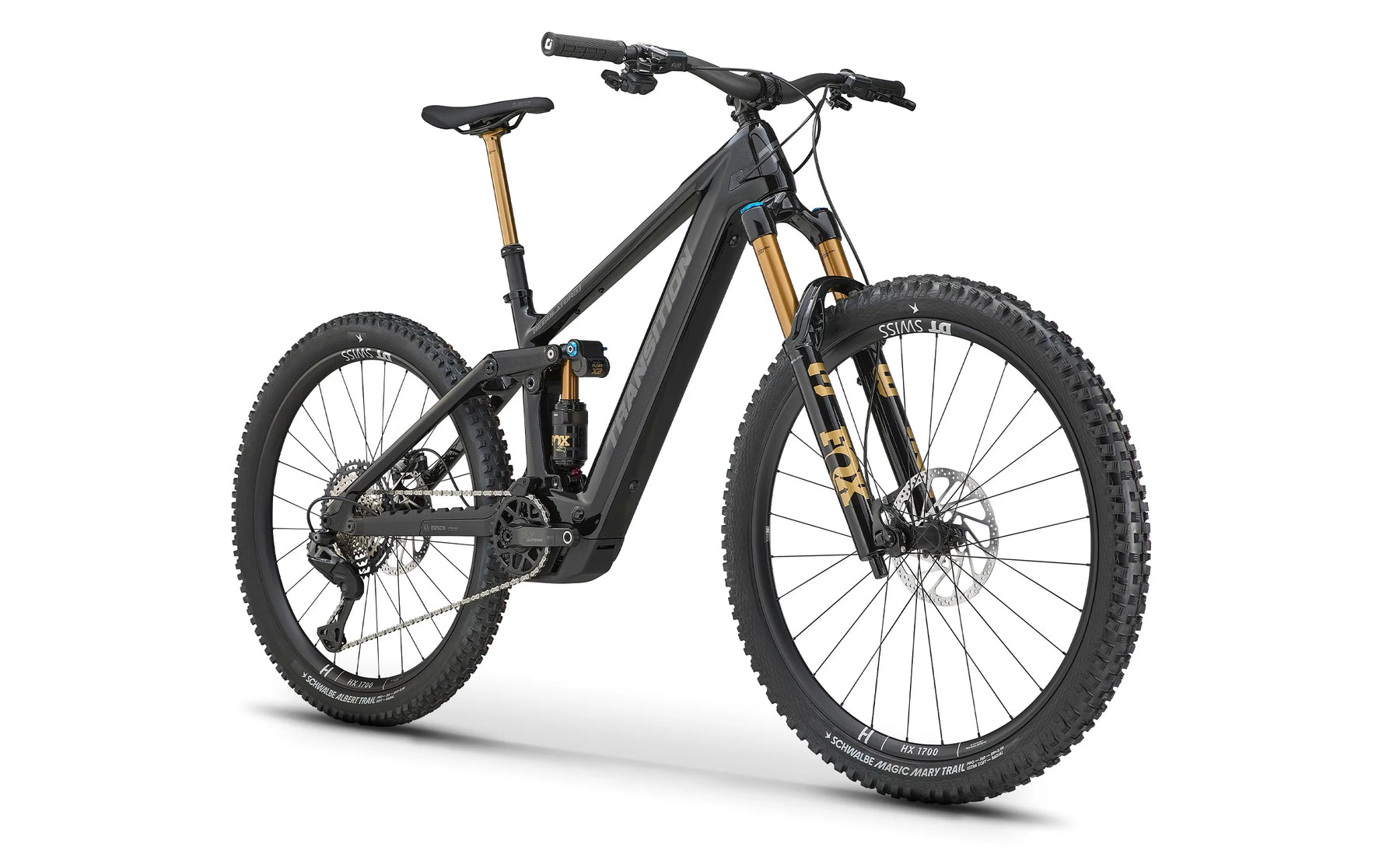

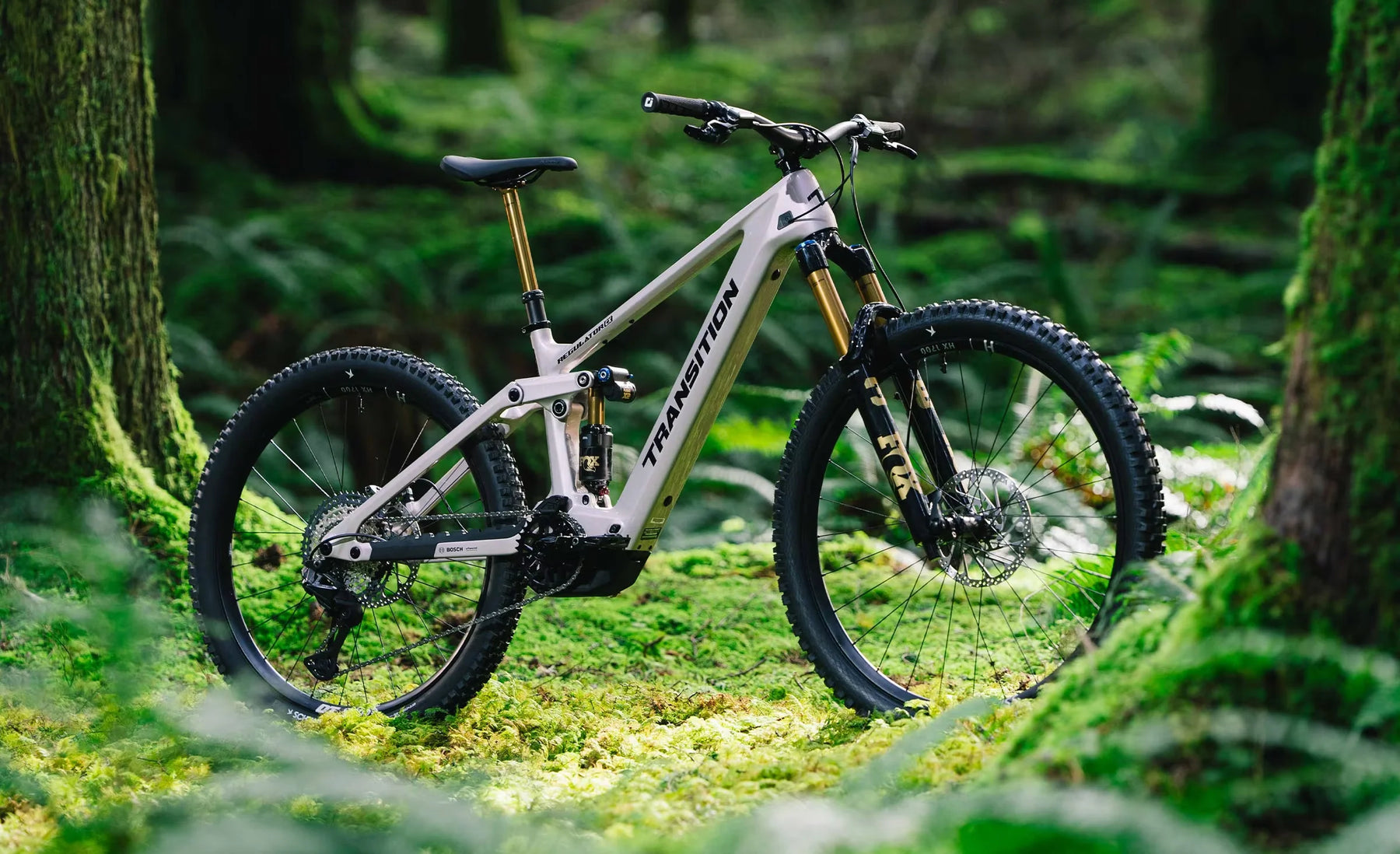

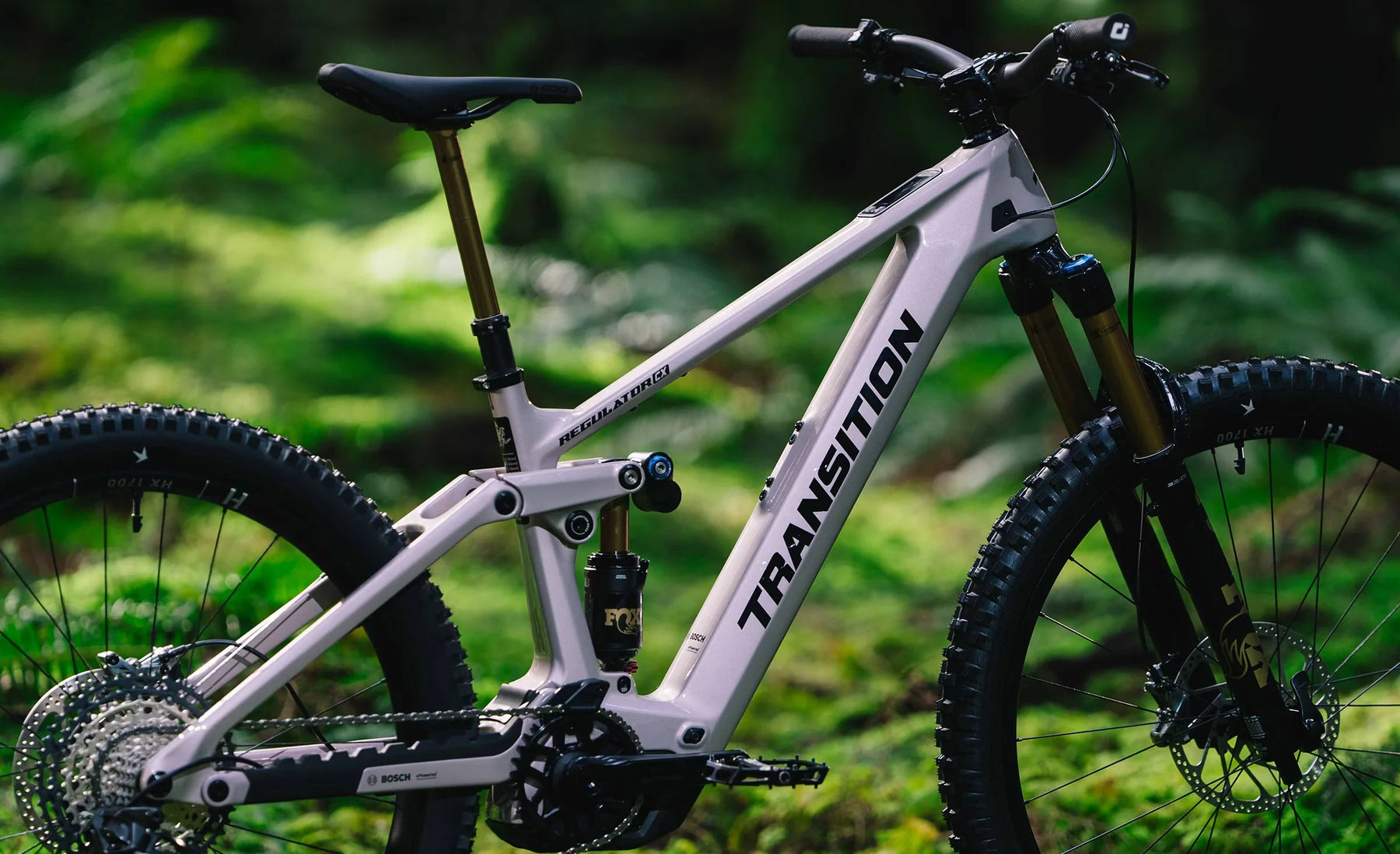

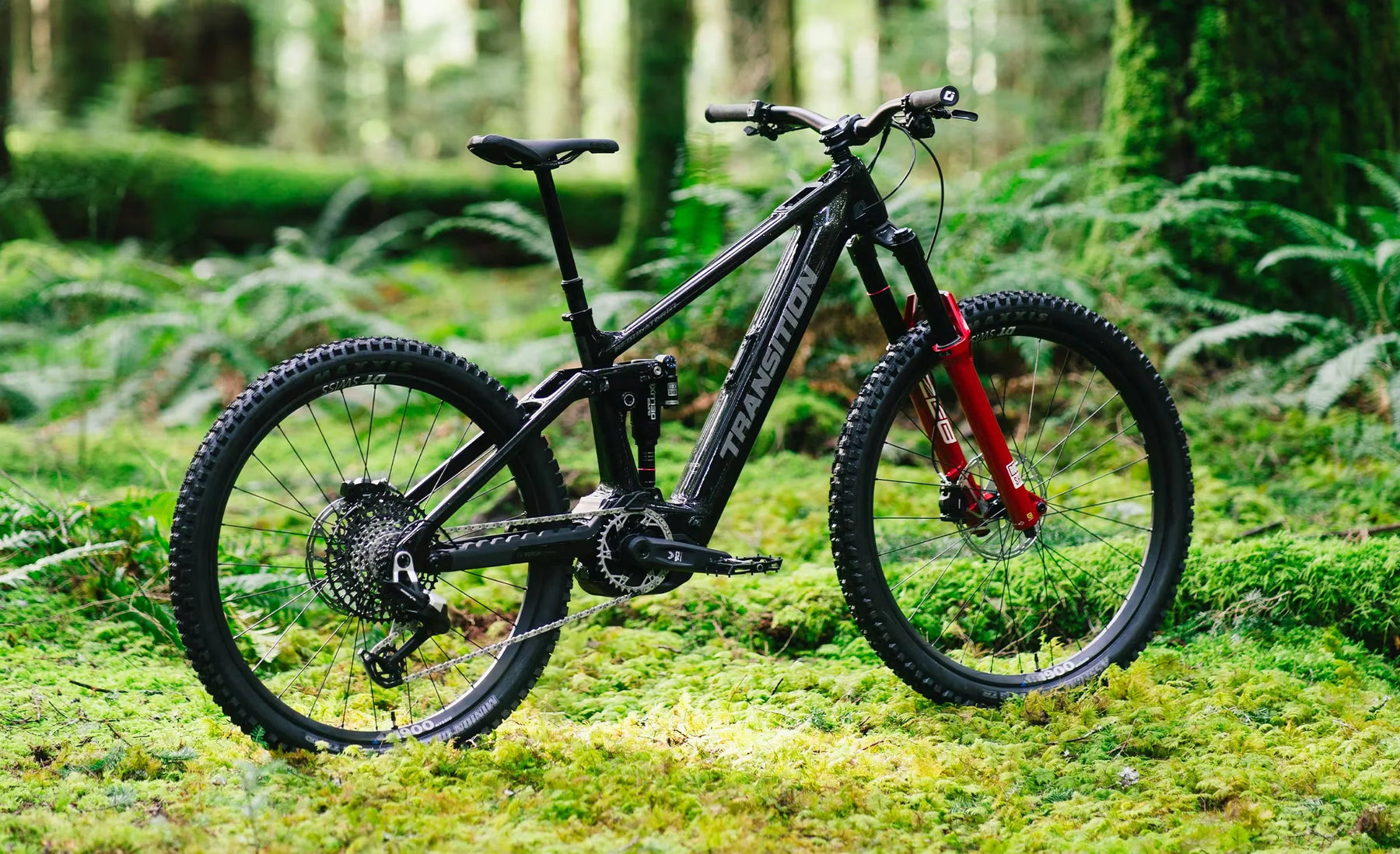

The Regulator CX is our all-mountain workhorse designed to provide a nimble and responsive ride with big power. No trail is too tame or gnarly for the dedicated mixed-wheel platform with 150/160mm travel and geometry that promotes agility and playfulness. The Regulator will be the choice for riders looking for a chassis that excels in a variety of terrain with the added assistance of a Bosch Performance CX drive unit. Known for its legendary reliability, the CX drive unit delivers 120Nm of torque for a powerful and natural ride feel. Enclosed in the downtube is a 600Wh battery to power big rides while remaining sleek and lightweight for the category. For those looking for extra range, the 250Wh Bosch PowerMore range extender will power you up to 850wh for all-day adventures. This combination provides the best range-to-weight ratio for those who value lighter ride characteristics, giving you the best of both worlds with one of the most reliable, powerful, and intuitive motor systems available on the market.

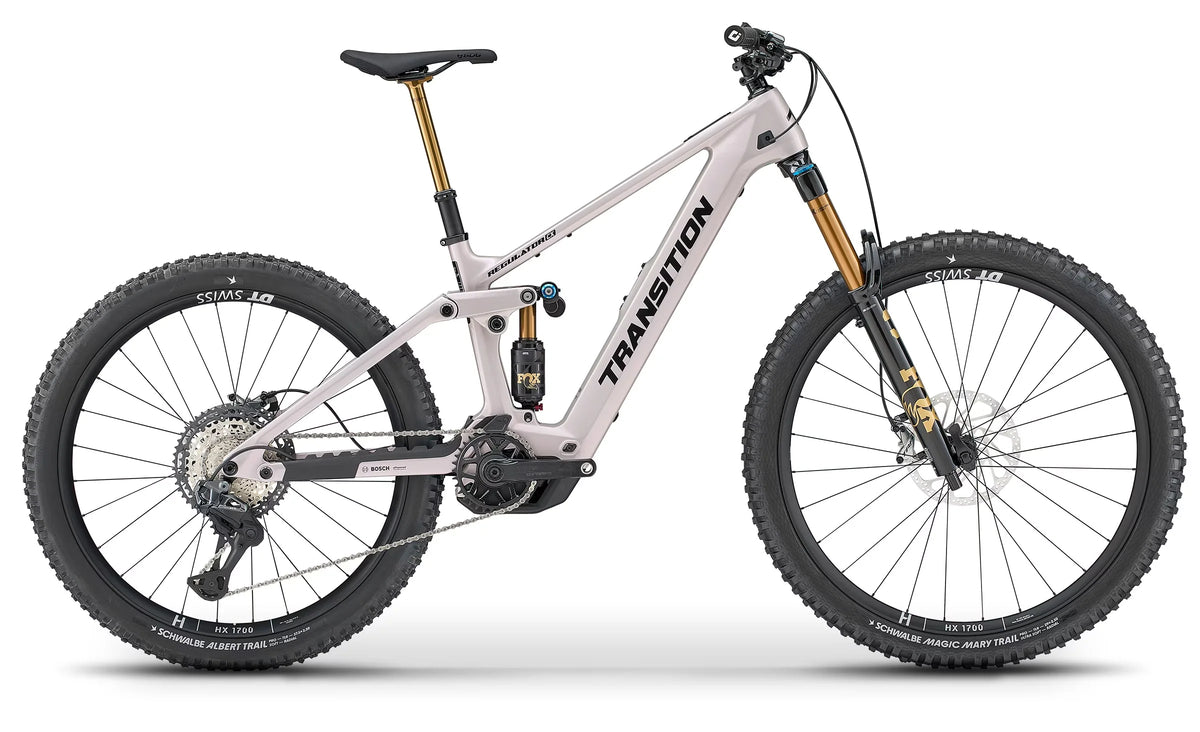

| FRAME | Regulator CX Carbon 150mm |
| WHEEL SIZE | Mixed |
| DRIVE UNIT | Bosch Performance Line CX (BDU38) |
| BATTERY | Bosch PowerTube (600wh) |

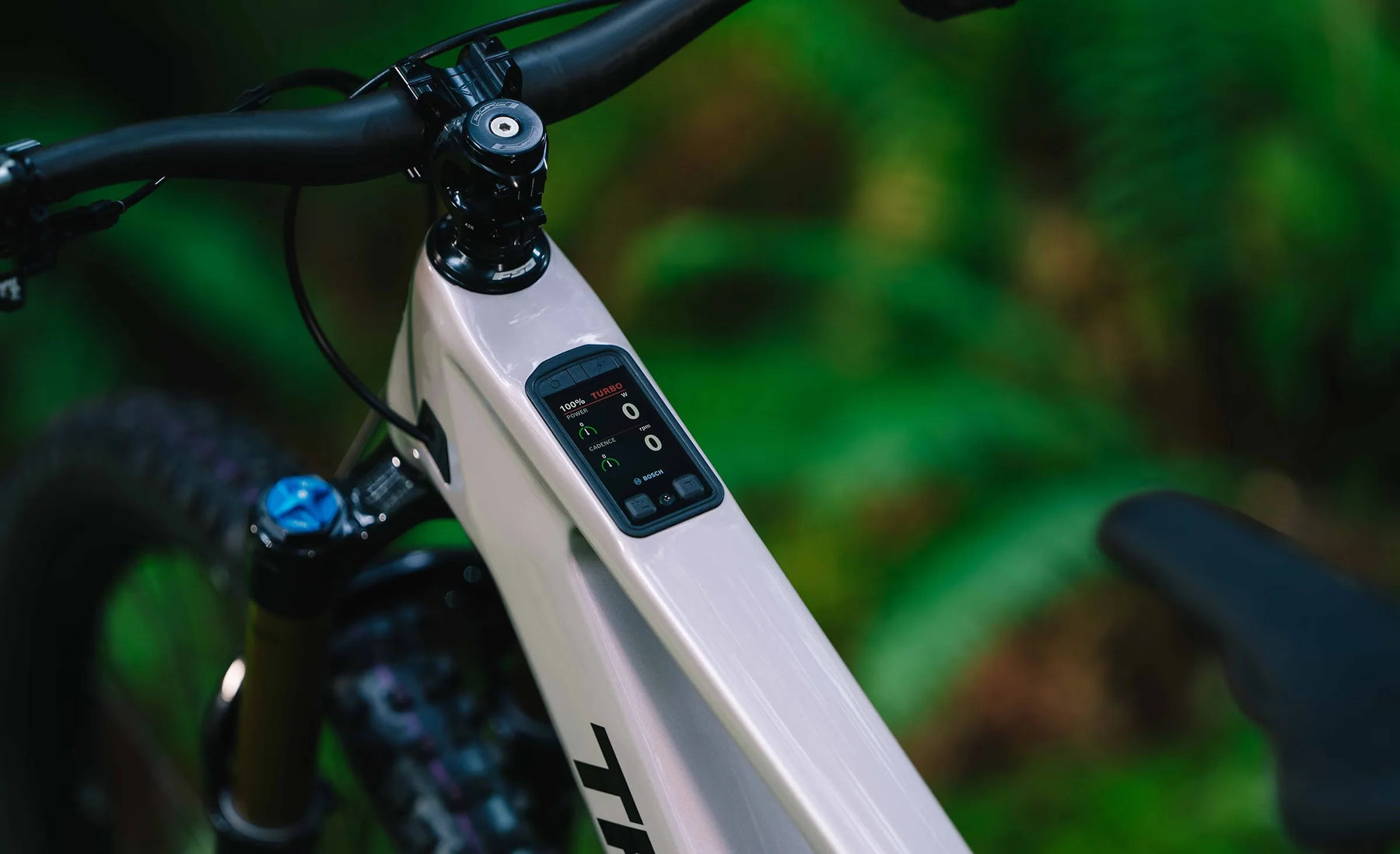

| DISPLAY | Bosch Kiox 400c |
| ASSIST SWITCH | Bosch Wireless Mini Remote |
| REAR SHOCK | Fox Float X2 Factory (205x60mm) |
| FORK | Fox 38 Factory Grip X2 (160mm) |
| HEADSET | FSA No.57E |
| STEM | Race Face Turbine R (40mm) |
| HANDLEBAR | Race Face Era SM(780x20) MD(780x40) LG/XL(800x40) |
| GRIPS | ODI Elite Flow Lock-On |
| SADDLE | SDG Bel Air 3 LUX |
| SEATPOST | Fox Transfer Factory SM(150mm) MD(180mm) LG(210mm) XL(240mm) |
| BRAKES | TRP EVO Pro |
| ROTORS | TRP R1 2.3 (203mm) |
| SHIFTER | Shimano XT Di2 SW-M8250-R |
| DERAILLEUR | Shimano XT Di2 RD-M8260-SGS |
| CASSETTE | Shimano XT CS-M8200 (10-51t) |
| CHAIN | Shimano XT CN-8100 |
| CRANK | E*Thirteen Helix Race (155mm) |
| CHAINRING | E*Thirteen Helix Pro (34t) |
| CHAINGUIDE | Transition Integrated Top Guide |
| RIMS | DT Swiss HX 1700 |
| SPOKES | DT Swiss Hybrid 1 |
| HUBS | DT Swiss Hybrid 350 Ratchet DEG 60 DF - Anti Kickback |
| TIRE/FRONT | Schwalbe Magic Mary, Trail, Radial, Ultra Soft (2.5) |
| TIRE/REAR | Schwalbe Albert, Trail, Radial, Soft (2.5) |
| INCLUDED | Bosch Charger, Shimano Di2 Charger, Tubeless Valves & Sealant |
| SM | MD | LG | XL | |
| A. REACH | 425/420 | 455/450 | 480/475 | 510/505 |
 |
||||
| B.STACK | 623/628 | 632/637 | 641/646 | 651/656 |
|
||||
| C.EFFECTIVE TOPTUBE LENGTH | 551/554 | 583/587 | 610/615 | 643/648 |
|
||||
| D.SEATTUBE LENGTH | 375 | 400 | 440 | 470 |
|
||||
| E.EFFECTIVE SEATTUBE ANGLE | 78.8/78.3 | 78.5/78.0 | 78.2/77.7 | 77.9/77.4 |
|
||||
| SADDLE HEIGHT FOR EFFECTIVE SEATTUBE ANGLE | 600 | 660 | 720 | 780 |
|
||||
| ACTUAL SEATTUBE ANGLE | 75/74.5 | 75/74.5 | 75/74.5 | 75/74.5 |
|
||||
| SEATTUBE OFFSET AT BOTTOM BRACKET | 41 | 41 | 41 | 41 |
|
||||
| F.HEADTUBE LENGTH | 105 | 115 | 125 | 135 |
|
||||
| G.HEADTUBE ANGLE | 64.5/64.0 | 64.5/64.0 | 64.5/64.0 | 64.5/64.0 |
|
||||
| H.CHAINSTAY LENGTH | 442/444 | 442/444 | 448/450 | 448/450 |
|
||||
| I.WHEELBASE | 1201/1203 | 1235/1237 | 1271/1273 | 1305/1307 |
|
||||
| J.BOTTOM BRACKET DROP (FRONT) | 20/25 | 20/25 | 20/25 | 20/25 |
|
||||
| J.BOTTOM BRACKET DROP (REAR) | 0/5 | 0/5 | 0/5 | 0/5 |
|
||||
| K.ESTIMATED BOTTOM BRACKET HEIGHT | 350/345 | 350/345 | 350/345 | 350/345 |
